Price:
NZ$ 141.52 including GST
NZ$ 123.06 excluding GST
or four payments of $35.38
with
Learn More
each

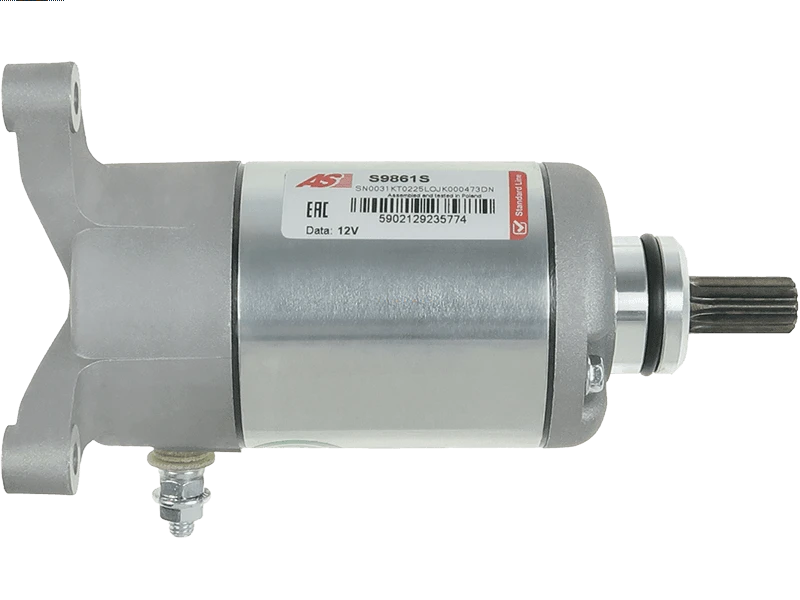

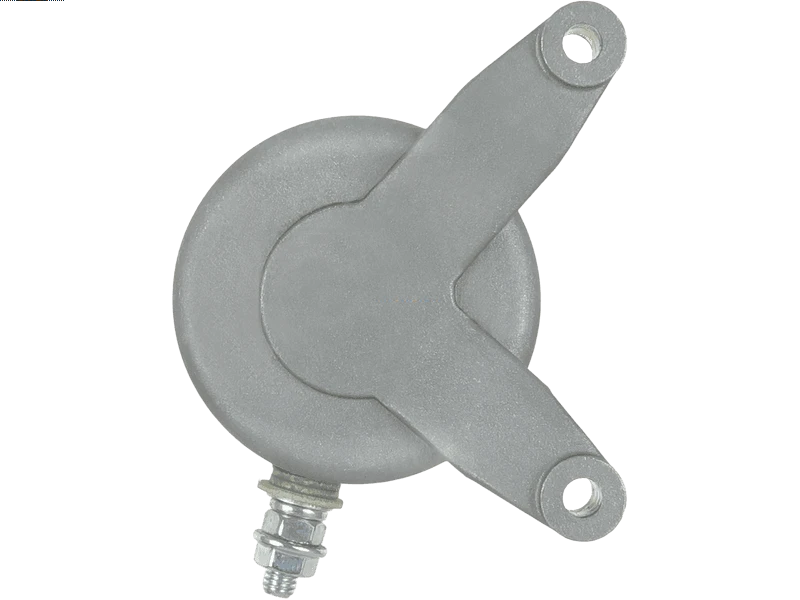

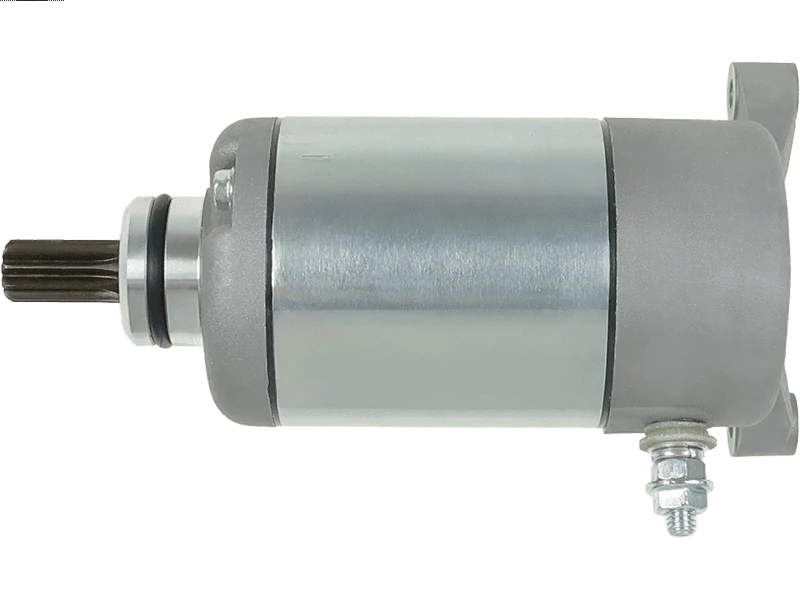

S9861S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 164 mm |
| Mount Hole Center - Center (O.1) | 72 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 41 mm |
| Rotation | ACW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | LT160E Quadrunner | [160cc] | 01.1989-12.1990 |
| SUZUKI | LT160E Quadrunner | [160cc] | 01.1991-12.1992 |
| SUZUKI | LT160 Quadrunner | [160cc] | 01.2003-12.2004 |
| SUZUKI | LT230E Quadrunner | [230cc] | 01.1987-12.1987 |
| SUZUKI | LT230E Quadrunner | [230cc] | 01.1988-12.1990 |
| SUZUKI | LT230E Quadrunner | [230cc] | 01.1991-12.1993 |
| SUZUKI | LT-F160 Quadrunner | [160cc] | 01.1991-12.1997 |
| SUZUKI | LT-F160 Quadrunner | [160cc] | 01.1998-12.1999 |
| SUZUKI | LT-F160 Quadrunner | [160cc] | 01.2000-12.2000 |
| SUZUKI | LT-F160 Quadrunner | [160cc] | 01.2001-12.2001 |
| SUZUKI | LT-F230 Quadrunner | [230cc] | 01.1985-12.1985 |
| SUZUKI | LT-F230 Quadrunner | [230cc] | 01.1986-12.1987 |
| SUZUKI | LT-F250 Ozark | [246cc] | 01.2002-12.2008 |
| SUZUKI | LT-Z250 Quadsport | [246cc] | 01.2004-12.2008 |
Reference Information
UD102736S STU1904 31100-02C00 31100-02C10 31100-02C02 31100-02C01 31100-35B10 256860 31100-35B00 31100-35B11 31100-18A00 400.429.102.190 18808 18808N 71-26-18808 CMA-622096View your shopping basket or Browse other items in Starter Motors.
