Price:
NZ$ 284.22 including GST
NZ$ 247.15 excluding GST
or four payments of $71.06
with
Learn More
each

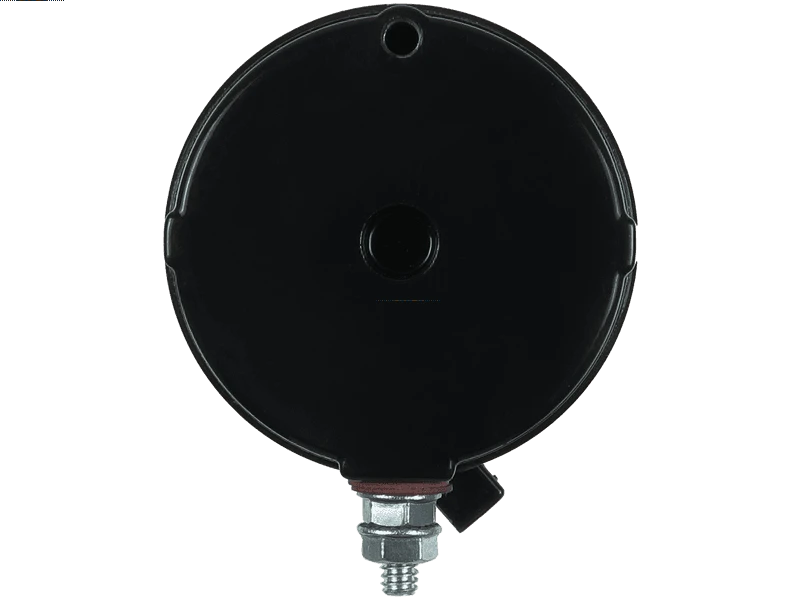

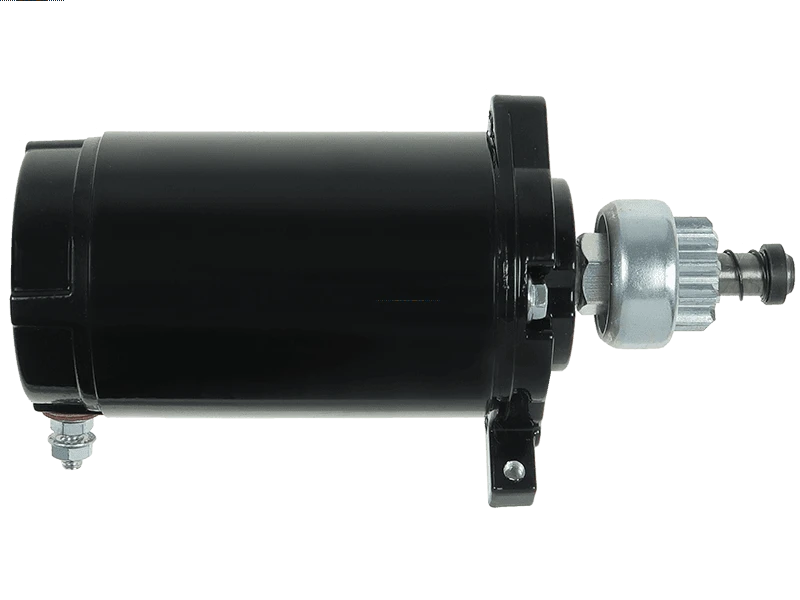

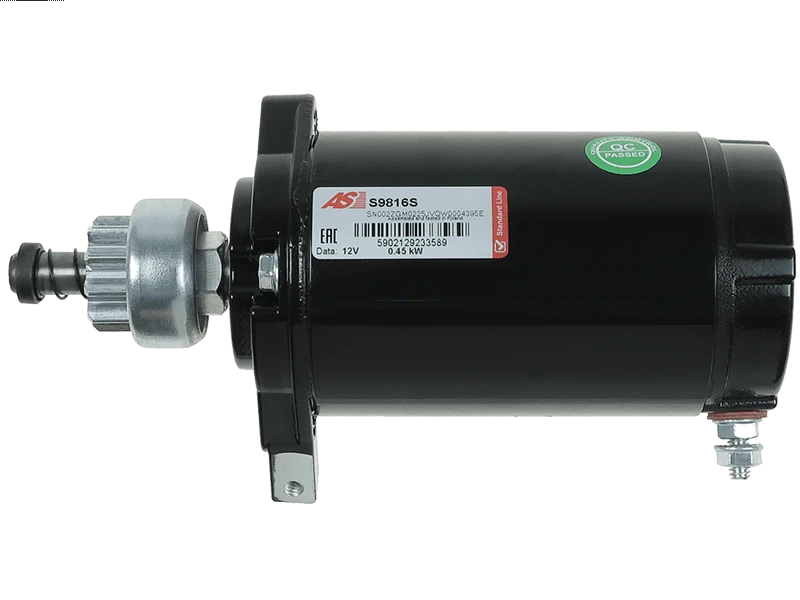

S9816S
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 0.45 kW |
| Length (L.1) | 210 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Diameter (C.1) | 1/4 UNC 20 mm |
| Mount Hole Diameter (C.2) | 1/4 UNC 20 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | ACW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCURY | 35E | [33.3ci-35H.P.] | 01.1984-12.1985 |
| MERCURY | 35EH | [33.3ci-35H.P.] | 01.1984-12.1984 |
| MERCURY | 35EL | [33.3ci-35H.P.] | 01.1984-12.1985 |
| MERCURY | 35ELH | [33.3ci-35H.P.] | 01.1984-12.1985 |
| MERCURY | 35ELO | [33.3ci-35H.P.] | 01.1986-12.1987 |
| MERCURY | 35ELPT | [33.3ci-35H.P.] | 01.1985-12.1985 |
| MERCURY | 35ELPTO | [33.3ci-35H.P.] | 01.1986-12.1987 |
| MERCURY | 35EO | [33.3ci-35H.P.] | 01.1986-12.1987 |
| MERCURY | 40E | [33.3ci-40H.P.] | 01.1980-12.1983 |
| MERCURY | 40EH | [33.3ci-40H.P.] | 01.1980-12.1983 |
| MERCURY | 40EL | [33.3ci-40H.P.] | 01.1980-12.1983 |
| MERCURY | 40ELH | [33.3ci-40H.P.] | 01.1980-12.1983 |
Reference Information
5728N 585063 50-41583 UD102439S RS41044 SAB0083 586280 SM44385 106-513 389275 384163 71-09-5728 5728 410-21049 50-41583T STRJ061 387684 4438540MO30SM ST-5728 106-10519 MS-659View your shopping basket or Browse other items in Starter Motors.
