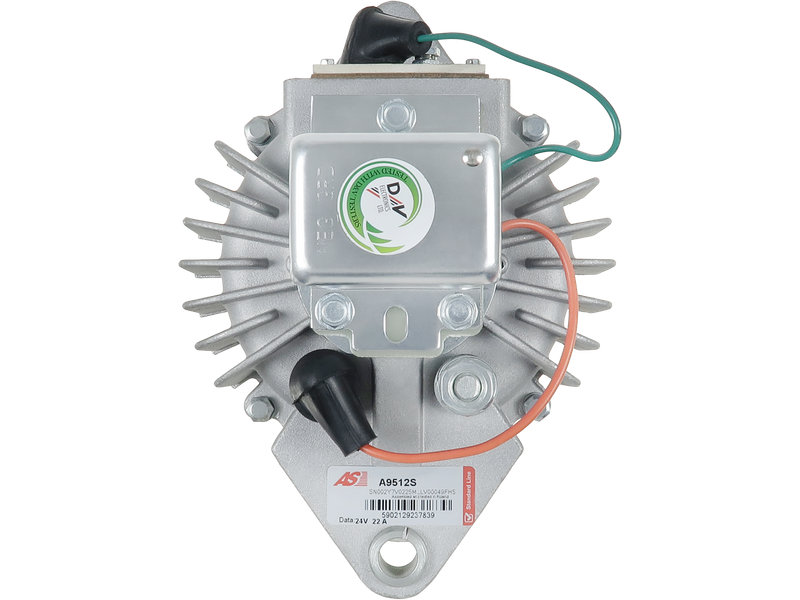

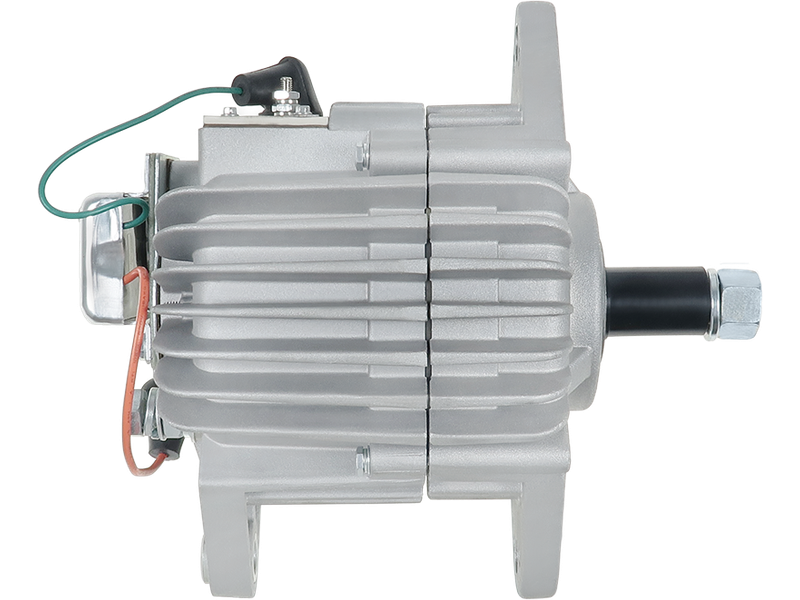

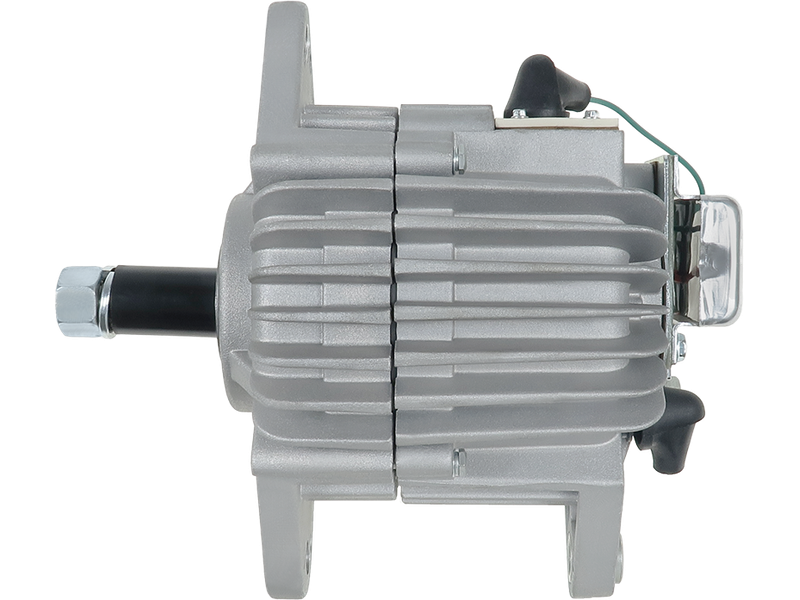

A9512S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS GROUP NZ
SKU: A9512S
Price: 632.60 NZD
Availability: SoldOut

Price:

NZ$ 632.60 including GST

NZ$ 550.09 excluding GST

or four payments of $158.15 with
Learn More

UOM:

each

Product Code:

A9512S

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Specifications
Vehicle Applications
Reference Information

Amp	22 A
Bottom Mounting Foot Width (B)	15 mm
Diameter (D.1)	13 mm
Diameter (D.2)	UNC 1/2"-13G mm
Diameter (D.3)	13 mm
Length (L.1)	257 mm
Mount Inside Length or Pad Mount C-C (C)	101 mm
Plug Code	PL_9104
Pulley Type	NO PULLEY
Voltage	24 V

Make	Model	Type	Year
CASE	1150B	[451]	01.1973-12.1978
CASE	1150B	[504]	01.1973-12.1978
CASE	1450	[504]	01.1973-12.1980
CASE	850	[301]	01.1973-12.1978
CASE	850	[401]	01.1973-12.1978
CASE	X105		01.1973-12.1978
CATERPILLAR	112F		01.1972-12.1974
CATERPILLAR	120B		01.1972-12.1978
CATERPILLAR	120G	[3304]	01.1973-12.1978
CATERPILLAR	12G	[3306]	01.1973-12.1978
CATERPILLAR	130G	[3304]	01.1973-12.1978
CATERPILLAR	140		01.1970-12.1974
CATERPILLAR	140G	[3306]	01.1973-12.1978
CATERPILLAR	14G	[3306]	01.1973-12.1978
CATERPILLAR	16G	[3406]	01.1973-12.1978
CATERPILLAR	215		01.1976-12.1984
CATERPILLAR	225	[3208]	01.1972-12.1977
CATERPILLAR	235	[3306]	01.1973-12.1977
CATERPILLAR	245	[3406]	01.1972-12.1981
CATERPILLAR	561C	[3306]	01.1969-12.1977
CATERPILLAR	561D	[3306]	01.1978-12.1978
CATERPILLAR	571F	[3306]	01.1972-12.1974
CATERPILLAR	571G	[3306]	01.1975-12.1978
CATERPILLAR	572F	[3306]	01.1970-12.1974
CATERPILLAR	572G	[3306]	01.1975-12.1978
CATERPILLAR	583H	[D342]	01.1969-12.1974
CATERPILLAR	583K	[D342]	01.1974-12.1977
CATERPILLAR	594 24.2	[D353]	01.1974-12.1974
CATERPILLAR	594H 24.2	[D353]	01.1974-12.1978
CATERPILLAR	613A	[3208]	01.1969-12.1976
CATERPILLAR	621	[3406]	01.1969-12.1974
CATERPILLAR	623	[3406]	01.1972-12.1974
CATERPILLAR	814	[3306]	01.1969-12.1978
CATERPILLAR	814B	[3306]	01.1970-12.1978
CATERPILLAR	815	[3306]	01.1970-12.1981
CATERPILLAR	816 10.5	[3306]	01.1972-12.1981
CATERPILLAR	824B	[D343]	01.1970-12.1978
CATERPILLAR	824C	[3406]	01.1978-12.1978
CATERPILLAR	825B	[D343]	01.1969-12.1979
CATERPILLAR	825C	[3406]	01.1978-12.1978
CATERPILLAR	826B 14.6	[D343]	01.1972-12.1980
CATERPILLAR	826C 14.6	[3406]	01.1979-12.1999
CATERPILLAR	920	[3304]	01.1969-12.1978
CATERPILLAR	930	[3304]	01.1969-12.1978
CATERPILLAR	941	[3304]	01.1969-12.1972
CATERPILLAR	941B	[3304]	01.1969-12.1978
CATERPILLAR	950	[3304]	01.1969-12.1978
CATERPILLAR	951	[3304]	01.1969-12.1971
CATERPILLAR	951B	[3304]	01.1969-12.1971
CATERPILLAR	955K	[D330C]	01.1972-12.1975
CATERPILLAR	955L	[3304]	01.1971-12.1978
CATERPILLAR	966C	[3306]	01.1972-12.1978
CATERPILLAR	977K	[D333C]	01.1971-12.1978
CATERPILLAR	977L	[3306]	01.1972-12.1978
CATERPILLAR	980	[3306]	01.1969-12.1970
CATERPILLAR	980B	[3306]	01.1972-12.1978
CATERPILLAR	980C 14.6	[3406]	01.1978-12.1978
CATERPILLAR	983	[D343]	01.1969-12.1977
CATERPILLAR	988	[3406]	01.1969-12.1976
CATERPILLAR	988B 18.0	[3408]	01.1969-12.1978
CATERPILLAR	D3	[3204]	01.1972-12.1978
CATERPILLAR	D4D	[3304]	01.1969-12.1978
CATERPILLAR	D5	[3306]	01.1969-12.1978
CATERPILLAR	D6C	[3306]	01.1969-12.1978
CATERPILLAR	D6D	[3306]	01.1977-12.1978
CATERPILLAR	D7F	[3306]	01.1969-12.1974
CATERPILLAR	D7G	[3306]	01.1977-12.1978
CATERPILLAR	D8K	[D342]	01.1974-12.1977
CATERPILLAR	D9H 24.2	[D353]	01.1974-12.1978
CATERPILLAR	RM241		01.1971-12.1979
CATERPILLAR	RM263		01.1971-12.1979
CATERPILLAR	T224		01.1971-12.1979
CATERPILLAR	T225		01.1971-12.1979
CATERPILLAR	T226		01.1971-12.1979
JCB	420 5.8	[6-354]	01.1984-12.1991
JCB	423	[DK1160]	01.1985-12.1988
JCB	423	[DKTD1160]	01.1985-12.1988
JCB	426 6.0	[1006-6T]	01.1994-12.2000
JCB	428	[DK1160]	01.1985-12.1991
JCB	428	[DKTD1160]	01.1985-12.1991
JCB	430 5.8	[6-354]	01.1984-12.1989
JCB	435 6.0	[1006-6T]	01.1988-12.1995
JCB	436 6.0	[1006-6T]	01.1994-12.1997
JCB	812 Super 5.8	[6-354]	01.1989-12.1991
JCB	814 Super 5.8	[6-354]	01.1989-12.1991
JCB	816 Super 5.8	[6-354]	01.1989-12.1991
JCB	818 Super 5.8	[6-354]	01.1989-12.1991
JCB	820 Super 5.8	[6-354]	01.1988-12.1992
JCB	822 Super 5.8	[6-354]	01.1989-12.1991
JCB	822 Super 6.0	[1006-6T]	01.1989-12.1991

270-6002A 9213405 89213405 2011646.0 110427 A44794 2P1204 90-06-1017 R34730 APR646A 51-178 51-212 A13R113 ANM92338 2P7836 2P1698 ANB-7003 ANB-7004 ANB-7001 ANB-7002 UD30205A ALT136460A AI-90143 F042303000 G103817 7331N 20112646BN 646.016.022.030 2P5113 ANB-6002 ANB-6004 ALT0248 ANB-6001 5C8661 50932 ALTS885 A34730 WOOALT32016 9S4070 448790 51-153 119207 DRZ0118 CAL11646AS ALT32016 A44440 A13R113T A47434 6N5468 7S5897 9S4870 51-153A 20011646AV
