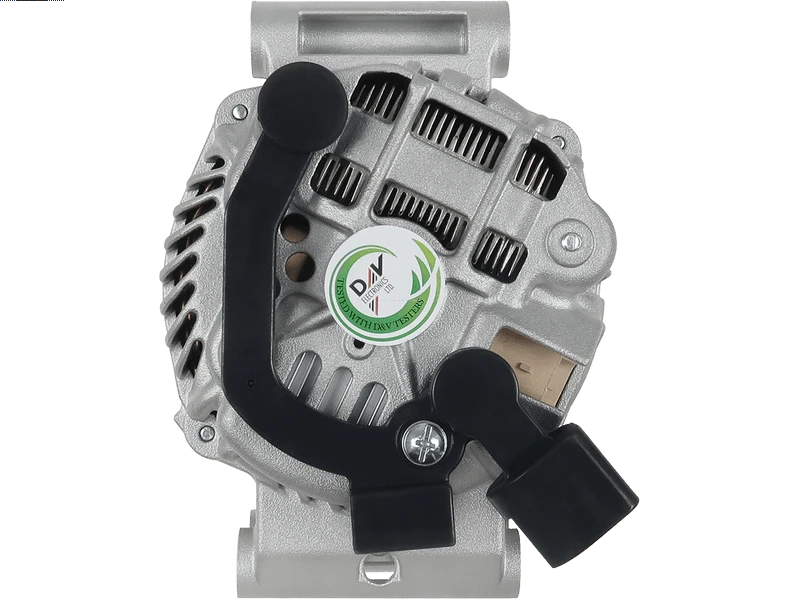

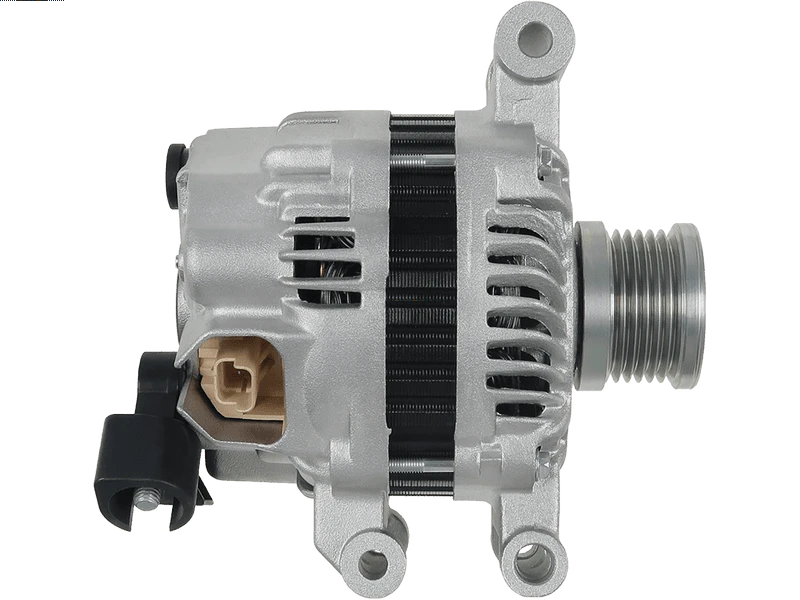

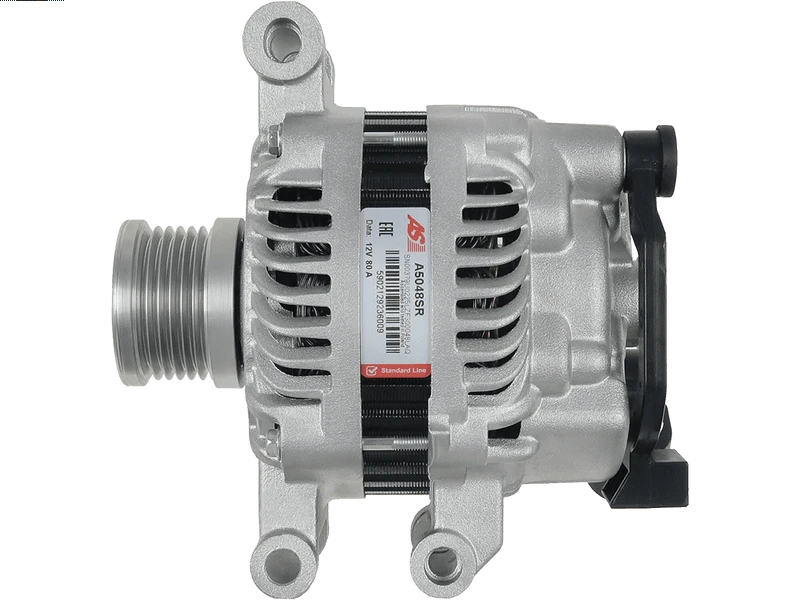

A5048SR - Remanufactured AS-PL Alternator

Name: Remanufactured AS-PL Alternator
Brand: AS GROUP NZ
SKU: A5048SR
Price: 464.22 NZD
Availability: SoldOut

Price:

NZ$ 464.22 including GST

NZ$ 403.67 excluding GST

or four payments of $116.06 with
Learn More

UOM:

each

Product Code:

A5048SR

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Specifications
Vehicle Applications
Reference Information

Amp	80 A
Diameter (D.1)	9.5 mm
Diameter (D.2)	9.5 mm
Diameter (D.3)	8 mm
Length (L.1)	185 mm
Mount Inside Length or Pad Mount C-C (C)	48 mm
Pad mount thickness (E.1)	80 mm
Pad mount thickness (E.2)	80 mm
Pad mount thickness (E.3)	80 mm
Plug Code	PL_2403
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	49.5 mm
Pulley to Mount Distance (A)	28 mm
Voltage	12 V

Make	Model	Type	Year
CITROEN	C3 1.4 LPG	[8FN(EP3)]	06.2013-09.2016
CITROEN	C3 1.4 VTi	[8FR(EP3)]	11.2009-09.2016
CITROEN	C3 1.4 VTi 95	[8FP(EP3C)]	11.2009-09.2016
CITROEN	C3 Picasso 1.4 VTi 95	[8FP(EP3C)]	12.2008-12.2015
CITROEN	C3 Picasso 1.4 VTi 95	[8FS(EP3)]	12.2008-12.2015
CITROEN	C3 Picasso 1.4 VTi 95 LPG	[8FN(EP3)]	09.2010-11.2015
CITROEN	C4 1.6 THP 140	[5FT(EP6DT)]	07.2008-07.2011
CITROEN	C4 1.6 THP 150	[5FX(EP6DT)]	07.2008-07.2011
CITROEN	C4 1.6 VTi 120	[5FW(EP6)]	07.2008-07.2011
CITROEN	DS3 1.4 VTi 95 LPG	[8FR(EP3C)]	08.2012-07.2015
CITROEN	DS3 1.6 THP 150	[5FN(EP6CDT)]	01.2010-07.2015
CITROEN	DS3 1.6 THP 150	[5FN(EP6CDT)]	01.2013-07.2015
CITROEN	DS3 1.6 THP 150	[5FX(EP6DT)]	01.2010-07.2015
CITROEN	DS3 1.6 THP 155	[5FR(EP6DT)]	04.2010-07.2015
CITROEN	DS3 1.6 THP 155	[5FV(EP6CDT)]	01.2013-07.2015
CITROEN	DS3 1.6 THP 155	[5FV(EP6CDT)]	04.2010-07.2015
CITROEN	DS3 1.6 THP 165	[5GZ(EP6FDT)]	10.2014-06.2015
CITROEN	DS3 1.6 THP 165	[5GZ(EP6FDT)]	10.2014-07.2015
CITROEN	DS3 1.6 VTi 120	[5FS(EP6C)]	01.2013-07.2015
DS	DS 3 1.6 THP	[5GW(EP6FDT)]	07.2015-07.2019
DS	DS 3 1.6 THP	[5GZ(EP6FDT)]	07.2015-07.2019
DS	DS 3 1.6 THP 165	[5GZ(EP6FDT)]	07.2015-07.2019
DS	DS 3 1.6 THP 208	[5GR(EP6FDTX)]	09.2015-07.2019
PEUGEOT	2008 1.6 VTi	[5FS(EP6C)]	03.2013-
PEUGEOT	207 1.4 16V	[8FR(EP3)]	10.2009-12.2012
PEUGEOT	207 1.4 16V	[8FS(EP3)]	06.2007-10.2013
PEUGEOT	207 1.4 16V	[EP3]	06.2007-10.2013
PEUGEOT	207 1.4 16V	[EP3C]	06.2007-10.2013
PEUGEOT	207 1.6 16V Turbo	[5FR(EP6DT)]	10.2009-12.2012
PEUGEOT	207 1.6 16V Turbo	[5FX(EP6DT)]	02.2006-10.2013
PEUGEOT	207 1.6 16V VTi	[5FS(EP6C)]	02.2007-12.2012
PEUGEOT	207 1.6 16V VTi	[5FW(EP6)]	02.2007-12.2012
PEUGEOT	207 1.6 16V VTi	[EP6]	02.2007-12.2012
PEUGEOT	207 CC 1.6 16V	[5FS(EP6C)]	02.2007-10.2013
PEUGEOT	207 CC 1.6 16V	[5FW(EP6)]	02.2007-10.2013
PEUGEOT	207 CC 1.6 16V	[EP6]	02.2007-10.2013
PEUGEOT	207 CC 1.6 16V Turbo	[5FR(EP6DT)]	10.2009-12.2013
PEUGEOT	207 CC 1.6 16V Turbo	[5FV(EP6CDT)]	10.2009-12.2013
PEUGEOT	207 CC 1.6 16V Turbo	[5FX(EP6DT)]	02.2007-12.2012
PEUGEOT	207 SW 1.4 16V	[8FP(EP3C)]	06.2007-10.2013
PEUGEOT	207 SW 1.4 16V	[8FR(EP3C)]	11.2009-12.2012
PEUGEOT	207 SW 1.4 16V	[8FS(EP3)]	06.2007-10.2013
PEUGEOT	207 SW 1.6 16V	[5FS(EP6C)]	06.2007-10.2013
PEUGEOT	207 SW 1.6 16V	[5FW(EP6)]	06.2007-10.2013
PEUGEOT	207 SW 1.6 16V	[EP6]	06.2007-10.2013
PEUGEOT	207 SW 1.6 16V Turbo	[5FX(EP6DT)]	02.2007-12.2012
PEUGEOT	208 1.4 VTi	[8FN(EP3C)]	03.2012-12.2019
PEUGEOT	208 1.4 VTi	[8FP(EP3C)]	03.2012-12.2019
PEUGEOT	208 1.4 VTi	[8FS(EP3)]	03.2012-12.2019
PEUGEOT	208 1.6 GTi	[5FU(EP6CDTX)]	08.2012-12.2019
PEUGEOT	208 1.6 GTi	[5GR(EP6FDTX)]	10.2014-12.2019
PEUGEOT	208 1.6 THP	[5FV(EP6CDT)]	03.2012-12.2019
PEUGEOT	208 1.6 THP 165	[5GZ(EP6FDT)]	03.2015-12.2019
PEUGEOT	208 1.6 VTi	[5FS(EP6C)]	03.2012-12.2019
PEUGEOT	308 1.4 16V	[8FR(EP3)]	12.2009-10.2014
PEUGEOT	308 1.4 16V	[8FS(EP3),EP3]	09.2007-10.2014
PEUGEOT	308 1.6 16V	[5FS(EP6C)]	09.2007-10.2014
PEUGEOT	308 1.6 16V	[5FS(EP6CM)]	09.2007-10.2014
PEUGEOT	308 1.6 16V	[5FW(EP6)]	09.2007-10.2014
PEUGEOT	308 1.6 16V	[5FX(EP6DT)]	09.2007-10.2014
PEUGEOT	308 1.6 16V	[5FY(EP6DTS)]	03.2008-10.2014
PEUGEOT	308 SW 1.4 16V	[8FR(EP3C)]	12.2009-10.2014
PEUGEOT	308 SW 1.4 16V	[8FS(EP3)]	09.2007-10.2014
PEUGEOT	308 SW 1.6 16V	[5FS(EP6C)]	09.2007-10.2014
PEUGEOT	308 SW 1.6 16V	[5FT(EP6DT)]	09.2007-10.2014
PEUGEOT	308 SW 1.6 16V	[5FW(EP6)]	09.2007-10.2014
PEUGEOT	308 SW 1.6 16V	[5FX(EP6DT)]	09.2007-10.2014
PEUGEOT	RCZ 1.6 16V	[5FU(EP6CDTX)]	06.2010-12.2015
PEUGEOT	RCZ 1.6 16V	[5FV(EP6CDT)]	03.2010-12.2015
PEUGEOT	RCZ 1.6 THP 270	[5FG(EP6CDTR)]	06.2013-12.2015

89215425 225.553.080.340 V757695680 2035258.0 WG2196985 553379RIV LRA03363 CAR-822258 V758575080 TT12900 A5TG0881ZE MRA90727 RNLA5TG0881ZEB A12MH1205A2 L81480 8EL011712-961 28-5975CT 553379RI 0986082880 A5TG0881 12090418 10443430 446ST75 AZMT-49-035-1708 CAL35258AS QRA3242 20164N 209354A A005TG0881ZE ALT2173CP 28-5975 5535348 113176 ALTL435 20035258AV 215175802 AG1214 5702J3 5705KQ ALM2087 20137852BN WOOALT31313 4872 A005TG0881ZEE 1638094980 4890727 TP8055 ALT31313 AI-90104 A-31313 57446 3116147 A005TG0881ZEA A005TG0881ZEB 1986A01208 G103418 ALT5410 WG2150847 DRA0918 V75769568003 V75769568004 AMI258A V75769568002 V75759568002 V757595680 944390907270 AC-CBA2087 A5TG0881ZEE 225.553.080.130 WG2281105 AL02993 114752 LRA3363 G107691 9090727 F032114752 RNLA5TG0881INA IR6231 STX110264R CA2087IR 4G0341R A5TG0881ZEA A5TG0881ZEB A005TG0881 V75857508001 13314
