Price:
NZ$ 327.37 including GST
NZ$ 284.67 excluding GST
or four payments of $81.84
with
Learn More
each

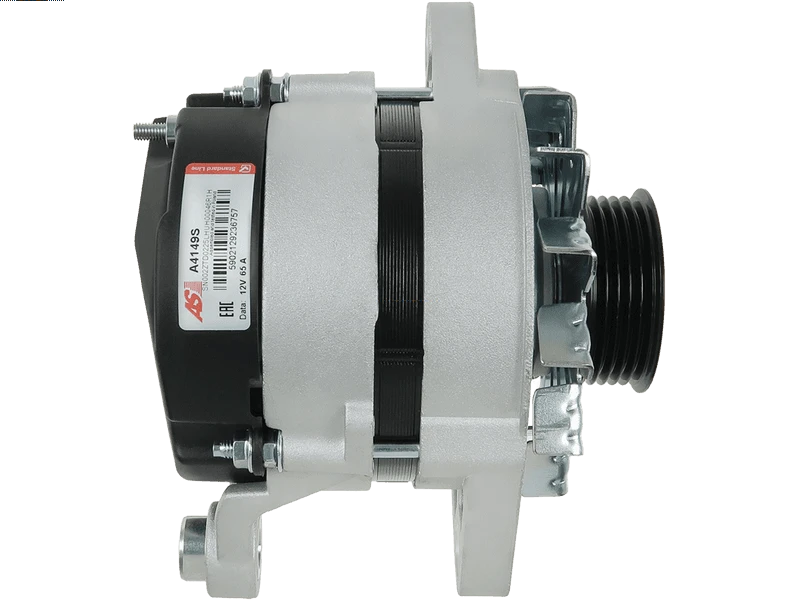

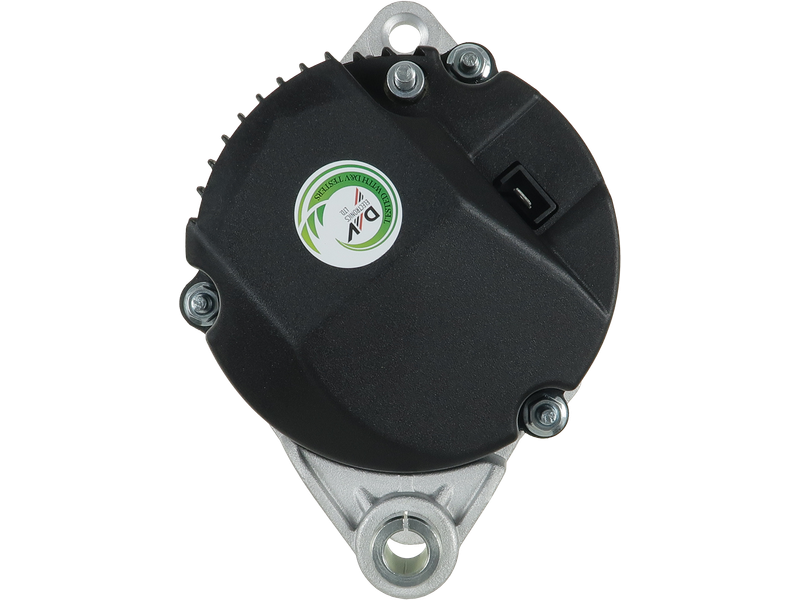

A4149S
No stock in NZ
No stock in NZ
Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 163 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FERRARI | 208 2.0 coupe 208 Turbo | [F-106-D] | 06.1982-10.1989 |
| FERRARI | 308 2.0 coupe 208 Turbo | [F-106-D] | 06.1982-10.1989 |
| FERRARI | 412 i 4.9 | [F-101-E] | 04.1985-12.1988 |
| FERRARI | 512 BB 4.9 | [F-102-B] | 08.1976-06.1981 |
| FERRARI | F40 3.0 | [F-120-A] | 02.1988-06.1992 |
| FIAT | 131 1.4 Mirafiori | [131-C.000] | 11.1980-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C.000] | 11.1981-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C1.000] | 11.1980-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C1.000] | 11.1981-01.1984 |
| FIAT | 131 1.4 Super Mirafiori | [131-C1.000] | 04.1981-12.1983 |
| FIAT | 131 1.6 | [131-A1.000] | 10.1974-09.1981 |
| FIAT | 131 1.6 | [131-C2.000] | 11.1976-12.1984 |
| FIAT | 131 1.6 | [131-C2.000] | 11.1980-12.1984 |
| FIAT | 132 2.0 i.e. | [132-C3.000] | 01.1980-12.1982 |
| FIAT | Argenta 1.6 1600 i.e | [132-D.000] | 04.1981-12.1985 |
| FIAT | Argenta 2.0 2000 Volumex | [132-C3.000] | 06.1984-07.1985 |
| FIAT | Croma 1.6 1600 | [154-A.048] | 12.1985-12.1990 |
| FIAT | Croma 1.9 1900 TD i.d. | [154-C6.000] | 08.1987-10.1992 |
| FIAT | Croma 1.9 1900 TD i.d. | [154-D1.000] | 11.1992-12.1996 |
| FIAT | Croma 2.0 2000 CHT | [154-A1.000] | 12.1985-02.1989 |
| FIAT | Croma 2.0 2000 i.e. | [154-C3.000] | 03.1987-09.1992 |
| FIAT | Croma 2.0 2000 i.e. | [834-B.000] | 03.1987-09.1992 |
| FIAT | Croma 2.0 2000 i.e. Turbo | [154-A2.000] | 12.1985-06.1990 |
| FIAT | Croma 2.0 2000 i.e. Turbo | [154-C4.046] | 06.1987-08.1996 |
| FIAT | Croma 2.0 2000 i.e. Turbo | [834-C.146] | 06.1987-08.1996 |
| FIAT | Ducato 1.9 TD | [280-A1.000] | 03.1989-08.1990 |
| FIAT | Ducato 1.9 TD | [280-A1.000] | 07.1990-03.1994 |
| FIAT | Ducato Furgon 1.9 TD | [280-A1.000] | 03.1989-03.1994 |
| FIAT | Regata 60 D 1.7 | [138-B6.000] | 09.1983-12.1986 |
| FIAT | Regata 60 D 1.7 | [149-B3.000] | 05.1985-03.1989 |
| FIAT | Regata 65 D 1.9 | [149-A1.000] | 04.1984-07.1989 |
| FIAT | Regata 80 TD 1.9 | [831-D1.000] | 05.1986-07.1989 |
| FIAT | Regata Weekend 60 D 1.7 | [149-B3.000] | 01.1984-12.1989 |
| FIAT | Regata Weekend 65 D 1.9 | [149-A1.000] | 04.1984-07.1989 |
| FIAT | Regata Weekend 80 TD 1.9 | [831-D1.000] | 05.1986-07.1989 |
| FIAT | Ritmo 1.9 TD | [831-D1.000] | 12.1985-12.1987 |
| FIAT | Tempra 1.8 i.e. | [159-A4.000] | 03.1990-08.1996 |
| FIAT | Tempra 1.8 i.e. | [159-A4.046] | 03.1992-08.1996 |
| FIAT | Tempra 1.9 TD | [160-A6.000] | 05.1990-08.1996 |
| FIAT | Tempra 1.9 TD | [160-B6.046] | 07.1992-08.1996 |
| FIAT | Tempra 1.9 TD | [160-D1.000] | 05.1990-08.1996 |
| FIAT | Tempra S.W. 1.8 i.e. | [159-A4.000] | 03.1990-08.1996 |
| FIAT | Tempra S.W. 1.8 i.e. | [159-A4.046] | 03.1992-12.1993 |
| FIAT | Tempra S.W. 1.9 TD | [160-A6.000] | 07.1991-02.1995 |
| FIAT | Tempra S.W. 1.9 TD | [160-B6.046] | 03.1992-06.1993 |
| FIAT | Tempra S.W. 1.9 TD | [160-D1.000] | 07.1991-02.1995 |
| FIAT | Tipo 1.8 i.e.16V Sport | [160-A5.000] | 11.1989-06.1992 |
| FIAT | Tipo 1.9 TD | [160-A6.000] | 09.1990-04.1995 |
| FIAT | Tipo 1.9 TD | [160-A6.046] | 09.1990-04.1995 |
| FIAT | Tipo 1.9 TD | [160-B6.046] | 03.1992-06.1993 |
| FIAT | Tipo 1.9 TD | [160-D1.000] | 09.1990-04.1995 |
| FIAT | Tipo 2.0 16V | [160-A8.046] | 07.1991-04.1995 |
| FIAT | Tipo 2.0 i.e. 16V Sport | [836-A3.000] | 03.1993-04.1995 |
| LANCIA | Dedra 1.8 i.e. | [835-A2.046] | 09.1989-07.1999 |
| LANCIA | Dedra 1.9 TDS | [160-D1.000] | 04.1989-07.1999 |
| LANCIA | Dedra 1.9 TDS | [835-A4.000] | 04.1989-07.1999 |
| LANCIA | Dedra 1.9 TDS | [835-A4.046] | 04.1989-07.1999 |
| LANCIA | Dedra 2.0 HF Integrale | [835-A7.046] | 11.1990-07.1994 |
| LANCIA | Dedra 2.0 i.e. | [835-A5.000] | 09.1989-07.1992 |
| LANCIA | Dedra 2.0 i.e. | [835-A5.046] | 09.1989-07.1999 |
| LANCIA | Dedra 2.0 i.e. Turbo | [835-A8.046] | 04.1991-07.1999 |
| LANCIA | Dedra 2.0 i.e. Turbo Integrale | [835-A7.000] | 04.1990-08.1991 |
| LANCIA | Dedra 2.0 Turbo | [835-A8.000] | 11.1990-06.1994 |
| LANCIA | Delta 1.9 TDS. | [831-D1.000] | 10.1986-12.1989 |
| LANCIA | Delta 2.0 16V | [836-A3.000] | 06.1993-08.1999 |
| LANCIA | Delta 2.0 16V HF Evo Integrale | [831-E5.000] | 06.1993-01.1994 |
| LANCIA | Delta 2.0 16V HF Evo Integrale | [831-E5.046] | 06.1993-01.1994 |
| LANCIA | Delta 2.0 16V Turbo | [836-A2.000] | 06.1993-08.1999 |
| LANCIA | Prisma 1.9 TD | [831-D1.000] | 05.1985-12.1989 |
| LANCIA | Thema 2.0 2000 i.e | [834-B1.000] | 09.1988-05.1992 |
| LANCIA | Thema 2.0 2000 i.e. | [834-B.000] | 11.1984-09.1988 |
| LANCIA | Thema 2.0 2000 i.e. | [834-B.048] | 03.1986-09.1988 |
| LANCIA | Thema 2.0 2000 i.e. | [834-B.146] | 09.1987-05.1992 |
| PININFARINA | Spidereuropa 2.0 2000 | [132-C3.031] | 03.1982-09.1985 |
| PININFARINA | Spidereuropa 2.0 2000 Volumex | [232R14] | 06.1983-11.1985 |
Reference Information
7667076 9037120 218116702 63321123 CAL30141RS IA0696 ANM35504 591ST55 MG361 11.201.696 0120488139 11.201.334 943321123 46231756 63321080 7701838 QRA1789 G106420 AAK4557 AAK4150 11.204.740 46231762 72735514 7541401 63320020 63321077 CAL30141GS 7635613 28-1657 505.032.065.058 AAK4160 CA601IR 63321029 7701840 8EL725883-001 LRA00559 63320013 FI8051 LRA00751 63320012 46231737 3119092 UD102610A 7631260 46231735 505.032.065.050 2030141.2 2030141.1 AAK3563 2030141.0 G102366 20104141OE 118378 4269 20104141BN CA696IR 46445102 MG515 77412410 440748 943321172 IA0463 L37120 7750751 11.201.324 LRA751 AL00852 63321172 LRA559 55591 20104141RC 11.201.969 20030141RV CAL30141AS 505.035.065.050 7552382 7552264View your shopping basket or Browse other items in Alternators.
