Price:
NZ$ 337.05 including GST
NZ$ 293.09 excluding GST
or four payments of $84.26
with
Learn More
each

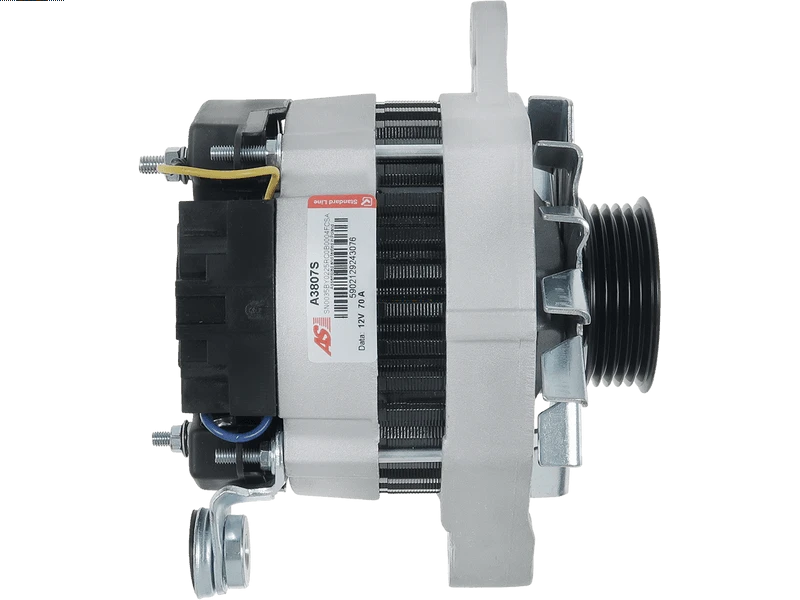

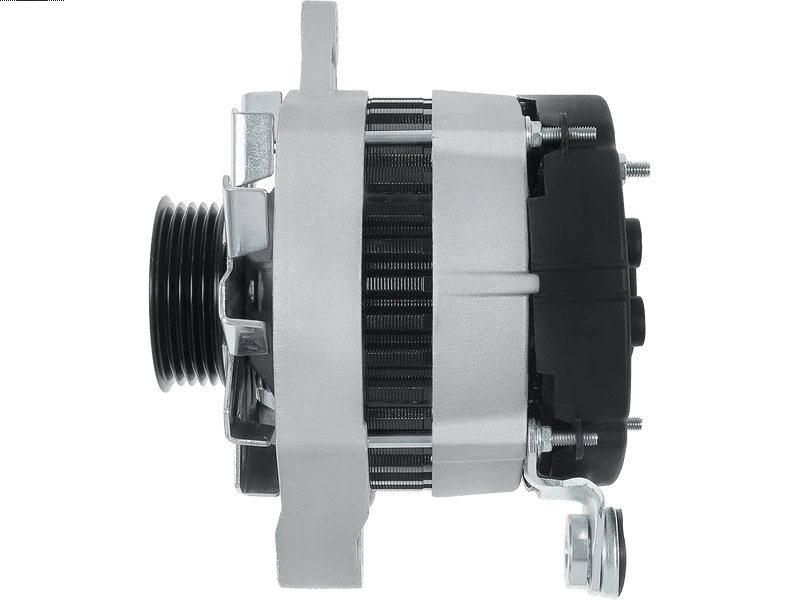

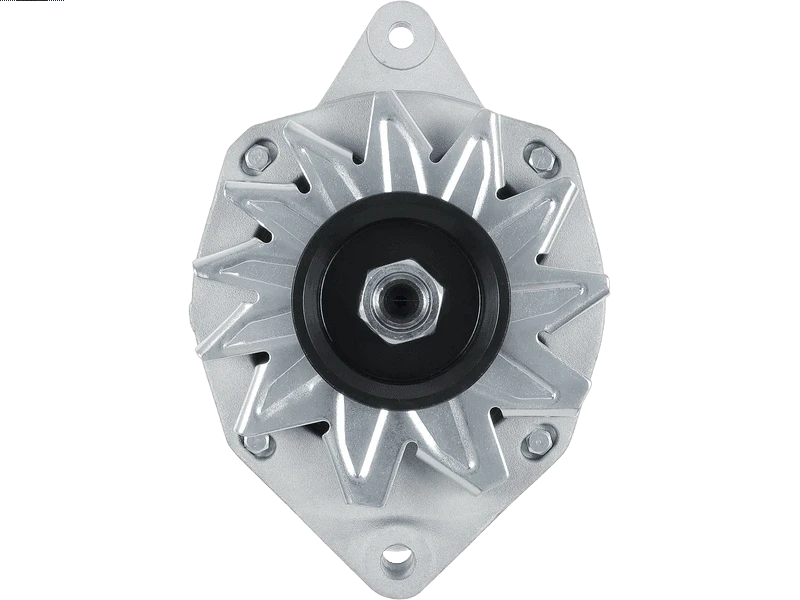

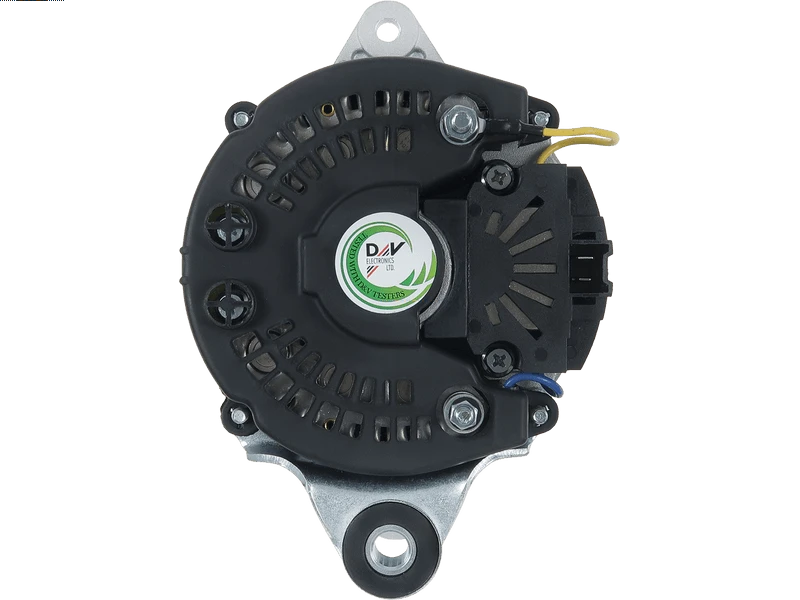

A3807S
No stock in NZ
No stock in NZ
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 162 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66.5 mm |
| Plug Code | PL_2703 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | 19 1.7 | [F2N720] | 01.1993-08.1995 |
| RENAULT | 19 1.7 | [F2N720] | 09.1988-04.1992 |
| RENAULT | 19 1.7 | [F2N720] | 09.1988-12.1992 |
| RENAULT | 19 1.7 | [F2N721] | 01.1993-08.1995 |
| RENAULT | 19 1.7 | [F2N721] | 09.1988-12.1992 |
| RENAULT | 19 1.7 | [F2N721] | 09.1990-04.1992 |
| RENAULT | 19 1.7 | [F2N724] | 07.1991-04.1992 |
| RENAULT | 19 1.7 | [F3N740] | 04.1992-12.1995 |
| RENAULT | 19 1.7 | [F3N740] | 05.1992-11.1995 |
| RENAULT | 19 1.7 | [F3N740] | 09.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N740] | 10.1989-04.1992 |
| RENAULT | 19 1.7 | [F3N741] | 04.1992-12.1995 |
| RENAULT | 19 1.7 | [F3N741] | 05.1992-11.1995 |
| RENAULT | 19 1.7 | [F3N741] | 09.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N741] | 10.1989-04.1992 |
| RENAULT | 19 1.7 | [F3N742] | 04.1992-09.1993 |
| RENAULT | 19 1.7 | [F3N742] | 04.1992-12.1995 |
| RENAULT | 19 1.7 | [F3N742] | 07.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N742] | 07.1991-04.1992 |
| RENAULT | 19 1.7 | [F3N742] | 09.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N743] | 04.1992-09.1993 |
| RENAULT | 19 1.7 | [F3N743] | 04.1992-12.1995 |
| RENAULT | 19 1.7 | [F3N743] | 07.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N743] | 07.1991-04.1992 |
| RENAULT | 19 1.7 | [F3N743] | 09.1988-04.1992 |
| RENAULT | 19 1.7 | [F3N746] | 06.1989-04.1992 |
| RENAULT | 19 1.8 | [F3P682] | 05.1994-12.1995 |
| RENAULT | 19 1.8 | [F3P682] | 07.1994-06.1996 |
| RENAULT | 19 1.8 | [F3P700] | 04.1992-05.1994 |
| RENAULT | 19 1.8 | [F3P700] | 05.1992-11.1995 |
| RENAULT | 19 1.8 | [F3P704] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P704] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P705] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P705] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P706] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P706] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P706] | 05.1992-11.1995 |
| RENAULT | 19 1.8 | [F3P706] | 09.1993-06.1996 |
| RENAULT | 19 1.8 | [F3P707] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P707] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P708] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P708] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P760] | 04.1992-06.1996 |
| RENAULT | 19 1.8 | [F3P760] | 04.1992-12.1995 |
| RENAULT | 19 1.8 | [F3P760] | 09.1993-06.1996 |
| RENAULT | 19 1.8 | [F3P764] | 07.1994-06.1996 |
| RENAULT | 19 1.8 | [F3P765] | 05.1992-09.1994 |
| RENAULT | 19 1.8 | [F3P765] | 05.1994-12.1995 |
| RENAULT | 19 1.8 | [F3P765] | 07.1994-06.1996 |
| RENAULT | 19 1.8 16V | [F7P700] | 07.1991-04.1992 |
| RENAULT | 19 1.8 16V | [F7P704] | 07.1991-04.1992 |
| RENAULT | 19 1.9 D | [F8Q740] | 05.1992-11.1995 |
| RENAULT | 19 1.9 D | [F8Q744] | 05.1992-11.1995 |
| RENAULT | 21 1.7 | [F2N710] | 03.1986-03.1993 |
| RENAULT | 21 1.7 | [F2N711] | 07.1989-05.1993 |
| RENAULT | 21 1.7 | [F2N712] | 03.1986-12.1987 |
| RENAULT | 21 1.7 | [F2N712] | 06.1986-03.1993 |
| RENAULT | 21 1.7 | [F2N712] | 07.1989-05.1993 |
| RENAULT | 21 1.7 | [F2N750] | 07.1986-02.1994 |
| RENAULT | 21 1.7 | [F2N754] | 07.1989-05.1993 |
| RENAULT | 21 1.7 | [F3N722] | 03.1986-02.1994 |
| RENAULT | 21 1.7 | [F3N722] | 06.1986-12.1989 |
| RENAULT | 21 1.7 | [F3N722] | 09.1989-02.1994 |
| RENAULT | 21 1.7 | [F3N722] | 09.1989-06.1994 |
| RENAULT | 21 1.7 | [F3N722] | 10.1989-12.1993 |
| RENAULT | 21 1.7 | [F3N723] | 03.1986-02.1994 |
| RENAULT | 21 1.7 | [F3N723] | 06.1986-12.1989 |
| RENAULT | 21 1.7 | [F3N723] | 09.1989-02.1994 |
| RENAULT | 21 1.7 | [F3N723] | 09.1989-06.1994 |
| RENAULT | 21 1.7 | [F3N723] | 10.1989-12.1993 |
| RENAULT | 21 1.7 | [F3N726] | 05.1988-06.1993 |
| RENAULT | 21 1.7 | [F3N726] | 07.1986-02.1994 |
| RENAULT | 21 1.7 | [F3N726] | 07.1989-05.1993 |
| RENAULT | 21 1.7 | [F3N726] | 09.1989-10.1992 |
| RENAULT | Trafic 1.7 | [F1N720] | 08.1992-08.1994 |
| RENAULT | Trafic 1.7 | [F1N722] | 05.1989-08.1994 |
| RENAULT | Trafic 1.7 | [F1N722] | 06.1986-04.1989 |
| RENAULT | Trafic 1.7 | [F1N724] | 03.1989-08.1994 |
| RENAULT | Trafic 1.7 | [F1N724] | 06.1986-04.1989 |
| RENAULT | Trafic 1.7 | [F1N724] | 08.1992-08.1994 |
Reference Information
7701351758 4296 575.023.070.000 868ST55 AL00760 28-1547CT LRA00455 3122008 TR8048 943356563010 9213082 118397 DRA3106 66021577 0986037291 G105815 CAL15180RS 433098 7701499458 10441417 3122011 20179081RC MAR963 LRA455 ALT171800R 2015180.2 A13N159 89213082 944390372910 30524RI 9037291 2541119 7700796221 ANM35326 575.023.070.505 440671 STX100635 200111702 28-1547 55868 7701499437 UD103154A 20015180RV 7701499231 ALV0524 MRA37291 011-003-000081R DRA3134 ALTF031 12037290 ALT281547 3472170 QRA2327 CAR-811630 ALT01066 433463View your shopping basket or Browse other items in Alternators.
