Price:
NZ$ 1,004.89 including GST
NZ$ 873.82 excluding GST
or four payments of $251.22
with
Learn More
each

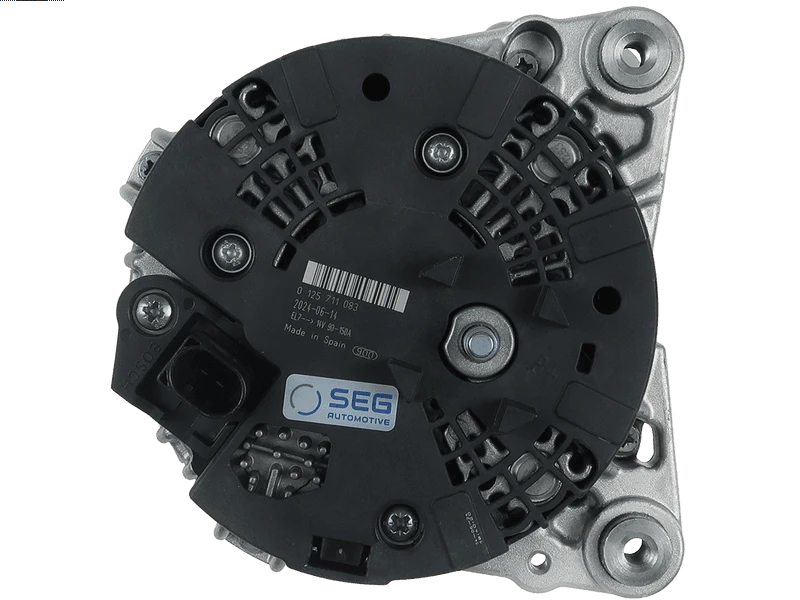

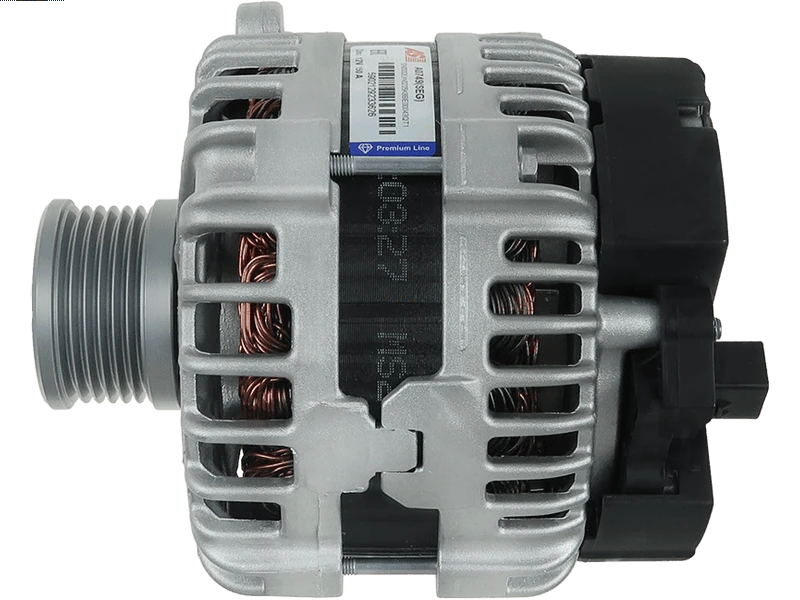

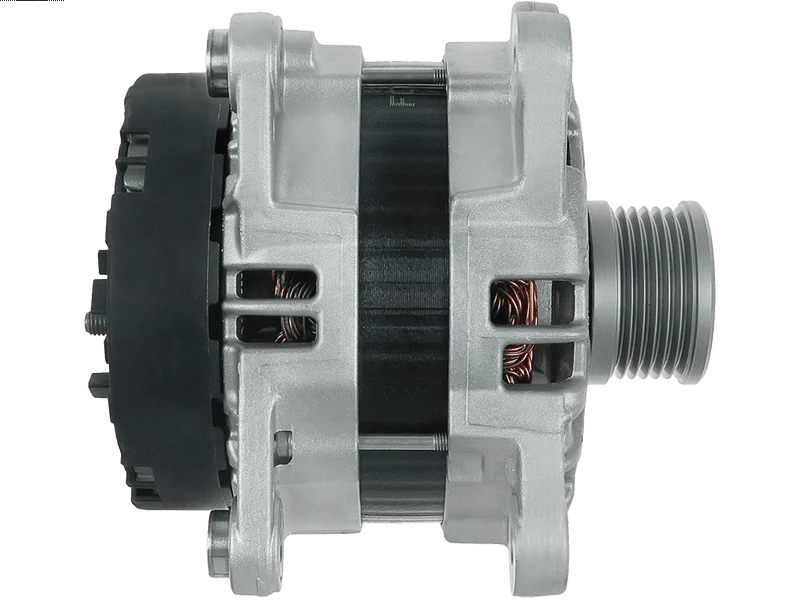

A0749(SEG)
No stock in NZ
No stock in NZ
Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.5 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PORSCHE | 911 3.4 Carrera | [MA1.04] | 03.2012- |
| PORSCHE | 911 3.4 Carrera | [MA1.04] | 12.2011- |
| PORSCHE | 911 3.4 Carrera | [MAB.04] | 03.2012- |
| PORSCHE | 911 3.4 Carrera | [MAB.04] | 12.2011- |
| PORSCHE | 911 3.4 Carrera 4 | [MA1.04] | 05.2014- |
| PORSCHE | 911 3.4 Carrera 4 | [MA1.04] | 11.2012- |
| PORSCHE | 911 3.4 Carrera 4 | [MAB.04] | 05.2014- |
| PORSCHE | 911 3.4 Carrera 4 | [MAB.04] | 11.2012- |
| PORSCHE | 911 3.8 Carrera | [MA1.03] | 07.2012- |
| PORSCHE | 911 3.8 Carrera 4 GTS | [MA1.03] | 05.2014- |
| PORSCHE | 911 3.8 Carrera 4 GTS | [MA1.03] | 11.2012- |
| PORSCHE | 911 3.8 Carrera 4S | [MA1.03] | 05.2014- |
| PORSCHE | 911 3.8 Carrera 4S | [MA1.03] | 11.2012- |
| PORSCHE | 911 3.8 Carrera 4S | [MAB.03] | 05.2014- |
| PORSCHE | 911 3.8 Carrera 4S | [MAB.03] | 11.2012- |
| PORSCHE | 911 3.8 Carrera GTS | [MA1.03] | 07.2012- |
| PORSCHE | 911 3.8 Carrera S | [MA1.03] | 03.2012- |
| PORSCHE | 911 3.8 Carrera S | [MA1.03] | 07.2012- |
| PORSCHE | 911 3.8 Carrera S | [MA1.03] | 12.2011- |
| PORSCHE | 911 3.8 Carrera S | [MAB.03] | 03.2012- |
| PORSCHE | 911 3.8 Carrera S | [MAB.03] | 12.2011- |
| PORSCHE | 911 3.8 GT2 RS | [MDH.NA] | 07.2017- |
| PORSCHE | 911 3.8 GT3 | [MA1.75] | 08.2013- |
| PORSCHE | 911 3.8 Turbo | [MA1.71] | 09.2013- |
| PORSCHE | 911 3.8 Turbo | [MA1.71] | 12.2013- |
| PORSCHE | 911 3.8 Turbo | [MDA.BA] | 01.2016- |
| PORSCHE | 911 3.8 Turbo S | [MA1.71] | 09.2013- |
| PORSCHE | 911 3.8 Turbo S | [MA1.71] | 12.2013- |
| PORSCHE | 911 3.8 Turbo S | [MDB.CA] | 01.2016- |
| PORSCHE | 911 3.8 Turbo S | [MDB.CA] | 08.2017- |
| PORSCHE | 911 4.0 GT3 R | [MA1.76] | 04.2015- |
| PORSCHE | 911 4.0 GT3 R | [MDG.GA] | 04.2015- |
| PORSCHE | 911 4.0 GT3 RS | [MA1.76] | 04.2015- |
| PORSCHE | 911 4.0 GT3 RS | [MDG.GA] | 04.2015- |
| PORSCHE | Boxster GTS 3.4 | [MA1.23] | 02.2014- |
| PORSCHE | Boxster S 3.4 | [MA1.23] | 04.2012- |
| PORSCHE | Boxster Spyder 3.8 | [MDB.XA] | 01.2015- |
| PORSCHE | Cayman 3.8 GT4 | [MDB.XA] | 01.2015- |
| PORSCHE | Cayman GTS 3.4 | [MA1.23] | 02.2014- |
| PORSCHE | Cayman S 3.4 | [MA1.23] | 03.2013- |
Reference Information
554181RIB ALB1007 0125711039 PRAF714 12090989 11726-OS DA2488 9A160301801 9A160301802 UD04985(SEG)A WG2277507 LRA04028 3118468 0125711083 485.506.150.014 485.506.150.018 9A1603018AX IR7543 10444284 A12BH0911AS 444332 28-7637 58326 90-15-6670 DRA1378 114981 AL0887N BOS0125711083 9427 V45-13-11083 H5510690G AL03575 20101545OE 5510690 LRA4028 20010545OV 1986A01044 ALT1656 ABO545 CAL10545GS 2115341502 554181RI 485.506.150.210 ALT125450 PO8018 F032116934 116934 2010545.1 A-6702 ALTF714 0986048667 11726N 5510690GView your shopping basket or Browse other items in Alternators.
