Price:
NZ$ 670.58 including GST
NZ$ 583.11 excluding GST
or four payments of $167.65
with
Learn More
each

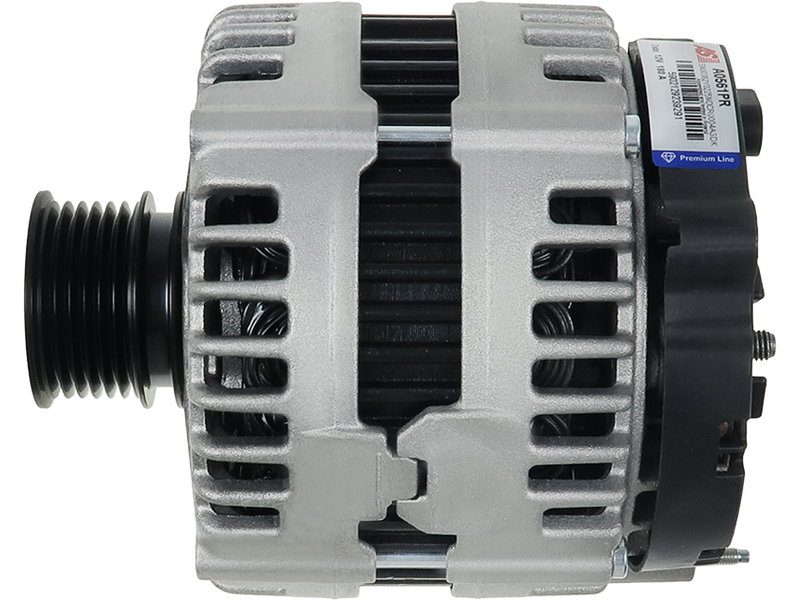

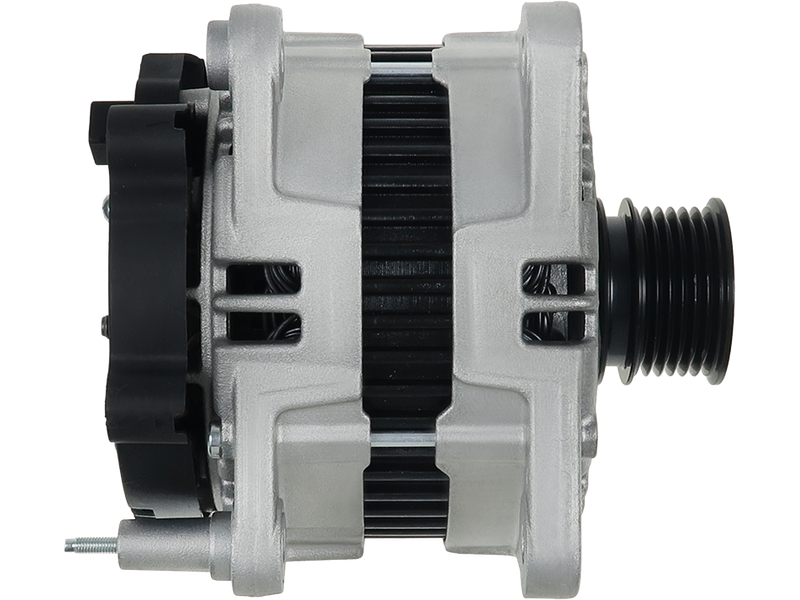

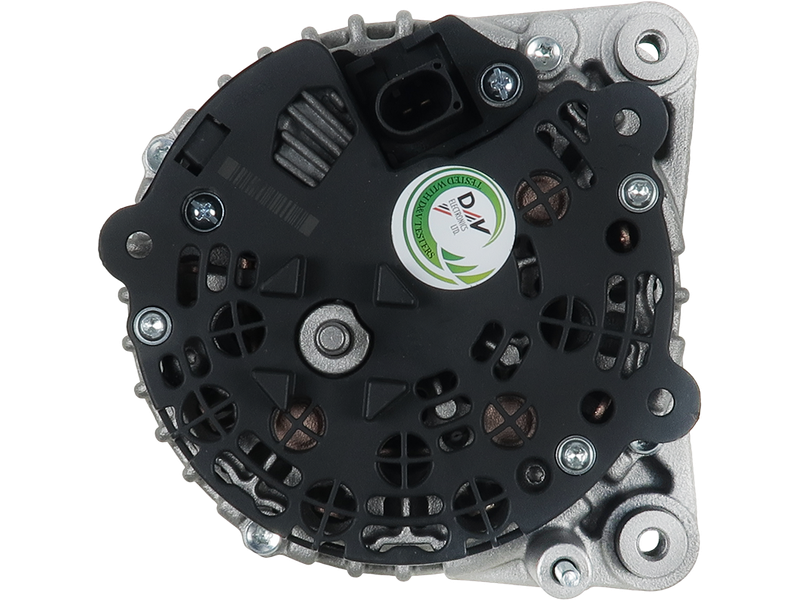

A0561PR
No stock in NZ
No stock in NZ
Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14.4 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62.5 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 39.5 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 2.0 TDi | [BNA] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [BNA] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [BRF] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [BRF] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [CAGB] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [CAGB] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [CAHA] | 10.2008-08.2011 |
| AUDI | A6 2.0 TDi | [CAHA] | 11.2008-03.2011 |
| AUDI | A6 2.0 TDi | [CAHB] | 04.2009-03.2011 |
| AUDI | A6 2.0 TDi | [CAHB] | 04.2009-08.2011 |
Reference Information
89215787 03G903016NX 28-6819 2115031802 965ST75 IR5392 AC-CBA5925 57965 AZMT-49-035-1029 LRA3708 205.554.180.460 03G903016N L85020 G100219 554763RIS 40496 12090736 ALT1607 0121715049 0121715149 A12BH0753AS ALT10848 3115007 554763RI ALB5149 ANM98493 113055 205.554.180.014 AU8135 LRA03708 AL03293View your shopping basket or Browse other items in Alternators.
