Price:
NZ$ 412.65 including GST
NZ$ 358.83 excluding GST
or four payments of $103.16
with
Learn More
each
A0244PR
No stock in NZ
No stock in NZ

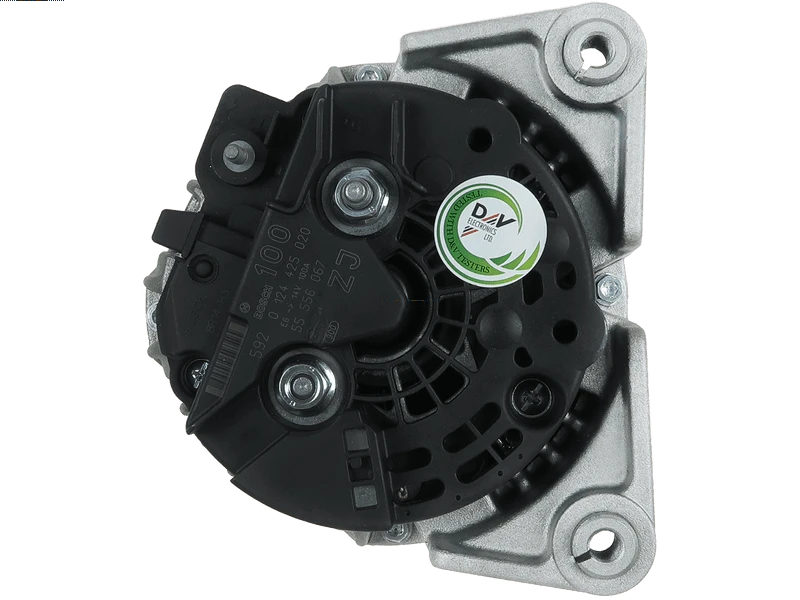

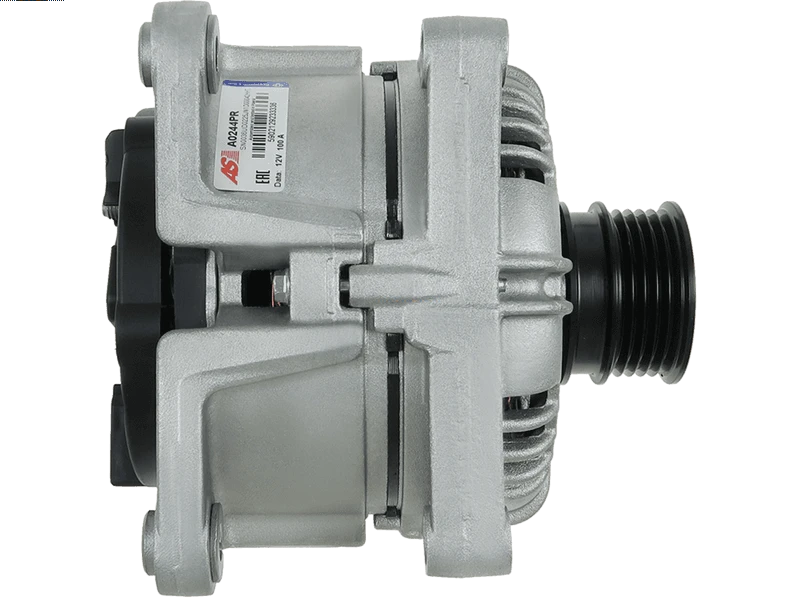

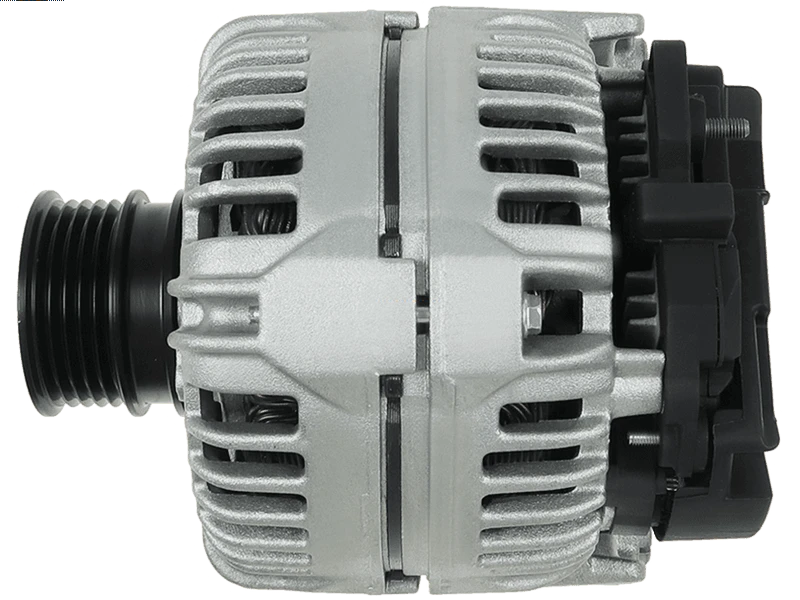

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 23 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 182 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 64 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra Classic 1.6 | [Z16XEP] | 02.2006-07.2009 |
| OPEL | Astra Classic 1.6 | [Z16XEP] | 03.2006-06.2008 |
| OPEL | Astra G 1.6 | [Z16XEP] | 02.2004-11.2004 |
| OPEL | Astra G 1.6 | [Z16XEP] | 11.2002-01.2005 |
| OPEL | Astra G 1.6 | [Z16XEP] | 12.2002-05.2004 |
| OPEL | Astra G 1.6 | [Z16XEP] | 12.2002-12.2009 |
| OPEL | Astra G 1.6 LPG | [Z16XEP] | 06.2002-07.2004 |
| OPEL | Astra G 1.6 LPG | [Z16XEP] | 11.2002-06.2007 |
| OPEL | Astra H 1.6 | [Z16XE1] | 03.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XE1] | 08.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 02.2007-06.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 03.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 08.2004-10.2010 |
| OPEL | Astra H 1.6 EcoTec | [Z16XEP] | 02.2004-11.2004 |
| OPEL | Astra H 1.6 GTC | [Z16XE1] | 03.2005-10.2010 |
| OPEL | Astra H 1.6 GTC | [Z16XEP] | 03.2005-10.2010 |
| OPEL | Astra H 1.6 TwinTop | [Z16XE1] | 09.2005-10.2010 |
| OPEL | Astra H 1.6 TwinTop | [Z16XEP] | 09.2005-10.2010 |
| OPEL | Zafira B 1.6 | [Z16XE1] | 07.2005-09.2012 |
| OPEL | Zafira B 1.6 | [Z16XEP] | 07.2005-09.2012 |
| OPEL | Zafira Family B 1.6 | [Z16XE1] | 07.2005-09.2012 |
| OPEL | Zafira Family B 1.6 | [Z16XEP] | 07.2005-09.2012 |
Reference Information
4G0657 ANM49490X AL02583 SKGN-0320879 55556067 440731 442482 93183437 944390472700 BBA2516 57548 28-4941CT 8EL011712-481 AZMT-49-035-1626 209418A 301882RI 12047270 011-003-000860R ALT10101 10444242 2281481002 OP8128 G106213 ALT1402 MRA47270 QRA1612 4734 28-5530 301882RIB AC-CBA1882 ANM49490 0124425224 9047270 3111130 443106 LRA2916 3111132 548ST75 93190146 G100469 IR7923 0124425020 6204205 CAR-821395 135.536.100.010 18000005 WG2011358 L47270 LRA02916View your shopping basket or Browse other items in Alternators.
