Price:
NZ$ 947.06 including GST
NZ$ 823.53 excluding GST
or four payments of $236.77
with
Learn More
each

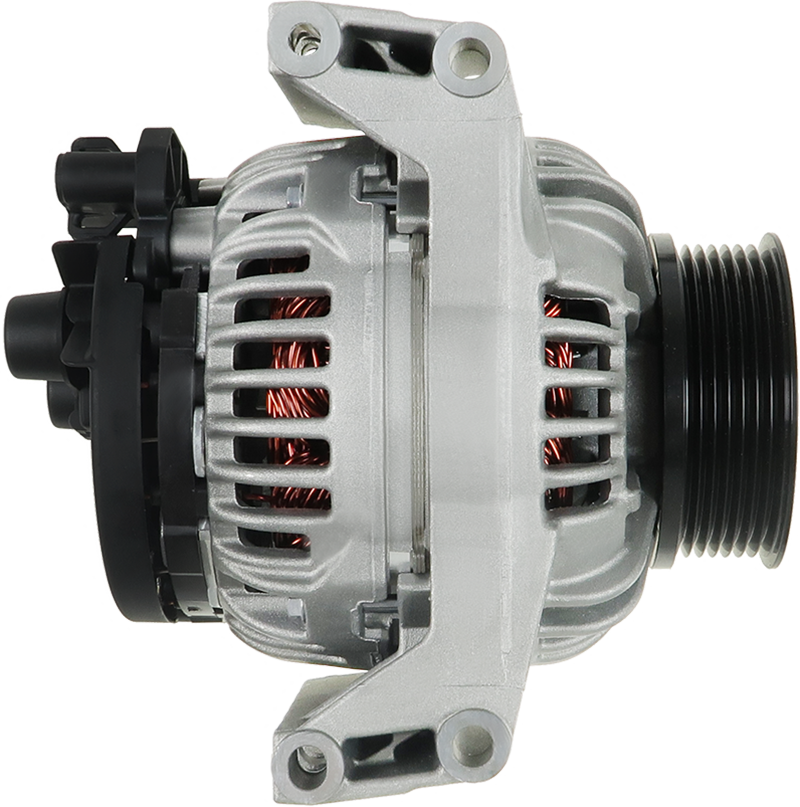

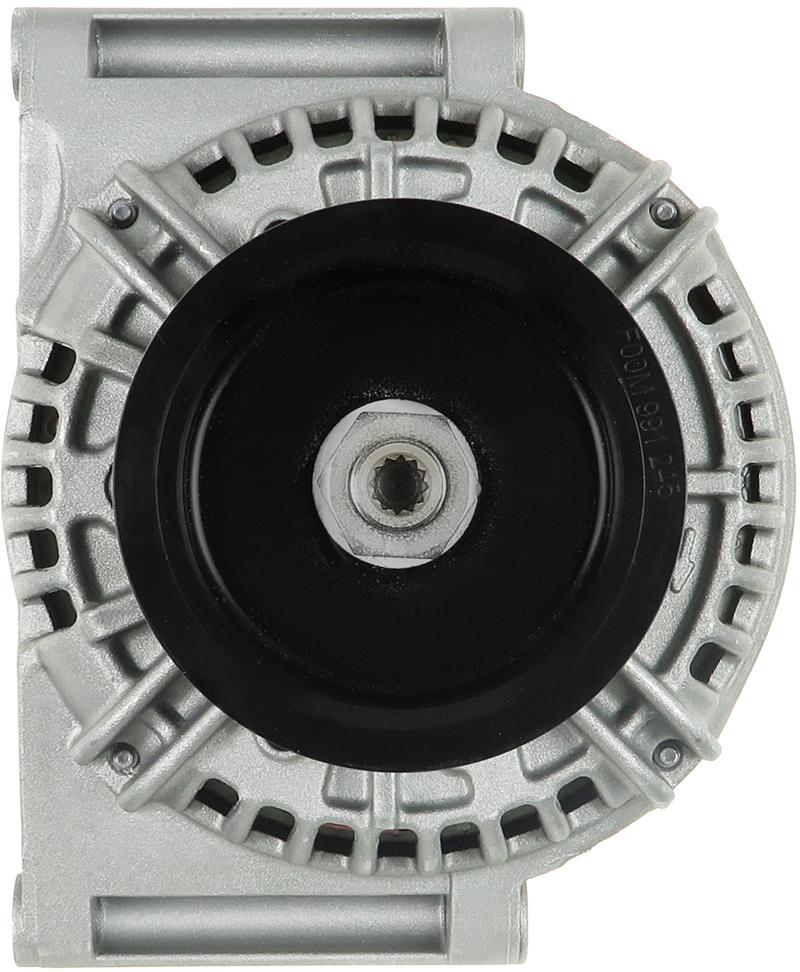

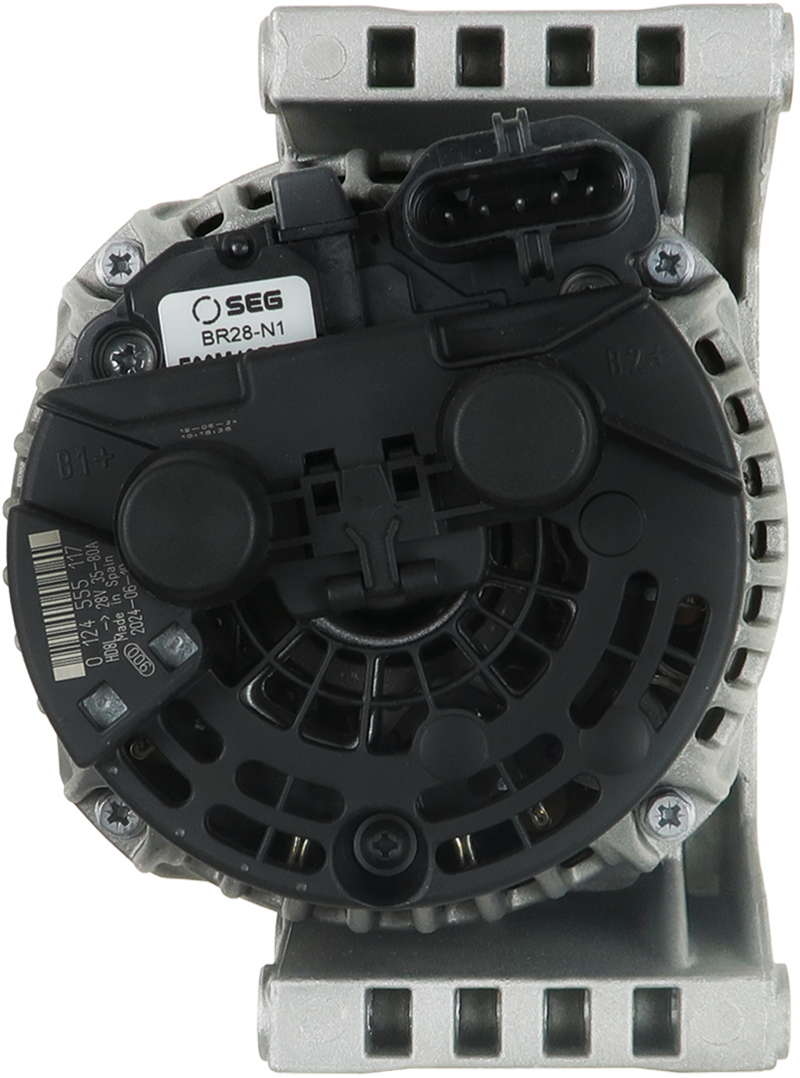

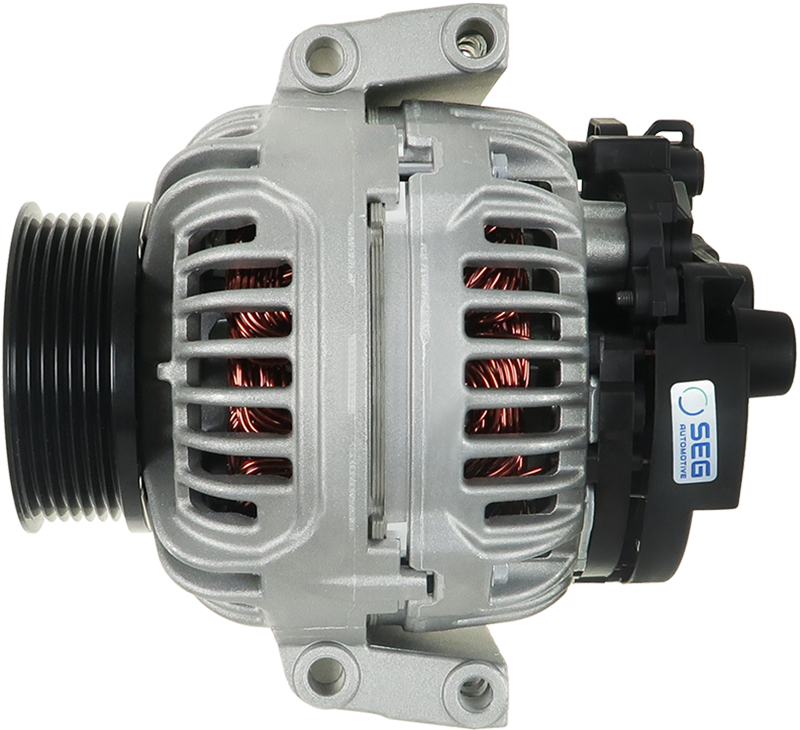

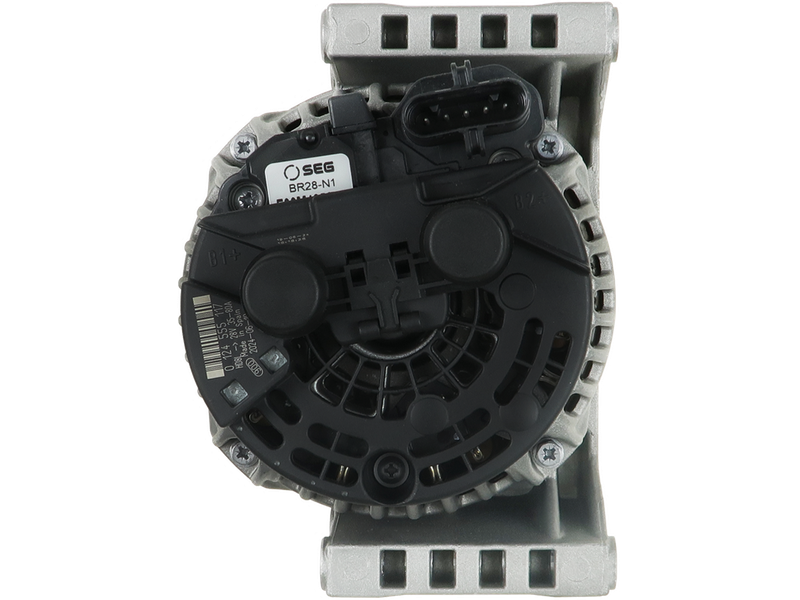

A0211(SEG)
No stock in NZ
No stock in NZ
Specifications
| Amp | 80 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 205 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41 mm |
| Pad mount thickness (E.1) | 97 mm |
| Pad mount thickness (E.2) | 97 mm |
| Plug Code | PL_5003 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 86 mm |
| Pulley to Mount Distance (A) | 57 mm |
| Pulley Type | SOLID |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOVA | 122 12.9 | [MX300] | 10.2006- |
| BOVA | 130 12.9 | [MX340] | 07.2007- |
| BOVA | 130 12.9 | [MX375] | 07.2007- |
| BOVA | 131 12.9 | [MX340] | 07.2007- |
| BOVA | 141 12.9 | [MX340] | 07.2007- |
| BOVA | 141 12.9 | [MX375] | 07.2007- |
| DAF | CF 85.360 12.9 | [MX-13265] | 10.2006- |
| DAF | CF 85.360 12.9 | [MX265] | 10.2006- |
| DAF | CF 85.360 12.9 | [MX265] | 10.2006-05.2013 |
| DAF | CF 85.380 12.6 | [XE280C] | 12.2005- |
| DAF | CF 85.410 12.9 | [MX-13303] | 10.2006- |
| DAF | CF 85.410 12.9 | [MX300] | 10.2005- |
| DAF | CF 85.410 12.9 | [MX300] | 10.2005-05.2013 |
| DAF | CF 85.410 12.9 | [MX300] | 10.2006- |
| DAF | CF 85.460 12.9 | [MX-13340] | 10.2006- |
| DAF | CF 85.460 12.9 | [MX340] | 10.2005- |
| DAF | CF 85.460 12.9 | [MX340] | 10.2005-05.2013 |
| DAF | CF 85.460 12.9 | [MX340] | 10.2006- |
| DAF | CF 85.510 12.9 | [MX-13375] | 10.2006- |
| DAF | CF 85.510 12.9 | [MX375] | 10.2005- |
| DAF | CF 85.510 12.9 | [MX375] | 10.2005-05.2013 |
| DAF | CF 85.510 12.9 | [MX375] | 10.2006- |
| DAF | XF 105.410 12.9 | [MX300] | 10.2005- |
| DAF | XF 105.460 12.9 | [MX340] | 10.2005- |
| DAF | XF 105.510 12.9 | [MX375] | 10.2005- |
| DAF | XF 95.380 12.6 | [XE280C] | 12.2005- |
| DAF | XF 95.430 12.6 | [XE315C] | 12.2005- |
| SOLARIS | Vacanza 12 12.9 | [MX300] | 10.2005- |
| SOLARIS | Vacanza 13 12.9 | [MX300] | 10.2005- |
Reference Information
CAL10606GS 20101606OE LRA03204 1976291R 220-30217 ALT79868 RNL4932 CGB-19320 1976291 12201249 301917RIB DB0430 ABO606 A24BH0097AS RNL4932NR WOOALT10587 PRAL648B 906.504.080.225 052.104 12201308IR 1927311 ALT10587 906.504.080.461 20010606AV 202022 443478 0124555117 ALT1321 0124555118 89213040 F042A01233 063731917010 906.504.080.212 5610016 209504 20010606IV 12201308 48-5816 2010606.5 TT11313 2010606.1 2010606.0 WG2280948 BBA32824 H5610016 1626130R ALT126060 WG2043995 112896 LEA0860 LRA3204 AG2179 20101606IT 906.504.080.280 IA9463 115495 0124555018 MARC1917 10443409 301917RI WG2011430 A24BH0097A2 20101606BN 19092052 84914 ALTL648B 1626130 1986A00930 BOS0124555117 ALB1917 H5610016G 20010606OV DRB9320 RNL4932OER ALTS267 6.8132.1 PRAS267 2165377R A24BH0097 444410 G101042 2165377A CAL10606AS 0124555118-R 8EL738211-781 CAL10606IS 3127157 SEG0124555117 906.504.080.014 MQA1917 906.504.080.010 ALT2302 0986049323 AG2179RB ABO606A AC-CBA1917 AAN5404 0986049320 G100665 943319171010 MG799 88-02510-SX DRB9320X 5.47017 ALT126060I 220-30217NOE 0124555582 0124555581 441795 CA1917IR 11.209.615 ALT126060A 8EL012584-321 72446578 2535 114089 UD04809(SEG)A 20126NView your shopping basket or Browse other items in Alternators.
