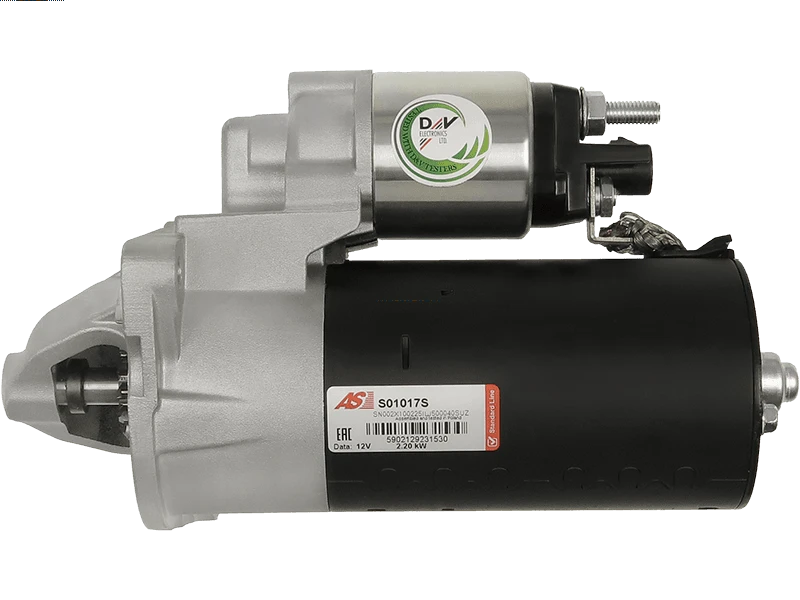

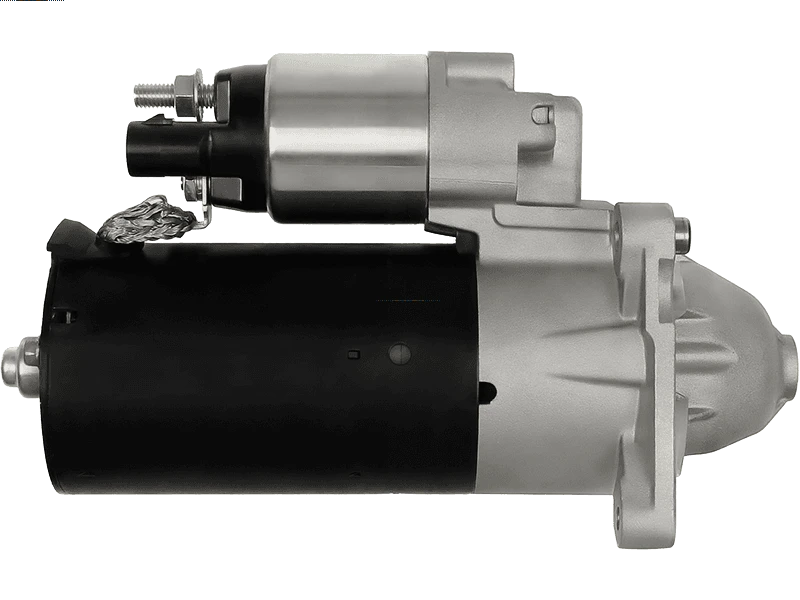

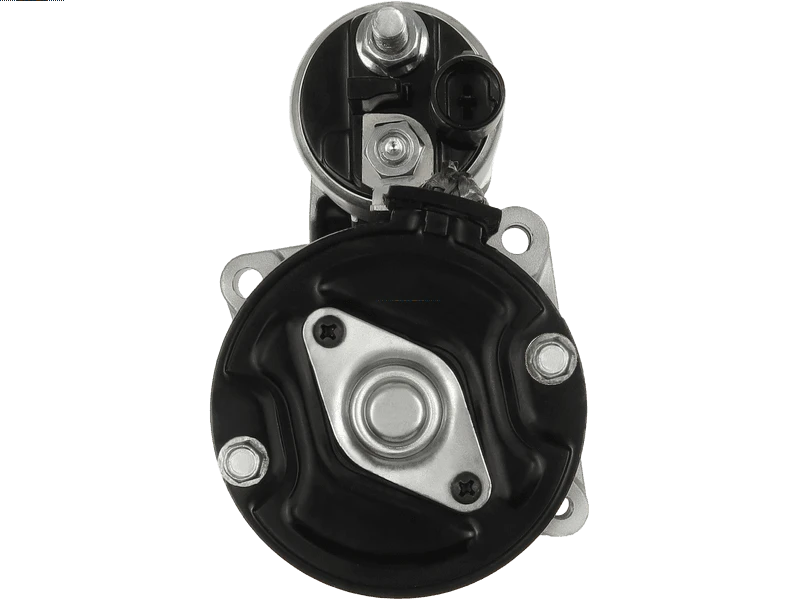

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 356.43 including GST
NZ$ 309.94 excluding GST
or four payments of $89.11
with
Learn More
each
S01017S
No stock in NZ
No stock in NZ
Information
0001149433Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 247 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Center - Center (O.2) | 82 mm |
| Mount Hole Center - Center (O.3) | 82 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 80 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | Giulia 2.2 D | [46335975] | 08.2018- |
| ALFA ROMEO | Giulia 2.2 D | [46335975] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D | [46335975] | 10.2015- |
| ALFA ROMEO | Giulia 2.2 D | [46346398] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D | [55266388] | 10.2015- |
| ALFA ROMEO | Giulia 2.2 D | [55268532] | 10.2015- |
| ALFA ROMEO | Giulia 2.2 D | [55268818] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D | [55271040] | 10.2015- |
| ALFA ROMEO | Giulia 2.2 D | [55275156] | 08.2018- |
| ALFA ROMEO | Giulia 2.2 D | [55284636] | 08.2018- |
| ALFA ROMEO | Giulia 2.2 D | [55284636] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D | [55284636] | 10.2015- |
| ALFA ROMEO | Giulia 2.2 D Q4 | [46346359] | 11.2016- |
| ALFA ROMEO | Giulia 2.2 D Q4 | [55268818] | 04.2017- |
| ALFA ROMEO | Giulia 2.2 D Q4 | [55268818] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D Q4 | [55268818] | 11.2016- |
| ALFA ROMEO | Giulia 2.2 D Q4 | [55284529] | 08.2018-10.2022 |
| ALFA ROMEO | Giulia 2.2 D Q4 | [55284529] | 11.2016- |
| ALFA ROMEO | Stelvio 2.2 D | [46335692] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 D | [46347914] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 D | [55268818] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 D | [55275156] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 D | [55275156] | 12.2016- |
| ALFA ROMEO | Stelvio 2.2 D | [55284529] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 D Q4 | [46346359] | 12.2016- |
| ALFA ROMEO | Stelvio 2.2 D Q4 | [55271838] | 12.2016- |
| ALFA ROMEO | Stelvio 2.2 D Q4 | [55284529] | 12.2016- |
| ALFA ROMEO | Stelvio 2.2 JTDM Q4 | [46335692] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 JTDM Q4 | [46346359] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 JTDM Q4 | [55268818] | 08.2018- |
| ALFA ROMEO | Stelvio 2.2 JTDM Q4 | [55284529] | 08.2018- |
Reference Information
0001149433-R 25-5174CT SBO571 88215210 S01017S STX210368 30557-OS STR10327 503ST21 CST10571GS LRS04012 UD102291S LRS4012 100.514.112.280 3291 AR9015 0001149432 0001149433 ST02136 318230112 S12BH0889 0986026850 20401175OE DRS1117 71796987 25-5174 100.514.112.210 255608B CGB-55174 100.514.112.010 10010571OV 50532995 6010571.1Video/Publications
