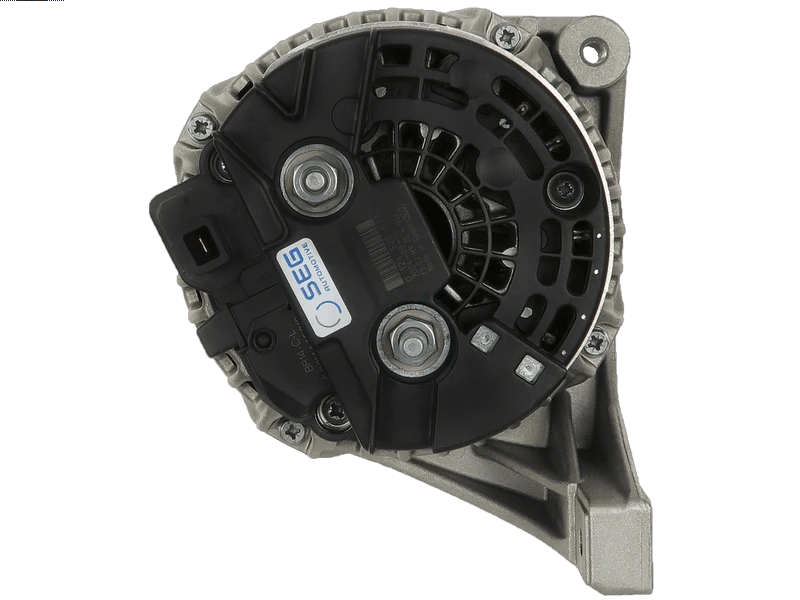

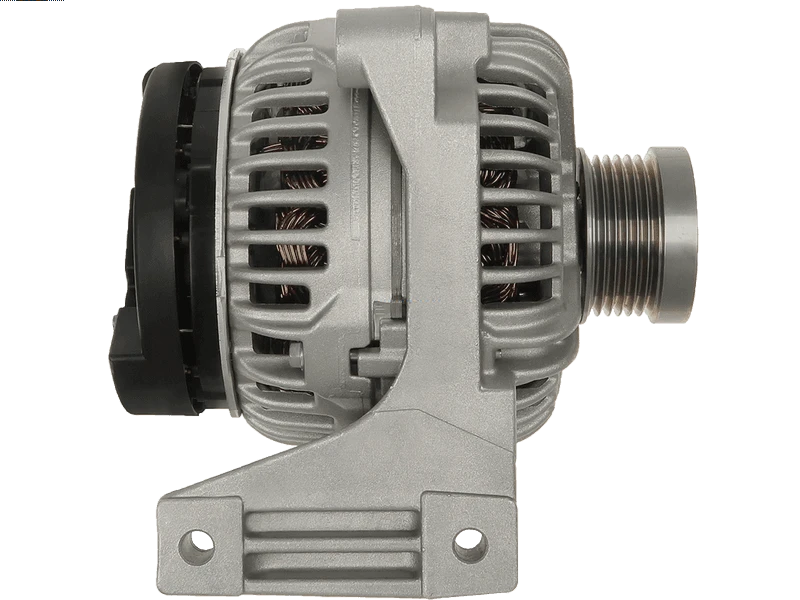

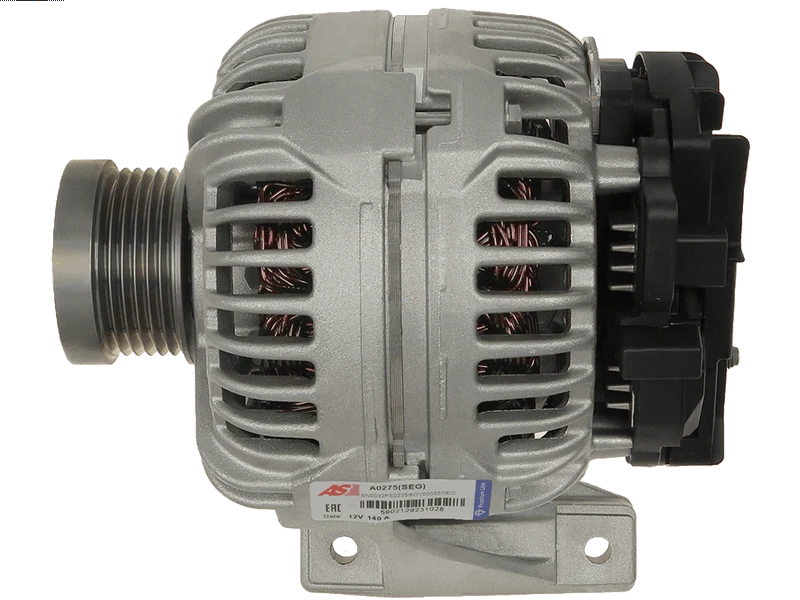

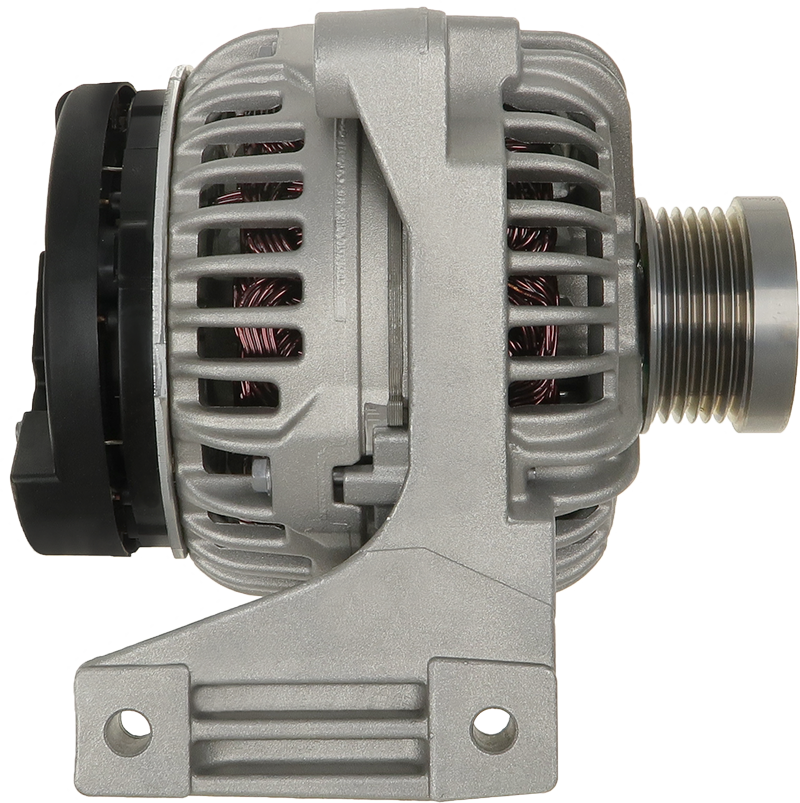

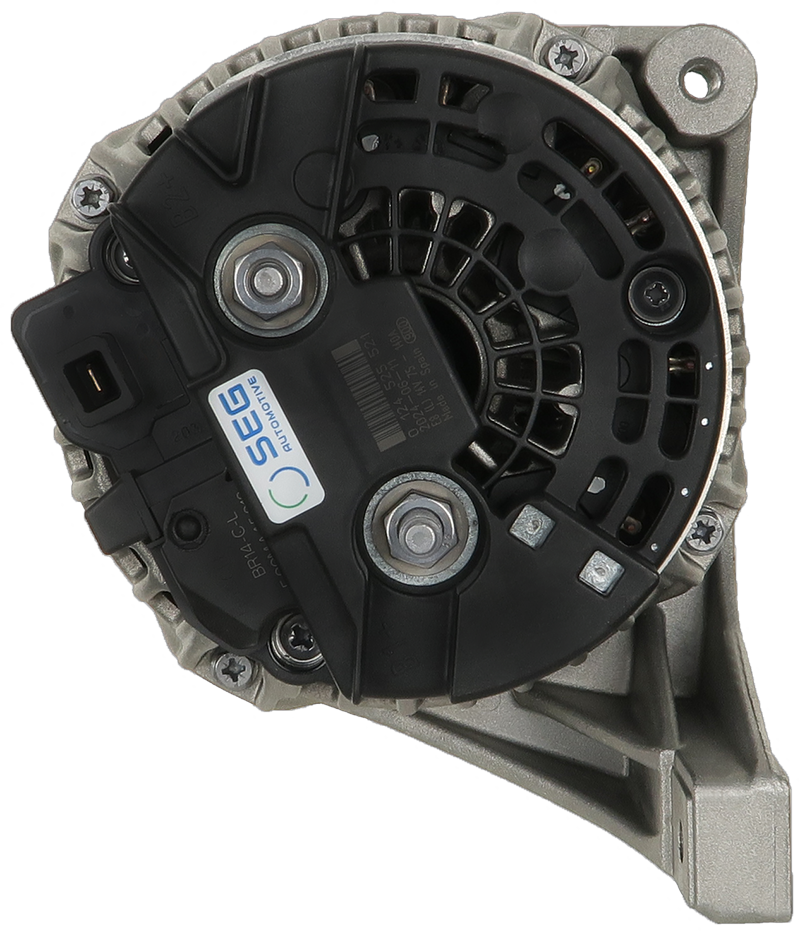

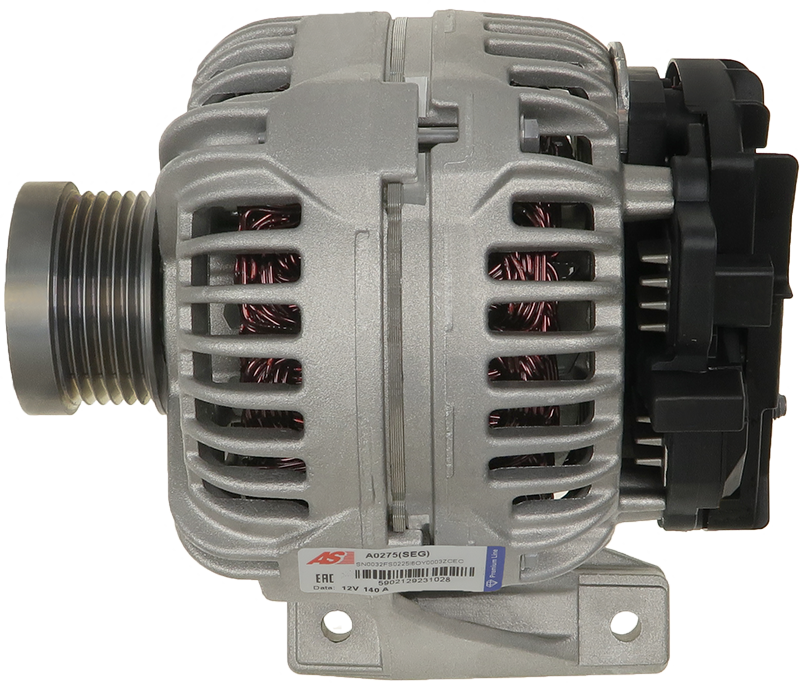

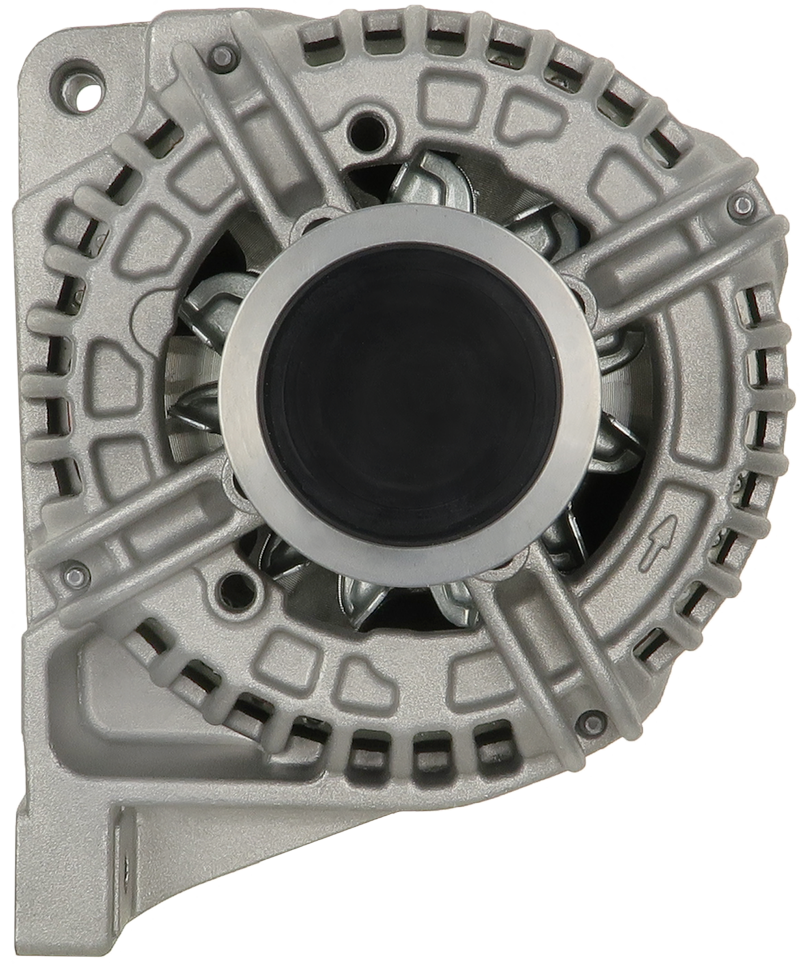

Brand new OEM SEG Alternator
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 1,001.70 including GST
NZ$ 871.04 excluding GST
or four payments of $250.43
with
Learn More
each
A0275(SEG)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0124525521Specifications
| Amp | 140 A |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 9.5 mm |
| Length (L.1) | 196 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | Yes |
| Plug Code | PL_1201 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 T | [B5204T5] | 01.2004-12.2006 |
| VOLVO | S60 2.0 T | [B5204T5] | 01.2004-12.2009 |
| VOLVO | S60 2.4 | [B5244S] | 01.2004-12.2009 |
| VOLVO | S60 2.4 | [B5244S2] | 01.2004-12.2009 |
| VOLVO | S60 2.4 | [B5244T4] | 01.2005-10.2006 |
| VOLVO | S60 2.4 Bifuel | [B5244SG..] | 01.2004-12.2008 |
| VOLVO | S60 2.4 CDi | [D5244..] | 01.2003-12.2005 |
| VOLVO | S60 2.4 CDi | [D5244T3] | 10.2003-12.2005 |
| VOLVO | S60 2.4 D | [D5244T..] | 01.2004- |
| VOLVO | S60 2.4 D | [D5244T2] | 12.2001- |
| VOLVO | S60 2.4 D5 | [D5244T..] | 01.2004- |
| VOLVO | S60 2.4 LPG | [B5244SG2] | 06.2002-04.2010 |
| VOLVO | S60 2.4 T5 | [B5244T5] | 01.2004-12.2009 |
| VOLVO | S60 2.4 T AWD | [B5244T3] | 01.2004- |
| VOLVO | S60 2.4 Turbo | [B5244T] | 01.2001-04.2010 |
| VOLVO | S60 2.5 AWD | [B5254T4] | 09.2003-04.2010 |
| VOLVO | S60 2.5 R AWD | [B5254T4] | 01.2004- |
| VOLVO | S60 2.5 T | [B5254T2] | 01.2004-12.2009 |
| VOLVO | S60 2.5 T AWD | [B5254T2] | 01.2004-12.2009 |
| VOLVO | S60 2.5 Turbo AWD | [B5254T2] | 04.2004- |
| VOLVO | S60 R 2.5 Turbo AWD | [B5254T4] | 03.2003- |
| VOLVO | S80 2.0 T | [B5204T..] | 01.1998-12.2006 |
| VOLVO | S80 2.4 Bifuel | [B5244SG..] | 01.2004-12.2006 |
| VOLVO | S80 2.4 LPG | [B5244SG] | 09.2001-07.2006 |
| VOLVO | S80 2.5 T | [B5254T2] | 01.2004-12.2006 |
| VOLVO | S80 2.5 T AWD | [B5254T2] | 01.2004-12.2006 |
| VOLVO | S80 3.0 T6 | [D6294T] | 01.2004-12.2006 |
| VOLVO | V70 2.0 T | [B5204T..] | 01.2004-12.2007 |
| VOLVO | V70 2.0 T | [B5204T5] | 01.2004-12.2007 |
| VOLVO | V70 2.4 | [B5244S..] | 01.2004-12.2007 |
| VOLVO | V70 2.4 Bifuel | [B5244SG..] | 01.2004-12.2007 |
| VOLVO | V70 2.4 CDi | [B5244T6] | 01.2005-12.2008 |
| VOLVO | V70 2.4 D | [D5244T..] | 01.2004-12.2007 |
| VOLVO | V70 2.4 D5 | [D5244T..] | 01.2004-12.2007 |
| VOLVO | V70 2.4 D5 AWD | [D5244T..] | 01.2005-12.2007 |
| VOLVO | V70 2.4 D D5 | [D5244T] | 08.2001- |
| VOLVO | V70 2.4 D D5 | [D5244T5] | 08.2005-07.2007 |
| VOLVO | V70 2.4 LPG | [B5244SG] | 09.2001-08.2007 |
| VOLVO | V70 2.4 T5 | [B5244T5] | 01.2004-12.2007 |
| VOLVO | V70 2.5 R | [B5254T4] | 01.2004-12.2007 |
| VOLVO | V70 2.5 T | [B5254T2] | 01.2004-12.2007 |
| VOLVO | V70 2.5 T AWD | [B5254T2] | 01.2004-12.2007 |
| VOLVO | XC70 2.4 D5 | [D5244T] | 01.2004-12.2007 |
| VOLVO | XC70 2.4 D5 | [D5244T4] | 01.2004-12.2007 |
| VOLVO | XC70 2.5 T | [B5254T2] | 01.2004-12.2007 |
| VOLVO | XC90 2.4 D | [D5244T5] | 10.2002- |
| VOLVO | XC90 2.4 D5 | [D5244..] | 01.2004- |
| VOLVO | XC90 2.4 D D5 | [D5244T18] | 01.2011- |
| VOLVO | XC90 2.4 D D5 AWD | [D5244T5] | 10.2007- |
| VOLVO | XC90 2.5 T | [B5254T2] | 01.2004- |
| VOLVO | XC90 2.5 T AWD | [B5254T9] | 01.2012-12.2014 |
Reference Information
BBA2558 30667787 CAL10418GS UD04765(SEG)A CA1988IR ABO418A ANM49600X ALT1436 STX100500R AEC1673 815.521.140.280 301988RI PRAS582 86032620 2010418.1 3125887 2010418.0 3125888 WG2280870 9212203 30667894 0124525522 30667892 3125889 ALTS582 28-5539 LRA2924 AZMT-49-035-1197 11091N 815.521.140.014 9364 815.521.140.010 32047380 20101814BN 567ST75 20010418AV 4847380 192971 H5510574 36050270 36012358 5510574 5510574G 0124525521 WG2011025 LRA02924 8550504796 209074 440822 A-10703 114312 10443650 441872 311123 8603263 AZMT-49-035-1499 8603262 9047380 A12BH0440 11.1988 TT12235 20010418OV VO8044 06-10880-SX AC-CBA1988 0124525061 0124525060 1986A00890 DRB7380 301988RIB L47380 AEK2924 AL02590 30658065 2381441402 8EL738212171 ALT124180 IR6054 111823 36050263 ALT124180A A-6601 A12BH0440AS ALT10703 STX100500 1638099180 815.521.140.212 ALB1988 20101814OE 12047380 57567 0986047383 H5510574G 30658085 89212203 0124525060-R 8EL012428-431 AI-90271 0986047380 F032114312 90-15-6614 ABO418 CAL10418ASVideo/Publications
