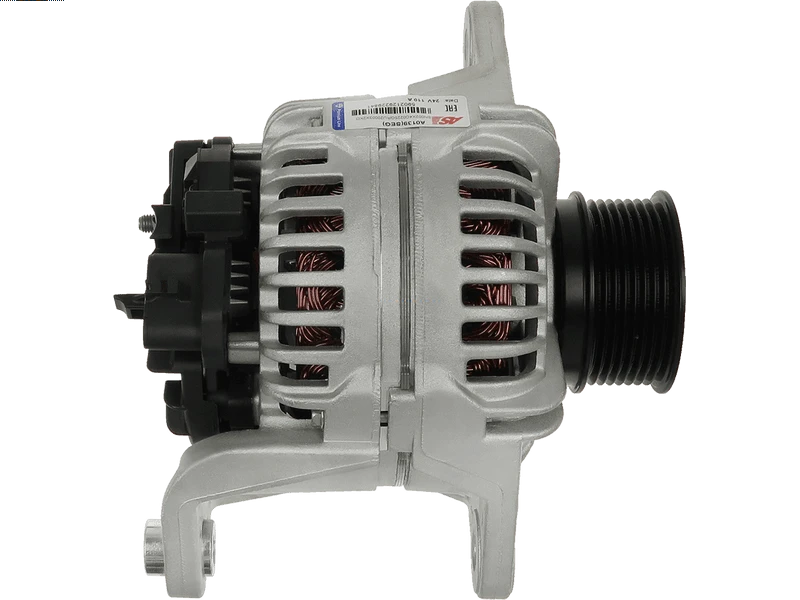

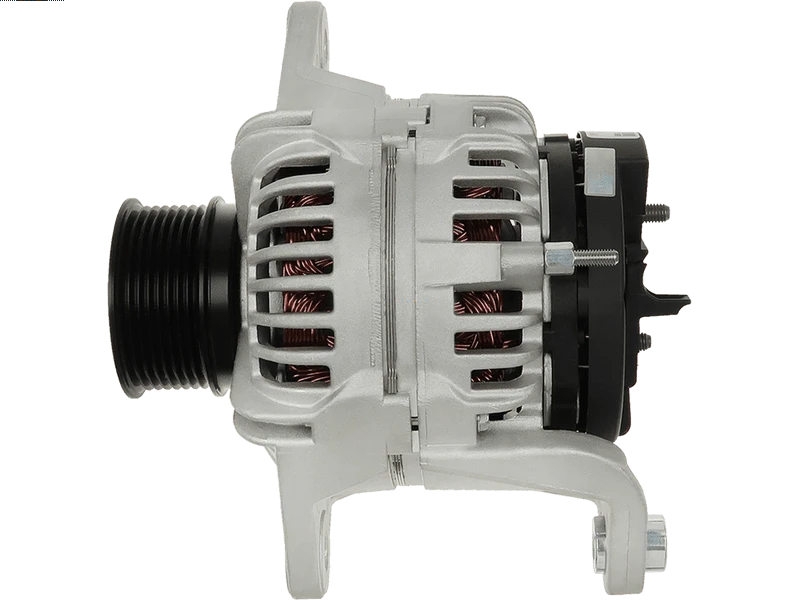

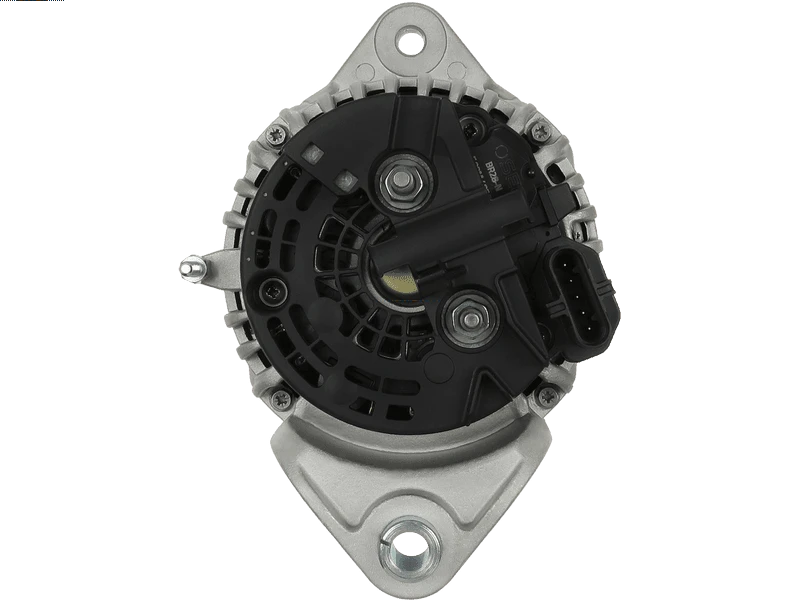

Brand new OEM SEG Alternator
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 821.73 including GST
NZ$ 714.55 excluding GST
or four payments of $205.43
with
Learn More
each
A0139(SEG)
No stock in NZ
No stock in NZ
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124655500Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 13 mm |
| Diameter (D.3) | 13 mm |
| Length (L.1) | 218 mm |
| Mount Inside Length or Pad Mount C-C (C) | 101.5 mm |
| OEM Product | Yes |
| Plug Code | PL_5003 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 71.5 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT V.I. | 440.19 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 460.18 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.24 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.25 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.26 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.32 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 480.19 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 480.26 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 500.18 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.24 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.25 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.26 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.32 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 520.19 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.24 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.25 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.26 12.8 | [DXI13] | 08.2009- |
| VOLVO | 8700 12.1 | [DH12D340] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12D380] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12E340] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12E380] | 01.1999- |
| VOLVO | 9700 12.1 | [DH12D340] | 04.2001- |
| VOLVO | 9700 12.1 | [DH12D380] | 10.2001- |
| VOLVO | 9700 12.1 | [DH12D420] | 10.2001- |
| VOLVO | B 12 12.1 | [D12C420] | 02.2006- |
| VOLVO | B 12 12.1 | [D12D420] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12D340] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E340] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E380] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E420] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E460] | 02.2006- |
| VOLVO | FH 12/340 12.1 | [D12D340] | 01.1995- |
| VOLVO | FH 12/340 12.1 | [D12D340] | 08.1993- |
| VOLVO | FH 12/380 12.1 | [D12D380] | 08.1993- |
| VOLVO | FH 12/420 12.1 | [D12D420] | 01.1995- |
| VOLVO | FH 12/420 12.1 | [D12D420] | 08.1993- |
| VOLVO | FH 12/460 12.1 | [D12D460] | 08.1998- |
| VOLVO | FH 400 12.8 | [D13A400] | 09.2005- |
| VOLVO | FH 400 12.8 | [D13B400] | 09.2005- |
| VOLVO | FH 420 12.8 | [D13C420] | 01.2009- |
| VOLVO | FH 440 12.8 | [D13A440] | 09.2005- |
| VOLVO | FH 440 12.8 | [D13B440] | 09.2005- |
| VOLVO | FH 440 12.8 | [D13B440] | 09.2006-12.2011 |
| VOLVO | FH 440 12.8 | [D13H440] | 09.2005- |
| VOLVO | FH 460 12.8 | [D13C460] | 01.2009- |
| VOLVO | FH 460 12.8 | [D13C460] | 01.2012- |
| VOLVO | FH 480 12.8 | [D13A480] | 09.2005- |
| VOLVO | FH 500 12.8 | [D13B500] | 01.2009- |
| VOLVO | FH 500 12.8 | [D13B500] | 09.2007- |
| VOLVO | FH 500 12.8 | [D13C500] | 01.2009- |
| VOLVO | FH 500 12.8 | [D13C500] | 09.2007- |
| VOLVO | FH 520 12.8 | [D13A520] | 09.2005- |
| VOLVO | FH 540 12.8 | [D13C540] | 01.2009- |
| VOLVO | FM 12/340 12.1 | [D12D340] | 08.1998-09.2005 |
| VOLVO | FM 12H/340 12.1 | [D12D340] | 08.1998-09.2005 |
| VOLVO | FM 12H/420 12.1 | [D12D420] | 08.1998-09.2005 |
| VOLVO | FM 360 12.8 | [D13A360] | 09.2005- |
| VOLVO | FM 360 12.8 | [D13A360] | 11.2005- |
| VOLVO | FM 360 12.8 | [D13B360] | 09.2005- |
| VOLVO | FM 360 12.8 | [D13B360] | 11.2005- |
| VOLVO | FM 380 12.8 | [D13C380] | 04.2012- |
| VOLVO | FM 380 12.8 | [D13C380] | 09.2005- |
| VOLVO | FM 400 12.8 | [D13A400] | 09.2005- |
| VOLVO | FM 400 12.8 | [D13B400] | 09.2005- |
| VOLVO | FM 420 12.8 | [D13C420] | 04.2012- |
| VOLVO | FM 420 12.8 | [D13C420] | 09.2005- |
| VOLVO | FM 420 12.8 | [D13K420] | 04.2012- |
| VOLVO | FM 440 12.8 | [D13A440] | 09.2005- |
| VOLVO | FM 440 12.8 | [D13A440] | 09.2006-02.2012 |
| VOLVO | FM 440 12.8 | [D13B440] | 09.2005- |
| VOLVO | FM 460 12.8 | [D13C460] | 04.2012- |
| VOLVO | FM 460 12.8 | [D13C460] | 05.2009- |
| VOLVO | FM 460 12.8 | [D13C460] | 09.2005- |
| VOLVO | FM 460 12.8 | [D13K460] | 04.2012- |
| VOLVO | FM 460 12.8 | [D13K460] | 05.2009- |
| VOLVO | FM 480 12.8 | [D13A480] | 09.2005- |
| VOLVO | FM 480 12.8 | [D13A480] | 09.2006-02.2012 |
| VOLVO | FM 500 12.8 | [D13B500] | 09.2005- |
| VOLVO | FM 500 12.8 | [D13C500] | 04.2012- |
| VOLVO | FM 500 12.8 | [D13C500] | 09.2005- |
| VOLVO | FM 500 12.8 | [D13K500] | 04.2012- |
| VOLVO | FMX 380 12.8 | [D13C380] | 01.2011- |
| VOLVO | FMX 380 12.8 | [D13C380] | 01.2012- |
| VOLVO | FMX 380 12.8 | [D13C380] | 04.2010- |
| VOLVO | FMX 380 12.8 | [D13C380] | 09.2013- |
| VOLVO | FMX 420 12.8 | [D13C420] | 01.2011- |
| VOLVO | FMX 420 12.8 | [D13C420] | 01.2012- |
| VOLVO | FMX 420 12.8 | [D13C420] | 09.2013- |
| VOLVO | FMX 420 12.8 | [D13K420] | 09.2013- |
| VOLVO | FMX 460 12.8 | [D13C460] | 01.2011- |
| VOLVO | FMX 460 12.8 | [D13C460] | 01.2012- |
| VOLVO | FMX 460 12.8 | [D13C460] | 09.2013- |
| VOLVO | FMX 460 12.8 | [D13K460] | 09.2013- |
| VOLVO | FMX 500 12.8 | [D13C500] | 01.2011- |
| VOLVO | FMX 500 12.8 | [D13C500] | 01.2012- |
| VOLVO | FMX 500 12.8 | [D13C500] | 09.2013- |
| VOLVO | FMX 500 12.8 | [D13K500] | 09.2013- |
| VOLVO | FMX 540 12.8 | [D13K540] | 09.2013- |
Reference Information
CAL10626AS 430930 CAL10626IS 7420862899 IA9470 LRA03285 A24BH0084 441990 443489 4G1062 10443711 20466317 115488 816.502.110.280 CGB-16290 IR5923 A004TR5392 BOS0124655012 85020824 ALT126260I 554027RIM A004TR5392ZT 035.265 21277N 7421429789 ALT126260A 816.502.110.019 1986A01034 816.502.110.014 816.502.110.212 QRA3479 816.502.110.010 210916 ALT10306 0124655012 21429787 L49350 5010589551 21429789 TT12283 430930M 0124655019 CAL10626GS 89213744 11209622 A4TR5392ZT 48-5897 202103 860804AM ALT1731 ABO626A 202031 86689 A-6473 ALT126260 MG815 AL04074 20849352 ABO626 0124655988 7420466317 F042301131 160-55202 23876N 0124655500 301883RIB LRA3285 301883RI 2540 861291 AAN5411 0124655012-R A4TR5392 UD03845(SEG)A 5610068 816.502.110.310 A24BH0084AS 0986049350 2.21039 5301211104 AVI147J3120HDVideo/Publications
A0139(SEG)Related Items
