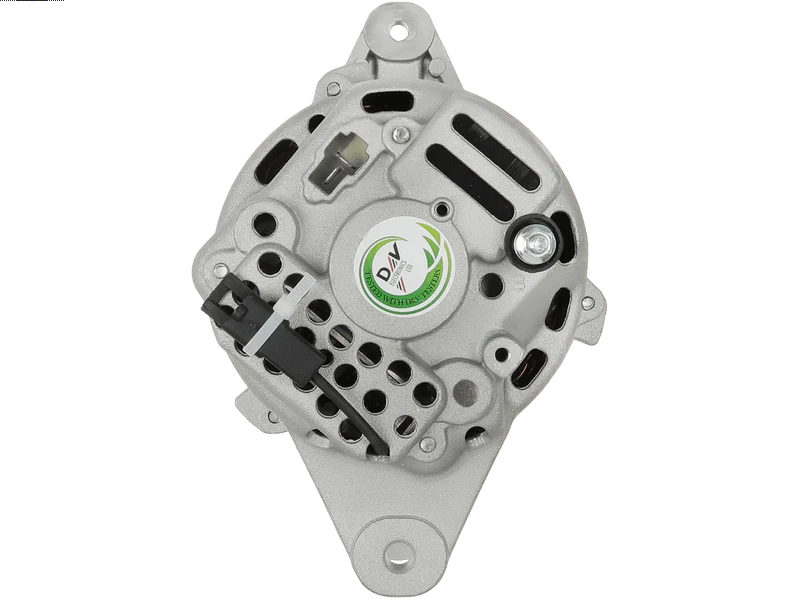

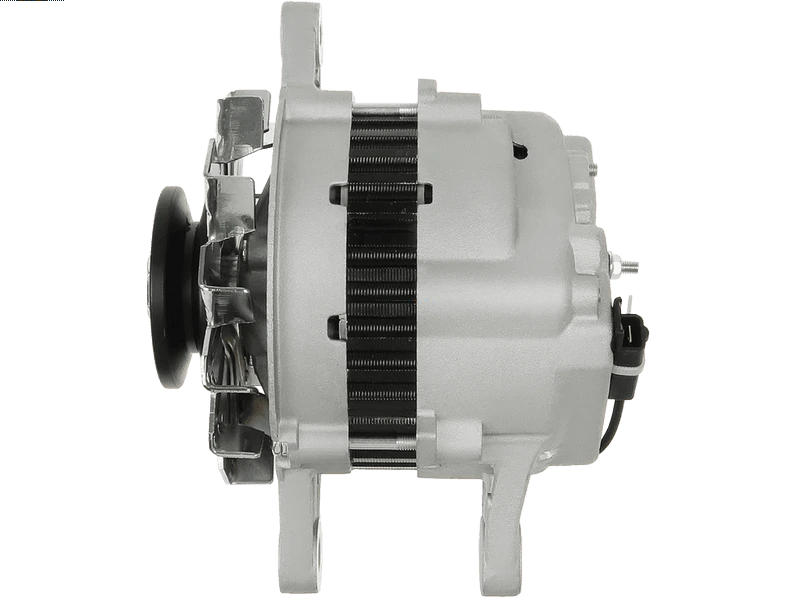

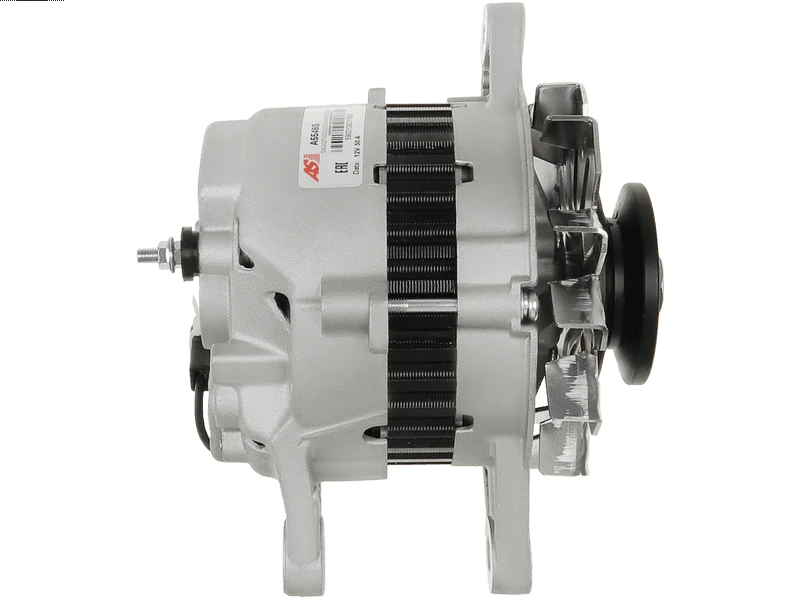

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 294.39 including GST
NZ$ 255.99 excluding GST
or four payments of $73.60
with
Learn More
each
A5546S
No stock in NZ
No stock in NZ
Specifications
| Amp | 50 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 170 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Plug Code | PL_2505 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 44.4 mm |
| Pulley Outside Diameter (O.D.2) | 68 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | SOLID |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Galant 1.8 Turbo-D | [4D65T] | 06.1984-04.1990 |
| MITSUBISHI | Galant 2.0 GLS | [4G63(SOHC8V)] | 09.1980-05.1984 |
| MITSUBISHI | Galant 2.0 GLX | [4G63(SOHC8V)] | 09.1980-06.1983 |
| MITSUBISHI | L 300 1.8 4WD | [4G62] | 08.1984-02.1987 |
| MITSUBISHI | L 300 2.0 4WD | [4G63(SOHC8V)] | 11.1986-02.1987 |
| MITSUBISHI | Lancer 1.6 | [4G32GS] | 01.1981-02.1983 |
| MITSUBISHI | Lancer 1.6 | [4G32GS] | 09.1979-02.1983 |
| MITSUBISHI | Pajero 2.6 | [4G54] | 01.1983-11.1990 |
| MITSUBISHI | Pajero 2.6 | [G54B] | 01.1983-11.1990 |
Reference Information
A2T16471 A2T16472 9120690078 12060135 37300-11530 LRA00258 28-0912 MA8009 MD061650 A2T16477 9051504 10441413 A5T15371 A005T15471 A3T21471 UD30137A A002T41371 A2T24771 A002T16471A 90-27-3029 MD022578 A002T40671 A005T21171 AL00634 A2T16471A A5T21071 A002T23271 A2T25271 A002T23272 A002T23277 A5T21077 A5T23377 MD025679 AZMT-49-035-2044 A002T16477 A2T41371 MD061151 37300-11510 MD064067 MD064068 STX102058 A002T16472 37300-21310 ALM9151 A002T16471 155.006.050.130 L611133 LRA0258 226105452 A003T21471 A5T15471 A005T15371 A002T24771 436500 A005T21071 MD063781 40117RI 37300-11501 3112193 A5T21171 110318 445200 55795 STX100921 20137671BN 2035176 AMI176A A005T21077 A2T23272 A2T23271 A002T25271 A2T23277 A005T23377 CAL35176AS A2T40671Video/Publications
