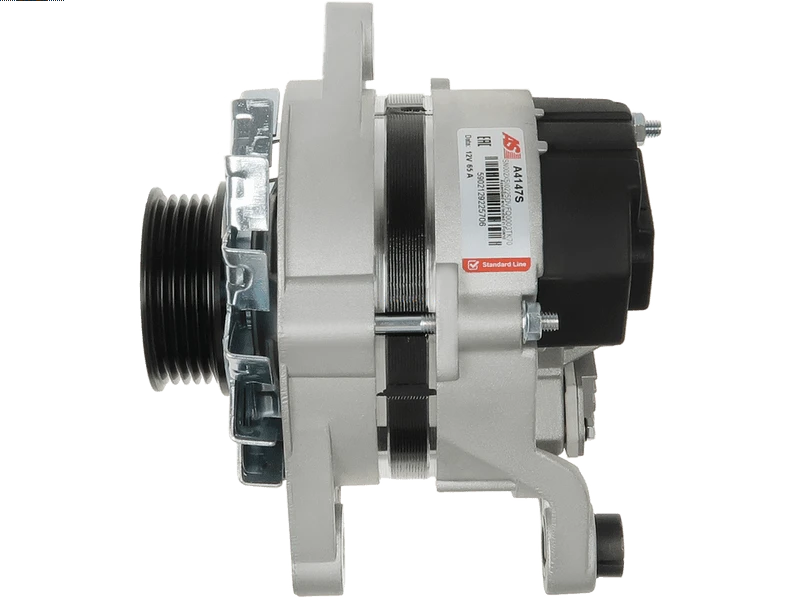

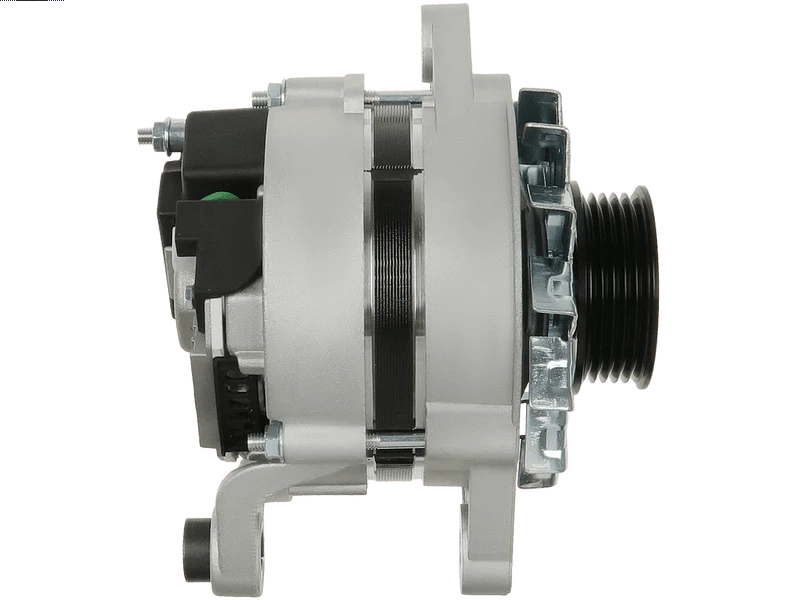

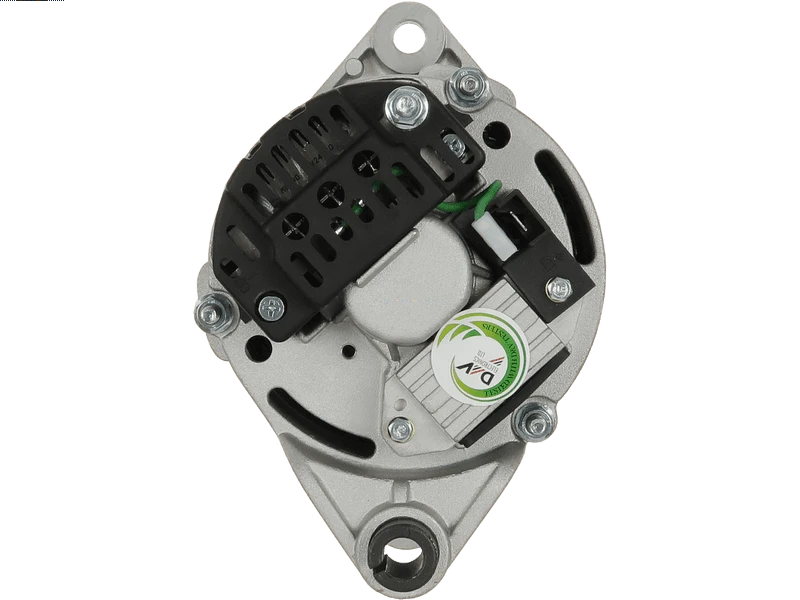

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 294.39 including GST
NZ$ 255.99 excluding GST
or four payments of $73.60
with
Learn More
each
A4147S
No stock in NZ
No stock in NZ
Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 33 1.8 TD | [VM-96-A] | 07.1990-09.1994 |
| FERRARI | 512 BB 4.9 | [F-102-B] | 08.1976-06.1981 |
| FERRARI | F40 3.0 | [F-120-A] | 02.1988-06.1992 |
| FIAT | 131 1.4 Mirafiori | [131-C.000] | 11.1980-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C.000] | 11.1981-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C1.000] | 11.1980-01.1984 |
| FIAT | 131 1.4 Mirafiori | [131-C1.000] | 11.1981-01.1984 |
| FIAT | 131 1.4 Super Mirafiori | [131-C1.000] | 04.1981-12.1983 |
| FIAT | 131 1.6 | [131-A1.000] | 10.1974-09.1981 |
| FIAT | 131 1.6 | [131-C2.000] | 11.1976-12.1984 |
| FIAT | 131 1.6 | [131-C2.000] | 11.1980-12.1984 |
| FIAT | 131 1.6 Super | [131-C3.000] | 03.1978-01.1984 |
| FIAT | 131 1.6 Super | [131-C3.000] | 12.1979-12.1981 |
| FIAT | 131 1.6 Super Mirafiori | [131-B1.000] | 03.1979-03.1982 |
| FIAT | 131 2.0 Super | [131-C4.000] | 01.1981-12.1984 |
| FIAT | Argenta 1600 | [132-D.000] | 04.1981-12.1985 |
| FIAT | Argenta 1600 i.e | [132-D.000] | 04.1981-12.1985 |
| FIAT | Argenta 2000 | [132-C2.000] | 06.1978-12.1985 |
| FIAT | Argenta 2000 | [132-D1.000] | 06.1978-12.1985 |
| FIAT | Argenta 2000 i.e. | [132-C3.000] | 06.1981-07.1986 |
| FIAT | Argenta 2500 D | [8144.61] | 06.1981-11.1985 |
| FIAT | Argenta 2500 TD | [8144.61.500.81] | 07.1983-08.1985 |
| FIAT | Croma 1600 | [154-A.048] | 12.1985-12.1990 |
| FIAT | Croma 1900 TD i.d. | [154-C6.000] | 08.1987-10.1992 |
| FIAT | Croma 1900 TD i.d. | [154-D1.000] | 11.1992-12.1996 |
| FIAT | Croma 2000 CHT | [154-A1.000] | 12.1985-02.1989 |
| FIAT | Croma 2000 i.e. | [154-C3.000] | 03.1987-09.1992 |
| FIAT | Croma 2000 i.e. | [834-B.000] | 03.1987-09.1992 |
| FIAT | Croma 2000 i.e. Turbo | [154-C4.046] | 06.1987-08.1996 |
| FIAT | Croma 2000 i.e. Turbo | [834-C.146] | 06.1987-08.1996 |
| FIAT | Ducato 1.9 TD | [280-A1.000] | 03.1989-08.1990 |
| FIAT | Regata 60 1.7 D | [138-B6.000] | 09.1983-12.1986 |
| FIAT | Regata 60 1.7 D | [149-B3.000] | 01.1984-12.1989 |
| FIAT | Regata 60 1.7 D | [149-B3.000] | 05.1985-03.1989 |
| FIAT | Regata 65 1.9 D | [149-A1.000] | 04.1984-07.1989 |
| FIAT | Regata 80 1.9 TD | [831-D1.000] | 05.1986-07.1989 |
| FIAT | Ritmo 1.9 TD | [831-D1.000] | 12.1985-12.1987 |
| FIAT | Tempra 1.9 TD | [160-A6.000] | 05.1990-08.1996 |
| FIAT | Tempra 1.9 TD | [160-A6.000] | 07.1991-02.1995 |
| FIAT | Tempra 1.9 TD | [160-B6.046] | 03.1992-06.1993 |
| FIAT | Tempra 1.9 TD | [160-B6.046] | 07.1992-08.1996 |
| FIAT | Tempra 1.9 TD | [160-D1.000] | 05.1990-08.1996 |
| FIAT | Tempra 1.9 TD | [160-D1.000] | 07.1991-02.1995 |
| FIAT | Tipo 1.9 TD | [160-A6.000] | 09.1990-04.1995 |
| FIAT | Tipo 1.9 TD | [160-A6.046] | 09.1990-04.1995 |
| FIAT | Tipo 1.9 TD | [160-B6.046] | 03.1992-06.1993 |
| FIAT | Tipo 1.9 TD | [160-D1.000] | 09.1990-04.1995 |
| FIAT | Tipo 2.0 16V | [160-A8.046] | 07.1991-04.1995 |
| LANCIA | Dedra 1.9 TDS | [160-D1.000] | 04.1989-07.1999 |
| LANCIA | Dedra 1.9 TDS | [160-D1.000] | 07.1994-07.1999 |
| LANCIA | Dedra 1.9 TDS | [835-A4.000] | 04.1989-07.1999 |
| LANCIA | Dedra 1.9 TDS | [835-A4.000] | 07.1994-07.1999 |
| LANCIA | Dedra 1.9 TDS | [835-A4.046] | 04.1989-07.1999 |
| LANCIA | Dedra 2.0 HF Integrale | [835-A7.046] | 11.1990-07.1994 |
| LANCIA | Dedra 2.0 i.e. | [835-A5.000] | 09.1989-07.1992 |
| LANCIA | Dedra 2.0 i.e. | [835-A5.046] | 09.1989-07.1999 |
| LANCIA | Dedra 2.0 i.e. Turbo | [835-A8.046] | 04.1991-07.1999 |
| LANCIA | Dedra 2.0 i.e. Turbo Integrale | [835-A7.000] | 04.1990-08.1991 |
| LANCIA | Dedra 2.0 Turbo | [835-A8.000] | 11.1990-06.1994 |
| LANCIA | Delta 1.9 TDS | [831-D1.000] | 10.1986-12.1989 |
| LANCIA | Delta 2.0 16V | [836-A3.000] | 06.1993-08.1999 |
| LANCIA | Prisma 1.9 TD | [831-D1.000] | 05.1985-12.1989 |
| LANCIA | Thema 2000 i.e. | [834-B.000] | 11.1984-09.1988 |
| LANCIA | Thema 2000 i.e. | [834-B.048] | 03.1986-09.1988 |
| LANCIA | Thema 2000 i.e. | [834-B1.000] | 09.1988-05.1992 |
| LANCIA | Thema 2000 i.e. | [834-B.146] | 09.1987-05.1992 |
| LANCIA | Thema 2000 i.e.Turbo | [834-C.146] | 07.1986-05.1990 |
| LANCIA | Thema 2000 i.e. Turbo | [834-C.000] | 11.1984-12.1989 |
Reference Information
7667076 218116702 63321123 CAL30141RS IA0696 591ST55 MG361 11.201.696 0120488139 11.201.334 943321123 46231756 63321080 7701838 AAK4557 AAK4150 46231762 7541401 63320020 63321077 CAL30141GS 7635613 UD102314A 28-1657 2030141 AAK4160 CA601IR 63321029 7701840 8EL725883-001 LRA00559 63320013 FI8051 LRA00751 63320012 46231737 7631260 46231735 2030141.2 2030141.1 20104141OE 118378 20104141BN CA696IR 46445102 77412410 440748 943321172 7750751 11.201.324 LRA751 AL00852 63321172 LRA559 55591 20104141RC 11.201.969 20030141RV CAL30141AS 505.035.065.050 7552382 7552264Video/Publications
