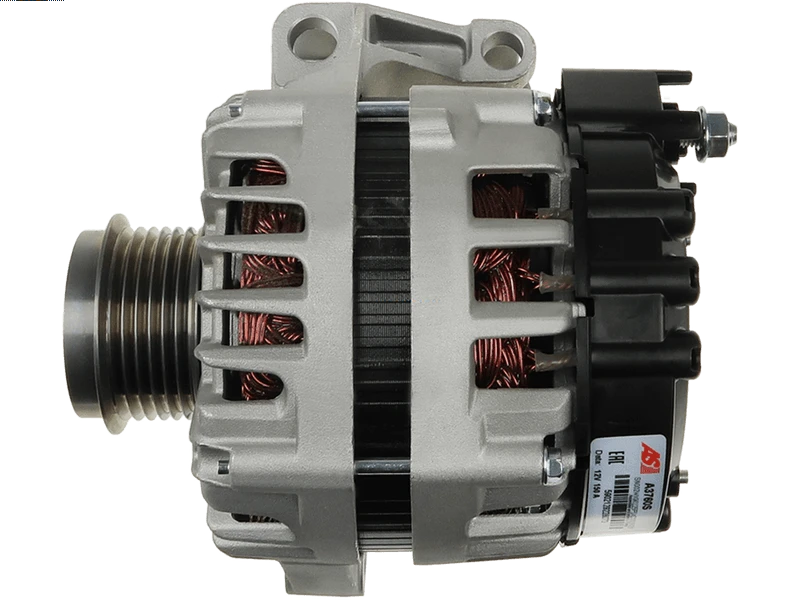

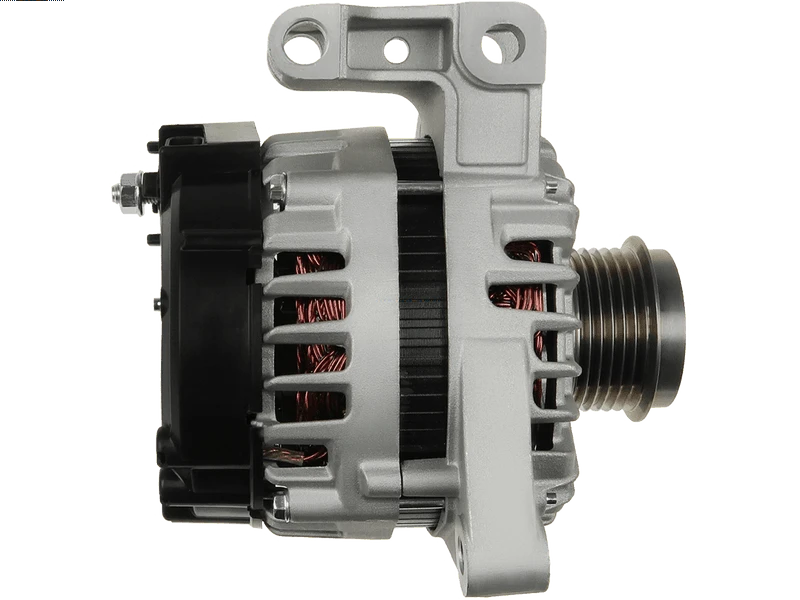

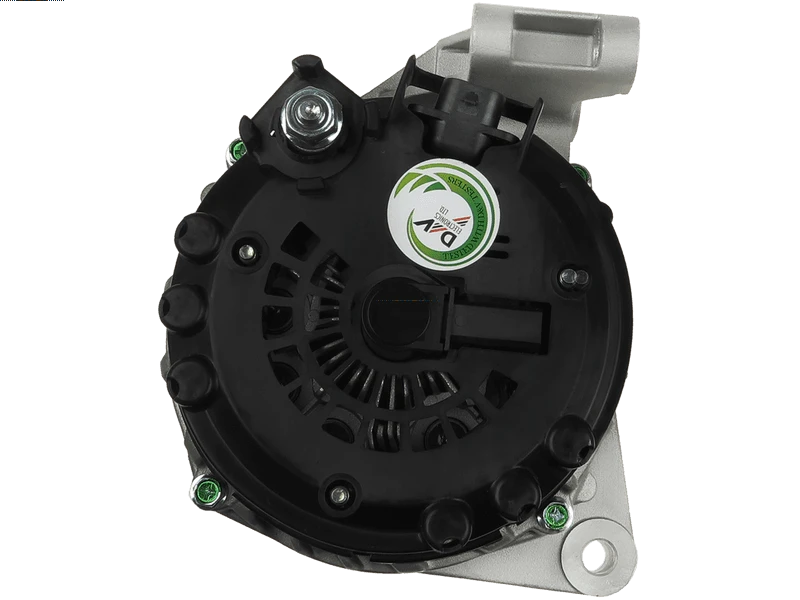

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 629.60 including GST
NZ$ 547.48 excluding GST
or four payments of $157.40
with
Learn More
each
A3760S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

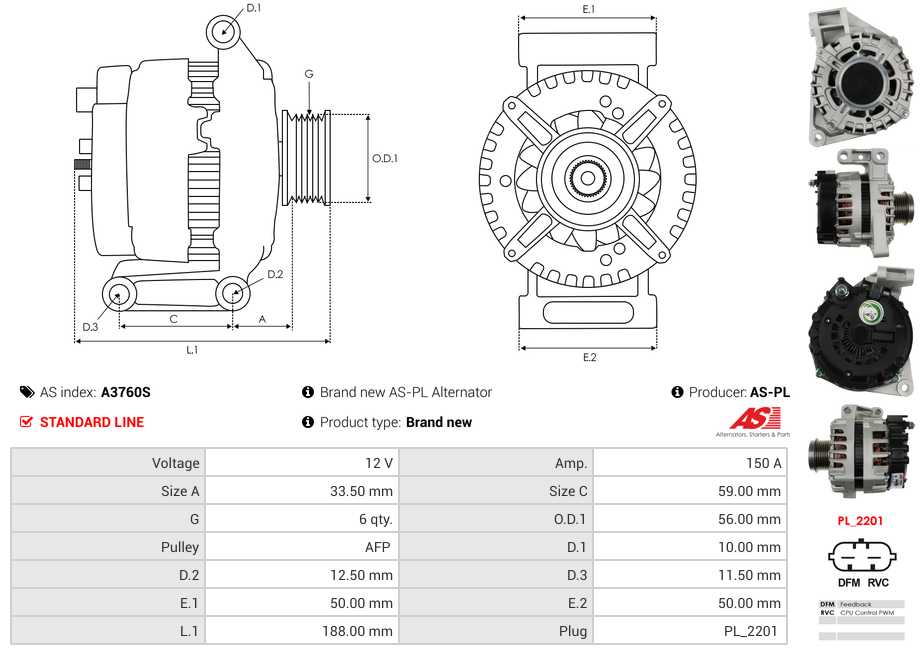

FG15S100Specifications
| Amp | 150 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12.5 mm |
| Diameter (D.3) | 11.5 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 50 mm |
| Pad mount thickness (E.2) | 50 mm |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 33.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | SRX 3.0 | [LF1] | 01.2009-12.2016 |
| CADILLAC | SRX 3.0 AWD | [LF1] | 01.2009-12.2016 |
| CADILLAC | SRX 3.6 AWD | [LFX] | 10.2012-04.2016 |
| CHEVROLET | Captiva 3.0 4WD | [LF1] | 11.2010-09.2018 |
| CHEVROLET | Captiva 3.0 4WD | [LFW] | 11.2010-09.2018 |
Reference Information
20179930BN 2015039.0 ALV8097RN 11453N FG15S084 20015039AV CAL15039AS FG15S100 11453R 11932NOE UD102235AVideo/Publications
A3760SRelated Items
