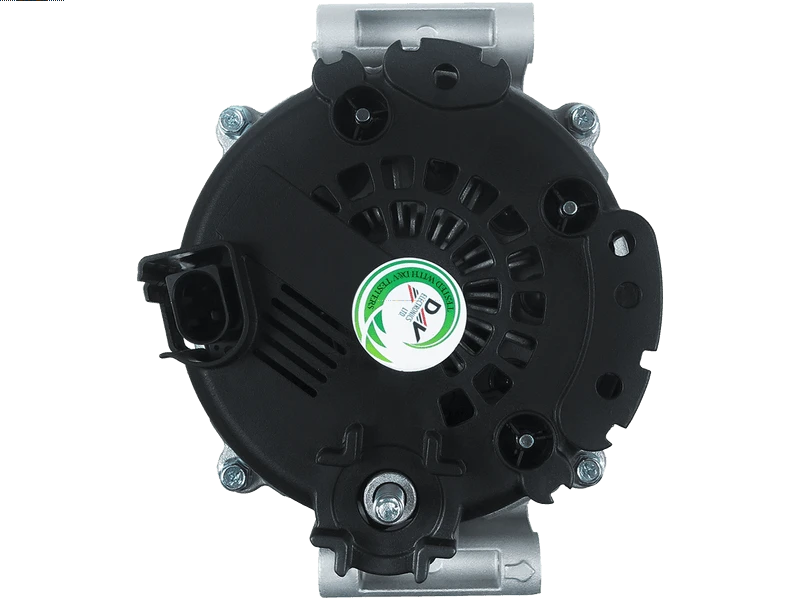

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 767.02 including GST
NZ$ 666.97 excluding GST
or four payments of $191.76
with
Learn More
each
A3729S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 180 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 28 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.8 TFSi | [CDHA] | 01.2013- |
| AUDI | A4 1.8 TFSi | [CJEB] | 01.2013- |
| AUDI | A4 1.8 TFSi Quattro | [CJEB] | 01.2013- |
| AUDI | A4 2.0 TFSi | [CADA] | 01.2008- |
| AUDI | A4 2.0 TFSi | [CAEA] | 01.2008- |
| AUDI | A4 2.0 TFSi | [CAEB] | 01.2008- |
| AUDI | A4 2.0 TFSi | [CDNB] | 01.2008- |
| AUDI | A4 2.0 TFSi | [CDNC] | 01.2008- |
| AUDI | A4 2.0 TFSi | [CDZA] | 01.2008- |
| AUDI | A4 2.0 TFSi Quattro | [CDNC] | 01.2008- |
| AUDI | A5 1.8 TFSi | [CJEE] | 01.2015-12.2016 |
| AUDI | A5 2.0 TFSi | [CNCE] | 01.2015-12.2016 |
| AUDI | A5 2.0 TFSi Quattro | [CNCE] | 01.2015-12.2016 |
| AUDI | A5 2.0 TFSi Quattro | [CPMB] | 01.2012-12.2016 |
| AUDI | A6 2.0 TFSi | [CAEB] | 01.2011- |
| AUDI | A6 2.0 TFSi | [CAEB] | 01.2011-12.2013 |
| AUDI | A6 2.0 TFSi | [CDNB] | 01.2011- |
| AUDI | A6 2.0 TFSi Quattro | [CAEB] | 01.2012-12.2013 |
| AUDI | Q5 2.0 TFSi Quattro | [CNCE] | 01.2015-12.2016 |
| AUDI | Q5 2.0 TFSi Quattro | [CPMB] | 01.2013-12.2016 |
Reference Information
2622430A ALV6026 FG20S028SV 305.986.200.500 556765RI FG20S028 UD100875A 06H903026AVideo/Publications
