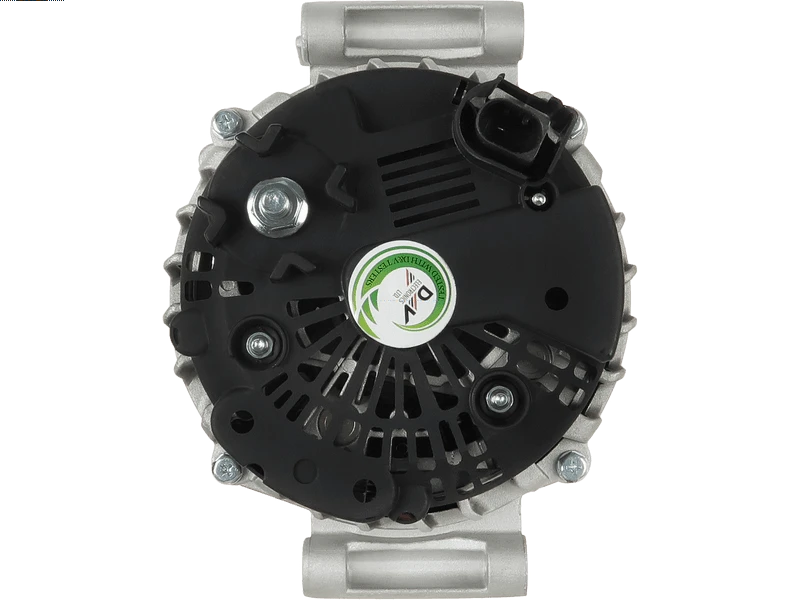

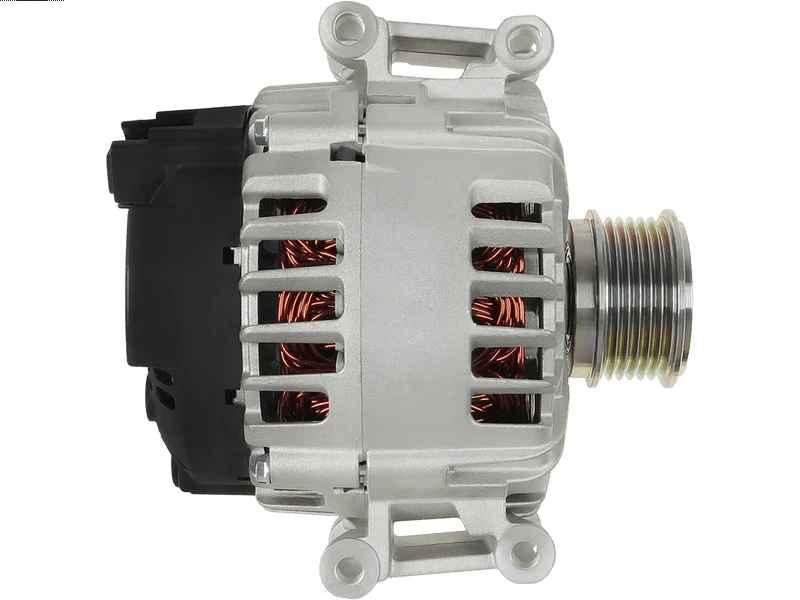

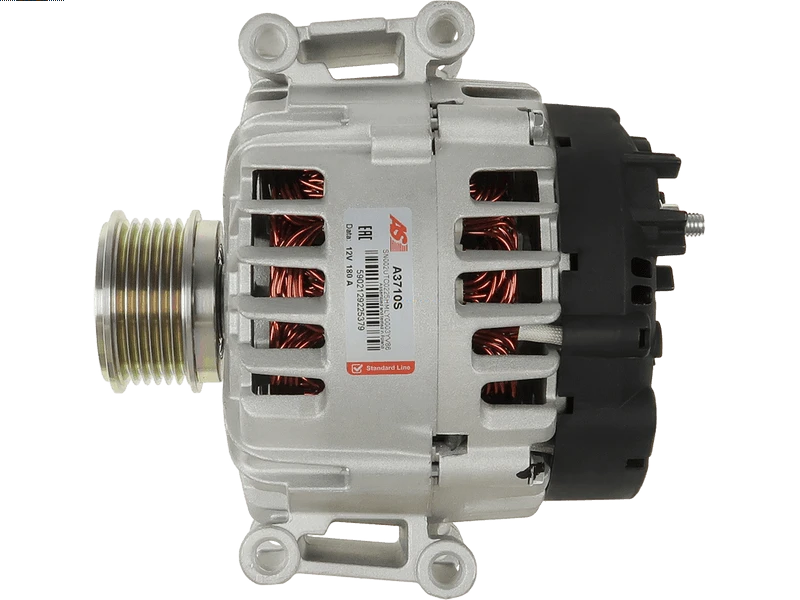

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 636.55 including GST
NZ$ 553.52 excluding GST
or four payments of $159.14
with
Learn More
each
A3710S
No stock in NZ
No stock in NZ
Specifications
| Amp | 180 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9.5 mm |
| Diameter (D.4) | 9.5 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55.5 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 71 mm |
| Pad mount thickness (E.2) | 71 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 27 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 2.0 40 TFSi | [DKZA] | 07.2018-10.2020 |
| AUDI | A3 2.0 40 TFSi Quattro Sportback | [DKZA] | 07.2018-10.2020 |
| AUDI | A3 2.0 40 TFSi Sportback | [DKZA] | 07.2018-10.2020 |
| AUDI | A3 2.0 TFSi | [CHHB] | 11.2015-10.2020 |
| AUDI | A3 2.0 TFSi | [CZPB] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi | [CZPB] | 05.2016-12.2017 |
| AUDI | A3 2.0 TFSi | [DKZA] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Quattro | [CZPB] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Quattro | [CZPB] | 05.2016-12.2017 |
| AUDI | A3 2.0 TFSi Quattro | [DKZA] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Quattro Sportback | [CZPB] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Quattro Sportback | [DKZA] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Sportback | [CZPB] | 05.2016-10.2020 |
| AUDI | A3 2.0 TFSi Sportback | [DKZA] | 05.2016-10.2020 |
| AUDI | S3 2.0 Quattro | [CJXC] | 10.2013-10.2020 |
| AUDI | S3 2.0 Quattro | [CJXD] | 07.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CJXG] | 06.2016-10.2020 |
| AUDI | S3 2.0 Quattro | [CJXG] | 06.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CYFB] | 05.2014-10.2020 |
| AUDI | S3 2.0 Quattro | [DJHA] | 06.2016-10.2020 |
| AUDI | S3 2.0 Quattro | [DJHA] | 06.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJHB] | 07.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJJA] | 05.2014-10.2020 |
| AUDI | S3 2.0 Quattro | [DLRA] | 05.2014-10.2020 |
| AUDI | S3 2.0 Quattro | [DNUE] | 10.2013-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXC] | 11.2012-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXD] | 07.2016-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXG] | 06.2016-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHA] | 06.2016-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHB] | 07.2016-10.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DNUE] | 11.2012-10.2020 |
| CUPRA | Ateca 2.0 TSi 4Drive | [DNFC] | 09.2018- |
| CUPRA | Ateca 2.0 TSi 4Drive | [DNUE] | 09.2018- |
| SEAT | Alhambra 2.0 TSi | [DEDA] | 05.2015-12.2022 |
| SEAT | Ateca 2.0 TSi 4Drive | [CZPB] | 05.2017- |
| SEAT | Ateca 2.0 TSi 4Drive | [DKZA] | 05.2017- |
| SEAT | Ateca 2.0 TSi 4Drive | [DNNA] | 05.2017- |
| SEAT | Leon ST 2.0 TSi | [DKZA] | 07.2018-08.2020 |
| SEAT | Leon ST 2.0 TSi 4Drive | [DKZA] | 09.2018-08.2020 |
| SEAT | Tarraco 2.0 TFSi 4Drive | [DNPA] | 01.2021- |
| SEAT | Tarraco 2.0 TSi 4Drive | [DKZA] | 11.2018- |
| SEAT | Tarraco 2.0 TSi 4Drive | [DNNA] | 11.2018- |
| SKODA | Karoq 2.0 TSi 4x4 | [DKZA] | 04.2019- |
| SKODA | Karoq 2.0 TSi 4x4 | [DNNA] | 04.2019- |
| SKODA | Kodiaq 1.4 TSi | [CZCA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZDB] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZEA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZEA] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi | [DBGC] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi | [DFGA] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi | [DTSB] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi 4x4 | [CRGB] | 04.2017- |
| SKODA | Kodiaq 2.0 TDi 4x4 | [DBGC] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi 4x4 | [DFGA] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi 4x4 | [DFHA] | 10.2016- |
| SKODA | Kodiaq 2.0 TDi 4x4 | [DTSB] | 10.2016- |
| SKODA | Kodiaq 2.0 TSi 4x4 | [CZPA] | 10.2016- |
| SKODA | Kodiaq 2.0 TSi 4x4 | [DKZA] | 02.2019- |
| SKODA | Kodiaq 2.0 TSi 4x4 | [DNNA] | 02.2019- |
| SKODA | Octavia 1.8 TSi | [CJSA] | 11.2012-10.2020 |
| SKODA | Octavia 1.8 TSi | [CJSB] | 11.2012-10.2020 |
| SKODA | Octavia 1.8 TSi 4x4 | [CJSB] | 05.2014-10.2020 |
| SKODA | Octavia 1.8 TSi 4x4 | [CJSB] | 11.2012-02.2017 |
| SKODA | Octavia 2.0 TSi RS | [DHGA] | 02.2017-10.2020 |
| SKODA | Octavia 2.0 TSi RS | [DKTB] | 02.2017-10.2020 |
| SKODA | Octavia 2.0 TSi RS | [DLBA] | 02.2017-10.2020 |
| SKODA | Superb 1.8 TSi | [CJSA] | 03.2015- |
| SKODA | Superb 1.8 TSi | [CJSC] | 03.2015- |
| SKODA | Superb 2.0 TSi | [CHHB] | 03.2015- |
| SKODA | Superb 2.0 TSi | [CZPB] | 07.2019- |
| SKODA | Superb 2.0 TSi | [DKZA] | 07.2019- |
| SKODA | Superb 2.0 TSi | [DNNA] | 07.2019- |
| SKODA | Superb 2.0 TSi 4x4 | [CJXA] | 03.2015- |
| SKODA | Superb 2.0 TSi 4x4 | [DNFE] | 03.2015- |
| SKODA | Superb 2.0 TSi 4x4 | [DNUA] | 03.2015- |
| VW | Arteon 2.0 TSi | [CZPB] | 05.2017- |
| VW | Arteon 2.0 TSi | [DKZA] | 05.2017- |
| VW | Arteon 2.0 TSi | [DNNA] | 05.2017- |
| VW | Arteon 2.0 TSi 4motion | [DJHC] | 04.2017- |
| VW | Arteon 2.0 TSi 4motion | [DLRB] | 04.2018- |
| VW | Arteon 2.0 TSi 4motion | [DNFE] | 04.2017- |
| VW | Arteon 2.0 TSi 4motion | [DNUA] | 04.2018- |
| VW | Arteon 2.0 TSi 4motion Shooting Brake | [DJHC] | 06.2020- |
| VW | Arteon 2.0 TSi 4motion Shooting Brake | [DNFE] | 06.2020- |
| VW | Arteon 2.0 TSi 4motion Shooting Brake | [DNUA] | 06.2020- |
| VW | Arteon 2.0 TSi R | [DNFG] | 11.2020- |
| VW | Arteon 2.0 TSi Shooting Brake | [CZPB] | 09.2020- |
| VW | Arteon 2.0 TSi Shooting Brake | [DKZA] | 09.2020- |
| VW | Arteon 2.0 TSi Shooting Brake | [DNNA] | 09.2020- |
| VW | Arteon 2.0 TSi Shooting Brake | [DUNA] | 09.2020- |
| VW | California 2.0 TSi 4motion | [CJKA] | 06.2015-07.2019 |
| VW | Caravelle 2.0 TSi | [CJKA] | 04.2015-07.2019 |
| VW | Caravelle 2.0 TSi | [CJKB] | 04.2015-07.2019 |
| VW | Caravelle 2.0 TSi 4motion | [CJKA] | 06.2015-07.2019 |
| VW | Golf Alltrack VII 1.8 TSi 4motion | [CJSB] | 12.2014-08.2020 |
| VW | Golf VII 2.0 GTi | [CHHA] | 04.2013-08.2020 |
| VW | Golf VII 2.0 GTi | [CHHB] | 04.2013-08.2020 |
| VW | Golf VII 2.0 GTi | [CNTA] | 11.2013-07.2017 |
| VW | Golf VII 2.0 GTi | [CNTC] | 04.2013-08.2020 |
| VW | Golf VII 2.0 GTi | [CXCA] | 11.2013-07.2017 |
| VW | Golf VII 2.0 GTi | [CXCB] | 04.2013-08.2020 |
| VW | Golf VII 2.0 GTi | [CXDA] | 04.2013-08.2020 |
| VW | Golf VII 2.0 GTi | [DKTB] | 03.2017-08.2020 |
| VW | Golf VII 2.0 GTi | [DLBA] | 03.2017-08.2020 |
| VW | Golf VII 2.0 GTi Clubsport | [CJXE] | 02.2016-03.2017 |
| VW | Golf VII 2.0 GTi Clubsport S | [CJXG] | 09.2016-03.2017 |
| VW | Golf VII 2.0 GTi TCR | [CJXH] | 11.2018-08.2020 |
| VW | Golf VII 2.0 GTi TCR | [DNUC] | 11.2018-08.2020 |
| VW | Golf VII 2.0 R 4motion | [CJXB] | 03.2015-03.2017 |
| VW | Golf VII 2.0 R 4motion | [CJXB] | 11.2013-03.2017 |
| VW | Golf VII 2.0 R 4motion | [CJXC] | 03.2015-08.2020 |
| VW | Golf VII 2.0 R 4motion | [CJXC] | 11.2013-08.2020 |
| VW | Golf VII 2.0 R 4motion | [CJXD] | 12.2016-08.2020 |
| VW | Golf VII 2.0 R 4motion | [CJXG] | 12.2016-08.2020 |
| VW | Golf VII 2.0 R 4motion | [DJHA] | 12.2016-08.2020 |
| VW | Golf VII 2.0 R 4motion | [DJHB] | 12.2016-08.2020 |
| VW | Golf VII 2.0 R 4motion | [DNUC] | 12.2016-08.2020 |
| VW | Golf VII 2.0 R 4motion | [DNUE] | 03.2015-08.2020 |
| VW | Golf VII 2.0 R 4motion | [DNUE] | 11.2013-08.2020 |
| VW | Multivan 2.0 TSi | [CJKA] | 04.2015-07.2019 |
| VW | Multivan 2.0 TSi | [CJKB] | 04.2015-07.2019 |
| VW | Multivan 2.0 TSi 4motion | [CJKA] | 06.2015-07.2019 |
| VW | Passat 1.8 TSi | [CJSA] | 02.2015- |
| VW | Passat 1.8 TSi | [CJSC] | 02.2015- |
| VW | Passat 2.0 TSi | [CHHB] | 02.2015- |
| VW | Passat 2.0 TSi | [CHHB] | 08.2014- |
| VW | Passat 2.0 TSi | [CXDA] | 02.2015- |
| VW | Passat 2.0 TSi | [CXDA] | 08.2014- |
| VW | Passat 2.0 TSi | [CZPB] | 11.2018- |
| VW | Passat 2.0 TSi | [DKZA] | 11.2018- |
| VW | Passat 2.0 TSi | [DNNA] | 11.2018- |
| VW | Passat 2.0 TSi | [DRFA] | 11.2018- |
| VW | Passat 2.0 TSi | [DUNA] | 11.2018- |
| VW | Passat 2.0 TSi 4motion | [CJXA] | 05.2015- |
| VW | Passat 2.0 TSi 4motion | [DNFE] | 05.2015- |
| VW | Passat 2.0 TSi 4motion | [DNUA] | 09.2018- |
| VW | Passat Alltrack 2.0 TSi 4motion | [CHHB] | 07.2015- |
| VW | Passat Alltrack 2.0 TSi 4motion | [CJXA] | 11.2018- |
| VW | Passat Alltrack 2.0 TSi 4motion | [DNFE] | 11.2018- |
| VW | Passat Alltrack 2.0 TSi 4motion | [DNUA] | 08.2018- |
| VW | Sharan 2.0 TSi | [DEDA] | 05.2015-12.2020 |
| VW | Tiguan 1.4 TSi | [CZDA] | 05.2016- |
| VW | Tiguan 1.4 TSi | [CZEA] | 05.2016- |
| VW | Tiguan 1.4 TSi | [DJVA] | 05.2016- |
| VW | Tiguan 2.0 TSi 4motion | [CHHB] | 06.2016- |
| VW | Tiguan 2.0 TSi 4motion | [DKTA] | 09.2018-07.2020 |
| VW | Tiguan 2.0 TSi 4motion | [DKZA] | 09.2018- |
| VW | Tiguan 2.0 TSi 4motion | [DNNA] | 09.2018- |
| VW | Tiguan 2.0 TSi 4motion | [DNPA] | 01.2021- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [CXDA] | 07.2017- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [DGVA] | 03.2017- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [DNJA] | 07.2017- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [DNLA] | 09.2018- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [DNNA] | 09.2018- |
| VW | Tiguan Allspace 2.0 TSi 4motion | [DNPA] | 09.2020- |
| VW | Touran 1.8 TSi | [CJSA] | 11.2015- |
| VW | Transporter 2.0 TSi | [CJKA] | 04.2015-07.2019 |
| VW | Transporter 2.0 TSi | [CJKB] | 04.2015-06.2019 |
| VW | Transporter 2.0 TSi | [CJKB] | 04.2015-07.2019 |
| VW | Transporter 2.0 TSi 4motion | [CJKA] | 06.2015-07.2019 |
| VW | T-Roc 2.0 R 4motion | [DNFC] | 09.2019- |
| VW | T-Roc 2.0 R 4motion | [DNUE] | 09.2019- |
| VW | T-Roc 2.0 TSi 4motion | [CZPB] | 07.2017- |
| VW | T-Roc 2.0 TSi 4motion | [DKZA] | 07.2017- |
| VW | T-Roc 2.0 TSi 4motion | [DNNA] | 07.2017- |
Reference Information
AVA023 ALT14598 ALV8084 2015023.1 8EL015637-231 6K903015B 40306 6K903015D 28-7708 2612300D 6K903015BX 06J903023KX 20015023OV 6J903023KX V10-13-50043 20702N 439737 89216507 440327 QRA2590 06J903023K 2113981802 444720 3117669 6J903023K CAL15023GS 305.934.180.000 12090801 FG18T201 FG18T084 IR5797 F032116747 116747 FG18T169 06K903015BX 32000004 UD102129A A12VA1273 GA439737-N LRA4099 AL03641 209631 VAL439737 AC-CBA6206 554268RIV LRA04099 AEG1383 305.934.180.502 20179320OE ALT00414 EAA-223128 06K903015B 06K903015D 305.934.180.501Video/Publications
