Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 692.04 including GST
NZ$ 601.77 excluding GST
or four payments of $173.01
with
Learn More
each
A0948S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

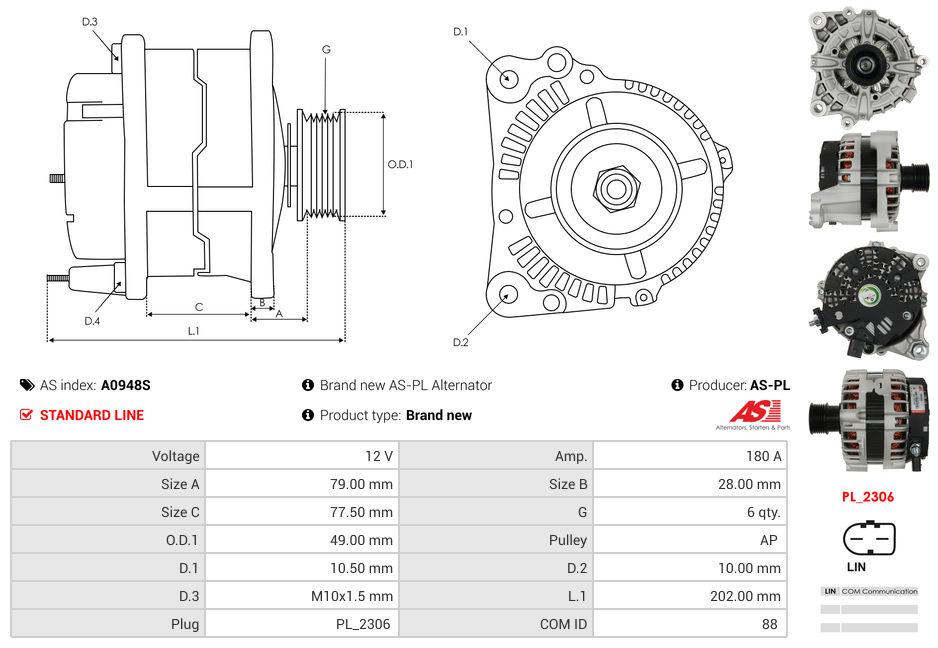

0125812026Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 202 mm |
| Mount Inside Length or Pad Mount C-C (C) | 77.5 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 79 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 320 1.6 i | (G20)[B48B16A] | 03.2019- |
| BMW | 320 1.6 i | (G28)[B48B16A] | 03.2019- |
| BMW | 320 1.6 i | (G80)[B48B16A] | 03.2019- |
| BMW | 330 3.0 D | (G20)[B57D30A] | 03.2019- |
| BMW | 330 3.0 D | (G21)[B57D30A] | 11.2019- |
| BMW | 330 3.0 D | (G28)[B57D30A] | 03.2019- |
| BMW | 330 3.0 D | (G80)[B57D30A] | 03.2019- |
| BMW | 330 3.0 D | (G81)[B57D30A] | 11.2019- |
| BMW | 330 3.0 D xDrive | (G20)[B57D30A] | 07.2019- |
| BMW | 330 3.0 D xDrive | (G21)[B57D30A] | 07.2019- |
| BMW | 330 3.0 D xDrive | (G21)[B57D30A] | 11.2019- |
| BMW | 330 3.0 D xDrive | (G28)[B57D30A] | 07.2019- |
| BMW | 330 3.0 D xDrive | (G80)[B57D30A] | 07.2019- |
| BMW | 330 3.0 D xDrive | (G81)[B57D30A] | 07.2019- |
| BMW | 340 3.0 i | (F30)[B58B30A] | 07.2015-10.2018 |
| BMW | 340 3.0 i | (F31)[B58B30A] | 07.2015-06.2019 |
| BMW | 340 3.0 i | (F80)[B58B30A] | 07.2015-10.2018 |
| BMW | 340 3.0 i Gran Turismo | (F34)[B58B30A] | 07.2016- |
| BMW | 340 3.0 i xDrive | (F30)[B58B30A] | 07.2015-10.2018 |
| BMW | 340 3.0 i xDrive | (F31)[B58B30A] | 07.2015-06.2019 |
| BMW | 340 3.0 i xDrive | (F80)[B58B30A] | 07.2015-10.2018 |
| BMW | 340 3.0 i xDrive Gran Turismo | (F34)[B58B30A] | 07.2016- |
| BMW | 420 1.6 i | (G22)[B48B16A] | 11.2020- |
| BMW | 420 1.6 i | (G82)[B48B16A] | 11.2020- |
| BMW | 440 3.0 i | (F32)[B58B30A] | 03.2016-06.2020 |
| BMW | 440 3.0 i | (F33)[B58B30A] | 03.2016-07.2020 |
| BMW | 440 3.0 i | (F82)[B58B30A] | 03.2016-06.2020 |
| BMW | 440 3.0 i | (F83)[B58B30A] | 03.2016-07.2020 |
| BMW | 440 3.0 i Gran Coupe | (F36)[B58B30A] | 03.2016-05.2021 |
| BMW | 440 3.0 i xDrive | (F32)[B58B30A] | 03.2016-06.2020 |
| BMW | 440 3.0 i xDrive | (F33)[B58B30A] | 03.2016-07.2020 |
| BMW | 440 3.0 i xDrive | (F82)[B58B30A] | 03.2016-06.2020 |
| BMW | 440 3.0 i xDrive | (F83)[B58B30A] | 03.2016-07.2020 |
| BMW | 440 3.0 i xDrive Gran Coupe | (F36)[B58B30A] | 03.2016-05.2021 |
| BMW | 520 1.6 i | (F90)[B48B16A] | 07.2017-06.2023 |
| BMW | 520 1.6 i | (G30)[B48B16A] | 07.2017-06.2023 |
| BMW | 520 2.0 i | (F90)[B46B20B] | 07.2017- |
| BMW | 520 2.0 i | (F90)[B48B20A] | 07.2017- |
| BMW | 520 2.0 i | (F90)[B48B20A] | 07.2017-06.2020 |
| BMW | 520 2.0 i | (F90)[B48B20B] | 07.2017- |
| BMW | 520 2.0 i | (F90)[B48B20B] | 07.2017-06.2020 |
| BMW | 520 2.0 i | (G30)[B46B20B] | 07.2017- |
| BMW | 520 2.0 i | (G30)[B48B20A] | 07.2017- |
| BMW | 520 2.0 i | (G30)[B48B20A] | 07.2017-06.2020 |
| BMW | 520 2.0 i | (G30)[B48B20B] | 07.2017- |
| BMW | 520 2.0 i | (G30)[B48B20B] | 07.2017-06.2020 |
| BMW | 520 2.0 i | (G31)[B48B20A] | 07.2017-06.2020 |
| BMW | 530 2.0 i | (F90)[B46B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i | (F90)[B48B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i | (G30)[B46B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i | (G30)[B48B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i | (G31)[B48B20B] | 03.2017- |
| BMW | 530 2.0 i | (G31)[B48B20B] | 03.2017-06.2020 |
| BMW | 530 2.0 i xDrive | (F90)[B46B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i xDrive | (F90)[B48B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i xDrive | (F90)[B48B20B] | 09.2016-06.2023 |
| BMW | 530 2.0 i xDrive | (G30)[B46B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i xDrive | (G30)[B48B20B] | 09.2016-06.2020 |
| BMW | 530 2.0 i xDrive | (G30)[B48B20B] | 09.2016-06.2023 |
| BMW | 530 2.0 i xDrive | (G31)[B48B20B] | 07.2017- |
| BMW | 530 2.0 i xDrive | (G31)[B48B20B] | 07.2017-06.2020 |
| BMW | 530 3.0 D | (F90)[B57D30A] | 09.2016-06.2020 |
| BMW | 530 3.0 D | (G30)[B57D30A] | 09.2016-06.2020 |
| BMW | 530 3.0 D | (G31)[B57D30A] | 03.2017- |
| BMW | 530 3.0 D | (G31)[B57D30A] | 03.2017-06.2020 |
| BMW | 530 3.0 D xDrive | (F90)[B57D30A] | 09.2016-06.2020 |
| BMW | 530 3.0 D xDrive | (G30)[B57D30A] | 09.2016-06.2020 |
| BMW | 530 3.0 D xDrive | (G31)[B57D30A] | 03.2017- |
| BMW | 530 3.0 D xDrive | (G31)[B57D30A] | 03.2017-06.2020 |
| BMW | 540 3.0 D xDrive | (F90)[B57D30A] | 07.2017-06.2020 |
| BMW | 540 3.0 D xDrive | (F90)[B57D30B] | 07.2017-06.2020 |
| BMW | 540 3.0 D xDrive | (G30)[B57D30A] | 07.2017-06.2020 |
| BMW | 540 3.0 D xDrive | (G30)[B57D30B] | 07.2017-06.2020 |
| BMW | 540 3.0 D xDrive | (G31)[B57D30B] | 07.2017-06.2020 |
| BMW | 540 3.0 i | (F90)[B58B30A] | 09.2016-06.2020 |
| BMW | 540 3.0 i | (F90)[B58B30C] | 09.2016-06.2020 |
| BMW | 540 3.0 i | (G30)[B58B30A] | 09.2016-06.2020 |
| BMW | 540 3.0 i | (G30)[B58B30C] | 09.2016-06.2020 |
| BMW | 540 3.0 i xDrive | (F90)[B58B30A] | 09.2016-06.2020 |
| BMW | 540 3.0 i xDrive | (F90)[B58B30C] | 09.2016-06.2020 |
| BMW | 540 3.0 i xDrive | (G30)[B58B30A] | 09.2016-06.2020 |
| BMW | 540 3.0 i xDrive | (G30)[B58B30C] | 09.2016-06.2020 |
| BMW | 540 3.0 i xDrive | (G31)[B58B30A] | 03.2017- |
| BMW | 540 3.0 i xDrive | (G31)[B58B30A] | 03.2017-06.2020 |
| BMW | 630 3.0 D Gran Turismo | (G32)[B57D30A] | 06.2017-06.2020 |
| BMW | 630 3.0 D xDrive Gran Turismo | (G32)[B57D30A] | 06.2017-06.2020 |
| BMW | 630 3.0 i Gran Turismo | (G32)[B48B20B] | 07.2017-06.2020 |
| BMW | 640 3.0 D xDrive Gran Turismo | (G32)[B57D30B] | 11.2017-06.2020 |
| BMW | 640 3.0 i Gran Turismo | (G32)[B58B30A] | 06.2017-06.2020 |
| BMW | 640 3.0 i Gran Turismo | (G32)[B58B30C] | 06.2017-06.2020 |
| BMW | 640 3.0 i xDrive Gran Turismo | (G32)[B58B30A] | 06.2017-06.2020 |
| BMW | 640 3.0 i xDrive Gran Turismo | (G32)[B58B30C] | 06.2017-06.2020 |
| BMW | 730 2.0 i | (G11)[B48B20B] | 11.2015-02.2019 |
| BMW | 730 2.0 i | (G12)[B48B20B] | 11.2015-02.2019 |
| BMW | 730 2.0 Li | (G11)[B48B20B] | 11.2015-02.2019 |
| BMW | 730 2.0 Li | (G12)[B48B20B] | 11.2015-02.2019 |
| BMW | 730 3.0 D | (G11)[B57D30A] | 07.2015-06.2020 |
| BMW | 730 3.0 D | (G11)[B57D30A] | 09.2015-06.2020 |
| BMW | 730 3.0 D | (G12)[B57D30A] | 07.2015-06.2020 |
| BMW | 730 3.0 D | (G12)[B57D30A] | 09.2015-06.2020 |
| BMW | 730 3.0 D xDrive | (G11)[B57D30A] | 09.2015-06.2020 |
| BMW | 730 3.0 D xDrive | (G12)[B57D30A] | 09.2015-06.2020 |
| BMW | 730 3.0 Ld xDrive | (G11)[B57D30A] | 09.2015-06.2020 |
| BMW | 730 3.0 Ld xDrive | (G12)[B57D30A] | 09.2015-06.2020 |
| BMW | 740 3.0 D xDrive | (G11)[B57D30B] | 11.2015-06.2020 |
| BMW | 740 3.0 D xDrive | (G12)[B57D30B] | 11.2015-06.2020 |
| BMW | 740 3.0 i | (G11)[B58B30A] | 07.2015-02.2019 |
| BMW | 740 3.0 i | (G12)[B58B30A] | 07.2015-02.2019 |
| BMW | 740 3.0 Ld xDrive | (G11)[B57D30B] | 11.2015-06.2020 |
| BMW | 740 3.0 Ld xDrive | (G12)[B57D30B] | 11.2015-06.2020 |
| BMW | 740 3.0 Li | (G11)[B58B30A] | 07.2015-02.2019 |
| BMW | 740 3.0 Li | (G12)[B58B30A] | 07.2015-02.2019 |
| BMW | 740 3.0 Li xDrive | (G11)[B58B30A] | 03.2016-02.2019 |
| BMW | 740 3.0 Li xDrive | (G12)[B58B30A] | 03.2016-02.2019 |
| BMW | 750 3.0 D xDrive | (G11)[B57D30C] | 07.2016-10.2020 |
| BMW | 750 3.0 D xDrive | (G12)[B57D30C] | 07.2016-10.2020 |
| BMW | 750 3.0 Ld xDrive | (G11)[B57D30C] | 07.2016-10.2020 |
| BMW | 750 3.0 Ld xDrive | (G12)[B57D30C] | 07.2016-10.2020 |
| BMW | 840 3.0 D xDrive | (F91)[B57D30B] | 11.2018-10.2020 |
| BMW | 840 3.0 D xDrive | (F92)[B57D30B] | 07.2018-10.2020 |
| BMW | 840 3.0 D xDrive | (G14)[B57D30B] | 11.2018-10.2020 |
| BMW | 840 3.0 D xDrive | (G15)[B57D30B] | 07.2018-10.2020 |
| BMW | 840 3.0 D xDrive Gran Coupe | (F93)[B57D30B] | 07.2019-10.2020 |
| BMW | 840 3.0 D xDrive Gran Coupe | (G16)[B57D30B] | 07.2019-10.2020 |
| BMW | M 140 3.0 i | (F20)[B58B30A] | 07.2016-06.2019 |
| BMW | M 140 3.0 i | (F21)[B58B30A] | 10.2015-06.2019 |
| BMW | M 140 3.0 i xDrive | (F20)[B58B30A] | 07.2016-06.2019 |
| BMW | M 140 3.0 i xDrive | (F21)[B58B30A] | 09.2015-06.2019 |
| BMW | M 240 3.0 i | (F22)[B58B30A] | 09.2015-06.2021 |
| BMW | M 240 3.0 i | (F23)[B58B30A] | 09.2015-06.2021 |
| BMW | M 240 3.0 i | (F87)[B58B30A] | 09.2015-06.2021 |
| BMW | M 240 3.0 i xDrive | (F22)[B58B30A] | 09.2015-06.2021 |
| BMW | M 240 3.0 i xDrive | (F23)[B58B30A] | 09.2015-06.2021 |
| BMW | M 240 3.0 i xDrive | (F87)[B58B30A] | 09.2015-06.2021 |
| BMW | M 550 3.0 D xDrive | (F90)[B57D30C] | 06.2017-06.2020 |
| BMW | M 550 3.0 D xDrive | (G30)[B57D30C] | 06.2017-06.2020 |
| BMW | M 550 3.0 D xDrive | (G31)[B57D30C] | 07.2017- |
| BMW | X3 1.6 sDrive 20 i | (F97)[B48B16A] | 12.2017- |
| BMW | X3 1.6 sDrive 20 i | (G01)[B48B16A] | 12.2017- |
| BMW | X3 2.0 sDrive 20 i | (F97)[B48B20A] | 12.2017- |
| BMW | X3 2.0 sDrive 20 i | (G01)[B48B20A] | 12.2017- |
| BMW | X3 2.0 xDrive 20 i | (F97)[B48B20A] | 12.2017- |
| BMW | X3 2.0 xDrive 20 i | (F97)[B48B20B] | 12.2017- |
| BMW | X3 2.0 xDrive 20 i | (G01)[B48B20A] | 12.2017- |
| BMW | X3 2.0 xDrive 20 i | (G01)[B48B20B] | 12.2017- |
| BMW | X3 2.0 xDrive 30 i | (F97)[B46B20B] | 08.2017- |
| BMW | X3 2.0 xDrive 30 i | (F97)[B48B20B] | 08.2017- |
| BMW | X3 2.0 xDrive 30 i | (G01)[B46B20B] | 08.2017- |
| BMW | X3 2.0 xDrive 30 i | (G01)[B48B20B] | 08.2017- |
| BMW | X3 3.0 xDrive 30 D | (F97)[B57D30A] | 08.2017-06.2020 |
| BMW | X3 3.0 xDrive 30 D | (F97)[B57D30A] | 12.2017-06.2020 |
| BMW | X3 3.0 xDrive 30 D | (G01)[B57D30A] | 08.2017-06.2020 |
| BMW | X3 3.0 xDrive 30 D | (G01)[B57D30A] | 12.2017-06.2020 |
| BMW | X3 3.0 xDrive M40 D | (F97)[B57D30B] | 08.2018-06.2020 |
| BMW | X3 3.0 xDrive M40 D | (G01)[B57D30B] | 08.2018-06.2020 |
| BMW | X3 3.0 xDrive M40 i | (F97)[B58B30A] | 08.2017- |
| BMW | X3 3.0 xDrive M40 i | (F97)[B58B30A] | 09.2018-08.2019 |
| BMW | X3 3.0 xDrive M40 i | (G01)[B58B30A] | 08.2017- |
| BMW | X3 3.0 xDrive M40 i | (G01)[B58B30A] | 08.2017-08.2019 |
| BMW | X3 3.0 xDrive M40 i | (G01)[B58B30A] | 09.2018-08.2019 |
| BMW | X4 2.0 xDrive 20 i | (F98)[B48B20A] | 04.2018- |
| BMW | X4 2.0 xDrive 20 i | (G02)[B48B20A] | 04.2018- |
| BMW | X4 2.0 xDrive 30 i | (F98)[B46B20B] | 04.2018- |
| BMW | X4 2.0 xDrive 30 i | (F98)[B48B20B] | 04.2018- |
| BMW | X4 2.0 xDrive 30 i | (G02)[B46B20B] | 04.2018- |
| BMW | X4 2.0 xDrive 30 i | (G02)[B48B20B] | 04.2018- |
| BMW | X4 3.0 xDrive 30 D | (F98)[B57D30A] | 04.2018-06.2020 |
| BMW | X4 3.0 xDrive 30 D | (F98)[B57D30A] | 09.2018-06.2020 |
| BMW | X4 3.0 xDrive 30 D | (G02)[B57D30A] | 04.2018-06.2020 |
| BMW | X4 3.0 xDrive 30 D | (G02)[B57D30A] | 09.2018-06.2020 |
| BMW | X4 3.0 xDrive M40 D | (F98)[B57D30B] | 04.2018-06.2020 |
| BMW | X4 3.0 xDrive M40 D | (G02)[B57D30B] | 04.2018-06.2020 |
| BMW | X4 3.0 xDrive M40 i | (F98)[B58B30A] | 04.2018- |
| BMW | X4 3.0 xDrive M40 i | (F98)[B58B30A] | 04.2018-08.2019 |
| BMW | X4 3.0 xDrive M40 i | (G02)[B58B30A] | 04.2018- |
| BMW | X4 3.0 xDrive M40 i | (G02)[B58B30A] | 04.2018-08.2019 |
| BMW | X5 3.0 xDrive 30 D | (F95)[B57D30A] | 08.2018-07.2020 |
| BMW | X5 3.0 xDrive 30 D | (G05)[B57D30A] | 08.2018-07.2020 |
| BMW | X5 3.0 xDrive 30 D | (G05)[B57D30A] | 11.2019-03.2023 |
| BMW | X5 3.0 xDrive M 50 D | (F95)[B57D30C] | 08.2018-03.2023 |
| BMW | X5 3.0 xDrive M 50 D | (G05)[B57D30C] | 08.2018-03.2023 |
| BMW | X6 3.0 xDrive 30 D | (F96)[B57D30A] | 08.2019-07.2020 |
| BMW | X6 3.0 xDrive 30 D | (G06)[B57D30A] | 08.2019-07.2020 |
| BMW | X6 3.0 xDrive M 50 D | (F96)[B57D30C] | 08.2019-03.2023 |
| BMW | X6 3.0 xDrive M 50 D | (G06)[B57D30C] | 08.2019-03.2023 |
| BMW | X7 3.0 xDrive 30 D | (G07)[B57D30A] | 03.2019- |
| BMW | X7 3.0 xDrive 30 D | (G07)[B57D30A] | 03.2019-08.2020 |
| BMW | X7 3.0 xDrive M 50 D | (G07)[B57D30C] | 03.2019- |
Reference Information
55101392G AL03751 UD91092A 28-7833CT LRA4224 3115573 115339 555175RIR 12318614278 12318614277 LRA04224 12318614276 12318635552 8635552 ALT12A210 8614277 ALTJ506 8614276 215.912.180.010 40081 8614278 0125814004 2153281802 555175RIB 0125814003 12090855 0125812025 0125813016 0125812026 0125813015 215.912.180.210 CAL10A21GS AEG1392 ALB1074 H55101392G 28-7833 A12BH1379 89216470 8571357 215.912.180.281 12318571357 215.912.180.280 2010112AOE 20010A21OV 2010A21.1Video/Publications
A0948SView your shopping basket or Browse other items in Alternators.
