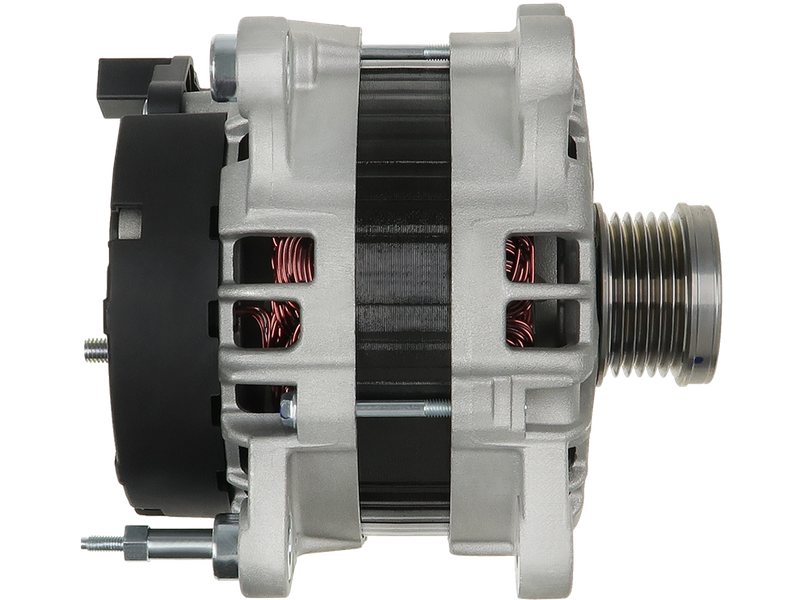

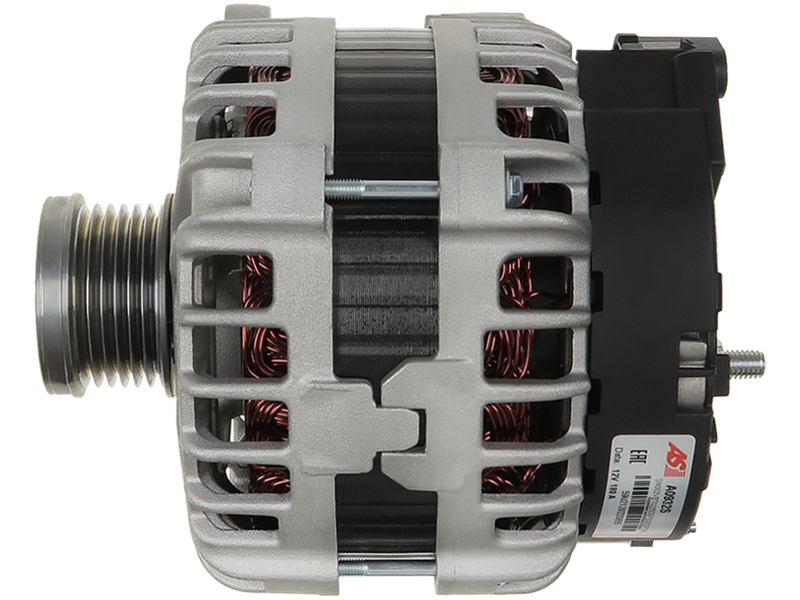

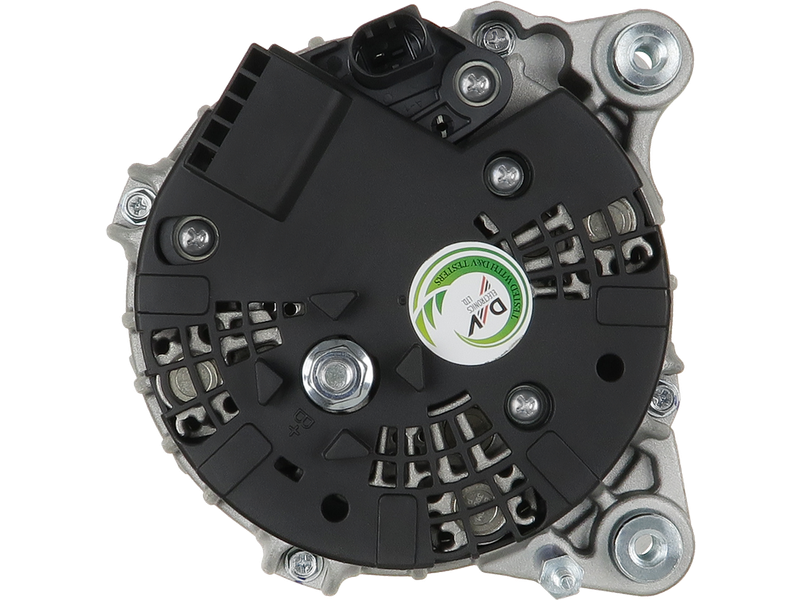

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 646.77 including GST
NZ$ 562.41 excluding GST
or four payments of $161.69
with
Learn More
each
A0932S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0125811026Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.5 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49.5 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Alhambra 1.4 TSi | [CZDA] | 05.2015-12.2022 |
| SEAT | Alhambra 1.4 TSi | [DJKA] | 05.2015-12.2022 |
| SEAT | Ateca 1.0 TSi | [CHZJ] | 05.2016- |
| SEAT | Ateca 1.0 TSi | [DKRF] | 05.2016- |
| SEAT | Ateca 1.4 TSi | [CZEA] | 06.2016- |
| SEAT | Ateca 1.4 TSi | [DJKA] | 06.2016- |
| SEAT | Ateca 1.4 TSi 4Drive | [CZEA] | 06.2016- |
| SEAT | Ateca 1.5 TSi 4Drive | [DADA] | 07.2018- |
| SEAT | Ateca 1.5 TSi 4Drive | [DPCA] | 07.2018- |
| SEAT | Leon 1.0 TSi | [DKLB] | 09.2018-08.2020 |
| SEAT | Leon 1.4 TSi | [CZDA] | 05.2014-08.2020 |
| SEAT | Leon 1.4 TSi | [CZEA] | 05.2014-08.2020 |
| SEAT | Leon 1.5 TGi | [DHFA] | 10.2018-08.2020 |
| SEAT | Leon 1.5 TSi | [DACA] | 09.2018-08.2020 |
| SEAT | Leon 1.5 TSi | [DADA] | 09.2018-08.2020 |
| SEAT | Leon 1.5 TSi | [DPBA] | 09.2018-08.2020 |
| SEAT | Leon 1.5 TSi | [DPCA] | 09.2018-08.2020 |
| SEAT | Leon ST 1.0 TSi | [DKLB] | 09.2018-08.2020 |
| SEAT | Leon ST 1.5 TGi | [DHFA] | 10.2018-08.2020 |
| SEAT | Leon ST 1.5 TSi | [DACA] | 09.2018-08.2020 |
| SEAT | Leon ST 1.5 TSi | [DADA] | 09.2018-08.2020 |
| SEAT | Leon ST 1.5 TSi | [DPBA] | 09.2018-08.2020 |
| SEAT | Leon ST 1.5 TSi | [DPCA] | 09.2018-08.2020 |
| SKODA | Karoq 1.0 TSi | [CHZJ] | 07.2017- |
| SKODA | Karoq 1.0 TSi | [DKRF] | 07.2017- |
| SKODA | Karoq 1.5 TSi | [DADA] | 07.2017- |
| SKODA | Karoq 1.5 TSi | [DPCA] | 07.2017- |
| SKODA | Karoq 1.5 TSi | [DXDB] | 07.2017- |
| SKODA | Karoq 1.5 TSi 4x4 | [DADA] | 07.2017- |
| SKODA | Karoq 1.5 TSi 4x4 | [DPCA] | 07.2017- |
| SKODA | Kodiaq 1.4 TSi | [CZCA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZDB] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZEA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZEA] | 10.2016- |
| SKODA | Octavia 1.2 TSi | [CJZA] | 11.2012-02.2017 |
| SKODA | Octavia 1.2 TSi | [CJZB] | 11.2012-02.2017 |
| SKODA | Octavia 1.2 TSi | [CYVA] | 11.2012-02.2017 |
| SKODA | Octavia 1.2 TSi | [CYVB] | 05.2015-02.2017 |
| SKODA | Octavia 1.4 TSi | [CHPA] | 11.2012-02.2017 |
| SKODA | Octavia 1.4 TSi | [CHPB] | 08.2014-10.2020 |
| SKODA | Octavia 1.4 TSi | [CZDA] | 08.2014-10.2020 |
| SKODA | Octavia 1.4 TSi G-TEC | [CPWA] | 11.2012-02.2017 |
| SKODA | Octavia 1.4 TSi G-TEC | [CPWA] | 11.2013-02.2017 |
| SKODA | Superb 1.5 TSi | [DADA] | 02.2017- |
| SKODA | Superb 1.5 TSi | [DPCA] | 02.2017- |
| SKODA | Yeti 1.4 TSi | [CZCA] | 05.2015-12.2017 |
| SKODA | Yeti 1.4 TSi 4x4 | [CZDA] | 05.2015-12.2017 |
| SKODA | Yeti 1.6 | [CWVA] | 04.2014-12.2017 |
| VW | Arteon 1.5 TSi | [DADA] | 11.2017- |
| VW | Arteon 1.5 TSi | [DPCA] | 11.2017- |
| VW | Caddy 1.0 TSi | [CHZG] | 11.2015-09.2020 |
| VW | Caddy 1.0 TSi | [DKRE] | 11.2015-09.2020 |
| VW | Caddy 1.2 TSi | [CYVC] | 06.2015-09.2020 |
| VW | Caddy 1.4 TGi CNG | [CPWA] | 06.2015-09.2020 |
| VW | Caddy 1.4 TSi | [CZCB] | 05.2015-09.2020 |
| VW | Caddy 1.4 TSi | [DJKD] | 06.2019-09.2020 |
| VW | Caddy 1.4 TSi | [DJKD] | 07.2018-09.2020 |
| VW | Caddy 1.6 | [CWVA] | 11.2015-09.2020 |
| VW | Caddy Alltrack 1.0 TSi | [CHZG] | 11.2015- |
| VW | Caddy Alltrack 1.2 TSi | [CYVC] | 06.2015- |
| VW | Caddy Alltrack 1.4 TGi CNG | [CPWA] | 06.2015- |
| VW | Caddy Alltrack 1.4 TSi | [CZCB] | 05.2015- |
| VW | Caddy Alltrack 1.4 TSi | [DJKD] | 06.2019- |
| VW | Caddy Alltrack 1.4 TSi | [DJKD] | 07.2018- |
| VW | Golf Sportsvan VII 1.0 TSi | [CHZC] | 05.2017-07.2018 |
| VW | Golf Sportsvan VII 1.0 TSi | [CHZK] | 05.2017-07.2019 |
| VW | Golf Sportsvan VII 1.0 TSi | [DKLB] | 05.2017-07.2019 |
| VW | Golf Sportsvan VII 1.5 TSi | [DACA] | 05.2017-08.2020 |
| VW | Golf Sportsvan VII 1.5 TSi | [DADA] | 05.2017-08.2020 |
| VW | Golf Sportsvan VII 1.5 TSi | [DPBA] | 05.2017-08.2020 |
| VW | Golf Sportsvan VII 1.5 TSi | [DPCA] | 05.2017-08.2020 |
| VW | Golf VI 1.2 TSi 16V | [CJZA] | 11.2013-05.2016 |
| VW | Golf VI 1.2 TSi 16V | [CYVD] | 11.2013-05.2016 |
| VW | Golf VII 1.0 TSi | [CHZC] | 11.2016-08.2020 |
| VW | Golf VII 1.0 TSi | [CHZD] | 05.2015-08.2020 |
| VW | Golf VII 1.0 TSi | [CHZK] | 01.2017-07.2019 |
| VW | Golf VII 1.0 TSi | [DKLB] | 01.2017-07.2019 |
| VW | Golf VII 1.0 TSi | [DKRF] | 05.2015-08.2020 |
| VW | Golf VII 1.2 TSi | [CJZA] | 04.2013-08.2020 |
| VW | Golf VII 1.2 TSi | [CJZB] | 05.2013-03.2017 |
| VW | Golf VII 1.2 TSi | [CYVA] | 05.2013-03.2017 |
| VW | Golf VII 1.4 TGi CNG | [CPWA] | 06.2013-07.2018 |
| VW | Golf VII 1.4 TGi CNG | [CPWA] | 09.2013-07.2018 |
| VW | Golf VII 1.4 TGi CNG | [CZBA] | 06.2013-07.2018 |
| VW | Golf VII 1.4 TSi | [CHPA] | 05.2013-08.2020 |
| VW | Golf VII 1.4 TSi | [CXSA] | 05.2013-03.2017 |
| VW | Golf VII 1.4 TSi | [CZCA] | 05.2014-08.2020 |
| VW | Golf VII 1.4 TSi | [CZDD] | 05.2014-08.2020 |
| VW | Golf VII 1.4 TSi MultiFuel | [CPVA] | 04.2013-03.2017 |
| VW | Golf VII 1.4 TSi MultiFuel | [CPVA] | 11.2012-03.2017 |
| VW | Golf VII 1.5 TGi | [DHFA] | 11.2018-08.2020 |
| VW | Golf VII 1.5 TGi | [DHFA] | 12.2018-08.2020 |
| VW | Golf VII 1.5 TSi | [DACA] | 05.2017-08.2020 |
| VW | Golf VII 1.5 TSi | [DACA] | 07.2017-08.2020 |
| VW | Golf VII 1.5 TSi | [DADA] | 04.2017-08.2020 |
| VW | Golf VII 1.5 TSi | [DPBA] | 05.2017-08.2020 |
| VW | Golf VII 1.5 TSi | [DPBA] | 07.2017-08.2020 |
| VW | Golf VII 1.5 TSi | [DPCA] | 04.2017-08.2020 |
| VW | Golf VII 1.6 | [CWVA] | 05.2014-07.2017 |
| VW | Passat 1.5 TSi | [DADA] | 08.2018- |
| VW | Passat 1.5 TSi | [DPCA] | 08.2018- |
| VW | Polo 1.4 TSi | [CPTA] | 10.2012-05.2014 |
| VW | Sharan 1.4 TSi | [CZDA] | 05.2015-11.2022 |
| VW | Sharan 1.4 TSi | [DJKA] | 05.2015-11.2022 |
| VW | Tiguan 1.4 TSi | [CZCA] | 01.2016-03.2022 |
| VW | Tiguan 1.4 TSi | [CZDB] | 01.2016-03.2022 |
| VW | Tiguan 1.5 TSi | [DACB] | 07.2018- |
| VW | Tiguan 1.5 TSi | [DADA] | 11.2018- |
| VW | Tiguan 1.5 TSi | [DPBE] | 07.2018- |
| VW | Tiguan 1.5 TSi | [DPCA] | 11.2018- |
| VW | Tiguan 1.5 TSi | [DXDB] | 11.2018- |
| VW | Touran 1.2 TSi | [CYVB] | 05.2015- |
| VW | Touran 1.4 TSi | [CZDA] | 05.2015- |
| VW | Touran 1.5 TSi | [DADA] | 11.2018- |
| VW | Touran 1.5 TSi | [DPCA] | 11.2018- |
| VW | Touran 1.5 TSi | [DXDB] | 11.2018- |
| VW | T-Roc 1.0 TSi | [CHZJ] | 07.2017-11.2020 |
| VW | T-Roc 1.0 TSi | [DKRF] | 07.2017-11.2020 |
| VW | T-Roc 1.5 TSi 4motion | [DADA] | 05.2018-11.2019 |
| VW | T-Roc 1.5 TSi 4motion | [DPCA] | 05.2018-11.2019 |
Reference Information
0125811088 AVA542 04E903015EX CAL10A30GS 04E903015RX 1986A01387 28-6739 3118029 LRA3629 ALTE538 PRAE863 20010A30OV 28-6739CT STX102169 AL03226 WG2283183 4181 04E903021Q 04E903015SX 04E903021P 04E903021PX 0125811004 20706N LRA03629 2010103AOE 04E903023LX 04E903023MV 04E903021QX 04E903021QV 556266RIV 2010A30.1 PRAE538 0125811033 04E903015E 04E903015DX 209151 04E903023D 0125811073 04E903015D ALB1073 04E903023MX UD102154A 442400 04E903015R 2113931802 04E903015S 04E903023M 445.512.180.210 04E903023L 0125811026 ALTE863Video/Publications
