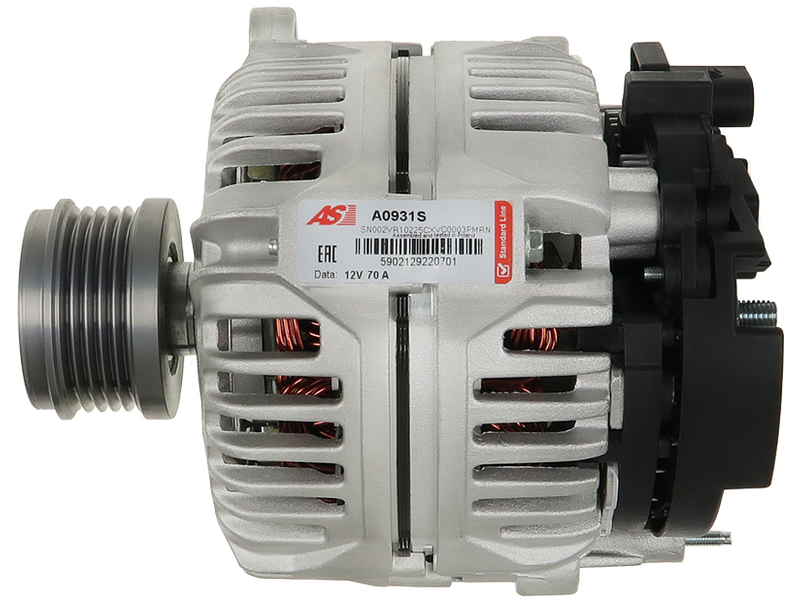

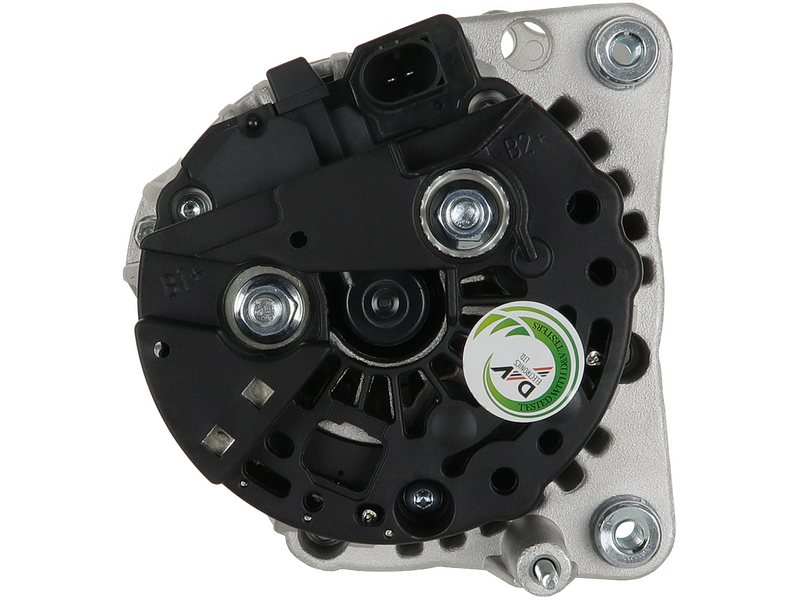

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 419.92 including GST
NZ$ 365.15 excluding GST
or four payments of $104.98
with
Learn More
each
A0931S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0124315006Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14.5 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Arosa 1.7 SDi | [AKU] | 08.1997-06.2004 |
| VW | Lupo 1.7 SDi | [AKU] | 09.1998-07.2005 |
| VW | Polo 1.7 SDi | [AHG] | 04.1997-10.1999 |
| VW | Polo 1.7 SDi | [AKU] | 10.1999-09.2001 |
Reference Information
305.545.070.010 305.545.070.210 BOS0124315006 ALT10237 89213807 AC-CBA1547 211315702 0124315003 10442344 301547RI CAL10352GS LRB0476 F032112075 119908 AL02253 4066 12042610 IR6533 444572 441694 0124315035 209556A BBA2152 305.545.070.395 20101253BN 9042610 ALB1547 AZMT-49-036-1646 CAL10352AS 20010352AV 944390426100 20101253OE 112075 0986042610 2010352.2 2010352.1 2010352.0 LRB00476 ALT465CP 20101253RC VW8009 3117483 0124315006 L42610 0124315004 840ST65 UD30166A 0124315012 WG2011479 CAL10352RS 56840 28-4627 437741 ABO352AVideo/Publications
