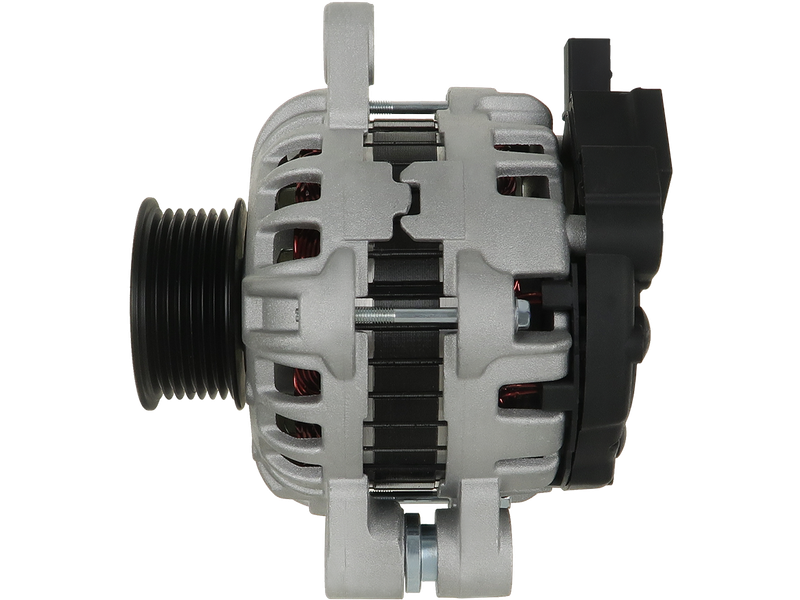

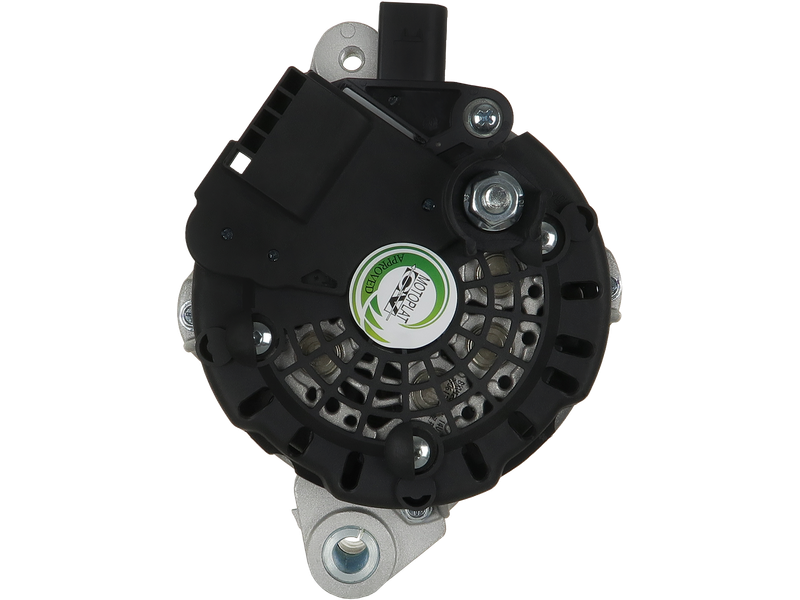

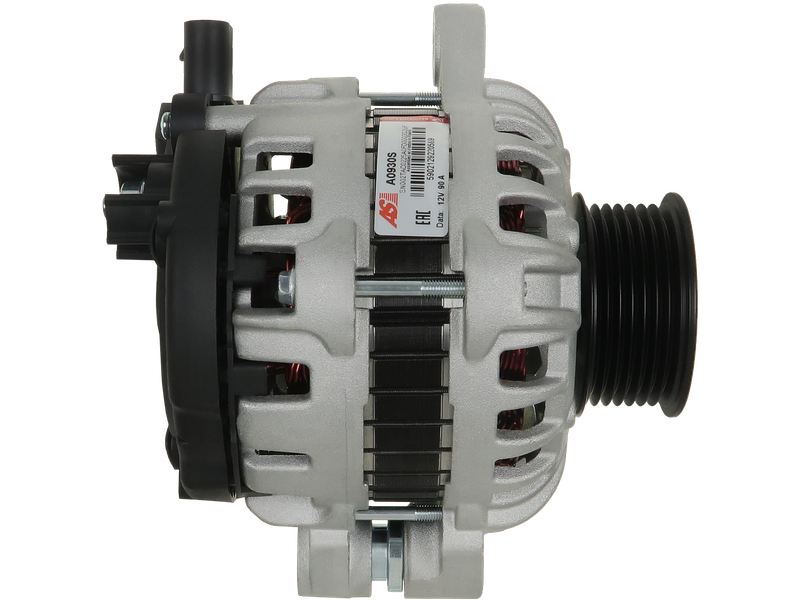

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 449.36 including GST
NZ$ 390.75 excluding GST
or four payments of $112.34
with
Learn More
each
A0930S
No stock in NZ
No stock in NZ
Information

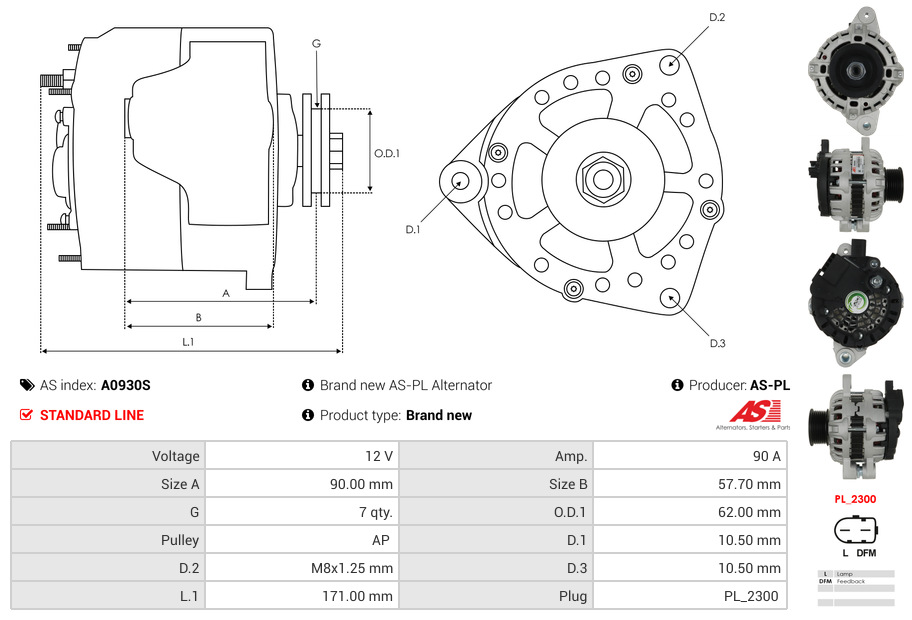

F004BL0108Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 57.7 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 171 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | D-Max 2.5 |
Reference Information
ALT12A770A 93619421-00 ALT10181 20010A77AV 2010177ABN F004BL0108 2010A77.0 UD101971A CAL10A77AS 135.945.090.280Video/Publications
