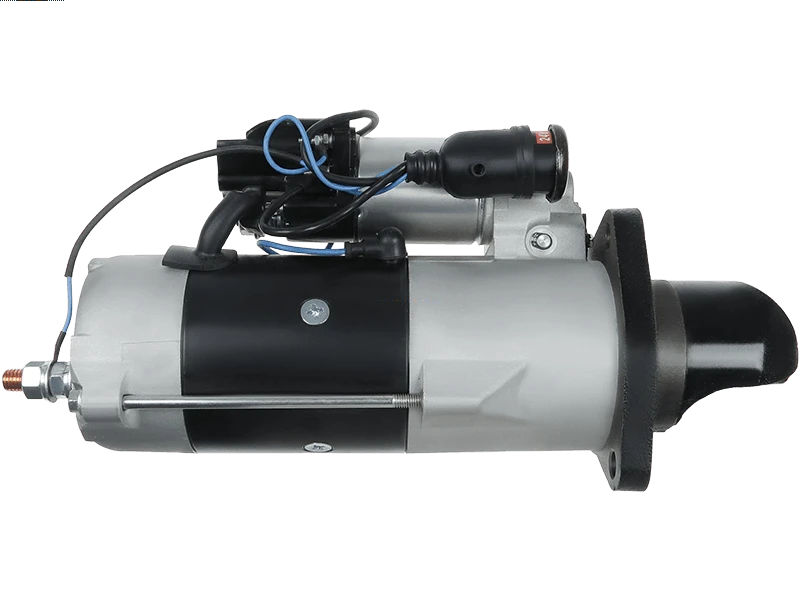

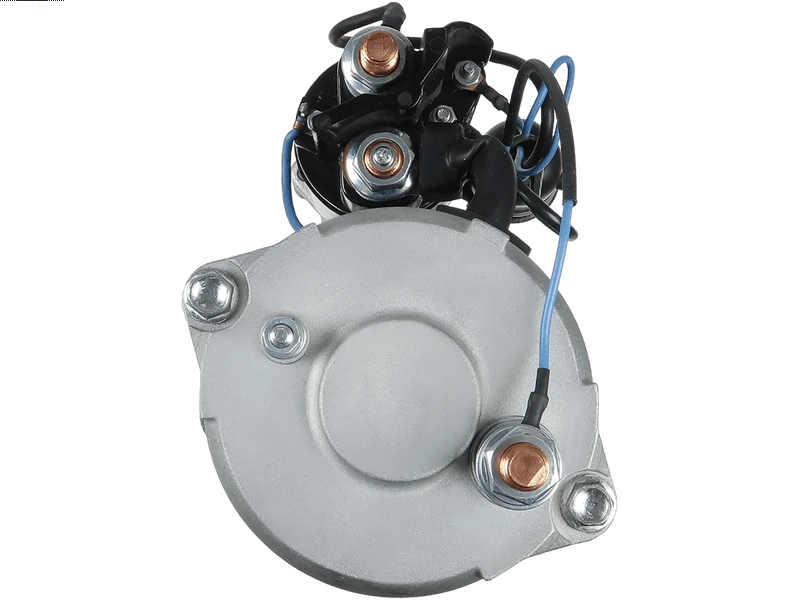

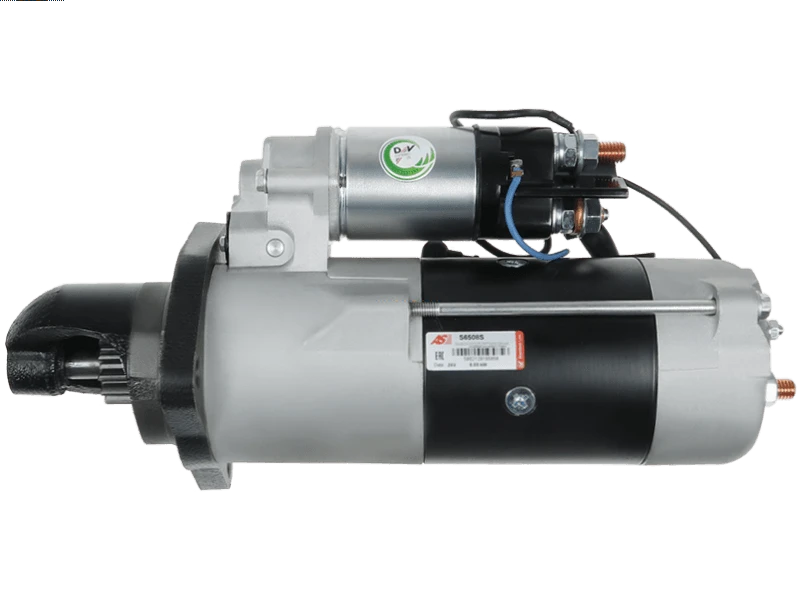

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 1,018.64 including GST
NZ$ 885.77 excluding GST
or four payments of $254.66
with
Learn More
each
S6508S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 8 kW |
| Length (L.1) | 446 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | 13 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 91.5 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 938H | [C6.6] | 01.2005-12.2013 |
| CATERPILLAR | IT38H | [C6.6] | 01.2005-12.2013 |
| HITACHI | LX230-3 12.5 | [6125] | 01.1997-12.2007 |
| HITACHI | LX230-5 12.5 | [6125] | 01.1997-12.2007 |
| JOHN DEERE | 1050K 13.5 | [6135] | 01.2014-12.2018 |
| JOHN DEERE | 1050K PL 13.5 | [6135] | 01.2017-12.2018 |
| JOHN DEERE | 370E 13.5 | [6135] | 01.2012-12.2018 |
| JOHN DEERE | 410E 13.5 | [6135] | 01.2012-12.2018 |
| JOHN DEERE | 450C LC 12.5 | [6125] | 01.2001-12.2007 |
| JOHN DEERE | 450LC 10.1 | [6101] | 01.1997-12.2002 |
| JOHN DEERE | 460E 13.5 | [6135] | 01.2012-12.2018 |
| JOHN DEERE | 470GLC 13.5 | [6135] | 01.2016-12.2022 |
| JOHN DEERE | 644B 8.7 | [6-531] | 01.1974-12.1980 |
| JOHN DEERE | 7350 13.5 | [6135] | 01.2008-12.2013 |
| JOHN DEERE | 7380 13.5 | [6135] | 01.2013-12.2016 |
| JOHN DEERE | 744E 10.1 | [6101] | 01.1989-12.1997 |
| JOHN DEERE | 744H 12.5 | [6125] | 01.1996-12.2003 |
| JOHN DEERE | 744J 12.5 | [6125] | 01.2002-12.2009 |
| JOHN DEERE | 7450 13.5 | [6135] | 01.2008-12.2013 |
| JOHN DEERE | 7480 13.5 | [6135] | 01.2013-12.2016 |
| JOHN DEERE | 7550 13.5 | [6135] | 01.2008-12.2013 |
| JOHN DEERE | 7580 13.5 | [6135] | 01.2013-12.2016 |
| JOHN DEERE | 760A 8.7 | [6-531] | 01.1969-12.1976 |
| JOHN DEERE | 762 10.1 | [6-619] | 01.1975-12.1981 |
| JOHN DEERE | 770 8.7 | [6-531] | 01.1975-12.1979 |
| JOHN DEERE | 770AH 8.7 | [6-531] | 01.1978-12.1986 |
| JOHN DEERE | 772AH 8.7 | [6-531] | 01.1978-12.1986 |
| JOHN DEERE | 7750 13.5 | [6135] | 01.2008-12.2013 |
| JOHN DEERE | 7760 13.5 | [6135] | 01.2012-12.2015 |
| JOHN DEERE | 7780 13.5 | [6135] | 01.2013-12.2016 |
| JOHN DEERE | 824J 12.5 | [6125] | 01.2002-12.2009 |
| JOHN DEERE | 824K 13.5 | [6135] | 01.2008-12.2015 |
| JOHN DEERE | 8300 13.5 | [6135] | 01.2015-12.2019 |
| JOHN DEERE | 8400 13.5 | [6135] | 01.2015-12.2019 |
| JOHN DEERE | 844 10.1 | [6101] | 01.1978-12.1990 |
| JOHN DEERE | 844J 12.5 | [6125] | 01.2005-12.2009 |
| JOHN DEERE | 844K 13.5 | [6135] | 01.2008-12.2012 |
| JOHN DEERE | 844K 13.5 | [6135] | 01.2011-12.2018 |
| JOHN DEERE | 844K 13.5 | [6135] | 01.2016-12.2018 |
| JOHN DEERE | 8500 13.5 | [6135] | 01.2015-12.2019 |
| JOHN DEERE | 850 10.1 | [6-619] | 01.1971-12.1986 |
| JOHN DEERE | 855 10.1 | [6-619] | 01.1978-12.1986 |
| JOHN DEERE | 8600 13.5 | [6135] | 01.2015-12.2019 |
| JOHN DEERE | 860B 10.1 | [6-619] | 01.1977-12.1981 |
| JOHN DEERE | 862 10.1 | [6-619] | 01.1979-12.1987 |
| JOHN DEERE | 862B 10.1 | [6-619] | 01.1986-12.2001 |
| JOHN DEERE | 890 10.1 | [6-619] | 01.1978-12.1982 |
| JOHN DEERE | 890A 10.1 | [6-619] | 01.1982-12.1986 |
| JOHN DEERE | 9420R 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9420RX 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9430 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 9430T 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 944K 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9460R 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9460RT 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9470R 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9470RT 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9470RX 13.5 | [6135] | 01.2016-12.2018 |
| JOHN DEERE | 9510R 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9510RT 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9520R 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9520RT 13.5 | [6135] | 01.2015-12.2018 |
| JOHN DEERE | 9520RX 13.5 | [6135] | 01.2016-12.2018 |
| JOHN DEERE | 9530 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 9530T 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 9560R 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9560RT 13.5 | [6135] | 01.2012-12.2014 |
| JOHN DEERE | 9630 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 9630T 13.5 | [6135] | 01.2007-12.2011 |
| JOHN DEERE | 990 10.1 | [6101] | 01.1981-12.1988 |
| JOHN DEERE | 992D LC 10.1 | [6101] | 01.1989-12.1995 |
| JOHN DEERE | 992E LC 10.1 | [6101] | 01.1994-12.1998 |
| JOHN DEERE | CP690 13.5 | [6135] | 01.2014-12.2019 |
| JOHN DEERE | S680 13.5 | [6135] | 01.2011-12.2019 |
| JOHN DEERE | S690 13.5 | [6135] | 01.2011-12.2019 |
| JOHN DEERE | S780 13.5 | [6135] | 01.2018-12.2019 |
| JOHN DEERE | S790 13.5 | [6135] | 01.2018-12.2019 |
Reference Information
RE522852 S-80230 STN8310 RE506826 504071148 UD101237S CST40641AS 641.508.133.515 M105R3509AM 254879P 91-29-5651 6040641.0 641.508.133.050 88215028 2886976 267-4324 190-50199 254879D 267-4624 2873K414 20432146BN 332163 428000-0130 M105R3509SE 428000-0131 RE522582 254879 STR70450Video/Publications
