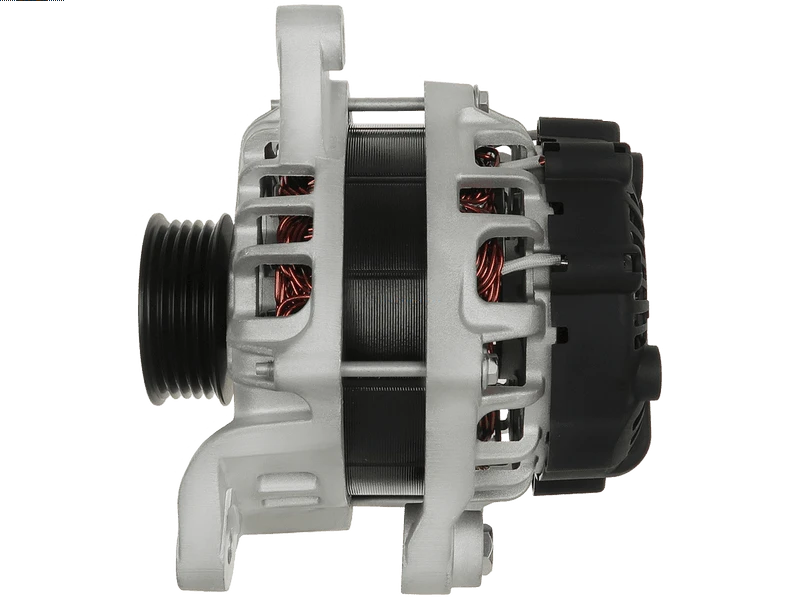

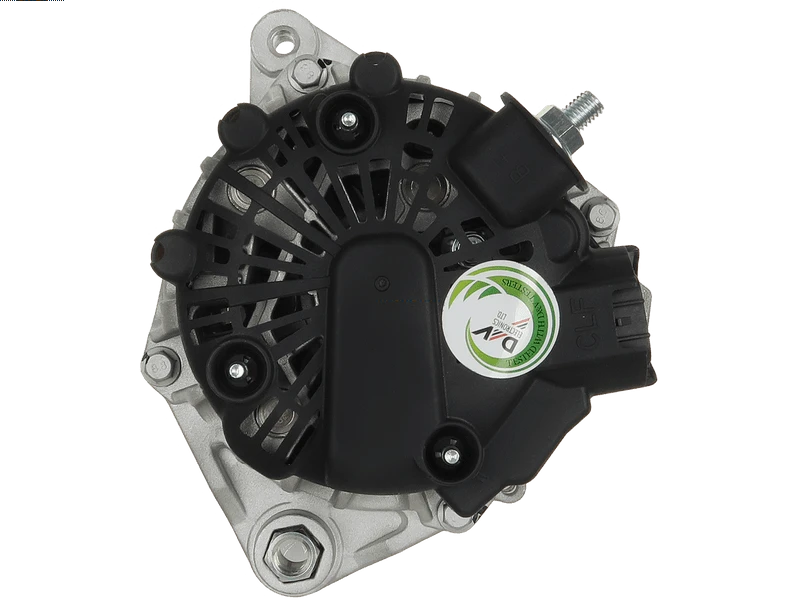

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 357.32 including GST
NZ$ 310.71 excluding GST
or four payments of $89.33
with
Learn More
each
A9437S
No stock in NZ
No stock in NZ
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
37300-04700Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51.5 mm |
| OEM Product | No |
| Plug Code | PL_3307 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 10 mm |
| Pulley Type | SOLID |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | i10 1.0 | [G3LA] | 08.2013- |
| HYUNDAI | i10 1.0 LPG | [B3LA] | 02.2014- |
| HYUNDAI | i10 1.0 LPG | [B3LA] | 07.2014-08.2016 |
Reference Information
12061224 AL03498 20179450OE 802-07191G UD102103A TG09S126 20179450BN TG09S125 TG09S124 155.920.090.500 TG9S126 115321 37300-04700 CAL15054GS 89216023 DRA1688 TG9S125 TG9S124 554505RI 155.920.090.000 AEK3936 28-7546 CAL15054AS LRA03936 UD101964A 554505RIV 40399 2015054.1 AVA054 224324902 21726N IR5582 446767 LRA3936 2619926A 442747 2015054.0 802-07191Video/Publications
A9437SRelated Items
