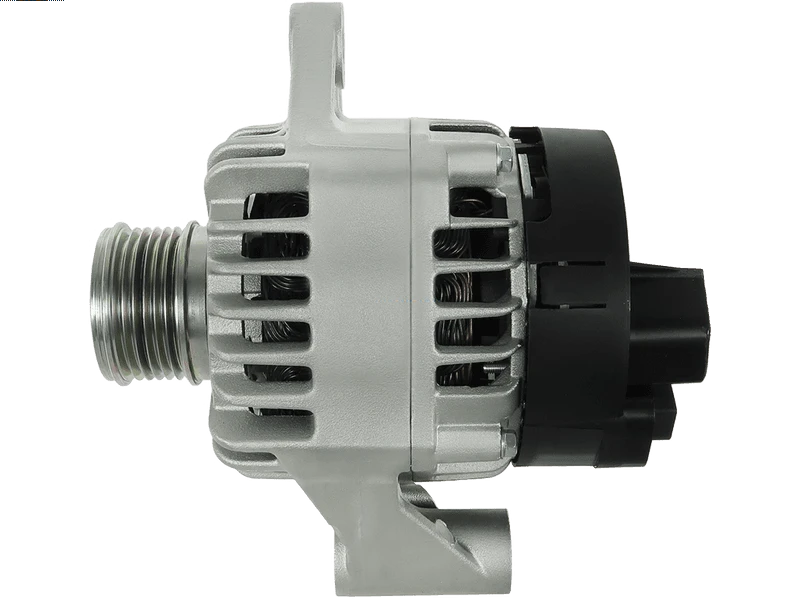

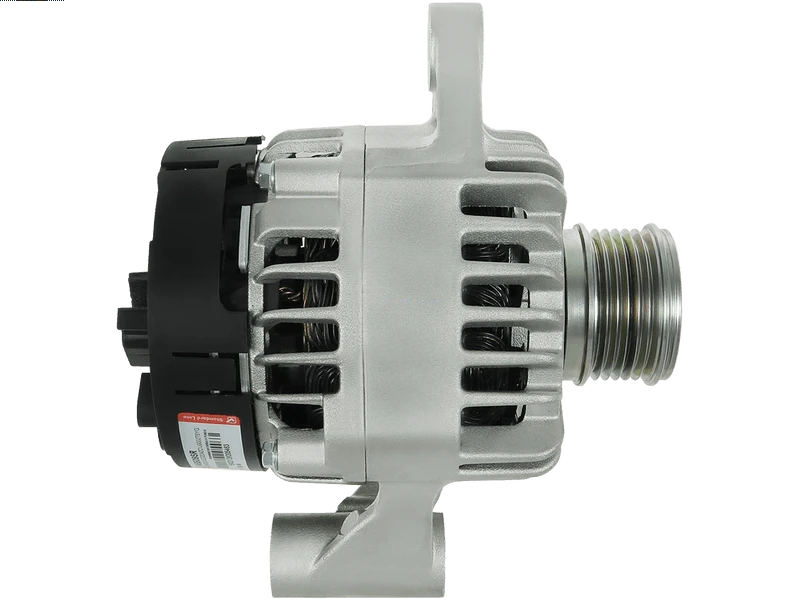

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 461.36 including GST
NZ$ 401.18 excluding GST
or four payments of $115.34
with
Learn More
each
A6509SR
No stock in NZ
No stock in NZ
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 61 mm |
| Diameter (D.1) | 11.5 mm |
| Diameter (D.2) | 13 mm |
| Length (L.1) | 197 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 112 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | Giuiletta 1.6 JTDM | [940A3.000] | 04.2010- |
| ALFA ROMEO | Giuiletta 2.0 JTDM | [940A4.000] | 04.2010- |
| ALFA ROMEO | Giulietta 1.6 JTDM | [55280444] | 02.2015-12.2020 |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940A3.000] | 04.2010-02.2016 |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940A3.000] | 04.2011-02.2016 |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C1.000] | 02.2015- |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C1.000] | 02.2015-12.2020 |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C5.000] | 02.2015- |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C5.000] | 02.2015-12.2020 |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C5.000] | 09.2015- |
| ALFA ROMEO | Giulietta 1.6 JTDM | [940C5.000] | 09.2015-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [55283099] | 04.2010-12.2020 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A4.000] | 04.2010-12.2020 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A5.000] | 04.2010- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A5.000] | 04.2010-12.2020 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A7.000] | 04.2010- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A7.000] | 04.2010-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A8.000] | 04.2010- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940A8.000] | 04.2010-02.2016 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B4.000] | 11.2013- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B4.000] | 11.2013-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B5.000] | 08.2013- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B5.000] | 08.2013-02.2016 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B5.000] | 08.2013-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B6.000] | 04.2010- |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B6.000] | 04.2010-02.2016 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940B9.000] | 04.2010-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940C3.000] | 08.2013-10.2018 |
| ALFA ROMEO | Giulietta 2.0 JTDM | [940C4.000] | 04.2010-02.2016 |
| FIAT | 500L 1.6 D Multijet | [199B5.000] | 09.2012-05.2018 |
| FIAT | 500L 1.6 D Multijet | [55280444] | 09.2013- |
| FIAT | 500L 1.6 D Multijet | [940C1.000] | 09.2013- |
| FIAT | 500L 1.6 D Multijet | [955A3.000] | 09.2013- |
| FIAT | 500L 1.6 Multijet | [199B5.000] | 09.2012- |
| FIAT | 500L 1.6 Multijet | [955A3.000] | 09.2013- |
| FIAT | 500X 1.6 D Multijet | [55260384] | 09.2014- |
| FIAT | 500X 1.6 D Multijet | [5528044] | 09.2014- |
| FIAT | 500X 1.6 Multijet | [55260384] | 09.2014- |
| FIAT | 500X 2.0 D Multijet 4x4 | [5526308] | 09.2014-09.2018 |
| FIAT | 500X 2.0 D Multijet 4x4 | [55263087] | 09.2014-09.2018 |
| FIAT | 500X 2.0 D Multijet 4x4 | [55263088] | 09.2014-09.2018 |
| FIAT | 500X 2.0 D Multijet 4x4 | [55283099] | 09.2014-09.2018 |
| FIAT | 500X 2.0 Multijet 4x4 | [55263087] | 09.2014- |
| FIAT | 500X 2.0 Multijet 4x4 | [55263088] | 09.2014- |
| FIAT | Doblo 1.6 D Multijet | [198A3.000] | 01.2010- |
| FIAT | Doblo 1.6 D Multijet | [198A3.000] | 02.2010- |
| FIAT | Doblo 1.6 D Multijet | [263A3.000] | 03.2016- |
| FIAT | Doblo 1.6 D Multijet | [263A7.000] | 03.2015- |
| FIAT | Doblo 1.6 D Multijet | [263A8.000] | 01.2010- |
| FIAT | Doblo 1.6 D Multijet | [263A8.000] | 02.2010- |
| FIAT | Doblo 1.6 D Multijet | [263A9.000] | 03.2016- |
| FIAT | Doblo 1.6 D Multijet | [46346020] | 02.2010- |
| FIAT | Doblo 1.6 D Multijet | [46346020] | 02.2016- |
| FIAT | Doblo 1.6 D Multijet | [55280444] | 01.2010- |
| FIAT | Doblo 1.6 D Multijet | [55280444] | 02.2010- |
| FIAT | Doblo 1.6 D Multijet | [55280444] | 02.2016- |
| FIAT | Doblo 1.6 D Multijet | [55280444] | 03.2015- |
| FIAT | Doblo 1.6 D Multijet | [55280444] | 03.2016- |
| FIAT | Doblo 1.6 D Multijet | [940C1.000] | 02.2016- |
| FIAT | Doblo 1.6 D Multijet | [940C1.000] | 03.2015- |
| FIAT | Tipo 1.6 | [55260384] | 09.2016- |
| FIAT | Tipo 1.6 D | [55260384] | 03.2016-10.2020 |
| FIAT | Tipo 1.6 D | [55260384] | 09.2016-10.2020 |
| FIAT | Tipo 1.6 D | [55260384] | 10.2015-10.2020 |
| FIAT | Tipo 1.6 D | [5528044] | 03.2016-10.2020 |
| FIAT | Tipo 1.6 D | [5528044] | 09.2016-10.2020 |
| FIAT | Tipo 1.6 D | [940C1.000] | 10.2015-10.2020 |
| JEEP | Renegade 1.6 CRD | [55260384] | 07.2014- |
| JEEP | Renegade 1.6 CRD | [55260384] | 11.2016- |
| JEEP | Renegade 1.6 CRD | [55263113] | 07.2014- |
| JEEP | Renegade 1.6 CRD | [55280444] | 07.2014- |
| JEEP | Renegade 1.6 CRD | [EJJ] | 11.2016- |
| JEEP | Renegade 1.6 CRD | [EJK] | 07.2014- |
| JEEP | Renegade 2.0 CRD 4x4 | [55263087] | 07.2014- |
| JEEP | Renegade 2.0 CRD 4x4 | [55263088] | 07.2014- |
| JEEP | Renegade 2.0 CRD 4x4 | [55283099] | 07.2014- |
| JEEP | Renegade 2.0 CRD 4x4 | [55284064] | 07.2014- |
| JEEP | Renegade 2.0 CRD 4x4 | [EBT] | 07.2014- |
Reference Information
12090623 STX110148R 554221RI IR5454 CAL30239AS 8550505718 ALT2438CP 2030239.1 F032116094 G103637 101210-1710 20030239AV 51884351 AMM239 116094 101210-1713 101210-1711 101210-1712 STX110148 28-6943CT DAN1121 LRA03833 89215812 2030239.0 10445132 ALT6619 DRA1451 432055M 28-6943 57673 G101440 AG2142RB 2183291202 51944891 ALTE401 17197917 AEK3833 WG2197013 063736094010 4823015 554221RID CAL30239GS 8EL015637-011 71796428 AG2142 105.516.120.050 20030239OV 3110120 114498 MQA6094 5540262 24127N 101210-2010 210936A WG2281222 WOOALT30670 20104932BN WG1916781 4365 ALN5126 FI8140 AL03405 ALT30670 A12DE0620A2 105.516.120.260 441673 105.516.120.460 210936 673ST75 LRA3833 CGB-13451 0986084720 WG2012400 20104932OEVideo/Publications
