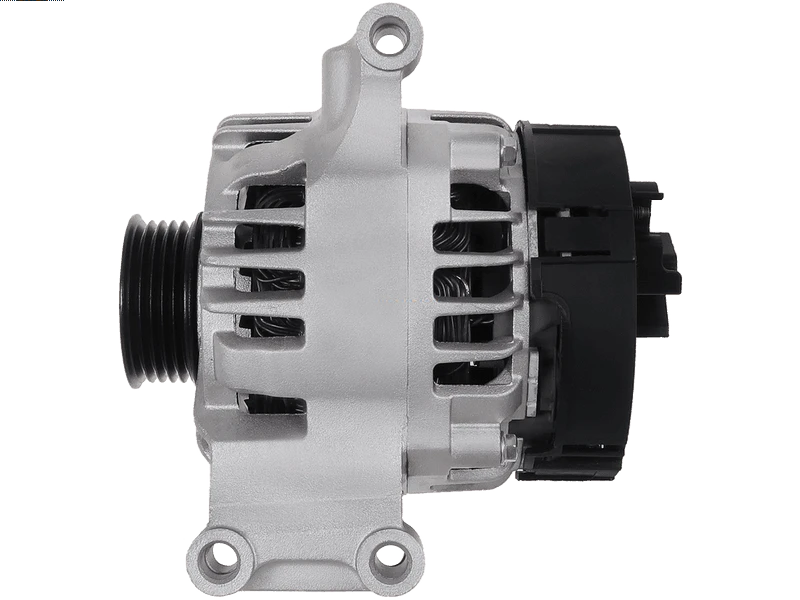

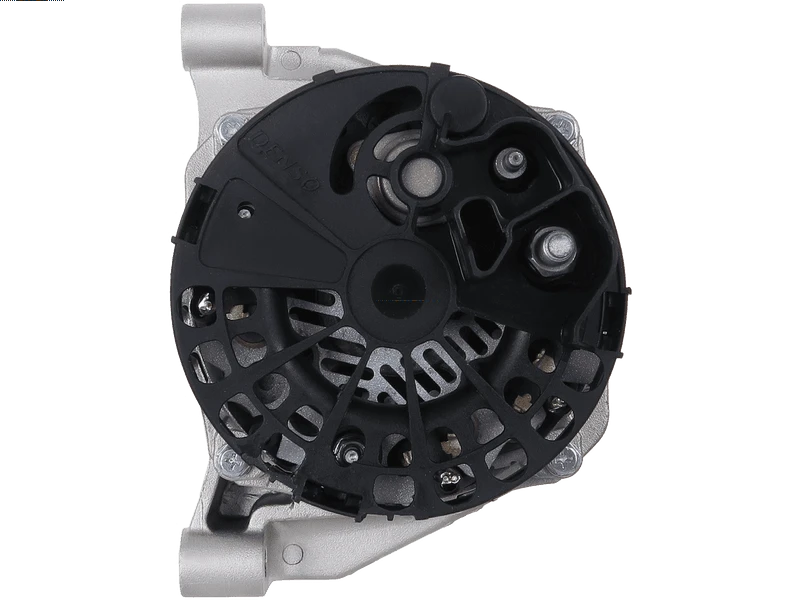

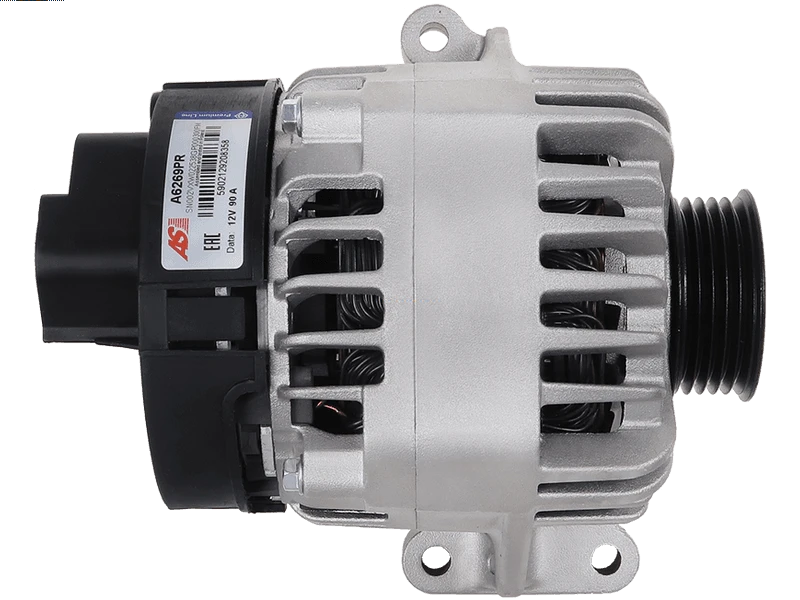

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
DENSO
Price:
NZ$ 302.00 including GST
NZ$ 262.61 excluding GST
or four payments of $75.50
with
Learn More
each
A6269PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 90 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 24 mm |
| Pad mount thickness (E.2) | 24 mm |
| Pad mount thickness (E.3) | 24 mm |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 17 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.2 | [169A4.000] | 10.2007- |
| FIAT | 500 1.4 | [169A3.000] | 10.2007- |
| FIAT | 500 C 1.4 | [169A3.000] | 09.2009- |
| FIAT | Brava 1.2 16V | [188A5.000] | 10.2000-10.2001 |
| FIAT | Bravo 1.2 16V | [188A5.000] | 10.2000-10.2001 |
| FIAT | Doblo 1.4 | [843A1.000] | 02.2010- |
| FIAT | Doblo 1.4 | [843A1.000] | 04.2010- |
| FIAT | Grande Punto 1.4 | [350A1.000] | 02.2006-06.2013 |
| FIAT | Grande Punto 1.4 Natural Power | [350A1.000] | 03.2009- |
| FIAT | Grande Punto 1.4 Natural Power | [350A1.000] | 03.2009-12.2012 |
| FIAT | Idea 1.2 16V | [188A5.000] | 01.2004- |
| FIAT | Idea 1.4 16V | [843A1.000] | 01.2004- |
| FIAT | Linea 1.4 | [350A1.000] | 06.2007- |
| FIAT | Panda 1.1 | [187A1.000] | 09.2004- |
| FIAT | Panda 1.2 | [169A4.000] | 02.2012- |
| FIAT | Panda 1.2 | [169A4.000] | 09.2010- |
| FIAT | Panda 1.2 | [188A4.000] | 09.2004- |
| FIAT | Panda 1.2 4x4 | [188A4.000] | 10.2004- |
| FIAT | Panda 1.2 Bifuel Bipower | [188A4.000] | 09.2004-12.2011 |
| FIAT | Panda 1.2 LPG | [169A4.000] | 06.2012- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 09.2010- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 11.2010- |
| FIAT | Panda 1.2 LPG | [188A4.000] | 04.2009- |
| FIAT | Panda 1.2 Natural Power | [169A4.000] | 03.2010- |
| FIAT | Panda 1.2 Natural Power | [188A4.000] | 01.2007-11.2009 |
| FIAT | Panda 1.2 X | [188A4.000] | 09.2004- |
| FIAT | Punto 1.2 | [169A4.000] | 03.2012- |
| FIAT | Punto 1.2 | [188A4.000] | 02.2000- |
| FIAT | Punto 1.2 | [188A4.000] | 09.1999- |
| FIAT | Punto 1.2 | [199B9.000] | 02.2014- |
| FIAT | Punto 1.2 16V | [188A5.000] | 09.1999- |
| FIAT | Punto 1.2 Natural Power | [188A4.000] | 09.2003- |
| FIAT | Punto 1.4 BiFuel | [350A1.000] | 03.2012- |
| FIAT | Punto 1.4 BiFuel Natural Power | [350A1.000] | 03.2012- |
| FIAT | Punto 1.4 LPG | [350A1.000] | 03.2009- |
| FIAT | Punto Evo 1.4 | [350A1.000] | 03.2009-02.2012 |
| FIAT | Siena 1.0 | [178D9.011] | 03.2000-02.2003 |
| FIAT | Siena 1.0 | [310A1.011] | 03.2000-02.2003 |
| FIAT | Siena 1.2 | [178E8.011] | 09.2002-02.2004 |
| FIAT | Stilo 1.2 16V | [188A5.000] | 02.2002- |
| FIAT | Stilo 1.4 | [843A1.000] | 01.2004-08.2008 |
| FIAT | Stilo 1.4 16V | [192B2.000] | 03.2005- |
| FIAT | Tipo 1.4 | [843A1.000] | 10.2015- |
| FIAT | Uno 1.0 | [178D9.011] | 01.2004- |
| FORD | Ka 1.2 | [169A4.000] | 02.2009- |
| LANCIA | Y 1.2 16V | [188A5.000] | 10.2000-09.2003 |
| LANCIA | Ypsilon 1.2 | [188A4.000] | 10.2003- |
| LANCIA | Ypsilon 1.2 | [188A5.000] | 10.2003- |
| LANCIA | Ypsilon 1.2 Bifuel | [169A4.000] | 05.2011- |
| LANCIA | Ypsilon 1.2 BiFuel | [169A4.000] | 05.2011- |
| LANCIA | Ypsilon 1.4 | [843A1.000] | 10.2003- |
Reference Information
ALT90029 113535 51714791 STX100929 CA1742IR 12049540 DRA0113N 20104091BN 71794079 STX101226 210663 1202290 11443004 STX100252 95519881 1986A00733 505.560.090.058 51709131 71783564 112435 46748357 AL02494 WG1916882 52003532 IR6536 NEK2800 505.560.090.050 DENDAN1039 ALT12125 218172852 LRA2800 8EL738099-001 AX STX101079 STX100046R 1535437 301742RI STX100252R FT74246 4751 8EL012426-771 441889 104211-8472 MRA90191 CAL30190GS 42758246 505.560.090.265 505.560.090.262 2706074220 5540344 63321775 TT11277 56837 95524464 95524463 LRA02800 3119344 DRA0113 RAA11224 20104091OE 011-003-000002R H5540344 AMM190A 10443004 STX100046 TT11277PRO 3119347 L611308 MAN7013 WG2012123 63731742010 63321765 MAN7010 WG2012122 102211-8451 102211-8450 1673521 AEK2800 AG0140 CAL30190AS 9.44391E+11 28-4917 AMM190 51859038 1638105780 A12DE0138 A12DE0138A2 ALE1742 0986049540 63377013 63377010010 L49540 ALT353 8EL012240-671 DA1223 GA377009-A 63377013010 2030190.1 210755 71721204 9090191 102211-8472 DAN1039 102211-8471 102211-8470 FI8094 89212578 2030190 95512949 DAN519 IR6242 51859138 DA1223N AG014 AZMT-49-035-1562 23800R 301742RIR 301742RIV 46554404 23800N 1202445 A-12125 301742RIM 1291 837ST65 STX100912 12160940 301742RID 9S51-10346-BB 4-0062 9S51-10346-BA DENDAN519Video/Publications
