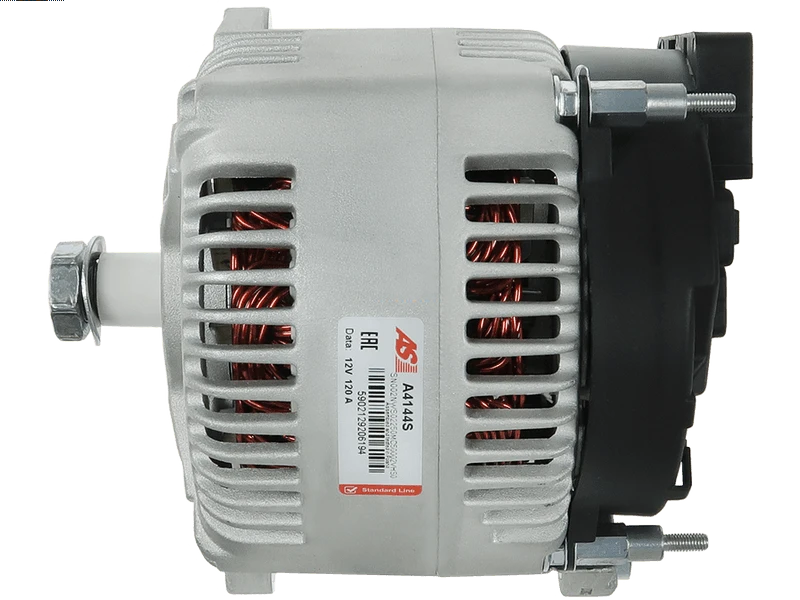

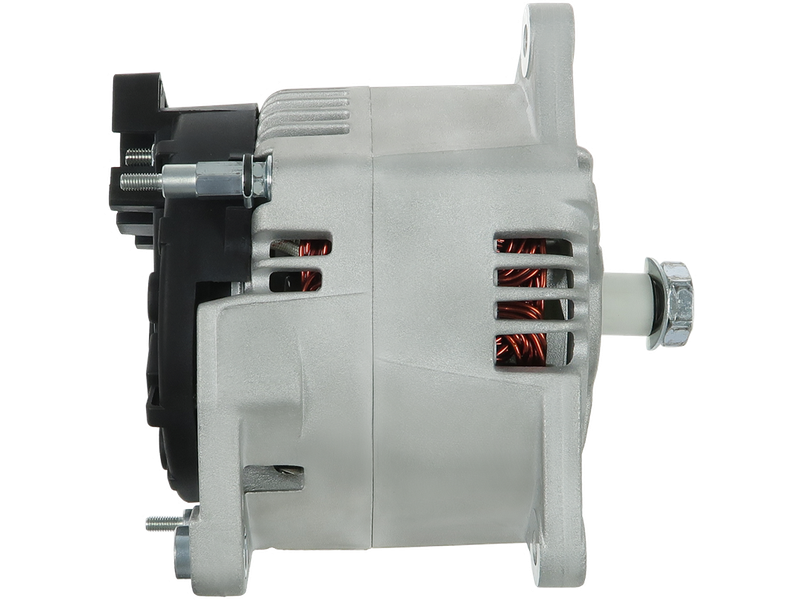

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 415.20 including GST
NZ$ 361.04 excluding GST
or four payments of $103.80
with
Learn More
each
A4144S
No stock in NZ
No stock in NZ
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8.5 mm |
| Length (L.1) | 177 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.5 mm |
| OEM Product | No |
| Plug Code | PL_9109 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | NO PULLEY |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ASV | RT-110 3.4 | [854E] | 01.2015-12.2016 |
| ASV | RT-110F 3.4 | [854E] | 01.2015-12.2016 |
| CATERPILLAR | 414E IL 4.0 | [3054] | 01.2006-12.2010 |
| CATERPILLAR | 416 4.4 | [C4.4] | 01.2020-12.2023 |
| CATERPILLAR | 416D 4.4 | [3054C] | 01.2004-12.2007 |
| CATERPILLAR | 416E 4.4 | [3054C] | 01.2004-12.2016 |
| CATERPILLAR | 416E 4.4 | [C4.4] | 01.2009-12.2013 |
| CATERPILLAR | 416F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 416F 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 420 4.4 | [3054C] | 01.2021-12.2023 |
| CATERPILLAR | 420 4.4 | [C4.4] | 01.2019-12.2023 |
| CATERPILLAR | 420D 4.0 | [3054] | 01.2000-12.2007 |
| CATERPILLAR | 420D 4.4 | [3054C] | 01.2000-12.2007 |
| CATERPILLAR | 420E 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 420E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 420E IT 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 420E IT 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 420F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 420F2 IT 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 420F 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 420F IT 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 422E 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 422E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 422F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 422F 4.4 | [C4.4] | 01.2011-12.2016 |
| CATERPILLAR | 424 3.6 | [C3.6] | 01.2021-12.2023 |
| CATERPILLAR | 424 4.4 | [C4.4] | 01.2021-12.2023 |
| CATERPILLAR | 424D 4.4 | [3054C] | 01.2003-12.2007 |
| CATERPILLAR | 426F2 4.4 | [C4.4] | 01.2016-12.2020 |
| CATERPILLAR | 428D 4.4 | [3054C] | 01.2003-12.2007 |
| CATERPILLAR | 428E 4.4 | [3054C] | 01.2005-12.2010 |
| CATERPILLAR | 428E 4.4 | [C4.4] | 01.2009-12.2013 |
| CATERPILLAR | 428F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 428F 4.4 | [C4.4] | 01.2011-12.2016 |
| CATERPILLAR | 430D 4.4 | [3054C] | 01.2004-12.2007 |
| CATERPILLAR | 430E 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 430E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 430E IT 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 430E IT 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 430F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 430F2 IT 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 430F 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 430F IT 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 432 4.4 | [C4.4] | 01.2019-12.2020 |
| CATERPILLAR | 432D 4.4 | [3054C] | 01.2003-12.2007 |
| CATERPILLAR | 432E 4.4 | [3054C] | 01.2005-12.2010 |
| CATERPILLAR | 432E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 432F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 432F 4.4 | [C4.4] | 01.2011-12.2017 |
| CATERPILLAR | 434 4.4 | [C4.4] | 01.2019-12.2020 |
| CATERPILLAR | 434E 4.4 | [3054C] | 01.2005-12.2010 |
| CATERPILLAR | 434E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 434F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 434F 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 442D 4.4 | [3054C] | 01.2003-12.2007 |
| CATERPILLAR | 442E 4.4 | [3054C] | 01.2005-12.2010 |
| CATERPILLAR | 442E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 444 4.4 | [C4.4] | 01.2019-12.2020 |
| CATERPILLAR | 444E 4.4 | [3054C] | 01.2004-12.2010 |
| CATERPILLAR | 444E 4.4 | [C4.4] | 01.2008-12.2013 |
| CATERPILLAR | 444F2 4.4 | [C4.4] | 01.2014-12.2020 |
| CATERPILLAR | 444F 4.4 | [C4.4] | 01.2012-12.2016 |
| CATERPILLAR | 450E 4.4 | [C4.4] | 01.2007-12.2017 |
| CATERPILLAR | 910K 4.4 | [C4.4] | 01.2015-12.2019 |
| CATERPILLAR | 914K 4.4 | [C4.4] | 01.2015-12.2019 |
| CATERPILLAR | 920K 4.4 | [C4.4B] | 01.2019-12.2022 |
| CATERPILLAR | CB44B 4.4 | [C4.4] | 01.2012-12.2018 |
| CATERPILLAR | CB54B 4.4 | [C4.4] | 01.2012-12.2018 |
| CATERPILLAR | CP11 GC 4.4 | [C4.4] | 01.2020-12.2023 |
| CATERPILLAR | CP12 GC 4.4 | [C4.4] | 01.2021-12.2023 |
| CATERPILLAR | CS10 GC 4.4 | [C4.4] | 01.2018-12.2023 |
| CATERPILLAR | CS11 GC 4.4 | [C4.4] | 01.2018-12.2023 |
| CATERPILLAR | CS12 GC 4.4 | [C4.4] | 01.2018-12.2023 |
| CATERPILLAR | D3K XL 4.4 | [C4.4] | 01.2006-12.2016 |
| CATERPILLAR | D5K XL 4.4 | [C4.4] | 01.2006-12.2016 |
| CATERPILLAR | TH336C 4.4 | [C4.4] | 01.2012-12.2017 |
| CATERPILLAR | TH337C 4.4 | [C4.4] | 01.2012-12.2017 |
| OTTAWA | YT50 4 X 2 | [C6.6] | 01.2007-12.2016 |
| TEREX | PT-100 4.4 | [1104C-44T] | 01.2009-12.2011 |
| TEREX | PT-100F 4.4 | [1104C-44T] | 01.2009-12.2011 |
| TEREX | PT-100G 4.4 | [1104D-44T] | 01.2010-12.2013 |
| TEREX | PT-100G F 4.4 | [1104D-44T] | 01.2010-12.2013 |
| TEREX | PT-110 3.4 | [854E] | 01.2013-12.2016 |
| TEREX | PT-110F 3.4 | [854E] | 01.2013-12.2016 |
Reference Information
3832557 DAN650 102211-8131 102211-8130 12739N AI-90140 89215928 102211-1580 CAL30196GS 553881RI 20104691OE LRA3774 AG2045 2871A310 A12DE0159 A12DE0159A2 2321 3777677R1 2253145 714/40156 AI-90140E 553881RIM 705.503.120.260 DAN1092 71440156 LEA0876-N 101210-1580 235-3145 ALTS260 LRA03774 714-40156 ALT12102 113967 3777677M1 90-19-2529 2871A305 705.503.120.058 8EL015643-321 63377464 3469825 705.503.120.050 UD101663A 28-6884 290-20103 2030196.1Video/Publications
