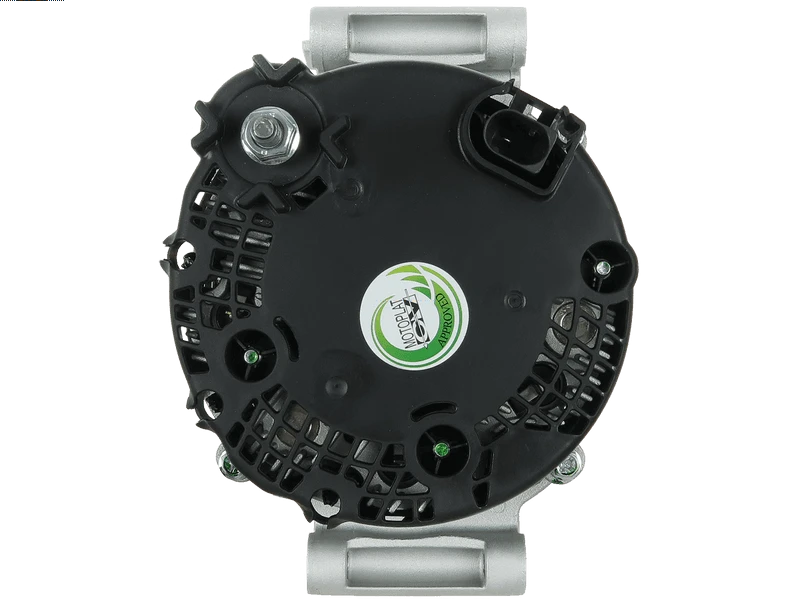

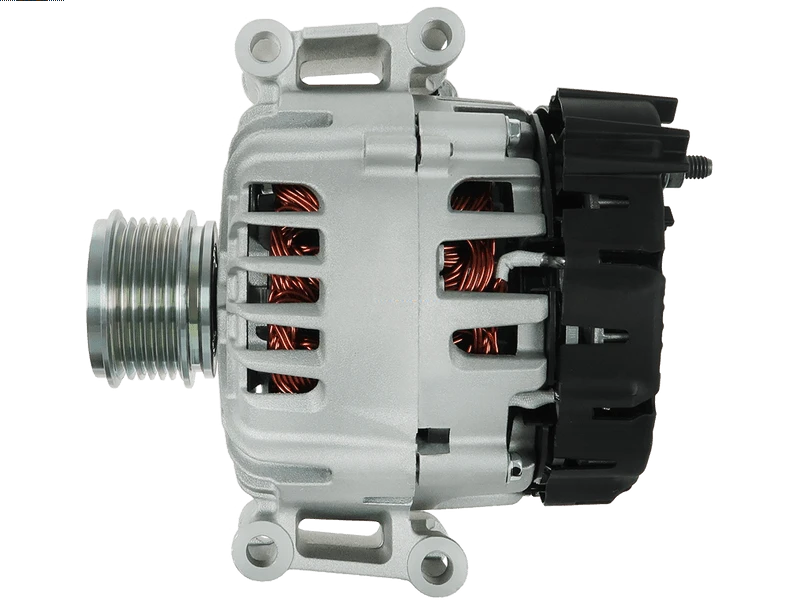

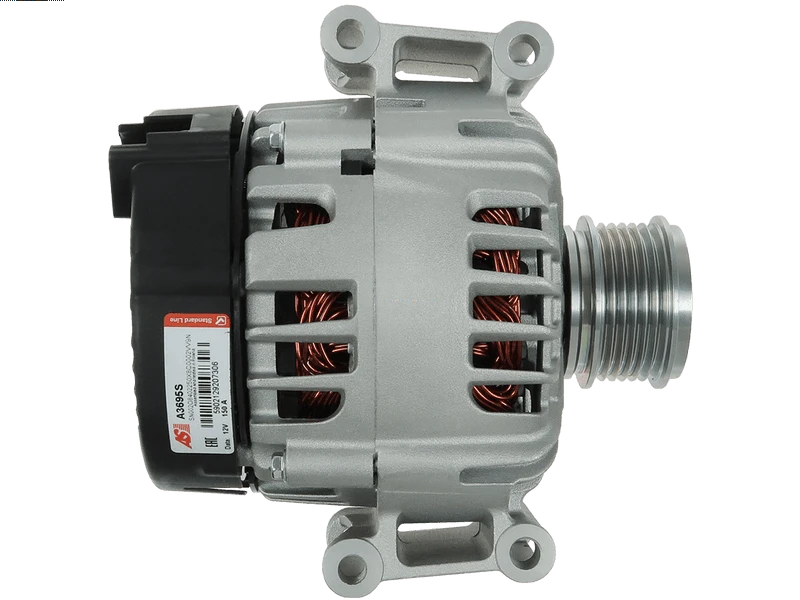

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 842.23 including GST
NZ$ 732.37 excluding GST
or four payments of $210.56
with
Learn More
each
A3695S
No stock in NZ
No stock in NZ
Specifications
| Amp | 150 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Diameter (D.4) | 10 mm |
| Length (L.1) | 201 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 2.0 Quattro | [CNTC] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2014-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2014-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXC] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXD] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXG] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHA] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHB] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DNUE] | 01.2013-12.2020 |
| AUDI | TT 2.0 | [DKTB] | 01.2018- |
| AUDI | TT 2.0 | [DKZB] | 01.2018- |
| AUDI | TT 2.0 | [DNNB] | 01.2018- |
| AUDI | TT 2.0 | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DNUF] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DNUF] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DKZB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DNNB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DNPA] | 01.2018- |
| AUDI | TTS 2.0 Quattro | [DNFD] | 01.2021-12.2021 |
| AUDI | TTS 2.0 Quattro Roadster | [DNFD] | 01.2020-12.2021 |
| VW | Golf VII 2.0 | [CHHB] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [CJXE] | 01.2016-12.2017 |
| VW | Golf VII 2.0 | [CJXG] | 01.2016-12.2017 |
| VW | Golf VII 2.0 | [CJXH] | 01.2018-12.2020 |
| VW | Golf VII 2.0 | [CNTC] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [CXDA] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [DKTB] | 01.2017-12.2020 |
| VW | Golf VII 2.0 | [DLBA] | 01.2017-12.2020 |
| VW | Golf VII 2.0 | [DNUC] | 01.2018-12.2020 |
| VW | Golf VII 2.0 4motion | [CJXC] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [CJXD] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [CJXG] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [DJHA] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [DJHB] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [DNUC] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4motion | [DNUE] | 01.2016-12.2020 |
| VW | Jetta 1.8 | [CPKA] | 01.2016-12.2017 |
| VW | Jetta 1.8 | [CPRA] | 01.2016-12.2017 |
Reference Information
556200RIV 0125716009 205.580.150.505 40921 CAL15A91GS LRA4636 AEG1533 208-2078 06K903023GX EG15T020 EG15T026 0125716010 BOM UNIT 06K903023G UD30067A 06K903023DX 2017919AOE 06K903023B 06K903023D DRA1996 LRA04636 90-22-5768 28-8745 2015A91.1Video/Publications
