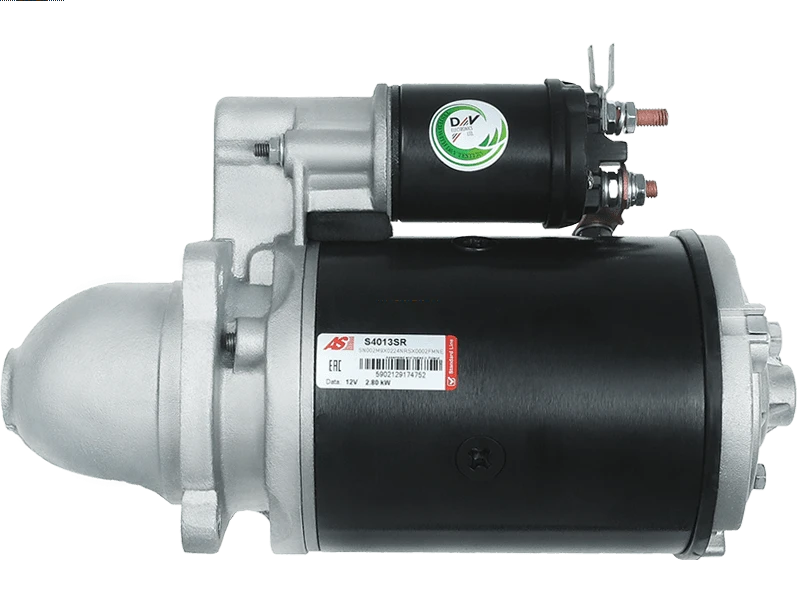

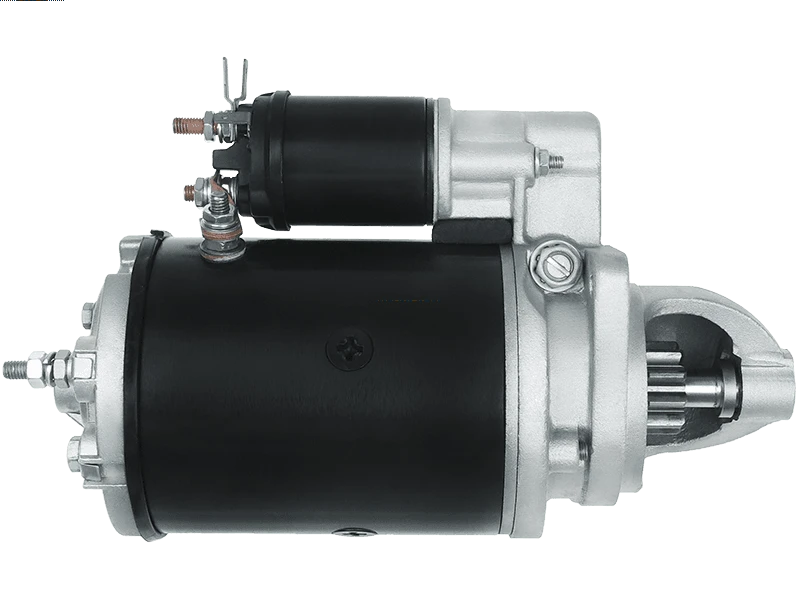

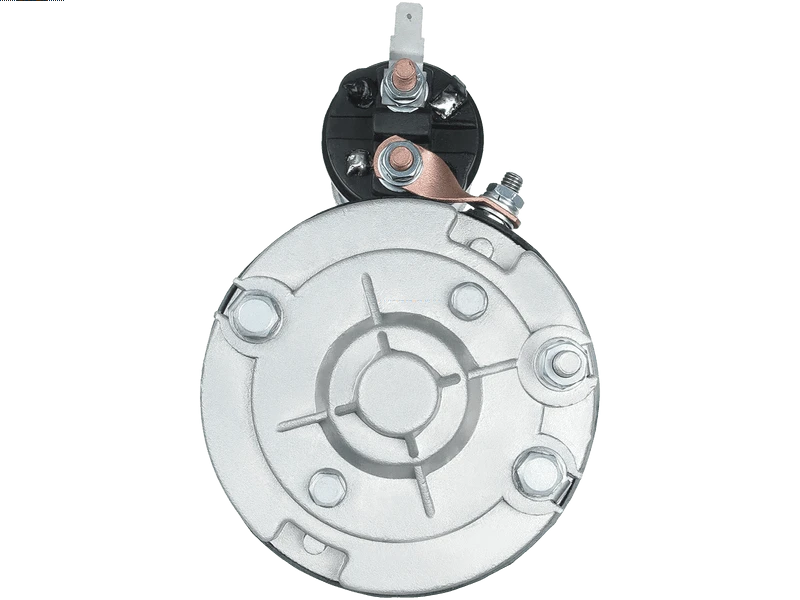

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 478.14 including GST
NZ$ 415.77 excluding GST
or four payments of $119.54
with
Learn More
each
S4013SR
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 2.8 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 3645 | 01.1989-12.1991 | |
| MASSEY FERGUSON | MF 3655 | 01.1990-12.1995 | |
| MASSEY FERGUSON | MF 3680 7.4 | [612DS] | 06.1988- |
| MASSEY FERGUSON | MF 6170 | [6.365] | 01.1996- |
| MASSEY FERGUSON | MF 6180 | [6.365] | 01.1996- |
| MASSEY FERGUSON | MF 8120 | [6.365] | 01.1996- |
| MASSEY FERGUSON | MF 8140 | [6.403] | 01.1996- |
| MASSEY FERGUSON | MF 8150 | [6.403] | 01.1996- |
| MASSEY FERGUSON | MF 8160 | [6.451] | 01.1996- |
| MASSEY FERGUSON | MF 8240 | 01.1999- | |
| MASSEY FERGUSON | MF 8250 | 01.1999- | |
| MASSEY FERGUSON | MF 8260 | 01.1999- | |
| MASSEY FERGUSON | MF 8270 | 01.1999- | |
| MASSEY FERGUSON | MF 8280 | 01.1999- |
Reference Information
27518J 6025101.1 27518H 330845 26294N IS0526 26294R 6025101.0 1516799R 700.005.103.108 27520 11018150 SG0154 U427224P AZJ3151 27518B 700.005.103.100 27518E 8018151 STX200542 27518F 17649N 27585A RNL195 2873A028 2873022 20405101BN 25-0201 2873B071 8EA730219-001 26294D 26294A LRS195 714/40006 71429300R 27596A 27502 27588 27621 STR4105 111737 27628 27625 700.005.103.325 2873A030 26925316A LRS968 LRS00195 26925316B 27585 144773R1 700.005.103.320 9004475035 1446802M91 1447732MI 3581576M1 27511 27518 220006 26357D 26369D 26357B 27592 26357H 27596 RE37894 CGB-23289BO 27609 27502E 27502B 27607 3551773M91 26357 26925316 26359 27570B 1873A053 27603 27570F TS-4029 STR25016 714/29300-R STL0703 27607A S12LU0123A2 8212894 CST25101AS 20405101OE 26369 27615 27570 LRS00968 8735 11.130.526 700.005.103.030 71440006 27588A STX210086 3581576R1 26294 91-17-8879N 0986018151 1447732R1 3581576M02A CS703 54244390 72735975 10703L 2873001 CST25101GS STR7943 2873A001 10703P 2873B056 MS347 3930508R1 458383 700.005.103.010 3581576M01A 91-17-8879Video/Publications
