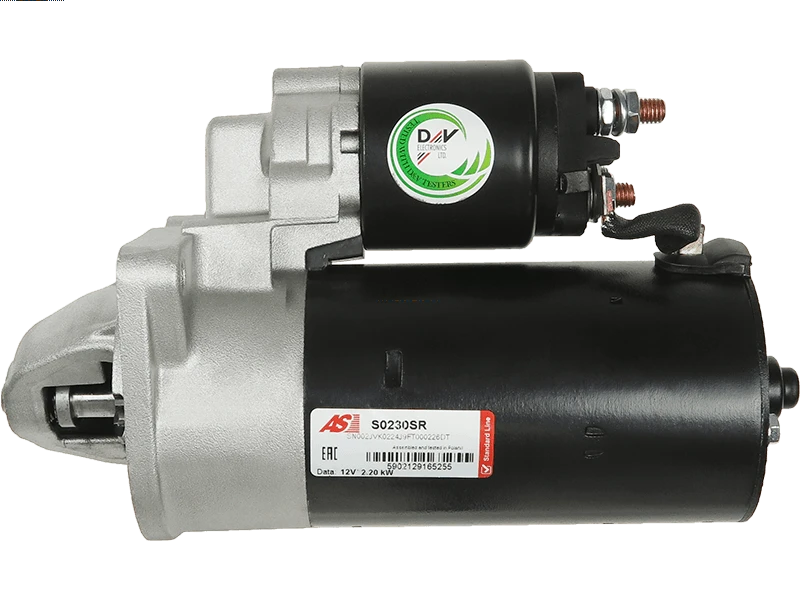

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 243.28 including GST
NZ$ 211.55 excluding GST
or four payments of $60.82
with
Learn More
each
S0230SR
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 237 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Center - Center (O.2) | 116 mm |
| Mount Hole Center - Center (O.3) | 83 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 9.5 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 81.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 147 1.9 JTD 16V | [192A5.000] | 11.2002-03.2010 |
| ALFA ROMEO | 147 1.9 JTD 16V | [192B1.000] | 10.2004-03.2010 |
| ALFA ROMEO | 147 1.9 JTD 16V | [937A4.000] | 09.2003-09.2004 |
| ALFA ROMEO | 147 1.9 JTDM 16V | [937A5.000] | 09.2004-03.2010 |
| ALFA ROMEO | 156 1.9 JTD | [192B1.000] | 11.2002-11.2004 |
| ALFA ROMEO | 156 1.9 JTD | [937A4.000] | 11.2003-05.2006 |
| ALFA ROMEO | 156 1.9 JTD | [937A4.000] | 11.2003-09.2005 |
| ALFA ROMEO | 156 1.9 JTD | [937A5.000] | 03.2005-05.2006 |
| ALFA ROMEO | 156 1.9 JTD 16V | [192A5.000] | 11.2002-05.2006 |
| ALFA ROMEO | 156 1.9 JTD 16V | [192A5.000] | 11.2002-09.2005 |
| ALFA ROMEO | 156 1.9 JTD 16V Q4 | [937A5.000] | 07.2004-05.2006 |
| ALFA ROMEO | 156 2.4 JTD | [841C000] | 03.2002-05.2006 |
| ALFA ROMEO | 156 2.4 JTD | [841C000] | 03.2002-09.2005 |
| ALFA ROMEO | 156 2.4 JTD | [841G.000] | 10.2003-05.2006 |
| ALFA ROMEO | 156 2.4 JTD | [841G.000] | 10.2003-09.2005 |
| ALFA ROMEO | 156 2.4 JTD | [841M.000] | 06.2003-05.2006 |
| ALFA ROMEO | 156 2.4 JTD | [841M.000] | 06.2003-09.2005 |
| ALFA ROMEO | 156 2.4 JTD | [841N.000] | 06.2003-05.2006 |
| ALFA ROMEO | 156 2.4 JTD | [841N.000] | 06.2003-09.2005 |
| ALFA ROMEO | 159 2.4 JTDM | [939A3.000] | 03.2006-11.2011 |
| ALFA ROMEO | 159 2.4 JTDM | [939A3.000] | 09.2005-11.2011 |
| ALFA ROMEO | 159 2.4 JTDM | [939A9.000] | 05.2007-12.2012 |
| ALFA ROMEO | 159 2.4 JTDM | [939A9.000] | 07.2007-11.2011 |
| ALFA ROMEO | 159 2.4 JTDM Q4 | [939A9.000] | 05.2007-11.2011 |
| ALFA ROMEO | 166 2.4 JTD | [839A6.000] | 10.2000-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841C000] | 04.2002-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841G.000] | 10.2003-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841H.000] | 10.2003-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841M.000] | 07.2005-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841M.000] | 07.2006-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841M.000] | 10.2003-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [841N.000] | 10.2003-06.2007 |
| ALFA ROMEO | 166 2.4 JTD | [936B.000] | 07.2005-06.2007 |
| ALFA ROMEO | Brera 2.4 JTDM 20V | [939A3.000] | 01.2006-03.2011 |
| ALFA ROMEO | Brera 2.4 JTDM 20V | [939A9.000] | 05.2007-03.2011 |
| ALFA ROMEO | GT 1.9 JTD | [937A5.000] | 11.2003-09.2010 |
| ALFA ROMEO | Mito 1.6 JTDM | [198A2.000] | 08.2008- |
| ALFA ROMEO | Mito 1.6 JTDM | [955A3.000] | 08.2008- |
| ALFA ROMEO | Mito 1.6 JTDM | [955A4.000] | 08.2008- |
| ALFA ROMEO | Spider 2.4 JTDM | [939A3.000] | 03.2006-03.2011 |
| ALFA ROMEO | Spider 2.4 JTDM | [939A3.000] | 03.2008-03.2011 |
| FIAT | Bravo 1.6 D Multijet | [198A3.000] | 09.2007-12.2014 |
| FIAT | Bravo 1.6 D Multijet | [844A3.000] | 09.2007-12.2014 |
| FIAT | Bravo 1.9 D Multijet | [192A1.000] | 11.2006-12.2009 |
| FIAT | Bravo 1.9 D Multijet | [192A8.000] | 04.2007-12.2014 |
| FIAT | Bravo 1.9 D Multijet | [192B4.000] | 11.2006-12.2009 |
| FIAT | Bravo 1.9 D Multijet | [192B5.000] | 04.2007-12.2008 |
| FIAT | Bravo 1.9 D Multijet | [937A5.000] | 04.2007-12.2014 |
| FIAT | Croma 1.9 D Multijet | [939A2.000] | 06.2005-12.2011 |
| FIAT | Croma 1.9 D Multijet | [939A8.000] | 12.2005- |
| FIAT | Marea 2.4 JTD 130 | [185A6.000] | 04.1999-05.2002 |
| FIAT | Marea 2.4 JTD 130 | [839A5.000] | 04.1999-05.2002 |
| FIAT | Sedici1.9 D Multijet | [D19AA] | 06.2006-10.2011 |
| FIAT | Sedici1.9 D Multijet 4x4 | [D19AA] | 06.2006-10.2011 |
| FIAT | Stilo 1.9 JTD | [192A1.000] | 01.2003-08.2008 |
| FIAT | Stilo 1.9 JTD | [192A1.000] | 10.2001-11.2006 |
| FIAT | Stilo 1.9 JTD | [192A5.000] | 01.2004-08.2008 |
| FIAT | Stilo 1.9 JTD | [192A5.000] | 01.2004-11.2006 |
| FIAT | Stilo 1.9 JTD | [192B1.000] | 04.2004-08.2008 |
| FIAT | Stilo 1.9 JTD | [192B1.000] | 04.2004-11.2006 |
| FIAT | Stilo 1.9 JTD | [937A4.000] | 09.2003-08.2008 |
| FIAT | Stilo 1.9 JTD | [937A4.000] | 09.2003-11.2006 |
| FIAT | Stilo 1.9 JTD | [937A7.000] | 01.2003-08.2008 |
| FIAT | Stilo 1.9 JTD | [937A7.000] | 10.2001-11.2006 |
| LANCIA | Delta 2.0 D Multijet | [198A5.000] | 09.2008-08.2014 |
| LANCIA | Delta 2.0 D Multijet | [198A8.000] | 09.2008-08.2014 |
| LANCIA | Lybra 2.4 20V | [192A2.000] | 10.2001-10.2005 |
| LANCIA | Lybra 2.4 JTD | [839A5.000] | 07.1999-02.2001 |
| LANCIA | Lybra 2.4 JTD | [839A5.000] | 10.1999-09.2000 |
| LANCIA | Lybra 2.4 JTD | [839A6.000] | 09.2000-05.2002 |
| LANCIA | Lybra 2.4 JTD | [839A6.000] | 09.2000-10.2005 |
| LANCIA | Lybra 2.4 JTD | [841C.000] | 05.2002-10.2005 |
| LANCIA | Lybra 2.4 JTD | [AR32501] | 07.1999-02.2001 |
| LANCIA | Lybra 2.4 JTD | [AR32501] | 10.1999-09.2000 |
| LANCIA | Thesis 2.4 D Multijet | [841P.000] | 04.2006-07.2009 |
| LANCIA | Thesis 2.4 JTD | [841C.000] | 07.2002-07.2009 |
| LANCIA | Thesis 2.4 JTD | [841G.000] | 05.2003-07.2009 |
| LANCIA | Thesis 2.4 JTD | [841M.000] | 09.2003-07.2009 |
| LANCIA | Thesis 2.4 JTD | [841N.000] | 09.2003-07.2009 |
| SUZUKI | SX4 1.9 DDiS | [D19AA] | 06.2006- |
| SUZUKI | SX4 1.9 DDiS 4x4 | [D19AA] | 06.2006- |
Reference Information
CST10422GS EAA-121576 PRSS207 CST30125RS 0001109253 201162 51832953 60814911 71722349 AZE2111 20401492BN 46748351 71789267 31100-79J00 42018900 IS0997 STB1335 0001115025 32669N 0001115021 DRS3315 500.532.093.010 0001109268 101335B 0001109269 STX200037 8EA738240-001 0986018900 GS109270-A 9.43213E+11 31100H79J00-000 S12BH0020A2 46473784 500.532.093.280 311500 STRL008 DS4425 MSN2085 GS109270B-R CST10294OS STX200011 93951832953 CST10294GS 71746669 20401224OE 3110079J00000 3680 CS1335 MS373 46451895 25-3002 6010294 458550 LRT199 0001109336 STM1035 0001109337 46463250 93955195029 20401492OE 72736001 46430784 8EA012527-851 CST30125OS STR1945 STR1946 9.4428E+11 STRS207 71723345 20404521RC S12BH0789A2 88212443 CST10294AS 20404521RE STX200037R 71782384 71782386 20401492RE 46800159 55195029 101335M MSRC1335 0001109270 STX200200 0001109030 71792037 11.130.997 CGB-23314 STX200200R 0001109438 63521092680 6010294.4 6010422.1 PRSL008 11808 LRT00199 MAV122940 31100H79J00 6010294.1 220720 60816083 31100T79J00 220175 STX200294 0001109045 STR52046 6030125.2 101335 6030125.4 STX200011R BOS0001109336Video/Publications
