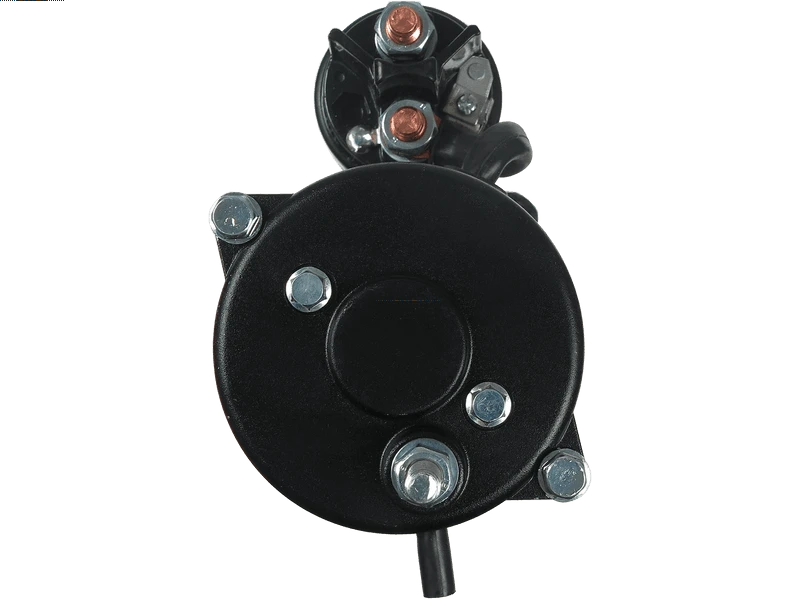

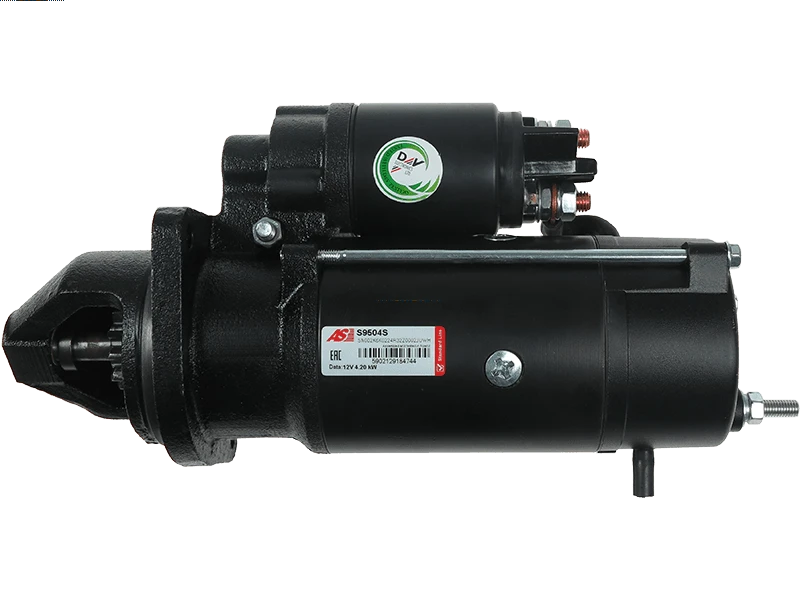

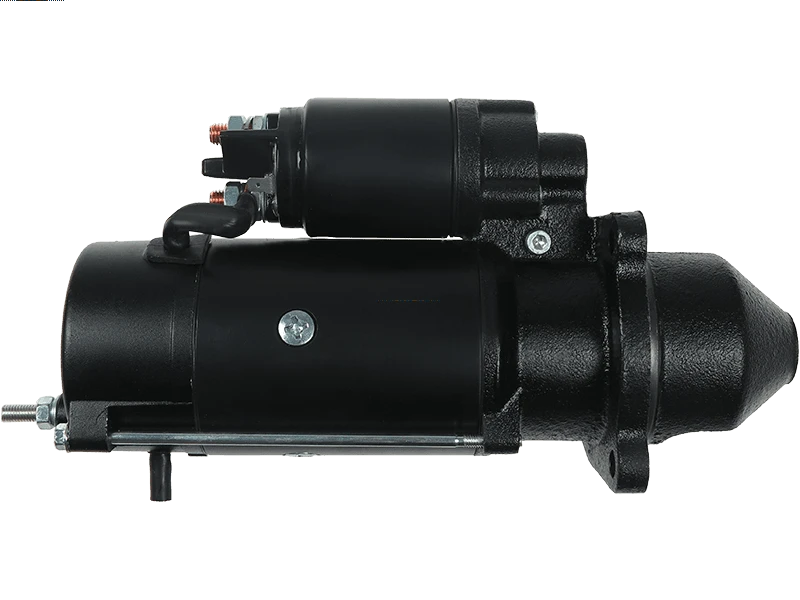

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 501.57 including GST
NZ$ 436.15 excluding GST
or four payments of $125.39
with
Learn More
each
S9504S
No stock in NZ
No stock in NZ
Information
AZF4254Specifications
| Kilowatt | 4.2 kW |
| Length (L.1) | 351 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLAAS | Axos 310 4.4 | ||
| CLAAS | Axos 320 4.4 | ||
| CLAAS | Axos 330 4.4 | ||
| CLAAS | Axos 340 4.4 |
Reference Information
19083036 520.509.103.310 520.509.103.090 72735665 20419191OE PRSF304 254784M LRS02650 11.131.613 11.131.930 AZF4160 LRS2650 CST21191GS UD21438S STRF304 STX210071 WOOSTR60699 0011050550 MS37 IS1221 25-4323 182-30550 DRS0268 AZF4254 88214928 6021191.1 33405N 0011271620Video/Publications
