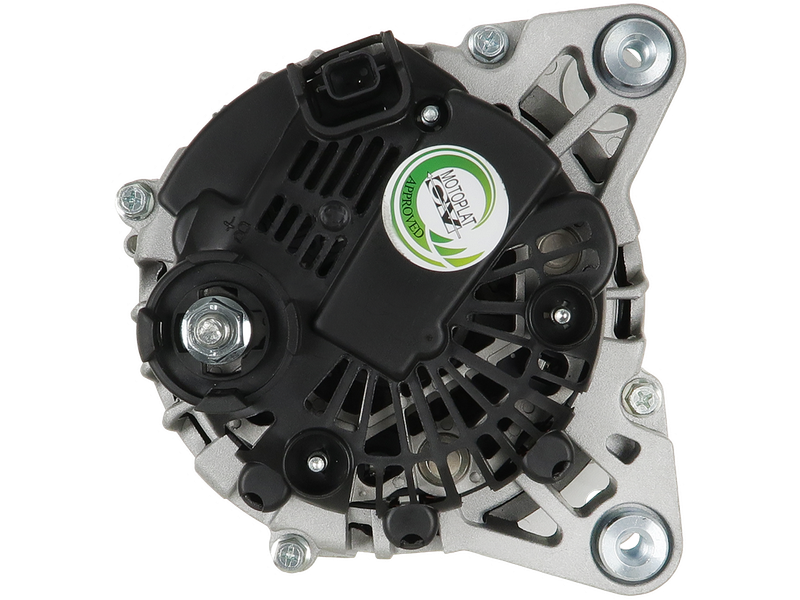

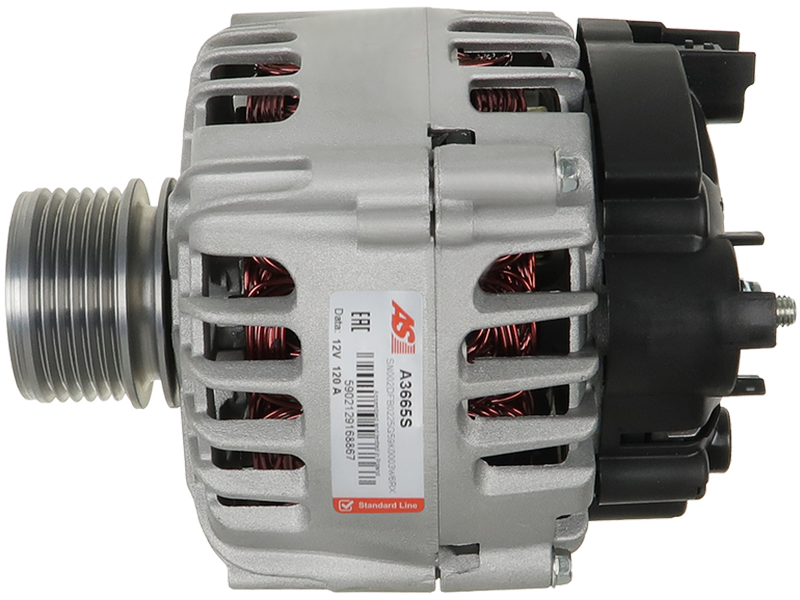

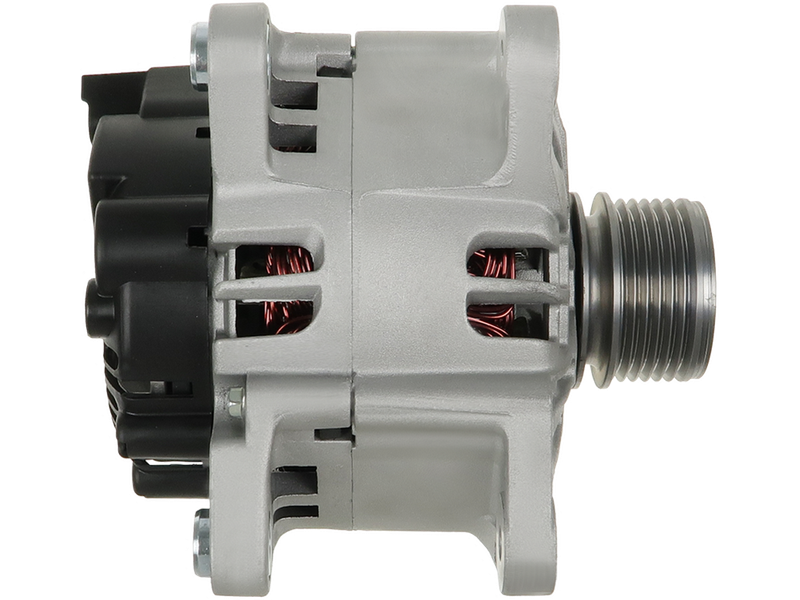

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 721.48 including GST
NZ$ 627.37 excluding GST
or four payments of $180.37
with
Learn More
each
A3665S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2800 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 39.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | Dokker 1.5 Blue DCi 75 | [K9K612] | 11.2012- |
| DACIA | Dokker 1.5 Blue DCi 75 | [K9K626] | 11.2012- |
| DACIA | Dokker 1.5 Blue DCi 75 | [K9K872] | 11.2012- |
| DACIA | Dokker 1.5 DCi | [K9K612] | 11.2012- |
| DACIA | Dokker 1.5 DCi | [K9K626] | 11.2012- |
| DACIA | Dokker 1.5 DCi | [K9K872] | 11.2012- |
| DACIA | Dokker 1.5 DCi 75 | [K9K612] | 12.2012- |
| DACIA | Dokker 1.5 DCi 75 | [K9K626] | 12.2012- |
| DACIA | Dokker 1.5 DCi 75 | [K9K872] | 12.2012- |
| DACIA | Duster 1.5 DCi | [K9K612] | 10.2010-01.2018 |
| DACIA | Duster 1.5 DCi | [K9K626] | 10.2010-01.2018 |
| DACIA | Duster 1.5 DCi | [K9K796] | 04.2010-01.2018 |
| DACIA | Duster 1.5 DCi | [K9K830] | 04.2010-01.2018 |
| DACIA | Duster 1.5 DCi | [K9K884] | 10.2010-01.2018 |
| DACIA | Duster 1.5 DCi | [K9K892] | 10.2010-01.2018 |
| DACIA | Lodgy 1.5 DCi | [K9K612] | 03.2012- |
| DACIA | Lodgy 1.5 DCi | [K9K626] | 03.2012- |
| DACIA | Logan 1.5 DCi | [K9K612] | 10.2012- |
| DACIA | Logan 1.5 DCi | [K9K626] | 10.2012- |
| DACIA | Logan 1.5 DCi | [K9K830] | 01.2013- |
| DACIA | Logan 1.5 DCi | [K9K838] | 01.2013- |
| DACIA | Logan Blue DCi 75 | [K9K612] | 10.2012- |
| DACIA | Logan Blue DCi 75 | [K9K626] | 10.2012- |
| DACIA | Logan Blue DCi 75 | [K9K872] | 10.2012- |
| DACIA | Logan MCV 1.5 DCi | [K9K612] | 02.2013- |
| DACIA | Logan MCV 1.5 DCi | [K9K626] | 02.2013- |
| DACIA | Logan MCV 1.5 DCi | [K9K830] | 02.2013- |
| DACIA | Logan MCV 1.5 DCi | [K9K838] | 02.2013- |
| DACIA | Sandero 1.5 Blue DCi 75 | [K9K612] | 10.2012- |
| DACIA | Sandero 1.5 Blue DCi 75 | [K9K626] | 10.2012- |
| DACIA | Sandero 1.5 Blue DCi 75 | [K9K838] | 10.2012- |
| DACIA | Sandero 1.5 Blue DCi 75 | [K9K872] | 10.2012- |
| DACIA | Sandero 1.5 Blue DCi 95 | [K9K872] | 08.2018- |
| DACIA | Sandero 1.5 DCi | [K9K612] | 10.2012- |
| DACIA | Sandero 1.5 DCi | [K9K626] | 10.2012- |
| DACIA | Sandero 1.5 DCi | [K9K830] | 01.2013- |
| DACIA | Sandero 1.5 DCi 75 | [K9K612] | 10.2012- |
| DACIA | Sandero 1.5 DCi 75 | [K9K626] | 10.2012- |
| DACIA | Sandero 1.5 DCi 75 | [K9K838] | 10.2012- |
| DACIA | Sandero 1.5 DCi 75 | [K9K872] | 10.2012- |
| RENAULT | Captur 1.5 DCi 90 | [K9K608] | 06.2013- |
| RENAULT | Captur 1.5 DCi 90 | [K9K609] | 06.2013- |
| RENAULT | Captur 1.5 DCi 90 | [K9K628] | 06.2013- |
| RENAULT | Captur 1.5 DCi 90 | [K9K629] | 06.2013- |
| RENAULT | Captur 1.5 DCi 90 | [K9K838] | 06.2013- |
| RENAULT | Clio 1.5 DCi 75 | [K9K612] | 01.2014- |
| RENAULT | Clio 1.5 DCi 75 | [K9K612] | 11.2012- |
| RENAULT | Clio 1.5 DCi 75 | [K9K628] | 11.2012- |
| RENAULT | Clio 1.5 DCi 90 | [K9K608] | 01.2014- |
| RENAULT | Clio 1.5 DCi 90 | [K9K608] | 11.2012- |
| RENAULT | Clio 1.5 DCi 90 | [K9K628] | 01.2014- |
| RENAULT | Clio 1.5 DCi 90 | [K9K628] | 11.2012- |
| RENAULT | Clio 1.5 DCi 90 | [K9K629] | 01.2014- |
| RENAULT | Clio 1.5 DCi 90 | [K9K638] | 11.2012- |
| RENAULT | Fluence 1.5 DCi | [K9K656] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K657] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K826] | 07.2014- |
| RENAULT | Fluence 1.5 DCi | [K9K830] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K832] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K834] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K836] | 02.2010- |
| RENAULT | Fluence 1.5 DCi | [K9K837] | 02.2010- |
| RENAULT | Grand Scenic 1.5 DCi | [K9K636] | 04.2009- |
| RENAULT | Grand Scenic 1.5 DCi | [K9K836] | 04.2009- |
| RENAULT | Grand Scenic 1.5 DCi | [K9K837] | 04.2009- |
| RENAULT | Kangoo 1.5 DCi | [K9K804] | 02.2008- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K636] | 03.2013- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K646] | 03.2013- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K647] | 03.2013- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K648] | 03.2013- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K804] | 09.2010- |
| RENAULT | Kangoo 1.5 DCi 110 | [K9K816] | 09.2010- |
| RENAULT | Kangoo 1.5 DCi 80 | [K9K872] | 03.2019- |
| RENAULT | Kangoo Be Bop 1.5 DCi | [K9K804] | 06.2009- |
| RENAULT | Kangoo Be Bop 1.5 DCi | [K9K806] | 02.2009-12.2012 |
| RENAULT | Kangoo Express 1.5 DCi 105 | [K9K806] | 02.2008- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K636] | 09.2013- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K646] | 09.2013- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K647] | 09.2013- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K648] | 09.2013- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K804] | 09.2010- |
| RENAULT | Kangoo Express 1.5 DCi 110 | [K9K816] | 09.2010- |
| RENAULT | Kangoo Express 1.5 DCi 115 | [K9K872] | 10.2019- |
| RENAULT | Kangoo Express 1.5 DCi 80 | [K9K872] | 10.2019- |
| RENAULT | Kangoo Express 1.5 DCi 95 | [K9K872] | 10.2019- |
| RENAULT | Laguna 1.5 DCi | [K9K780] | 10.2007-12.2015 |
| RENAULT | Laguna 1.5 DCi | [K9K782] | 10.2007-12.2015 |
| RENAULT | Laguna 1.5 DCi | [K9K846] | 03.2012-12.2015 |
| RENAULT | Laguna 1.5 DCi | [K9K846] | 10.2007-12.2015 |
| RENAULT | Megane 1.5 Blue DCi 115 | [K9K872] | 02.2019- |
| RENAULT | Megane 1.5 Blue DCi 115 | [K9K872] | 08.2018- |
| RENAULT | Megane 1.5 Blue DCi 115 | [K9K873] | 02.2019- |
| RENAULT | Megane 1.5 Blue DCi 115 | [K9K873] | 08.2018- |
| RENAULT | Megane 1.5 Blue DCi 95 | [K9K872] | 08.2018- |
| RENAULT | Megane 1.5 DCi | [K9K636] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K636] | 02.2009-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K656] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K656] | 02.2009-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K657] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K830] | 03.2009- |
| RENAULT | Megane 1.5 DCi | [K9K830] | 11.2008- |
| RENAULT | Megane 1.5 DCi | [K9K830] | 11.2008-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K832] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K834] | 05.2009- |
| RENAULT | Megane 1.5 DCi | [K9K834] | 11.2008-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K836] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K836] | 02.2009-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K837] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K837] | 02.2009-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K846] | 02.2009- |
| RENAULT | Megane 1.5 DCi | [K9K846] | 02.2009-08.2015 |
| RENAULT | Megane 1.5 DCi | [K9K846] | 07.2014- |
| RENAULT | Megane 1.5 DCi | [K9K846] | 11.2013- |
| RENAULT | Megane 1.5 DCi | [K9K846] | 11.2013-08.2015 |
| RENAULT | Megane 1.5 DCi 110 | [K9K646] | 11.2015- |
| RENAULT | Megane 1.5 DCi 110 | [K9K648] | 11.2015- |
| RENAULT | Megane 1.5 DCi 110 | [K9K656] | 04.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K656] | 10.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K656] | 11.2015- |
| RENAULT | Megane 1.5 DCi 110 | [K9K657] | 04.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K657] | 10.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K657] | 11.2015- |
| RENAULT | Megane 1.5 DCi 110 | [K9K674] | 10.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K675] | 10.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K676] | 10.2016- |
| RENAULT | Megane 1.5 DCi 110 | [K9K677] | 10.2016- |
| RENAULT | Megane 1.5 DCi 90 | [K9K656] | 04.2016- |
| RENAULT | Megane 1.5 DCi 90 | [K9K656] | 10.2016- |
| RENAULT | Megane 1.5 DCi 90 | [K9K656] | 11.2015- |
| RENAULT | Megane CC 1.5 DCi | [K9K836] | 06.2010- |
| RENAULT | Megane CC 1.5 DCi | [K9K837] | 06.2010- |
| RENAULT | Scenic 1.5 DCi | [K9K636] | 04.2009- |
| RENAULT | Scenic 1.5 DCi | [K9K656] | 04.2009- |
| RENAULT | Scenic 1.5 DCi | [K9K657] | 04.2009- |
| RENAULT | Scenic 1.5 DCi | [K9K836] | 04.2009- |
| RENAULT | Scenic 1.5 DCi | [K9K837] | 04.2009- |
| RENAULT | Scenic 1.5 DCi | [K9K846] | 11.2010- |
Reference Information
553822RI CAL15534AS 4294 575.942.120.004 3122521 3122520 TG12C073 TG12C150 115435 57381 TR8246 LRA3676 440262 444730 UD102579A WG2280929 28-6816 439677 ALT2432CP 2606288A 20015534AV 2015534 CGB-16816 8550504777 LEA1052 LRA03676 A-TG12C078 ALT00516 9090747 UD100121A 381ST75 8EL011713-961 EAA-221686 116562 WG2263672 20638N-OE A12BH0584 575.942.120.000 WG2011179 VALTG12C150 23100-7519R 575.942.120.280 89216277 CGB-86816 20179435OE 20638N 575.942.120.500 A12VA0584AS CAL15534GS 209224 011-003-000045R 553822RIB 20015534OV 11020091 ALV2078 553822RIV 23100-6247R VAL439677 23100-4864R 20179435BN ALT14643 ALTS641 PRAS641 IR7203 WOOALT14643 5515495 2015534.1 TG12S273 AVA534 23100-2151R DRA1396 2606288 442648 TG12C078 AL03290 12090478 10443807 2303371202 23100-0027R H5515495Video/Publications
