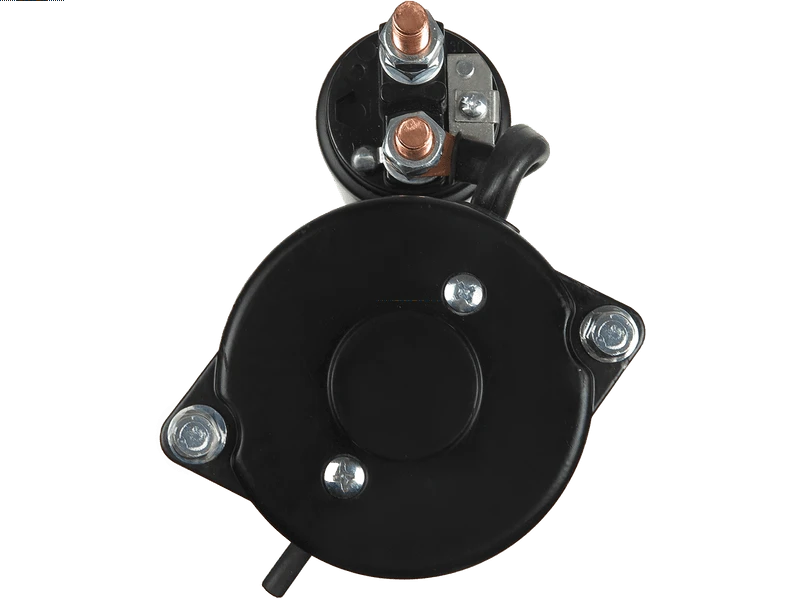

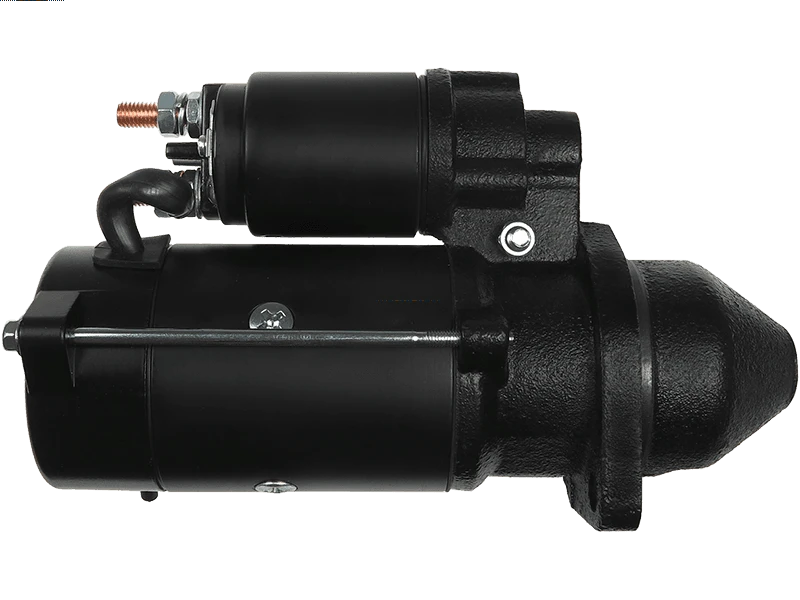

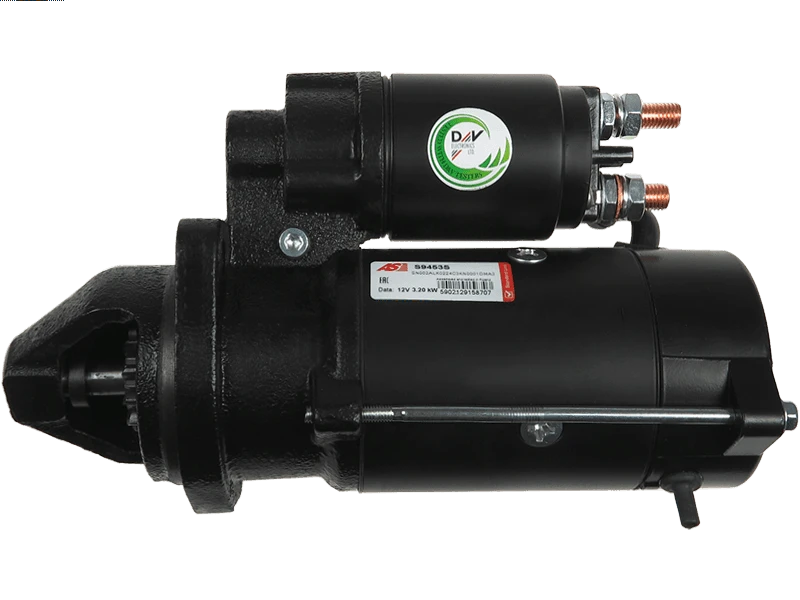

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 490.52 including GST
NZ$ 426.54 excluding GST
or four payments of $122.63
with
Learn More
each
S9453S
No stock in NZ
No stock in NZ
Information
11.132.305Specifications
| Kilowatt | 3.2 kW |
| Length (L.1) | 278 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DEUTZ-FAHR | Agrolux 3.0 310 | 01.2010- | |
| DEUTZ-FAHR | Agrolux 3.0 320 | 01.2010- | |
| DEUTZ-FAHR | Agrolux 3.0 57 | 01.2006-12.2009 | |
| DEUTZ-FAHR | Agrolux 3.0 65 | 01.2010- | |
| DEUTZ-FAHR | Agrolux 3.0 67 | 01.2006-12.2006 | |
| DEUTZ-FAHR | Agrolux 3.0 75 | 01.2010- | |
| DEUTZ-FAHR | Agroplus 3.0 310 | 01.2009- | |
| DEUTZ-FAHR | Agroplus 3.0 310 Ecoline | 01.2010- | |
| DEUTZ-FAHR | Agroplus 3.0 315 Ecoline | 01.2010- | |
| DEUTZ-FAHR | Agroplus 3.0 320 | 01.2009- | |
| DEUTZ-FAHR | Agroplus 3.0 320 Ecoline | 01.2010- | |
| DEUTZ-FAHR | Agroplus 3.0 410 | 01.2009- | |
| DEUTZ-FAHR | Agroplus 3.0 410 Ecoline | 01.2010- | |
| DEUTZ-FAHR | Agroplus 3.0 420 | 01.2009- | |
| LAMBORGHINI | Crono 65 3.0 | 10.2009- | |
| LAMBORGHINI | Crono 75 3.0 | 10.2009- | |
| LAMBORGHINI | R2.70 3.3 | 10.2013- | |
| LAMBORGHINI | R2.80 3.3 | 10.2013- | |
| LAMBORGHINI | R2 Target 60 3.0 | 10.2013- | |
| LAMBORGHINI | R2 Target 70 3.3 | 10.2013- | |
| LAMBORGHINI | R2 Target 80 3.3 | 10.2013- | |
| LAMBORGHINI | RF RF 80 3.0 | 10.2009- | |
| LAMBORGHINI | RS RF 80 3.0 | 10.2009- | |
| LAMBORGHINI | RV RF 80 3.0 | 10.2009- | |
| LAMBORGHINI | Spire 80 2.9 | 10.2014- | |
| LAMBORGHINI | Spire 80 Target 2.9 | 10.2014- | |
| LAMBORGHINI | Spire 90 2.9 | 10.2014- | |
| LAMBORGHINI | Spire 90 Target 2.9 | 10.2014- | |
| LAMBORGHINI | Strike 100 LD 2.9 | 10.2014- | |
| LAMBORGHINI | Strike 100 MD 2.9 | 10.2014- | |
| LAMBORGHINI | Strike 80 LD 2.9 | 10.2014- | |
| LAMBORGHINI | Strike 90 LD 2.9 | 10.2014- | |
| LAMBORGHINI | Strike 90 MD 2.9 | 10.2014- | |
| SAME | Dorado 56 3.0 | [1000.3W] | 10.2004-12.2007 |
| SAME | Dorado 60 3.0 | [1000.3WT] | 09.2009- |
| SAME | Dorado 66 3.0 | [1000.3WT] | 10.2004-12.2009 |
| SAME | Dorado 70 3.0 | [1000.3WT] | 09.2009- |
| SAME | Dorado 80 2.9 | 11.2013- | |
| SAME | Dorado 80 3.0 | [1000.3WT] | 09.2009- |
Reference Information
STR79384 11.132.305 11.132.433 AZE4294 IS1449 610.502.112.311 UD19969S CST21156AS CST21156GS 20419651BN MAHMS737 72425956 6021156.0 40800090010 610.502.112.090 6021156.1 MS737 88212423 182-30535 20419651OE 40800090007 296195620 296195640Video/Publications
