Information
Associated Numbers
414-52006 DEN-228000-6242 Denso StarterVOLT 12 POWER 0.700 kw HP 0.939 CONDITION New ROTATION DIRECTION Counter Clockwise ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD) NUMBER OF TEETH 8 GEAR OD 1.094" 27.800mm MOUNT HOLE ID 1 M8-1.25 Threaded 2 3 278-000-316 Sea-Doo StarterNUMBER 9 278-000-577 278-001-038 278-001-300 278-001-301 278-001-497 228000-6242 Starter 12V 8T CCW PMDD 0.7kW 278-000-186 278-000-311 9T 278-000-484 278-000-485 278-000-576 278-001-935 278-001-936 995435 128000-4860 F 0.6kW 128000-4861 128000-4862 128000-4863 Enlarge 128000-4864 228000-4550 DD BB 228000-4553 228000-4560 228000-6240
Specifications
|
| Description: |

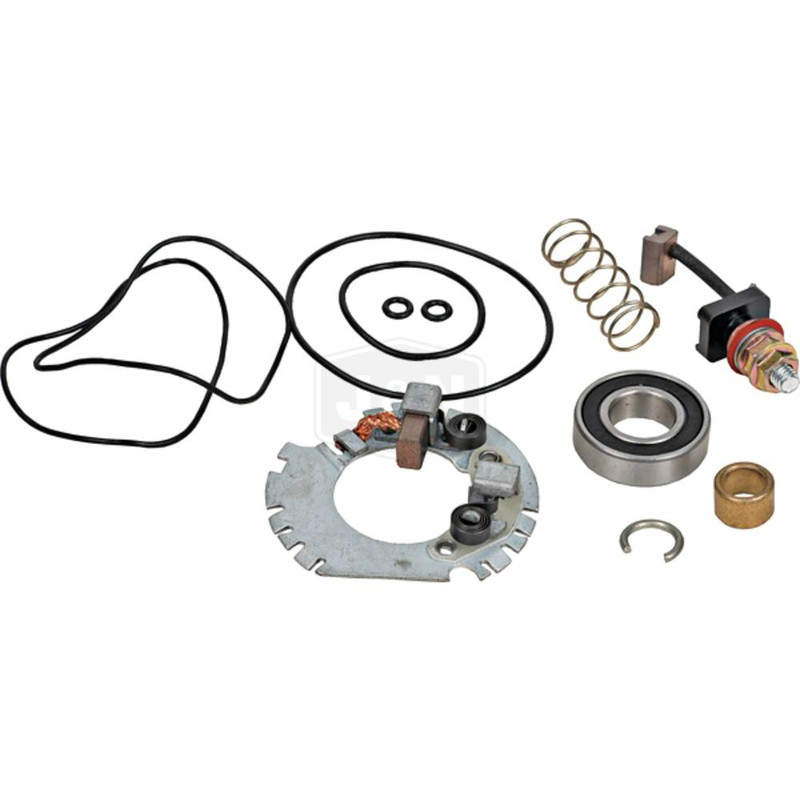

Kit, Starter Repair |
| OEM(s): |
Denso |
| Voltage: |
12 |
| Application: |
Denso Starters on Sea-Doo Applications |
| KIT CONTENTS |
| PART |
QTY |
| O-Ring A |
2 |
| O-Ring B |
1 |
| O-Ring C |
1 |
| O-Ring D |
2 |
| Bushing - CE |
1 |
| Bearing - DE |
1 |
| Brush Plate (w/2 brushes) |
1 |
| Spring - Drive |
1 |
| Clip - Retainer |
1 |
Brush Dimensions:
| • Lead Length: |
80mm |
|
| • Length: |
13.8mm |
|
| • Thickness: |
5.8mm |
|
| • Width: |
8.9mm |
|
