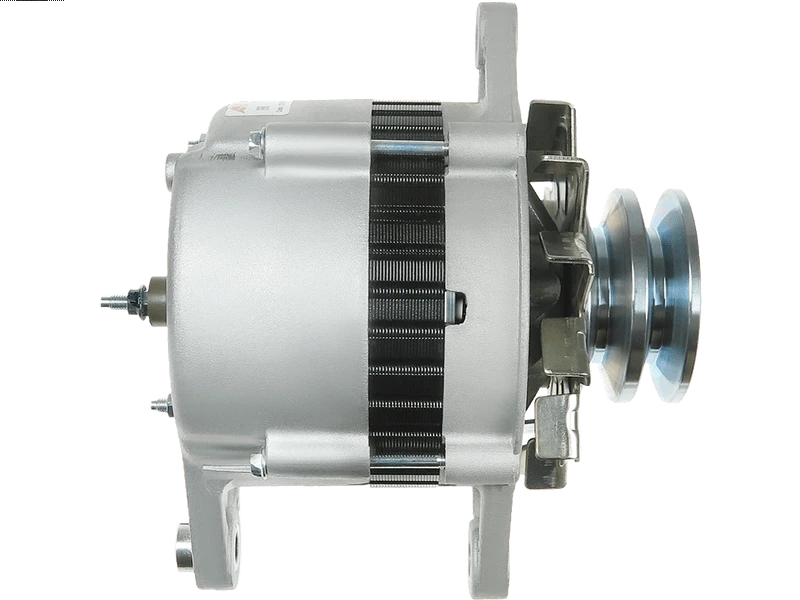

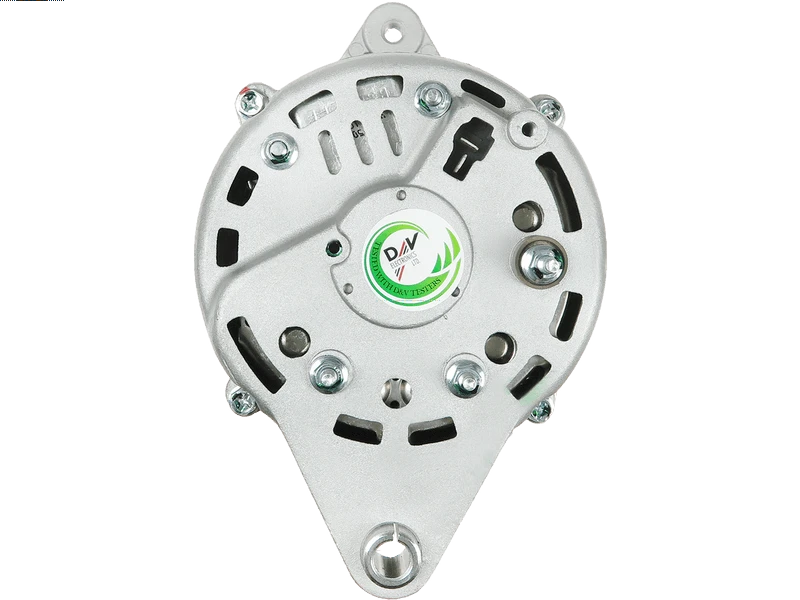

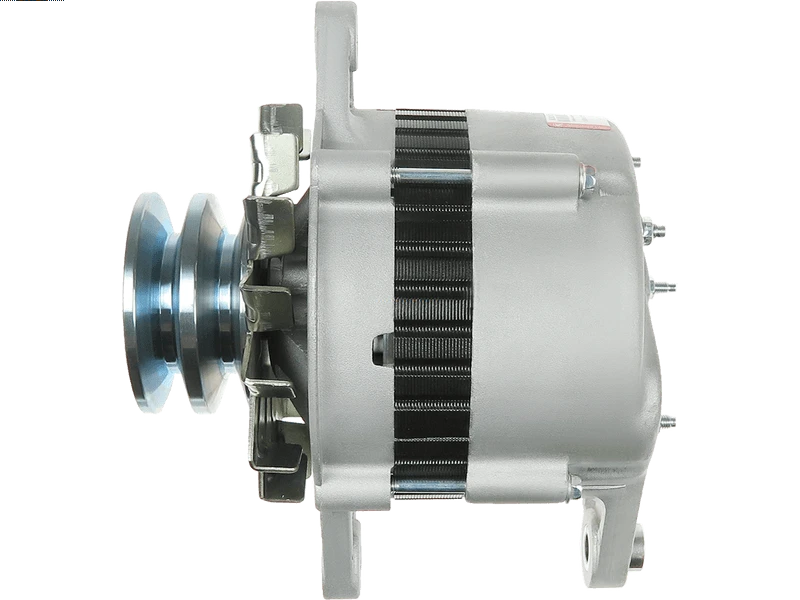

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 418.37 including GST
NZ$ 363.80 excluding GST
or four payments of $104.59
with
Learn More
each
A2132S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 184.5 mm |
| Mount Inside Length or Pad Mount C-C (C) | 79.5 mm |
| OEM Product | No |
| Plug Code | PL_2807 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12.5 mm |
| Pulley Outside Diameter (O.D.1) | 46 mm |
| Pulley Outside Diameter (O.D.2) | 72.5 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | SOLID |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Leone 1600 1.6 4WD | [EA71] | 01.1987-01.1989 |
| SUBARU | Leone 1600 1.6 4WD | [EA71] | 01.1990-12.1994 |
| SUBARU | Leone 1800 1.8 4WD | [EA82] | 11.1984-12.1990 |
| SUBARU | Leone 1800 1.8 4WD | [EA82] | 12.1986-07.1991 |
| SUBARU | Leone 1800 1.8 4WD | [EA82T] | 01.1988-12.1990 |
| SUBARU | Leone 1800 1.8 4WD Super Catalytic-Conv | [EA82] | 07.1986-02.1992 |
| SUBARU | Leone 1800 1.8 4WD Super Turbo | [EA82T] | 11.1984-12.1990 |
| SUBARU | Leone 1800 S 1.8 4WD Super | [EA82T] | 03.1989-12.1990 |
Reference Information
40109RI LR150-200 LRA01324 STX101764 J5117002 DA6541 LR160-138 LR155-18 ALTW082 42990-7400 23700-AA030 23700-AA031 42990-7800 STX100890 28-1682 42990-7320 0986035431 14745R 175.001.055.080 ALT221470 14745N PRAW082 LRA1324 LR160-46 90-25-1197 DRA5431 ALH0109 23700-AA020 UD21154A 23700-AA000 LR155-25 436551Video/Publications
