A5421S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A5421S
Price: 516.02 NZD
Availability: InStock

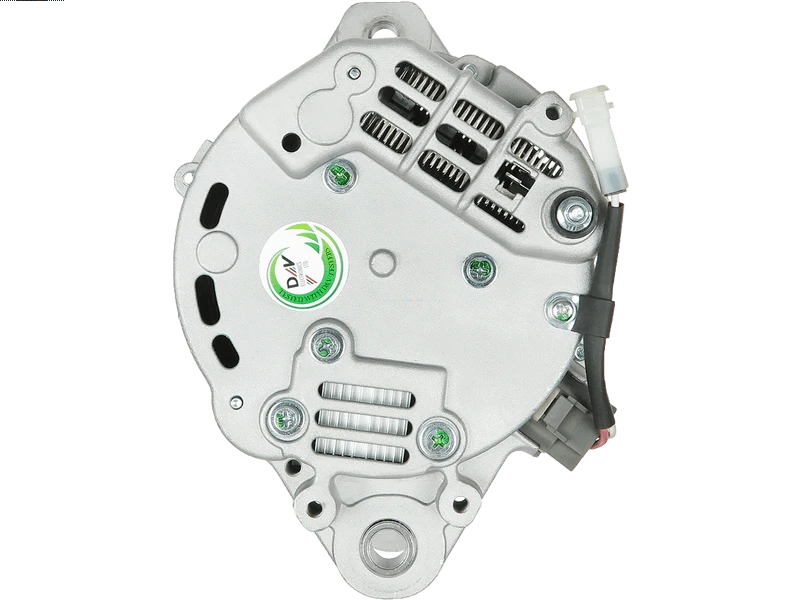

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 516.02 including GST

NZ$ 448.71 excluding GST

or four payments of $129.01 with
Learn More

UOM:

each

Product Code:

A5421S

Quantity In Stock Nationally:

Information
Specifications
Vehicle Applications
Reference Information
Video/Publications
Related Items

A4TU3586

Amp	50 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	M12x1.75 mm
Diameter (D.2)	12 mm
Diameter (D.3)	12 mm
Length (L.1)	207 mm
Mount Inside Length or Pad Mount C-C (C)	80.5 mm
OEM Product	No
Plug Code	PL_2003
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	2 qty
Pulley Groove Width (W.1)	16 mm
Pulley Outside Diameter (O.D.1)	50 mm
Pulley Outside Diameter (O.D.2)	82 mm
Pulley to Mount Distance (A)	46 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Voltage	24 V

Make	Model	Type	Year
CATERPILLAR	311 4.25	[3064]	01.1992-12.1996
CATERPILLAR	311B 4.25	[3064]	01.1997-12.2001
CATERPILLAR	311C 4.25	[3064]	01.2001-12.2007
CATERPILLAR	311D	[C4.2]	01.2009-12.2013
CATERPILLAR	312 4.25	[3064]	01.1980-12.2003
CATERPILLAR	312B 4.25	[3064]	01.1995-12.2001
CATERPILLAR	312BL 4.25	[3064]	01.1988-12.2002
CATERPILLAR	312C 4.25	[3064]	01.1997-12.2008
CATERPILLAR	312CL 4.25	[3064]	01.2001-12.2005
CATERPILLAR	312D	[C4.2]	01.2009-12.2012
CATERPILLAR	312DL	[C4.2]	01.2009-12.2012
CATERPILLAR	313C SR	[C4.2]	01.2002-12.2010
CATERPILLAR	313D	[C4.2]	01.2009-12.2013
CATERPILLAR	313D CR	[C4.2]	01.2009-12.2013
CATERPILLAR	314C CR 4.25	[3064]	01.2003-12.2008
CATERPILLAR	314C LCR 4.25	[3064]	01.2003-12.2008
CATERPILLAR	314D	[C4.2]	01.2009-12.2013
CATERPILLAR	315 5.0	[3046]	01.1994-12.2003
CATERPILLAR	315B 5.0	[3046]	01.1997-12.2001
CATERPILLAR	315B FML 5.0	[3046]	01.1994-12.2003
CATERPILLAR	315B L 5.0	[3046]	01.1994-12.2003
CATERPILLAR	315C 5.0	[3046]	01.2001-12.2007
CATERPILLAR	315C L 5.0	[3046]	01.2001-12.2007
CATERPILLAR	315D L	[C4.2]	01.2008-12.2014
CATERPILLAR	315L 5.0	[3046]	01.1994-12.2002
CATERPILLAR	317BL 5.0	[3046]	01.1998-12.2003
CATERPILLAR	317BLN 5.0	[3046]	01.1998-12.2003
CATERPILLAR	318B 5.0	[3046]	01.1999-12.2003
CATERPILLAR	318BL 5.0	[3046]	01.1999-12.2002
CATERPILLAR	318BLN 5.0	[3046]	01.1999-12.2000
CATERPILLAR	318BN 5.0	[3046]	01.1999-12.2000
CATERPILLAR	318C 6.37	[3066T]	01.2002-12.2008
CATERPILLAR	318CL 6.37	[3066]	01.2003-12.2009
CATERPILLAR	318CLN 6.37	[3066]	01.2004-12.2007
CATERPILLAR	318DL	[C4.2]	01.2009-12.2013
CATERPILLAR	319CLN 6.37	[3066]	01.2004-12.2007
CATERPILLAR	319D	[C4.2]	01.2009-12.2013
CATERPILLAR	319DL	[C4.2]	01.2009-12.2013
CATERPILLAR	319DLN	[C4.2]	01.2009-12.2013
CATERPILLAR	320 6.37	[3066]	01.1991-12.2000
CATERPILLAR	320B 6.37	[3066]	01.1990-12.2001
CATERPILLAR	320BFMLL 6.37	[3066]	01.1990-12.2001
CATERPILLAR	320BL 6.37	[3066]	01.1990-12.2001
CATERPILLAR	320BLL 6.37	[3066]	01.1990-12.2001
CATERPILLAR	320BLL 6.37	[3066]	01.1996-12.2007
CATERPILLAR	320BLU 6.37	[3066]	01.1990-12.2001
CATERPILLAR	320BN 6.37	[3066]	01.1996-12.2000
CATERPILLAR	320BRB 6.37	[3066]	01.1996-12.2007
CATERPILLAR	320BU 6.37	[3066]	01.1996-12.2000
CATERPILLAR	320C 6.37	[3066]	01.1996-12.2007
CATERPILLAR	320C 6.37	[3066]
CATERPILLAR	320CFM 6.37	[3066]	01.2000-12.2002
CATERPILLAR	320CL 6.37	[3066]	01.2000-12.2002
CATERPILLAR	320CLL 6.37	[3066]	01.1996-12.2007
CATERPILLAR	320CLN 6.37	[3066]	01.2002-12.2004
CATERPILLAR	320CLU 6.37	[3066]	01.2000-12.2006
CATERPILLAR	320CS 6.37	[3066]	01.2000-12.2003
CATERPILLAR	320CU 6.37	[3066]	01.2001-12.2002
CATERPILLAR	320D	[C6.4]	01.2006-12.2013
CATERPILLAR	320D 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320DFMRR 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320DGC	[C6.4]	01.2006-12.2013
CATERPILLAR	320DL	[C6.4]	01.2006-12.2013
CATERPILLAR	320DL 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320DLN	[C6.4]	01.2006-12.2013
CATERPILLAR	320DLRR	[C6.4]	01.2006-12.2013
CATERPILLAR	320DLRR 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320DRR	[C6.4]	01.2006-12.2013
CATERPILLAR	320DRR 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320DRRFM 6.37	[3066]	01.2006-12.2013
CATERPILLAR	320L 6.37	[3066]	01.1991-12.2000
CATERPILLAR	320N 6.37	[3066]	01.1992-12.1996
CATERPILLAR	320S 6.37	[3066]	01.1994-12.1997
CATERPILLAR	321BLCR 6.37	[3066]	01.1998-12.2002
CATERPILLAR	321C 6.37	[3066]	01.2003-12.2007
CATERPILLAR	321CLCR 6.37	[3066]	01.2003-12.2007
CATERPILLAR	321DLCR	[C6.4]	01.2007-12.2016
CATERPILLAR	323D	[C6.4]	01.2008-12.2016
CATERPILLAR	323DL	[C6.4]	01.2008-12.2016
CATERPILLAR	323DL 6.37	[3066]	01.2008-12.2016
CATERPILLAR	323DL 6.6	[C6.6]	01.2008-12.2016
CATERPILLAR	323DLN	[C6.4]	01.2008-12.2016
CATERPILLAR	323DLN 6.37	[3066]	01.2008-12.2016
CATERPILLAR	323DS	[C6.4]	01.2008-12.2016
CATERPILLAR	323DS 6.37	[3066]	01.2008-12.2016
CATERPILLAR	323DSA	[C6.4]	01.2008-12.2016
CATERPILLAR	324D 7.2	[C7]	01.1996-12.2007
KOBELCO	140SR-3	[D04FR]	01.2009-12.2013
KOBELCO	SK140SRLC-3	[D04FR]	01.2008-12.2016

AI-90167 3730041G00 230-40119NOE 115995 A4TU3586AM 2035611.0 2035611.1 156.519.050.370 ALTS516 ALM0157 89216444 A004TUF086 20137116BN 12748N 5I8085 A004TU3487 CAL35611AS A004TU3586AM A4TU3586 A4TUF086AM A5421S 20137116OE 3436802300 143-43201 A004TUF086AM A-80045 ALT31314 UD19460A MITA4TU3586 3436302300 646.014.050.410 XJAF00531 646.014.050.130 90-27-3280N 646.014.050.370 10R2576 CAL35611GS 646.014.050.138 A004TU3586 A4TUF086 446175 553705RI 0434345500 MITA4TUF086 553705RIM A4TU3487 ALT376110A 646.014.050.780 PRAS516 230-40119

A5421S

Mitsi/Hitachi Alternator plug

NZ$ 13.80 each
NZ$ 12.00 excl GST
