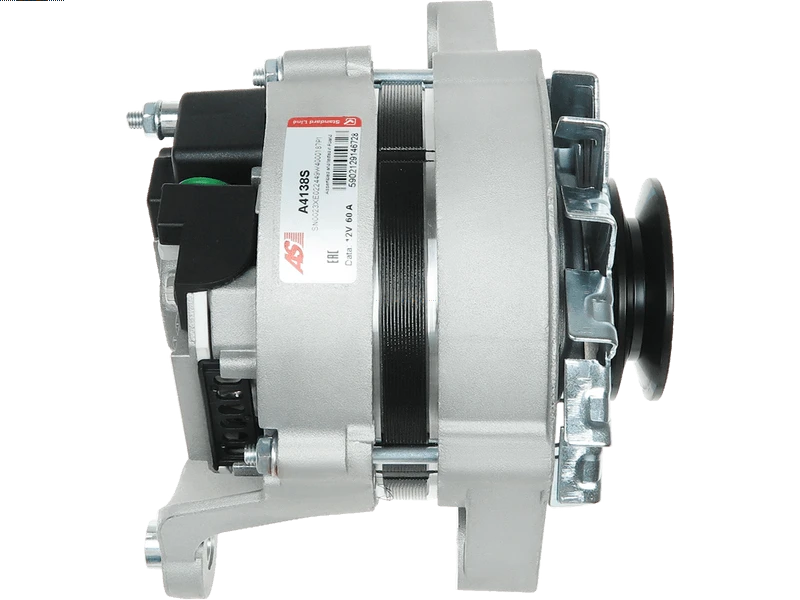

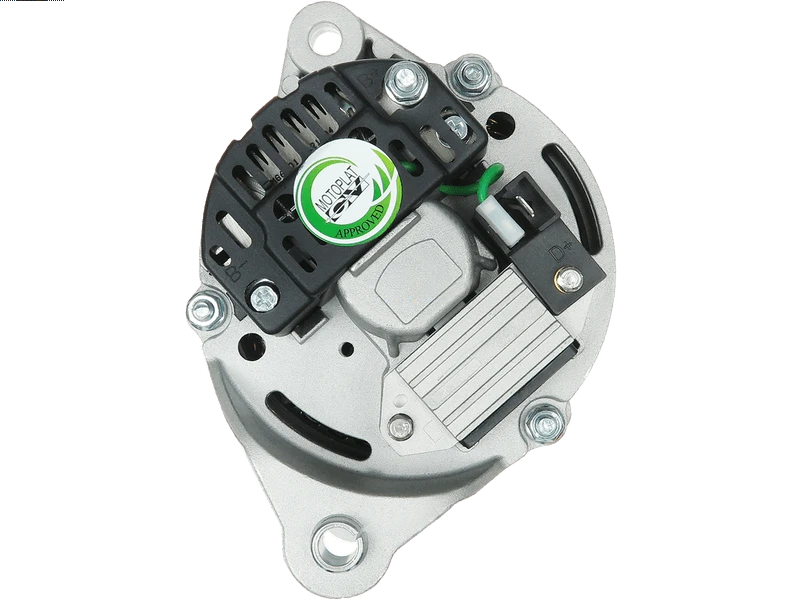

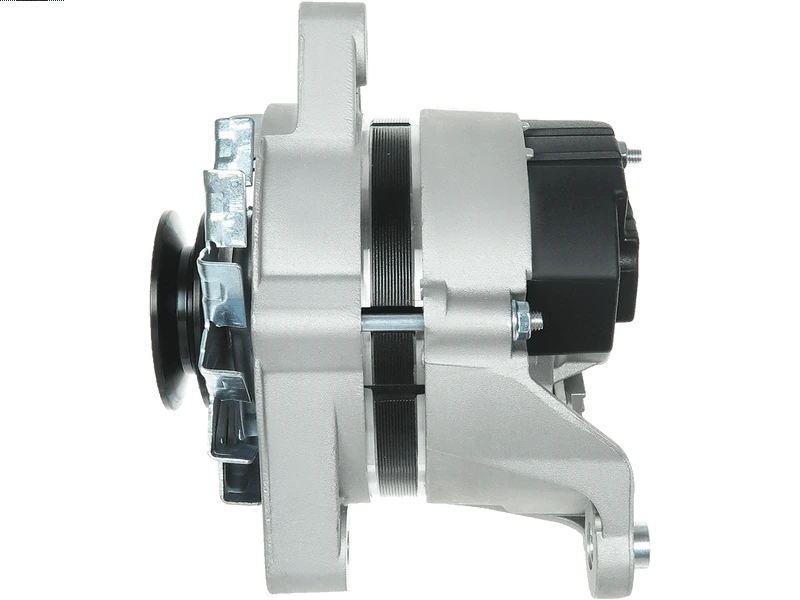

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 302.89 including GST
NZ$ 263.38 excluding GST
or four payments of $75.72
with
Learn More
each
A4138S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
IA0691Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 24.5 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley Outside Diameter (O.D.2) | 67 mm |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUTOBIANCHI | Y10 1.3 i.e. GT | [146A5.046] | 06.1989-10.1995 |
| AUTOBIANCHI | Y10 1.3 i.e. GT | [156B.000] | 06.1989-10.1995 |
| FIAT | Elba 1.5 | [149C1.000] | 01.1992-12.1996 |
| FIAT | Fiorino 1.5 i.e. | [149C1.000] | 05.1988-12.1993 |
| FIAT | Regata 1.3 | [138B2.000] | 09.1983-07.1986 |
| FIAT | Regata 1.3 ES | [149A3.000] | 09.1983-07.1989 |
| FIAT | Regata 1.3 ES | [149A7.000] | 09.1983-07.1989 |
| FIAT | Regata 1.5 | [138B3.000] | 01.1984-04.1989 |
| FIAT | Regata 1.5 | [149A5.000] | 05.1985-12.1987 |
| FIAT | Regata 1.5 85 | 02.1984-08.1986 | |
| FIAT | Regata 1.5 i.e. | [138B3.048] | 09.1984-07.1989 |
| FIAT | Regata 1.5 i.e. | [138B3.048] | 12.1983-07.1989 |
| FIAT | Regata 1.5 i.e. | [138C3.048] | 09.1984-07.1989 |
| FIAT | Regata 1.5 i.e. | [138C3.048] | 12.1983-07.1989 |
| FIAT | Regata 1.5 Super | [138B3.000] | 09.1983-04.1985 |
| FIAT | Regata 1.6 | [149A.000] | 10.1983-06.1990 |
| FIAT | Ritmo 1.3 | [138A3.000] | 01.1981-09.1982 |
| FIAT | Ritmo 1.5 | [138B3.000] | 01.1983-12.1987 |
| FIAT | Ritmo 1.5 | [149A5.000] | 08.1985-05.1987 |
| FIAT | Ritmo 1.5 Bertone | [138A4.000] | 01.1980-07.1989 |
| FIAT | Ritmo 1.5 Bertone | [138B3.000] | 03.1983-12.1986 |
| FIAT | Strada 1.1 | [138C1.000] | 05.1985-09.1987 |
| FIAT | Strada 1.5 | 01.1981-01.1982 | |
| FIAT | Strada 1.5 Custom | 01.1981-01.1982 | |
| FIAT | Tempra 1.4 i.e. | [159A2.000] | 03.1991-08.1996 |
| FIAT | Tempra 1.6 | [159A3.048] | 04.1990-07.1996 |
| FIAT | Tipo 1.4 i.e. | [160A1.046] | 05.1989-04.1995 |
| FIAT | Tipo 1.4 i.e. | [836A4.000] | 05.1989-04.1995 |
| FIAT | Tipo 1.4 Selecta | [160A1.000] | 07.1987-12.1989 |
| FIAT | Tipo 1.4 Selecta | [160A1.048] | 07.1987-12.1989 |
| FIAT | Tipo 1.6 i.e. | [159A3.046] | 07.1990-01.1993 |
| FIAT | Uno 1.3 i.e. Turbo | [146A2.000] | 04.1985-08.1989 |
| FIAT | Uno 1.3 i.e. Turbo | [146A2.146] | 01.1987-12.1987 |
| FIAT | Uno 1.3 i.e. Turbo | [146A2.246] | 09.1989-03.1991 |
| FIAT | Uno 1.4 i.e. Turbo | [146A8.000] | 12.1989-12.1996 |
| FIAT | Uno 1.4 S | [160A1.048] | 10.1988-06.2006 |
| FIAT | Uno 1.5 i.e. | [138C2.048] | 10.1985-12.1993 |
| FIAT | Uno 1.5 i.e. | [149C1.000] | 10.1985-12.1993 |
| FIAT | X-1/9 1.5 | 01.1981-01.1983 | |
| LANCIA | Delta 1.5 | [831A1.000] | 09.1979-12.1992 |
| LANCIA | Delta 1.5 | [831B1.000] | 09.1979-12.1992 |
| LANCIA | Prisma 1.5 | [138C2.048] | 09.1985-02.1992 |
| LANCIA | Prisma 1.5 | [831A1.000] | 01.1983-04.1986 |
| LANCIA | Prisma 1.5 | [831B1.000] | 05.1986-07.1989 |
| LANCIA | Prisma 1.5 | [831B1.048] | 09.1985-02.1992 |
| LANCIA | Prisma 1.6 | [831A4.000] | 01.1983-04.1986 |
| LANCIA | Y10 1.3 i.e. Fire | [146A5.046] | 02.1989-12.1995 |
| LANCIA | Y10 1.3 i.e. Fire | [156B.000] | 02.1989-12.1995 |
| ZASTAVA | 101 1.3 1100 | [128AR000] | 10.1981-12.1993 |
| ZASTAVA | Yugo 1.3 | [13E.3.064] | 03.1991-11.2008 |
| ZASTAVA | Yugo 1.3 65 EFi | [13E1.064] | 07.1981-06.1995 |
| ZASTAVA | Yugo 1.4 Florida | [160A1.000] | 10.1988-11.2008 |
| ZASTAVA | Yugo 1.4 Florida | [160A1.000] | 10.1991-06.1995 |
| ZASTAVA | Yugo 1.6 Florida | [149A.000] | 08.1989-06.1995 |
Reference Information
0120489072 63320035 MAR634 MG244 20104731BN 0120489073 MAR355 7715319 46231678 77401410 0120489348 0120489942 0120489943 30254RI 55687 0120488140 20104731OE 0986037170 CA254IR 63307624 943321068010 STX100296 77523410 7702247 CAL30137AS 11.201.582 7810362 13152N 0986034480 111148 MRA34480 7565559 7596859 46231760 46231682 CAL30137RS MAR885 AAK4527 63321070 0120489263 0120488207 0986034640 46231689 MAR363 46231688 STX100985 AEA5196 7580209 943321070 2030137.2 63320016 2030137.1 2030137.0 ALT79132 7663140 63321023 63321068 943321023 943356848 UD19448A 63320058 ALB0254 5955503 5955504 72735243 STX100904 944390344800 7547791 0120489128 0120489129 7610362 CAL30137GS 63310010 89213152 77525410 943356851 63307604 20104731RC 97054425 4470266 7588791 8EL012429-831 943321023010 IA0582 7651074 0120489400 63321090 8EL725672-001 0120489401 7665826 0120488235 0120489876 63310048 63307634 30254RIMVideo/Publications
