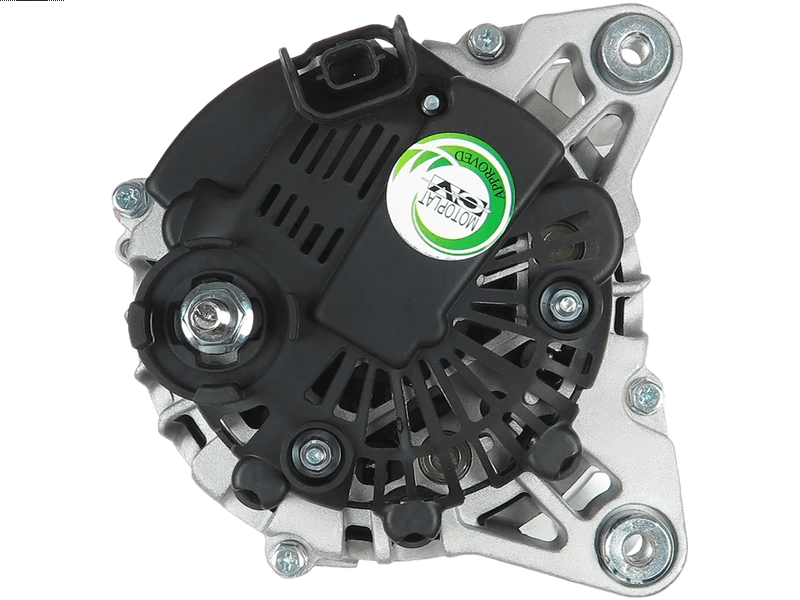

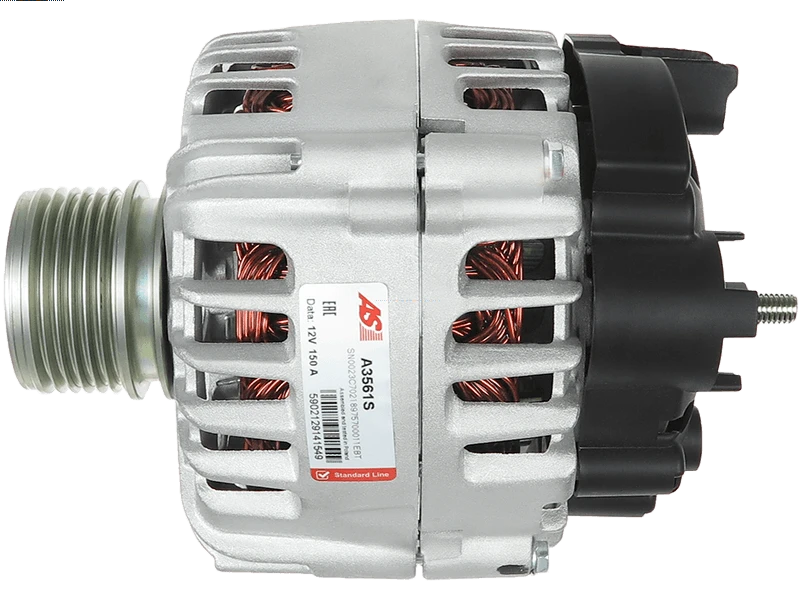

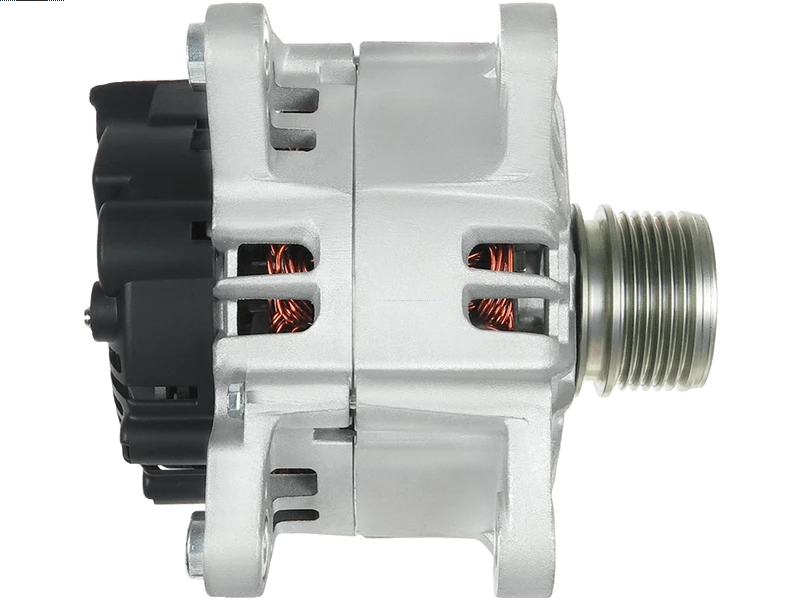

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 563.28 including GST
NZ$ 489.81 excluding GST
or four payments of $140.82
with
Learn More
each
A3561S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
FG15T057Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14.5 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 197 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.5 mm |
| OEM Product | No |
| Plug Code | PL_2801 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | Dokker 1.5 Blue dCi 75 | [K9K612] | 11.2012- |
| DACIA | Dokker 1.5 Blue dCi 75 | [K9K626] | 11.2012- |
| DACIA | Dokker 1.5 Blue dCi 75 | [K9K872] | 11.2012- |
| DACIA | Dokker 1.5 Blue dCi 75 | [K9K872] | 12.2012- |
| DACIA | Dokker 1.5 dCi | [K9K612] | 11.2012- |
| DACIA | Dokker 1.5 dCi | [K9K612] | 12.2012- |
| DACIA | Dokker 1.5 dCi | [K9K626] | 11.2012- |
| DACIA | Dokker 1.5 dCi | [K9K626] | 12.2012- |
| DACIA | Dokker 1.5 dCi | [K9K830] | 11.2012- |
| DACIA | Dokker 1.5 dCi | [K9K830] | 12.2012- |
| DACIA | Dokker 1.5 dCi | [K9K838] | 11.2012- |
| DACIA | Duster 1.5 dCi | [K9K612] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K658] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K666] | 04.2013- |
| DACIA | Duster 1.5 dCi | [K9K666] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K667] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K796] | 04.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K830] | 04.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K856] | 04.2013- |
| DACIA | Duster 1.5 dCi | [K9K856] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K858] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K884] | 04.2011- |
| DACIA | Duster 1.5 dCi | [K9K884] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K892] | 04.2011- |
| DACIA | Duster 1.5 dCi | [K9K892] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K896] | 06.2010-01.2018 |
| DACIA | Duster 1.5 dCi | [K9K898] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi 110 | [K9K656] | 10.2017- |
| DACIA | Duster 1.5 dCi 110 | [K9K667] | 10.2017- |
| DACIA | Duster 1.5 dCi 110 4x4 | [K9K658] | 10.2017- |
| DACIA | Duster 1.5 dCi 115 | [K9K872] | 10.2017- |
| DACIA | Duster 1.5 dCi 115 | [K9K874] | 10.2017- |
| DACIA | Duster 1.5 dCi 115 4x4 | [K9K872] | 10.2017- |
| DACIA | Duster 1.5 dCi 115 4x4 | [K9K874] | 10.2017- |
| DACIA | Duster 1.5 dCi 4x4 | [K9K658] | 04.2013- |
| DACIA | Duster 1.5 dCi 4x4 | [K9K658] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K856] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K856] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K858] | 04.2013- |
| DACIA | Duster 1.5 dCi 4x4 | [K9K858] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K858] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K884] | 04.2011- |
| DACIA | Duster 1.5 dCi 4x4 | [K9K884] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K894] | 04.2011- |
| DACIA | Duster 1.5 dCi 4x4 | [K9K894] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K898] | 08.2013-01.2018 |
| DACIA | Duster 1.5 dCi 4x4 | [K9K898] | 10.2010-01.2018 |
| DACIA | Duster 1.5 dCi 95 | 10.2017- | |
| DACIA | Lodgy 1.5 dCi | [K9K612] | 03.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K612] | 11.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K626] | 03.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K666] | 03.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K666] | 06.2015- |
| DACIA | Lodgy 1.5 dCi | [K9K830] | 11.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K846] | 01.2013- |
| DACIA | Lodgy 1.5 dCi | [K9K846] | 03.2012- |
| DACIA | Lodgy 1.5 dCi | [K9K846] | 06.2015- |
| DACIA | Logan 1.5 Blue dCi 75 | [K9K612] | 10.2012- |
| DACIA | Logan 1.5 Blue dCi 75 | [K9K626] | 10.2012- |
| DACIA | Logan 1.5 Blue dCi 75 | [K9K872] | 10.2012- |
| DACIA | Logan 1.5 dCi | [K9K612] | 10.2012- |
| DACIA | Logan 1.5 dCi | [K9K626] | 10.2012- |
| DACIA | Logan 1.5 dCi | [K9K830] | 01.2013- |
| DACIA | Logan 1.5 dCi | [K9K838] | 01.2013- |
| DACIA | Logan MCV 1.5 dCi | [K9K612] | 02.2013- |
| DACIA | Logan MCV 1.5 dCi | [K9K626] | 02.2013- |
| DACIA | Logan MCV 1.5 dCi | [K9K830] | 02.2013- |
| DACIA | Logan MCV 1.5 dCi | [K9K838] | 02.2013- |
| DACIA | Sandero 1.5 Blue dCi 75 | [K9K612] | 10.2012- |
| DACIA | Sandero 1.5 Blue dCi 75 | [K9K626] | 10.2012- |
| DACIA | Sandero 1.5 Blue dCi 75 | [K9K838] | 10.2012- |
| DACIA | Sandero 1.5 Blue dCi 75 | [K9K872] | 10.2012- |
| DACIA | Sandero 1.5 dCi | [K9K612] | 10.2012- |
| DACIA | Sandero 1.5 dCi | [K9K626] | 10.2012- |
| DACIA | Sandero 1.5 dCi | [K9K830] | 01.2013- |
| RENAULT | Captur 1.5 dCi | [K9K830] | 06.2013- |
| RENAULT | Captur 1.5 dCi 110 | [K9K646] | 01.2015- |
| RENAULT | Captur 1.5 dCi 110 | [K9K856] | 01.2015- |
| RENAULT | Captur 1.5 dCi 90 | [K9K608] | 06.2013- |
| RENAULT | Captur 1.5 dCi 90 | [K9K609] | 06.2013- |
| RENAULT | Captur 1.5 dCi 90 | [K9K628] | 06.2013- |
| RENAULT | Captur 1.5 dCi 90 | [K9K629] | 06.2013- |
| RENAULT | Captur 1.5 dCi 90 | [K9K838] | 06.2013- |
| RENAULT | Clio 1.5 dCi | [K9K830] | 11.2012- |
| RENAULT | Clio 1.5 dCi | [K9K838] | 11.2012- |
| RENAULT | Clio 1.5 dCi 110 | [K9K646] | 06.2016- |
| RENAULT | Clio 1.5 dCi 110 Grandtour | [K9K646] | 06.2016- |
| RENAULT | Clio 1.5 dCi 75 | [K9K612] | 01.2014- |
| RENAULT | Clio 1.5 dCi 75 | [K9K612] | 11.2012- |
| RENAULT | Clio 1.5 dCi 75 | [K9K628] | 11.2012- |
| RENAULT | Clio 1.5 dCi 75 Grandtour | [K9K612] | 01.2013- |
| RENAULT | Clio 1.5 dCi 75 Grandtour | [K9K628] | 01.2013- |
| RENAULT | Clio 1.5 dCi 90 | [K9K608] | 01.2014- |
| RENAULT | Clio 1.5 dCi 90 | [K9K608] | 11.2012- |
| RENAULT | Clio 1.5 dCi 90 | [K9K628] | 01.2014- |
| RENAULT | Clio 1.5 dCi 90 | [K9K628] | 11.2012- |
| RENAULT | Clio 1.5 dCi 90 | [K9K629] | 01.2014- |
| RENAULT | Clio 1.5 dCi 90 | [K9K638] | 11.2012- |
| RENAULT | Clio 1.5 dCi 90 Grandtour | [K9K608] | 01.2013- |
| RENAULT | Clio 1.5 dCi 90 Grandtour | [K9K628] | 01.2013- |
| RENAULT | Clio 1.5 dCi 90 Grandtour | [K9K629] | 01.2013- |
| RENAULT | Fluence 1.5 dCi | [K9K656] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K657] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K826] | 07.2014- |
| RENAULT | Fluence 1.5 dCi | [K9K830] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K832] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K834] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K836] | 02.2010- |
| RENAULT | Fluence 1.5 dCi | [K9K837] | 02.2010- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K636] | 04.2009- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K830] | 04.2009- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K832] | 02.2009- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K836] | 04.2009- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K837] | 04.2009- |
| RENAULT | Grand Scenic 1.5 dCi | [K9K846] | 11.2010- |
| RENAULT | Kangoo 1.5 dCi | [K9K804] | 06.2009- |
| RENAULT | Kangoo 1.5 dCi | [K9K806] | 02.2009- |
| RENAULT | Kangoo 1.5 dCi | [K9K808] | 06.2009- |
| RENAULT | Kangoo 1.5 dCi 105 | [K9K806] | 02.2008- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K636] | 03.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K636] | 09.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K646] | 03.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K646] | 09.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K647] | 03.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K647] | 09.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K648] | 03.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K648] | 09.2013- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K804] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 110 | [K9K816] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 70 | [K9K800] | 02.2008- |
| RENAULT | Kangoo 1.5 dCi 70 | [K9K802] | 02.2008- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K608] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K608] | 11.2012- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K628] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K628] | 11.2012- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K802] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K808] | 09.2010- |
| RENAULT | Kangoo 1.5 dCi 75 | [K9K808] | 11.2012- |
| RENAULT | Kangoo 1.5 dCi 85 | [K9K802] | 02.2008- |
| RENAULT | Kangoo 1.5 dCi 85 | [K9K812] | 02.2008- |
| RENAULT | Kangoo 1.5 dCi 90 | [K9K608] | 06.2008- |
| RENAULT | Kangoo 1.5 dCi 90 | [K9K608] | 06.2009- |
| RENAULT | Kangoo 1.5 dCi 90 | [K9K628] | 06.2008- |
| RENAULT | Kangoo 1.5 dCi 90 | [K9K808] | 06.2008- |
| RENAULT | Kangoo 1.5 dCi 90 | [K9K808] | 06.2009- |
| RENAULT | Logan 1.5 dCi | [K9K796] | 02.2008-06.2015 |
| RENAULT | Logan 1.5 dCi | 06.2011- | |
| RENAULT | Megane 1.5 dCi | [K9K636] | 02.2009- |
| RENAULT | Megane 1.5 dCi | [K9K830] | 11.2008- |
| RENAULT | Megane 1.5 dCi | [K9K832] | 02.2009- |
| RENAULT | Megane 1.5 dCi | [K9K834] | 11.2008- |
| RENAULT | Megane 1.5 dCi | [K9K836] | 02.2009- |
| RENAULT | Megane 1.5 dCi | [K9K837] | 02.2009- |
| RENAULT | Megane 1.5 dCi | [K9K846] | 02.2009- |
| RENAULT | Megane 1.5 dCi | [K9K846] | 11.2013- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K636] | 02.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K830] | 03.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K832] | 02.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K834] | 05.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K836] | 02.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K837] | 02.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K846] | 02.2009- |
| RENAULT | Megane 1.5 dCi Grandtour | [K9K846] | 11.2013- |
| RENAULT | Megane CC 1.5 dCi | [K9K837] | 06.2010- |
| RENAULT | Scenic 1.5 dCi | [K9K636] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K656] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K657] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K830] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K832] | 02.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K836] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K837] | 04.2009- |
| RENAULT | Scenic 1.5 dCi | [K9K846] | 11.2010- |
Reference Information
PRAE824 89215843 UD19311A 20608N AEK3732 555171RIV 440559 STX102234 555171RI ALT2247CP 209545 LRA3732 575.958.150.500 A12VA1034AS 575.958.150.004 116297 ALT00642 23100-4115R CGB-10491 CAL15032GS 439834 4505 ALT14543 55151276 2015032.1 LRA03732 A3561S 20179230OE 2612717A 231007281RA DRA1491 ALV0728 A12VA1034A2 23100-7281R ALT170320 57575 442646 DA2601 FG15T057 CGB-86842 ALTE824 28-6842 20608N-OEVideo/Publications
