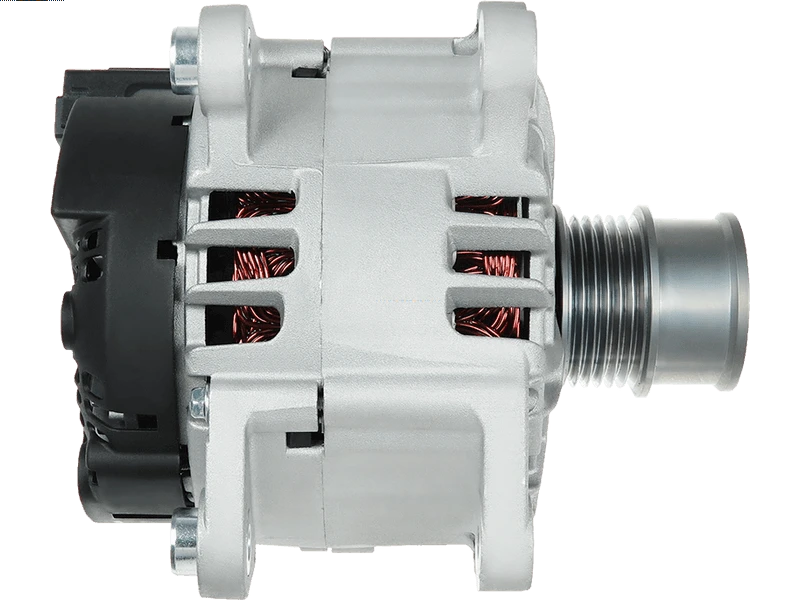

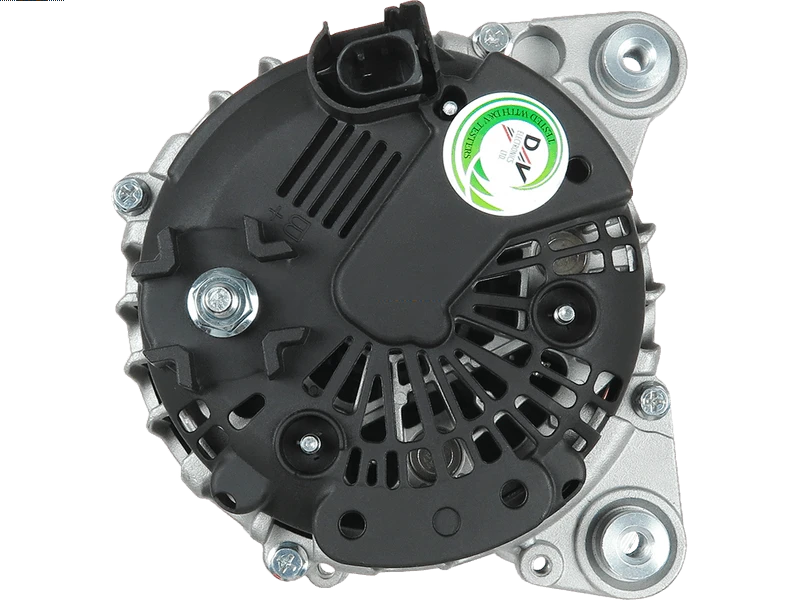

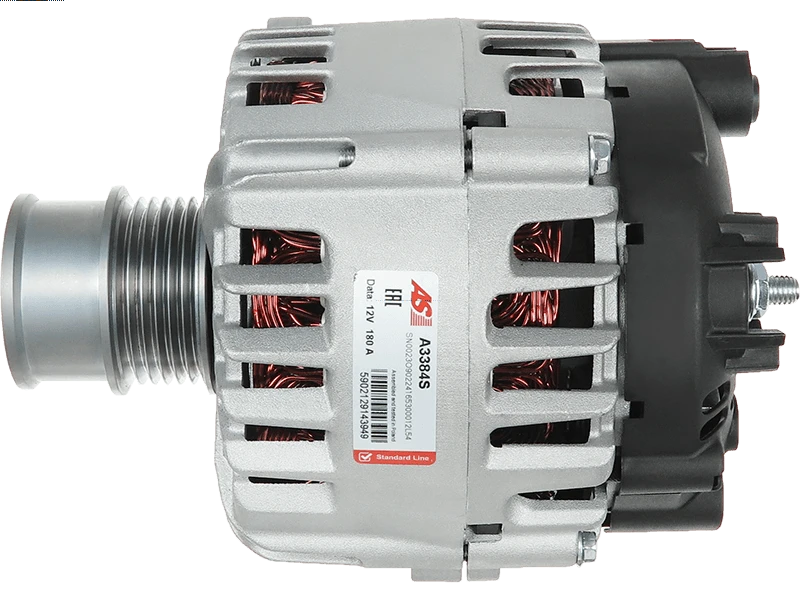

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 911.72 including GST
NZ$ 792.80 excluding GST
or four payments of $227.93
with
Learn More
each
A3384S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 207 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 30.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.4 TFSi | [CZCA] | 11.2014-10.2018 |
| AUDI | A1 1.4 TFSi | [CZDD] | 11.2014-10.2018 |
| AUDI | A1 1.4 TFSi Sportback | [CZCA] | 11.2014-10.2018 |
| AUDI | A1 1.4 TFSi Sportback | [CZDD] | 11.2014-10.2018 |
| AUDI | A1 1.4 TSi | [CZEA] | 11.2014-10.2018 |
| AUDI | A1 1.4 TSi Sportback | [CZEA] | 11.2014-10.2018 |
| AUDI | A3 1.0 TFSi | [CHZD] | 07.2016- |
| AUDI | A3 1.0 TFSi | [CHZD] | 07.2016-10.2018 |
| AUDI | A3 1.0 TFSi Sportback | [CHZD] | 07.2016- |
| AUDI | A3 1.0 TFSi Sportback | [DKRF] | 07.2016- |
| AUDI | A3 1.5 TFSi | [DADA] | 05.2017- |
| AUDI | A3 1.5 TFSi | [DADA] | 05.2017-10.2018 |
| AUDI | A3 1.5 TFSi Sportback | [DADA] | 05.2017- |
| SEAT | Alhambra 1.4 TSi | [CZDA] | 05.2015- |
| SEAT | Alhambra 1.4 TSi | [DJKA] | 05.2015- |
| SEAT | Ateca 1.0 TSi | [CHZJ] | 05.2016- |
| SEAT | Ateca 1.0 TSi | [DKRF] | 05.2016- |
| SEAT | Ateca 1.4 TSi | [CZEA] | 06.2016- |
| SEAT | Ateca 1.4 TSi 4Drive | [CZEA] | 06.2016- |
| SEAT | Ateca 1.5 TSi | [DADA] | 07.2018- |
| SEAT | Ateca 1.5 TSi | [DPCA] | 07.2018- |
| SEAT | Ateca 1.5 TSi 4Drive | [DADA] | 07.2018- |
| SEAT | Ateca 1.5 TSi 4Drive | [DPCA] | 07.2018- |
| SEAT | Leon 1.4 TSi | [CZDA] | 05.2014- |
| SEAT | Leon 1.4 TSi | [CZEA] | 05.2014- |
| SEAT | Leon 1.5 TSi | [DACA] | 09.2018- |
| SEAT | Leon 1.5 TSi | [DADA] | 09.2018- |
| SEAT | Leon 1.5 TSi | [DPBA] | 09.2018- |
| SEAT | Leon 1.5 TSi | [DPCA] | 09.2018- |
| SKODA | Karoq 1.0 TSi | [CHZJ] | 07.2017- |
| SKODA | Karoq 1.0 TSi | [DKRF] | 07.2017- |
| SKODA | Karoq 1.5 TSi | [DADA] | 07.2017- |
| SKODA | Karoq 1.5 TSi | [DPCA] | 07.2017- |
| SKODA | Karoq 1.5 TSi 4x4 | [DADA] | 07.2017- |
| SKODA | Karoq 1.5 TSi 4x4 | [DPCA] | 07.2017- |
| SKODA | Kodiaq 1.4 TSi | [CZCA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi | [CZEA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZDA] | 10.2016- |
| SKODA | Kodiaq 1.4 TSi 4x4 | [CZEA] | 10.2016- |
| SKODA | Octavia 1.0 TSi | [CHZD] | 05.2016- |
| SKODA | Octavia 1.0 TSi | [DKRA] | 05.2016- |
| SKODA | Octavia 1.0 TSi | [DKRF] | 05.2016- |
| SKODA | Octavia 1.2 TSi | [CJZA] | 11.2012- |
| SKODA | Octavia 1.2 TSi | [CJZB] | 11.2012- |
| SKODA | Octavia 1.2 TSi | [CYVA] | 11.2012- |
| SKODA | Octavia 1.4 TSi | [CHPA] | 11.2012- |
| SKODA | Octavia 1.4 TSi G-TEC | [CPWA] | 11.2013- |
| SKODA | Superb 1.4 TSi | [CZCA] | 03.2015- |
| SKODA | Superb 1.4 TSi | [CZDA] | 03.2015- |
| SKODA | Superb 1.4 TSi | [CZEA] | 03.2015- |
| SKODA | Superb 1.4 TSi 4x4 | [CZEA] | 03.2015- |
| SKODA | Yeti 1.2 TSi | [CYVB] | 05.2015-12.2017 |
| SKODA | Yeti 1.4 TSi | [CZCA] | 05.2015-12.2017 |
| SKODA | Yeti 1.4 TSi 4x4 | [CZDA] | 05.2015-12.2017 |
| VW | Arteon 1.5 TSi | [DADA] | 11.2017- |
| VW | Arteon 1.5 TSi | [DPCA] | 11.2017- |
| VW | Caddy 1.0 TSi | [CHZG] | 11.2015- |
| VW | Caddy 1.0 TSi | [DKRE] | 11.2015- |
| VW | Caddy 1.0 TSi | [DKRE] | 11.2018- |
| VW | Caddy 1.2 TSi | [CYVC] | 06.2015- |
| VW | Caddy 1.4 TGi CNG | [CPWA] | 06.2015- |
| VW | Caddy 1.4 TSi | [CZCB] | 05.2015- |
| VW | Caddy Alltrack 1.0 TSi | [CHZG] | 11.2015- |
| VW | Caddy Alltrack 1.2 TSi | [CYVC] | 06.2015- |
| VW | Caddy Alltrack 1.4 TGi CNG | [CPWA] | 06.2015- |
| VW | Caddy Alltrack 1.4 TSi | [CZCB] | 05.2015- |
| VW | Caddy Alltrack 1.4 TSi | [DJKD] | 07.2018- |
| VW | Golf Sportsvan 1.0 TSi | [CHZC] | 05.2017- |
| VW | Golf Sportsvan 1.0 TSi | [CHZD] | 05.2015- |
| VW | Golf Sportsvan 1.0 TSi | [CHZK] | 05.2017- |
| VW | Golf Sportsvan 1.0 TSi | [DKLB] | 05.2017- |
| VW | Golf Sportsvan 1.0 TSi | [DKRF] | 05.2015- |
| VW | Golf Sportsvan 1.2 TSi | [CYVA] | 05.2014- |
| VW | Golf Sportsvan 1.2 TSi | [CYVB] | 04.2014- |
| VW | Golf Sportsvan 1.4 TSi | [CZCA] | 04.2014- |
| VW | Golf Sportsvan 1.4 TSi | [CZDA] | 02.2014- |
| VW | Golf Sportsvan 1.4 TSi MultiFuel | [CPVB] | 04.2014- |
| VW | Golf Sportsvan 1.5 TSi | [DACA] | 05.2017- |
| VW | Golf Sportsvan 1.5 TSi | [DADA] | 05.2017- |
| VW | Golf Sportsvan 1.5 TSi | [DPCA] | 05.2017- |
| VW | Golf VII 1.0 TSi | [CHZC] | 11.2016- |
| VW | Golf VII 1.0 TSi | [CHZD] | 05.2015- |
| VW | Golf VII 1.0 TSi | [CHZK] | 01.2017- |
| VW | Golf VII 1.0 TSi | [CHZK] | 01.2017-07.2018 |
| VW | Golf VII 1.0 TSi | [DKLB] | 01.2017- |
| VW | Golf VII 1.0 TSi | [DKLB] | 07.2018- |
| VW | Golf VII 1.0 TSi | [DKRF] | 05.2015- |
| VW | Golf VII 1.2 TSi | [CJZA] | 05.2013- |
| VW | Golf VII 1.2 TSi | [CJZA] | 11.2012- |
| VW | Golf VII 1.2 TSi | [CJZB] | 05.2013- |
| VW | Golf VII 1.2 TSi | [CJZB] | 08.2012- |
| VW | Golf VII 1.2 TSi | [CYVA] | 05.2013- |
| VW | Golf VII 1.2 TSi | [CYVA] | 08.2012- |
| VW | Golf VII 1.2 TSi | [CYVB] | 04.2014- |
| VW | Golf VII 1.2 TSi BlueMotion | [CJZB] | 08.2012- |
| VW | Golf VII 1.4 TGi CNG | [CPWA] | 06.2013- |
| VW | Golf VII 1.4 TGi CNG | [CPWA] | 09.2013- |
| VW | Golf VII 1.4 TGi CNG | [CZBA] | 06.2013- |
| VW | Golf VII 1.4 TSi | [CHPA] | 05.2013- |
| VW | Golf VII 1.4 TSi | [CHPA] | 08.2012- |
| VW | Golf VII 1.4 TSi | [CHPB] | 05.2014- |
| VW | Golf VII 1.4 TSi | [CMBA] | 11.2012- |
| VW | Golf VII 1.4 TSi | [CPTA] | 08.2012- |
| VW | Golf VII 1.4 TSi | [CXSA] | 05.2013- |
| VW | Golf VII 1.4 TSi | [CXSA] | 11.2012- |
| VW | Golf VII 1.4 TSi | [CZCA] | 05.2014- |
| VW | Golf VII 1.4 TSi | [CZDA] | 05.2014- |
| VW | Golf VII 1.4 TSi | [CZDD] | 05.2014- |
| VW | Golf VII 1.4 TSi | [CZEA] | 05.2014- |
| VW | Golf VII 1.4 TSi | [DGXA] | 05.2014- |
| VW | Golf VII 1.4 TSi MultiFuel | [CPVA] | 04.2013- |
| VW | Golf VII 1.4 TSi MultiFuel | [CPVB] | 05.2014- |
| VW | Golf VII 1.4 TSi MultiFuel | [CPVB] | 12.2013- |
| VW | Golf VII 1.5 TSi | [DACA] | 07.2017- |
| VW | Golf VII 1.5 TSi | [DADA] | 04.2014- |
| VW | Golf VII 1.5 TSi | [DADA] | 04.2017- |
| VW | Golf VII 1.5 TSi | [DPBA] | 07.2017- |
| VW | Golf VII 1.5 TSi | [DPCA] | 04.2014- |
| VW | Golf VII 1.5 TSi | [DPCA] | 04.2017- |
| VW | Passat 1.4 TSi | [CZCA] | 11.2014- |
| VW | Passat 1.4 TSi | [CZDA] | 11.2014- |
| VW | Passat 1.4 TSi | [CZEA] | 11.2014- |
| VW | Passat 1.4 TSi 4-Motion | [CZEA] | 02.2015- |
| VW | Passat 1.5 TSi | [DADA] | 08.2018- |
| VW | Passat 1.5 TSi | [DPCA] | 08.2018- |
| VW | Passat Alltrack 1.4 TSi 4-Motion | [CZEA] | 05.2015- |
| VW | Sharan 1.4 TSi | [CZDA] | 05.2015- |
| VW | Sharan 1.4 TSi | [DJKA] | 05.2015- |
| VW | Tiguan 1.4 TSi | [CZCA] | 01.2016-07.2018 |
| VW | Tiguan 1.4 TSi | [CZDA] | 01.2016- |
| VW | Tiguan 1.4 TSi | [CZEA] | 01.2016- |
| VW | Tiguan 1.4 TSi | [DJVA] | 01.2016- |
| VW | Tiguan 1.4 TSi 4-Motion | [CZDA] | 05.2016-07.2018 |
| VW | Tiguan 1.4 TSi 4-Motion | [CZEA] | 05.2016-07.2018 |
| VW | Tiguan Allspace 1.4 TSi | [CZDA] | 06.2017- |
| VW | Tiguan Allspace 1.4 TSi | [CZEA] | 06.2017- |
| VW | Touran 1.2 TSi | [CYVB] | 05.2015- |
| VW | Touran 1.4 TSi | [CZDA] | 05.2015- |
| VW | Touran 1.5 TSi | [DADA] | 11.2018- |
| VW | Touran 1.5 TSi | [DPCA] | 11.2018- |
| VW | T-Roc 1.0 TSi | [CHZJ] | 07.2017- |
| VW | T-Roc 1.0 TSi | [DKRF] | 07.2017- |
| VW | T-Roc 1.5 TSi | [DADA] | 11.2017- |
| VW | T-Roc 1.5 TSi | [DPCA] | 11.2017- |
Reference Information
2015025.1 04E903015EX 305.980.180.501 305.980.180.502 FG18T142 4E903021QX A3384S 305.980.180.500 STX101585 AEK3891 ALT170250 04E903015RX 4E903015DX 4E903015D 4E903015E VAL439930 4E903023D 20179520OE 28-7501 4E903023MX 0125811132 4E903021PX 4E903021P UD19403A 4E903021Q 0125811131 STX102048 STX102169 209614 04E903021Q 04E903021P 04E903021PX ALV3930 A12BH0881AS 4535 4E903023LX CAL15025GS 5510668 FG18T166 305.980.180.004 2622500A LRA3891 04E903023LX 89215809 04E903021QX 439930 2715547A 04E903015E 04E903015DX 4E903015S 04E903023D 0125811074 04E903015D STX101585R LRA03891 04E903023MX 4E903023L ALT00650 4E903015EX ALTJ111 04E903015S 305.980.180.505 305.980.180.506 04E903023J 04E903015P 04E903023LVideo/Publications
