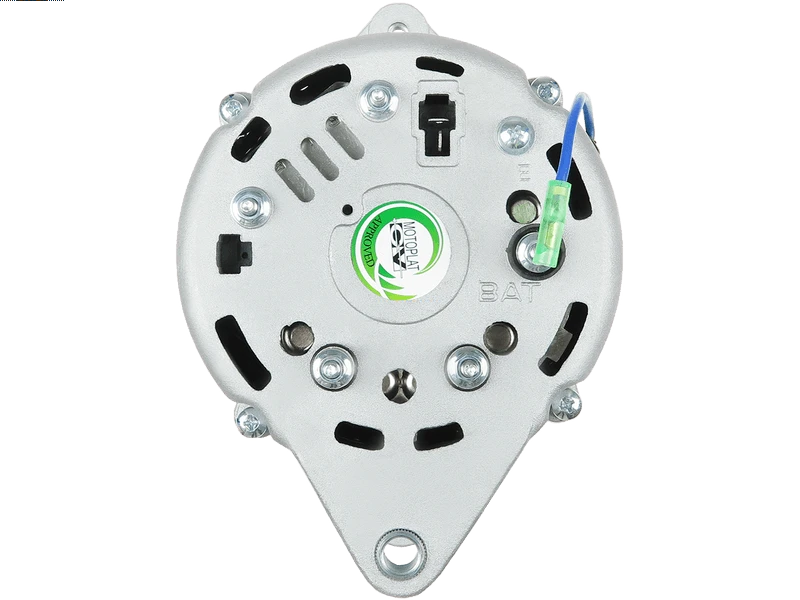

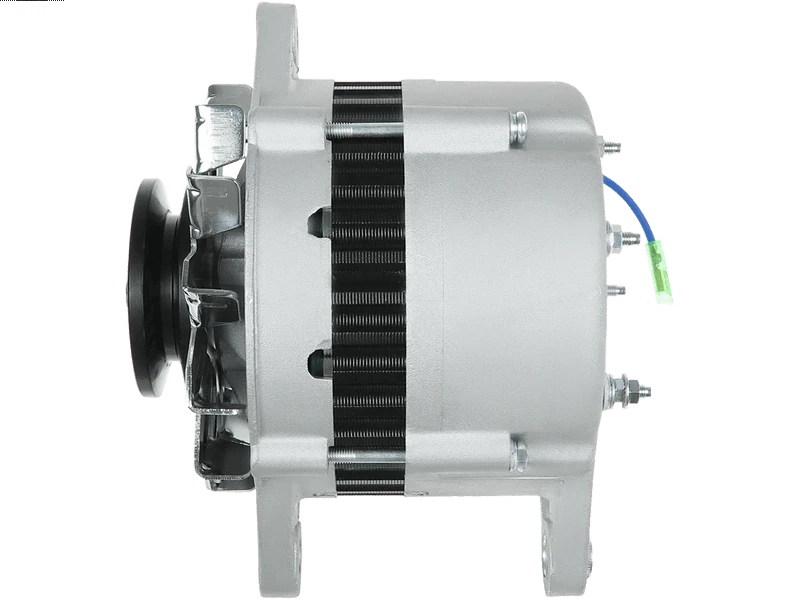

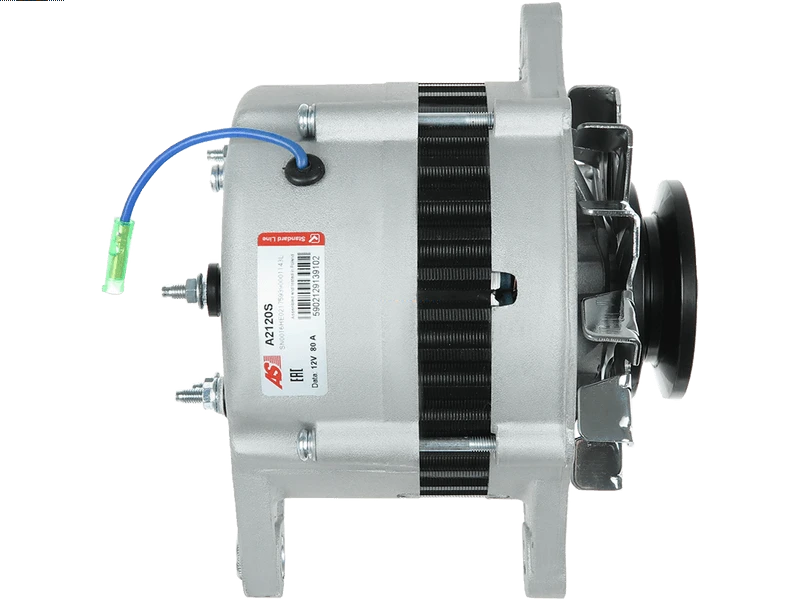

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 309.66 including GST
NZ$ 269.27 excluding GST
or four payments of $77.42
with
Learn More
each
A2120S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
112375 Cargo 11957377200 Yanmar 11957377201 119956 AES 12947077200 20150112 Prestolite 282811 Elstock 287810 702512272 Wilson 90251093 985001080 PSH A8520 Dixie ALT32087 Wood Auto AYA101 ATK AYA110 LR18003 Hitachi LR18003A LR18003B LR18003C show LR18004 LRA01632 Lucas LRA04201 LRA1632 RNLLR18003 RNL WOOALT32087 028003 Andre Niermann 050072 Da Silva 10442328 Alanko 12060990 EuroTec 12272N WAI 12272R 1287401HI old 2020163 Sando 204213 PIC 2531 CEVAM 40044046 JN 442328 446855 Logistik 553242RI DAS 582112802 DRI 582124802 89213914 PowerMax A136281 Short code A158242 A161690 A2120 AS-PL A2120S AGN38520 ADI AHE1101 Everkraft AHI1037 Quasar AL01475 TMI AL03732 CAL20163 Casco CGB18003 Ainde IR6042 Protech LR18003BSEL +lineSpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Insulated Earth | Yes |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Plug Code | PL_2505 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 49.5 mm |
| Pulley Outside Diameter (O.D.2) | 74 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | SOLID |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 304H 3.3 | [4TNE98] | 01.2000-12.2005 |
| YANMAR | Engine | [3JH2] | 01.1991-12.1999 |
| YANMAR | Engine | [3JH2BE] | 01.1991-12.1999 |
| YANMAR | Engine | [3JH2E] | 01.1991-12.1999 |
| YANMAR | Engine | [3JH3] | 01.1999-12.2003 |
| YANMAR | Engine | [3JH3E] | |
| YANMAR | Engine | [3JH3E-YEU] | |
| YANMAR | Engine | [3JH4E] | 01.2003-12.2013 |
| YANMAR | Engine | [3YM20] | 01.2004-12.2014 |
| YANMAR | Engine | [3YM30] | 01.2004-12.2014 |
| YANMAR | Engine | [4JH2-CE] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH2-DTE] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH2-E] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH2-HTE] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH2-TE] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH2-UTE] | 01.1988-12.1998 |
| YANMAR | Engine | [4JH3-CE] | 01.1994-12.2003 |
| YANMAR | Engine | [4JH3-DTE] | 01.1994-12.2003 |
| YANMAR | Engine | [4JH3E] | 01.1994-12.2003 |
| YANMAR | Engine | [4JH3-HTE] | 01.1994-12.2003 |
| YANMAR | Engine | [4JH3-TCE] | 01.1994-12.2003 |
| YANMAR | Engine | [4JH3-TE] | 01.1994-12.2003 |
| YANMAR | Engine | [4JHE] | |
| YANMAR | Engine | [4JH-TE] | 01.1982-12.1992 |
| YANMAR | Engine | [4LHA-DTE] | |
| YANMAR | Engine | [4LHA-DTZ] | |
| YANMAR | Engine | [4LHA-HTE] | |
| YANMAR | Engine | [4LHA-HTZE] | |
| YANMAR | Engine | [4LHA-STE] | |
| YANMAR | Engine | [4LHA-STZE] | |
| YANMAR | Engine | [4LH-DTE] | 01.1987-12.1997 |
| YANMAR | Engine | [4LH-HTE] | 01.1987-12.1997 |
| YANMAR | Engine | [4LH-STE] | 01.1987-12.1997 |
| YANMAR | Engine | [4LH-TE] | |
| YANMAR | Engine | [6LY2-STE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LYA-STE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LYA-UTE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LYM-STE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LYM-UTE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-ST] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-STE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-STM] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-STZY] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-UT] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-UTE] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-UTM] | 01.1992-12.2002 |
| YANMAR | Engine | [6LY-UTZY] | 01.1992-12.2002 |
| YANMAR | Engine | [KBW-20] | |
| YANMAR | Engine | [KBW-21] | |
| YANMAR | Engine | [KM3A] | |
| YANMAR | Engine | [KM5A] | |
| YANMAR | Engine | [UJH2E] |
Reference Information
20150112 CGB-82811 EAA-212228 HAL18003C ALT32087 2020163 12947077200 ALH5732 985.001.080.515 LR180-03 LRA1632 AG2121 446855 ALTL705 28-2811 A2120S 112375 UD14867A 553242RI 70-25-12272 985.001.080.200 20145361BN ALT221630 LRA01632 119573-77200 CAL20163AS 119573-77201 5520925 204-10138 CAL20163GS EAA-241074 90-25-1093 CGB-18003 20145361OE LR18004 2531 2020163.1 12272N PRAL705 A-8520 ALT3165 A12HT0448A2 LR180-03C LR180-03B LR180-03AVideo/Publications
A2120SRelated Items
