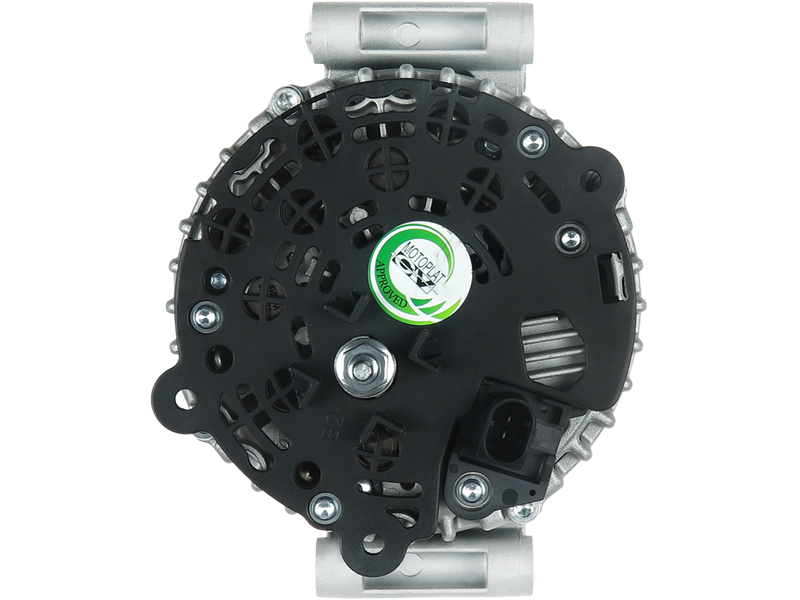

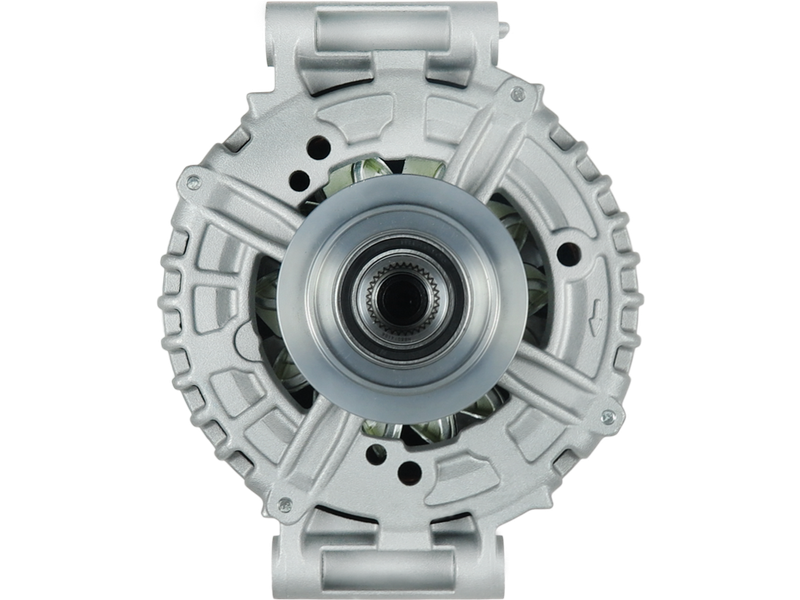

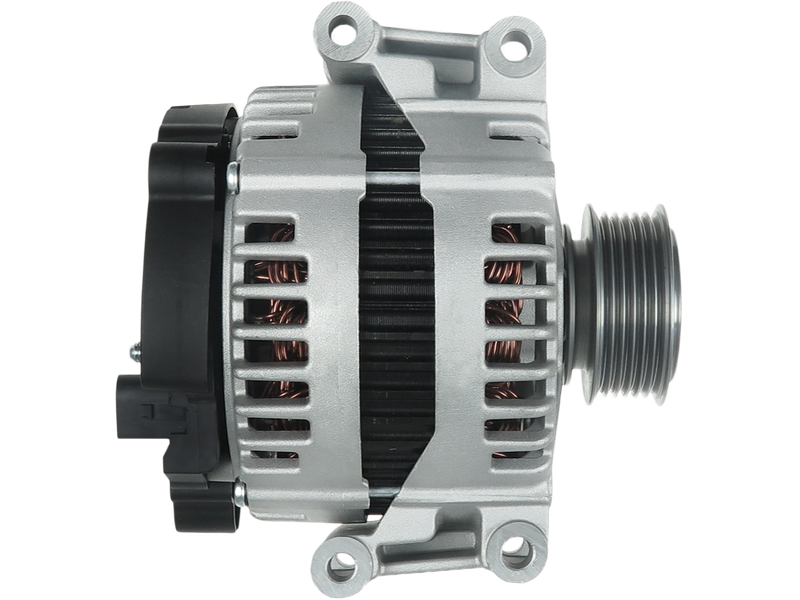

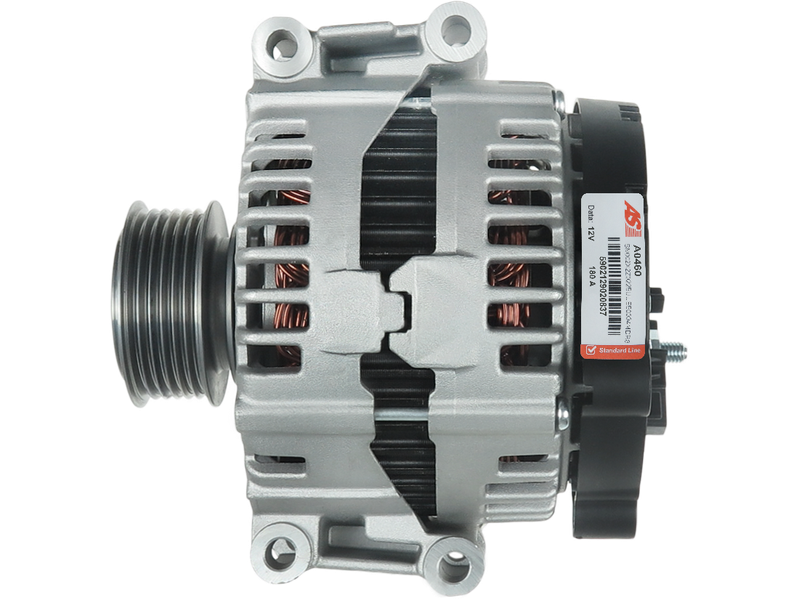

A0460 - Brand new AS-PL Alternator

Associated Numbers

0121715078 0121715178 06E903018H 06E903018HX 205.549.180 554417RIR 90-15-6653 A-6622 BOS0121715178 DRA0898 UD12092A

0121715050 Bosch
0121715078 Bosch show
0121715078OR +line
0121715150 Bosch
0121715178 Bosch
06E903016T VW
06E903018H VW
06E903018HX VW
12090219 EuroTec
12090617 EuroTec
205549180 PSH
287577 Elstock
40002 CEVAM
40202 CEVAM
9090661 Friesen
9090661F Friesen
930898 EDR
DRA0898 Remy
LRA03967 Lucas
ARROWHEAD400-24257
BOSCH0121715078, 0121715178
LESTER11495
VOLKSWAGEN06E903-018H, 06E903-018HX
AUDI 06E903018H
BOSCH 0121715078
BOSCH 0121715178
LUCAS LRA03967
LUCAS LRA3967
VW (VOLKSWAGEN) 06E903018H
VW (VOLKSWAGEN) 06E903018HX

Specifications

Amp	180 A
Diameter (D.1)	9 mm
Diameter (D.2)	9 mm
Diameter (D.3)	9 mm
Diameter (D.4)	9 mm
Length (L.1)	189 mm
Mount Inside Length or Pad Mount C-C (C)	56 mm
OEM Product	No
Pad mount thickness (E.1)	70 mm
Pad mount thickness (E.2)	70 mm
Plug Code	PL_2306
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	65 mm
Pulley to Mount Distance (A)	31 mm
Pulley Type	CLUTCH
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A6 2.8 FSi	[CCDA]	10.2008-08.2011
AUDI	A6 2.8 FSi	[CCEA]	10.2008-08.2011
AUDI	A6 2.8 FSi Quattro	[CCDA]	10.2008-08.2011
AUDI	A6 2.8 FSi Quattro	[CCEA]	10.2008-08.2011
AUDI	A6 3.0 FSi Quattro	[CAJA]	10.2008-08.2011
AUDI	A6 3.2 FSi	[CALA]	05.2009-03.2011
AUDI	A6 Allroad 3.0 TFSi Quattro	[CAJA]	10.2008-08.2011

Reference Information

205.549.180.608 205.549.180.609 CAL10040GS 20101040OE 0121715078 0121715178 PRAE889 06E903018HX 06E903016T 205.549.180 ALT124490A 06E903018H ALT1692 STX102161 554417RIR DRA0898 90-15-6653 UD12092A A12BH0750AS 205.549.180.018 BOS0121715178 205.549.180.014 A-6622 ALTE889 ALT124490 2010040.1 06E903016TX
