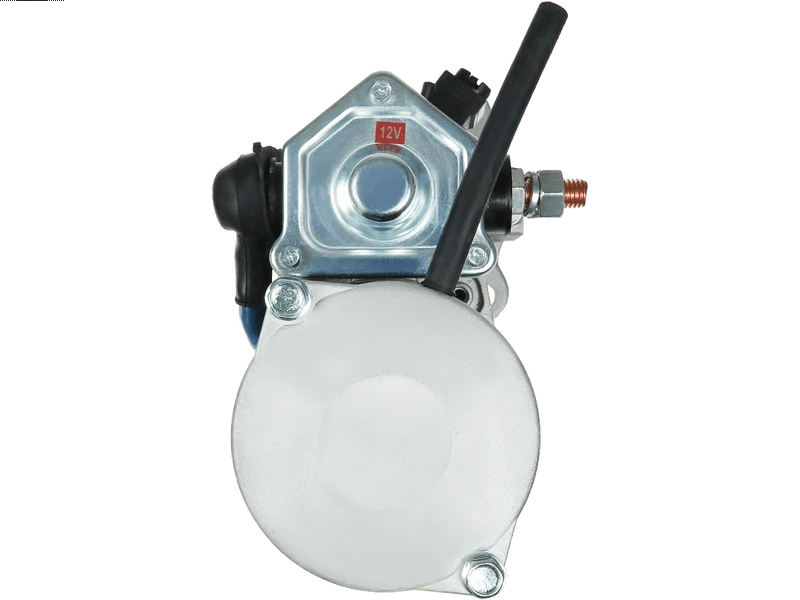

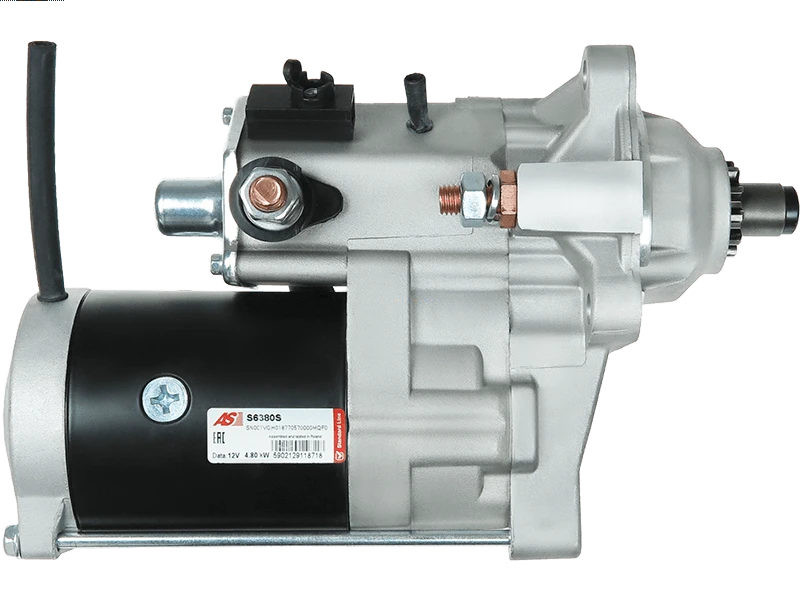

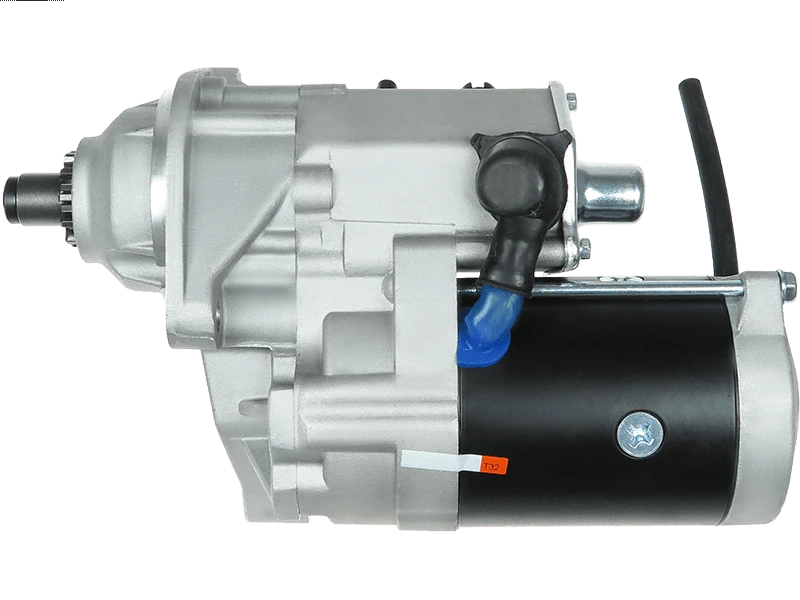

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 598.83 including GST
NZ$ 520.72 excluding GST
or four payments of $149.71
with
Learn More
each
S6380S
2
Associated Numbers
113983 Cargo 114459 20130204 AES 2280006550 Denso show 2280006551 2280006552 2280008470 2280008471 228006552 2280806552 2280808470 630512113 PSH 91295433 Wilson 91295457 AT195414 John Deere DSN2008 DSN2009 RE502811 RE506079 RE70474 RE70960 RE79474 RNL2280006552 RNL S8919 Dixie SE501405 SE501872 STR30054 Wood Auto STR70452 TG2280808470 TY24441 WOOSTR30054 WOOSTR70452 ARROWHEAD ND 228000-6552 SND0363 228000-655 228000-6550 228000-6551 TG228080-6552 410-52122 7026921 JOHN DEERE LESTER 18455 70-8862 dxs639 snj296 AIM SN-00192R Andre Niermann 016551 Arrowhead Clark Lift Truck C07837 DENSO 228080-655 228080-6552 Electric Ltd S-8919 New 246-30122 HC CARGO IAT 610-157 610-18455 Industry J&N Jlg 70266921 RE97474 Lester MPA X X718455 PIC 190-785 Romaine 18455N Standard Starter Drive 433095 Terex JL7026921 Voltux V1-18455 WAI 2-2973-ND Whatcom 42856 91-29-5457 ND228000-6552 ELECTRICAL PRODUCTS JLG7026921 JLG/GRADALL INDUSTRIES MERCURY MARINE 8M6007348 André 10439536 Alanko 18455R 18978 18978N 18978R 1906064 190785 2280006550SEL +line 254180 DAS 336229 Logistik 41052122 JN 41052493 439536 6040292 Sando 718978 NAPA 8248 CEVAM 88214991 Power Max CGB26550 Ainde CST40292 Airframe CST40513 DEM600 ADI IR8469 Protech KTR1261024226 KTR S134526 Short code S144740 S164390 S6380 AS-PL S6380S SDE1114 Everkraft SDE1189 SND0581 SND1164 Quasar ST18455 RCP STR6097sa ElectrologSpecifications
| Kilowatt | 4.8 kW |
| Length (L.1) | 317 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 1570 6.8 | [6068] | 01.2005-12.2015 |
| JOHN DEERE | 450G 4.5 | [4045] | 01.1990-12.2002 |
| JOHN DEERE | 450G 4.5 | [4-276] | 01.1987-12.1990 |
| JOHN DEERE | 455G 4.5 | [4045D] | 01.1996-12.2006 |
| JOHN DEERE | 550G 4.5 | [4045] | 01.1990-12.2002 |
| JOHN DEERE | 550G 4.5 | [4-276] | 01.1987-12.1990 |
| JOHN DEERE | 650G 4.5 | [4045] | 01.1990-12.2002 |
| JOHN DEERE | 650G 4.5 | [4-276] | 01.1987-12.1990 |
| JOHN DEERE | 7455 6.8 | [6068] | 01.1997-12.2003 |
| JOHN DEERE | 7460 6.8 | [359] | 01.2003-12.2015 |
| JOHN DEERE | 9935 6.8 | [6068] | 01.1997-12.2002 |
| JOHN DEERE | W330 6.8 | [6068] | 01.2018-12.2019 |
Reference Information
2280806552 RE79474 S12DE0706A2 91-29-5457 190-30112 228000655 630.512.113 DSN2008 TY24441 228000-6551 18455N 228000-6552 SE501405 18455R 228000-6550 TG2280806552 2280006551 UD17031S RE70960 2280006552 RE70474 STR30054Video/Publications
