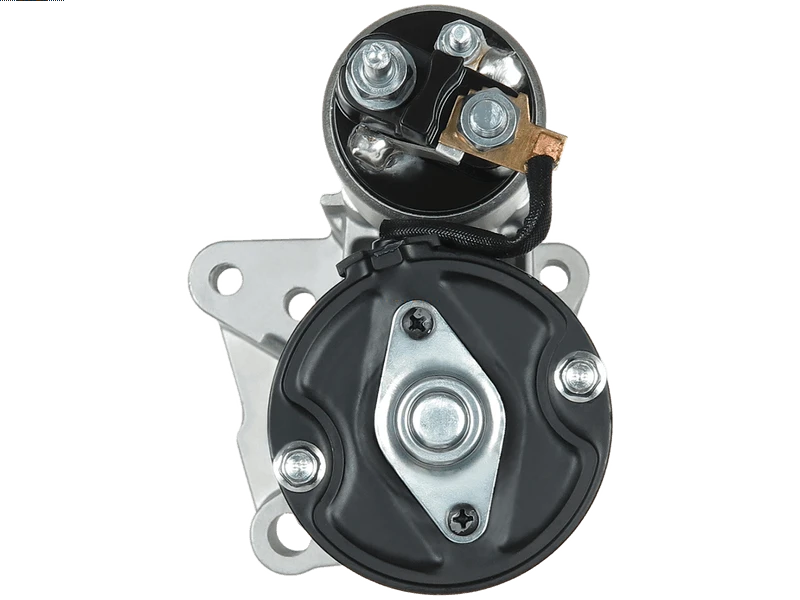

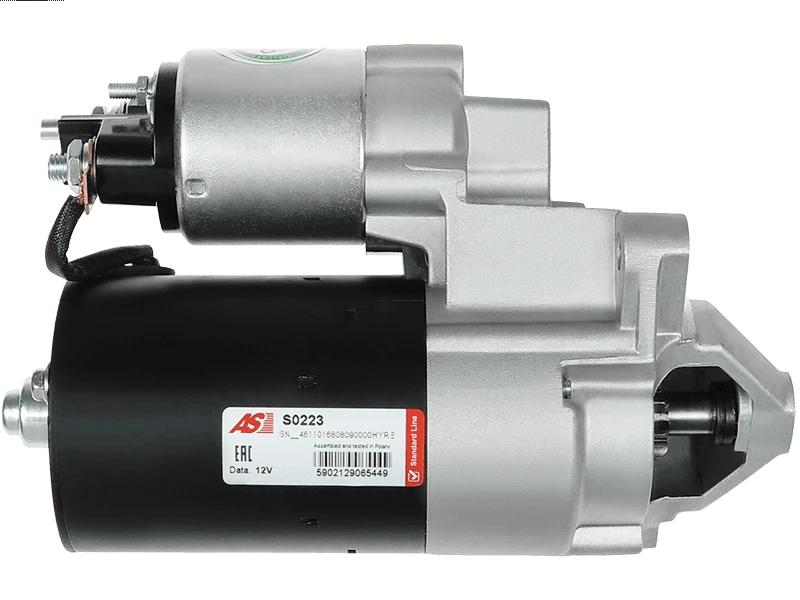

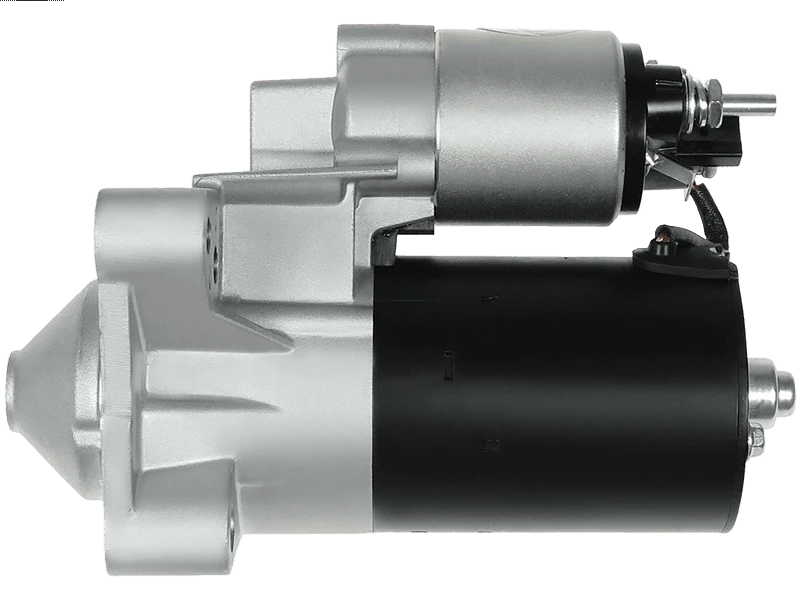

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 226.29 including GST
NZ$ 196.77 excluding GST
or four payments of $56.57
with
Learn More
each
S0223
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 209 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 105 mm |
| Mount Hole Center - Center (O.3) | 93 mm |
| Mount Hole Center - Center (O.4) | 22 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | M10x1.5 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 0 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Primastar 2.0 | [F4R720] | 03.2001- |
| NISSAN | Primastar 2.0 | [F4R720] | 07.2002- |
| NISSAN | Primastar 2.0 | [F4R722] | 03.2001- |
| OPEL | Vivaro 1.9 Di | [F9Q762] | 08.2006- |
| OPEL | Vivaro 2.0 16V | [F4R] | 08.2006- |
| OPEL | Vivaro 2.0 16V | [F4R720] | 08.2001- |
| OPEL | Vivaro 2.0 Ecotec | [F4R820] | 08.2006- |
| RENAULT | Avantime 2.0 Turbo 16V | [F4R760] | 11.2001-05.2003 |
| RENAULT | Avantime 2.0 Turbo 16V | [F4R761] | 11.2001-05.2003 |
| RENAULT | Clio 2.0 16V Sport | [F4R830] | 02.2006- |
| RENAULT | Clio 2.0 16V Sport | [F4R830] | 09.2008- |
| RENAULT | Espace 2.0 | [F4R790] | 11.2002- |
| RENAULT | Espace 2.0 | [F4R790] | 11.2002-02.2005 |
| RENAULT | Espace 2.0 | [F4R792] | 11.2002- |
| RENAULT | Espace 2.0 | [F4R796] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R797] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R896] | 04.2005- |
| RENAULT | Espace 2.0 | [F4R897] | 04.2005- |
| RENAULT | Espace 2.0 Turbo | [F4R794] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R795] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R796] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R797] | 11.2002- |
| RENAULT | Espace 2.0 Turbo | [F4R896] | 06.2005- |
| RENAULT | Espace 2.0 Turbo | [F4R897] | 06.2005- |
| RENAULT | Grand Scenic 2.0 | [F4R770] | 04.2004- |
| RENAULT | Grand Scenic 2.0 | [F4R771] | 04.2004- |
| RENAULT | Grand Scenic 2.0 | [F4R776] | 04.2004- |
| RENAULT | Laguna 1.8 16V | [F4P770] | 03.2001-09.2007 |
| RENAULT | Laguna 1.8 16V | [F4P774] | 03.2001- |
| RENAULT | Laguna 1.8 16V | [F4P774] | 03.2001-09.2007 |
| RENAULT | Laguna 1.8 16V | [F4P775] | 03.2001-09.2007 |
| RENAULT | Laguna 2.0 | [F4R800] | 03.2008- |
| RENAULT | Laguna 2.0 16V | [F4R712] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R713] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R714] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R714] | 10.2004-09.2007 |
| RENAULT | Laguna 2.0 16V | [F4R715] | 08.2002- |
| RENAULT | Laguna 2.0 16V | [F4R715] | 10.2004-09.2007 |
| RENAULT | Laguna 2.0 16V | [F4R784] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R786] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R787] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R886] | 01.2005- |
| RENAULT | Laguna 2.0 16V | [F4R887] | 01.2005- |
| RENAULT | Laguna 2.0 16V Turbo | [F4R811] | 09.2008- |
| RENAULT | Laguna 2.0 16V Turbo | [F4R811] | 10.2007- |
| RENAULT | Laguna 2.0 16V Turbo | [F4RT811] | 09.2008- |
| RENAULT | Laguna 2.0 GT | [F4R800] | 03.2008- |
| RENAULT | Laguna 2.0 iDE 16V | [F5R700] | 04.2001- |
| RENAULT | Laguna 2.0 iDE 16V | [F5R701] | 04.2001- |
| RENAULT | Laguna 2.0 Turbo | [F4R886] | 01.2005-09.2007 |
| RENAULT | Laguna 2.0 Turbo | [F4R887] | 01.2005-09.2007 |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R764] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R765] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R786] | 01.2003- |
| RENAULT | Laguna 2.0 Turbo 16V | [F4R787] | 01.2003- |
| RENAULT | Megane 2.0 | [F4R770] | 08.2003- |
| RENAULT | Megane 2.0 | [F4R770] | 09.2003- |
| RENAULT | Megane 2.0 | [F4R771] | 08.2003- |
| RENAULT | Megane 2.0 | [F4R771] | 09.2003- |
| RENAULT | Megane 2.0 | [F4R774] | 08.2006- |
| RENAULT | Megane 2.0 | 06.2006-12.2010 | |
| RENAULT | Megane 2.0 16V | [F4R746] | 01.2002-08.2003 |
| RENAULT | Megane 2.0 16V | [F4R770] | 01.2002-08.2003 |
| RENAULT | Megane 2.0 16V | [F4R770] | 11.2002- |
| RENAULT | Megane 2.0 Sport | [F4R774] | 05.2004- |
| RENAULT | Megane 2.0 Sport | [F4RT774] | 05.2004- |
| RENAULT | Megane 2.0 Turbo 16V | [F4R776] | 05.2004- |
| RENAULT | Scenic 1.8 4x4 | [F4P722] | 07.2000-04.2001 |
| RENAULT | Scenic 2.0 | [F4R770] | 02.2008-04.2009 |
| RENAULT | Scenic 2.0 | [F4R770] | 06.2003- |
| RENAULT | Scenic 2.0 | [F4R771] | 06.2003- |
| RENAULT | Scenic 2.0 Turbo 16V | [F4R776] | 05.2004- |
| RENAULT | Trafic 2.0 | [F4R720] | 03.2001- |
| RENAULT | Trafic 2.0 | [F4R722] | 03.2001- |
| RENAULT | Trafic 2.0 16V | [F4R820] | 08.2006- |
| RENAULT | Vel Satis 2.0 | [F4R867] | 04.2005- |
| RENAULT | Vel Satis 2.0 Turbo | [F4R867] | 07.2005- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R762] | 06.2002- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R763] | 06.2002- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R766] | 04.2004- |
| RENAULT | Vel Satis 2.0 Turbo 16V | [F4R767] | 04.2004- |
| VAUXHALL | Vivaro 2.0 16V | [F4R720] | 08.2001-12.2006 |
Reference Information
8200466758 5010035 570.524.094.462 3000 570.524.094.461 570.524.094.460 CS1255 91169473 20401062BN 458196 8200466761 570.524.094.215 93857124 MAV122600 220462 CST10260GS 7711134794 8252875 6010260 CST10260OS 25-3034 88212803 11915 STX200219R MRS18860 8200466754 CST10260 S0223 93198232 STB9255 AEU1255 95522555 0986018860 STR50236 42018860 93177609 8200466784 8200724805 STX200124 LRS1545 93863425 8200050150 0001106024 CST10260AS 0001106023 R1040045 2330000QA1 570.524.094.395 8EA737977-001 101255 SG0961 8200724810 STX200124R DRS8860 8200186144 9512934 8200199737 4433974 7711135101 CST10260RS 32545N 4414533 S12BH0280 20401062OE LRS01545 23300-00Q1D STRL803 4418065 S12BH0280A2 93161437 570.524.094.010 8EA012527-971 570.524.094 114814 9.4428E+11 4430695 ANM11080X 4430696 83161060 8200069377 93861372 STB1255 93862463 DS9970 8200186148 4419084 3130179 STR1393 4412612 101255B 8200929534 MT130179 CST10260ES 23300-00QAH 003-130179 EAA-122210 23300-00QA1 93161060 STA0424R 91167226 STX200219 UD00024SVideo/Publications
