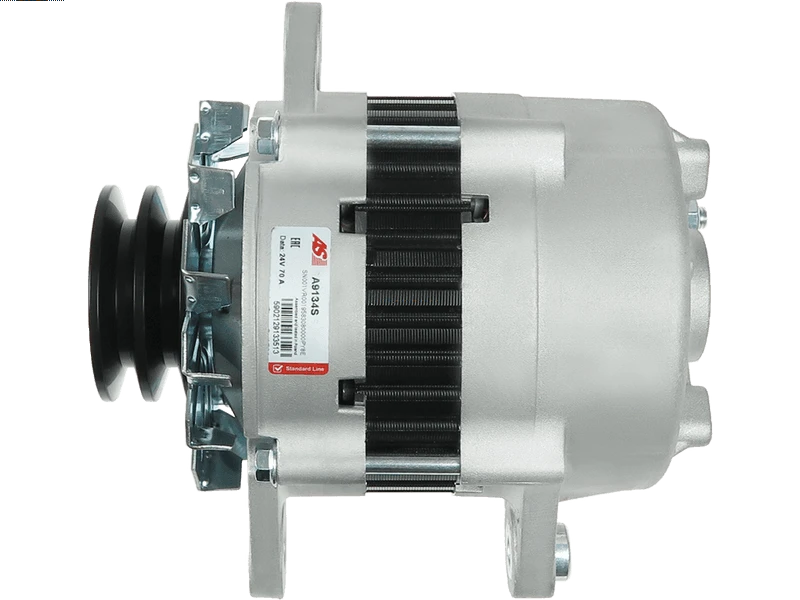

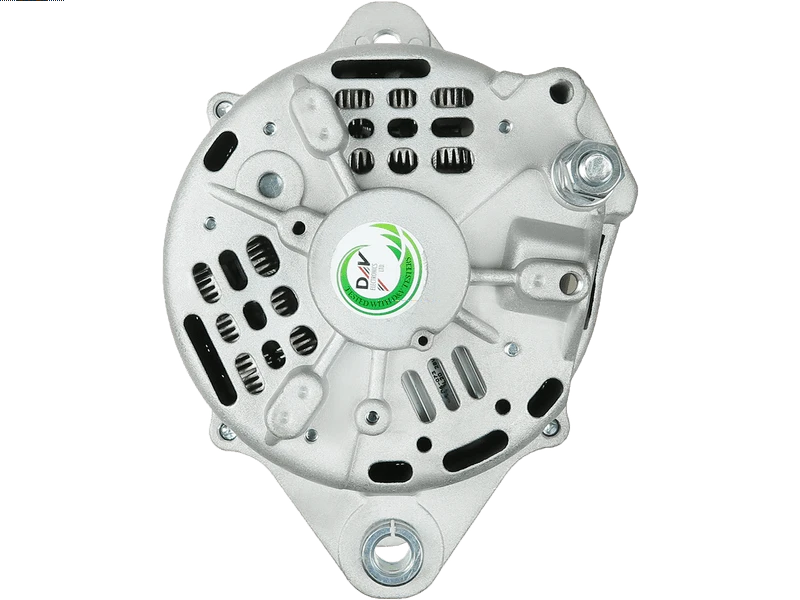

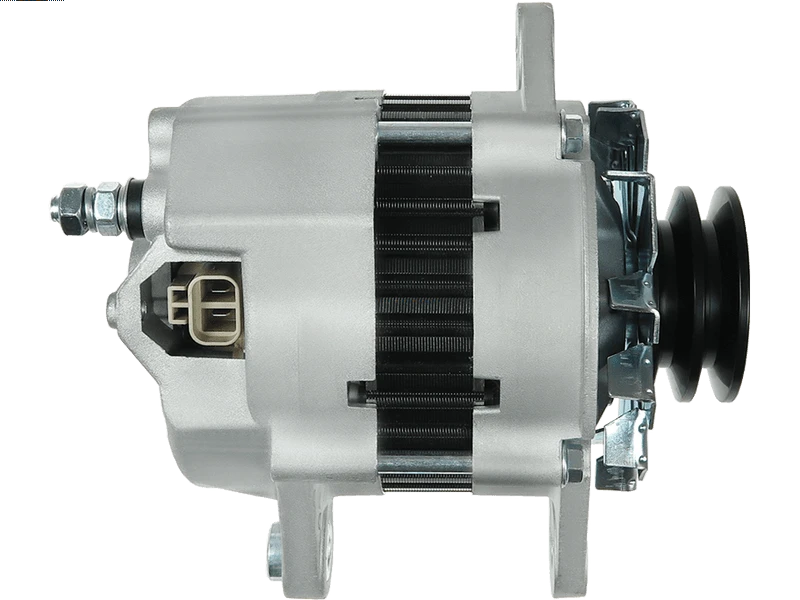

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MANDO
Price:
NZ$ 626.05 including GST
NZ$ 544.39 excluding GST
or four payments of $156.51
with
Learn More
each
A9134S
No stock in NZ
No stock in NZ
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 12.5 mm |
| Diameter (D.1) | M12x1.25 mm |
| Diameter (D.2) | 12.5 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 246 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_2003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 11 mm |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley Outside Diameter (O.D.2) | 81.5 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | SOLID |
| Unit Type | MANDO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Grace 2.5 D | [D4BA] | 01.1993-12.1994 |
| HYUNDAI | Grace 2.5 D | [D4BA] | 01.1994-12.2000 |
| HYUNDAI | Grace 2.5 D | [D4BX] | 01.1993-12.1994 |
| HYUNDAI | H-100 2.5 D | [D4BA] | 01.1993-12.1994 |
| HYUNDAI | H-100 2.5 D | [D4BA] | 01.1994-12.2000 |
| HYUNDAI | H-100 2.5 D | [D4BX] | 01.1993-12.1994 |
| HYUNDAI | H-150 2.5 D | [D4BA] | 01.1993-12.1994 |
| HYUNDAI | H-150 2.5 D | [D4BA] | 01.1994-12.2000 |
| HYUNDAI | H-150 2.5 D | [D4BX] | 01.1993-12.1994 |
Reference Information
37300-45150 UD17133A ALA7501 TA000A35101 230-00132 BN3730045150 ALT35026 AC270370 AD165439 156.011.070 600379Video/Publications
