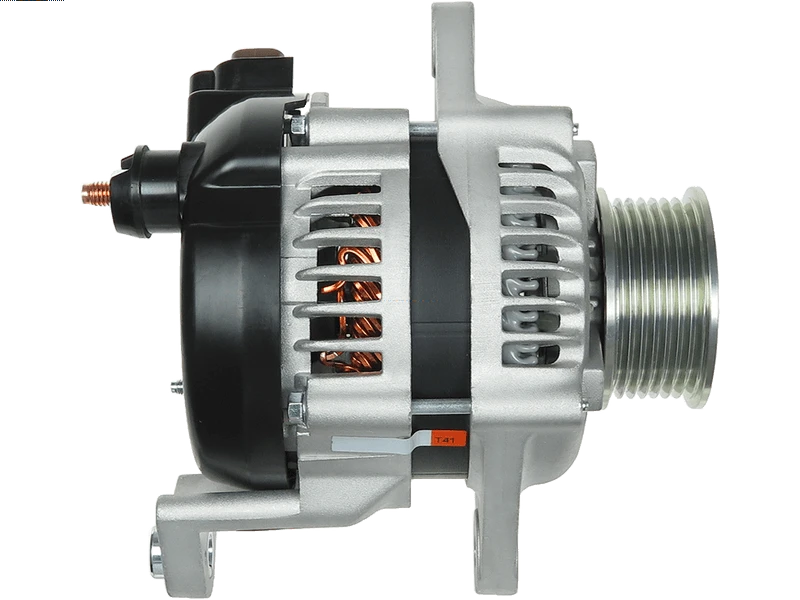

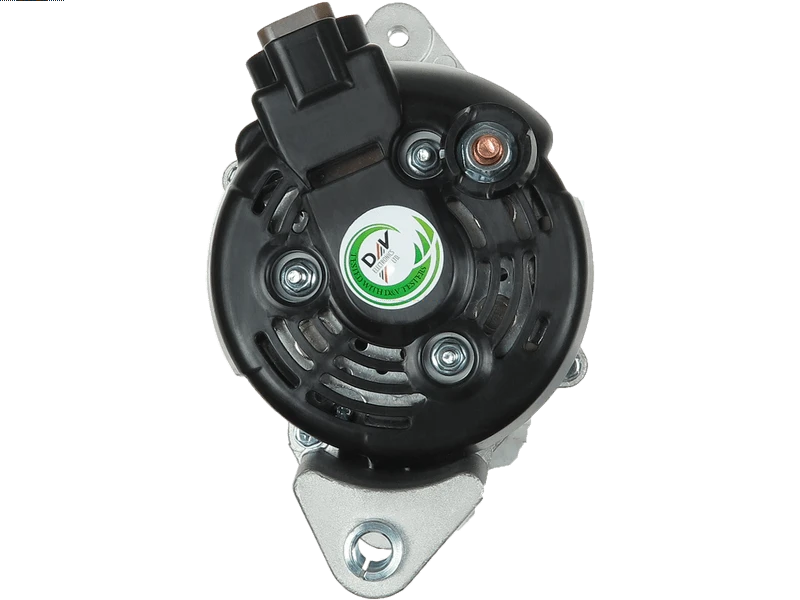

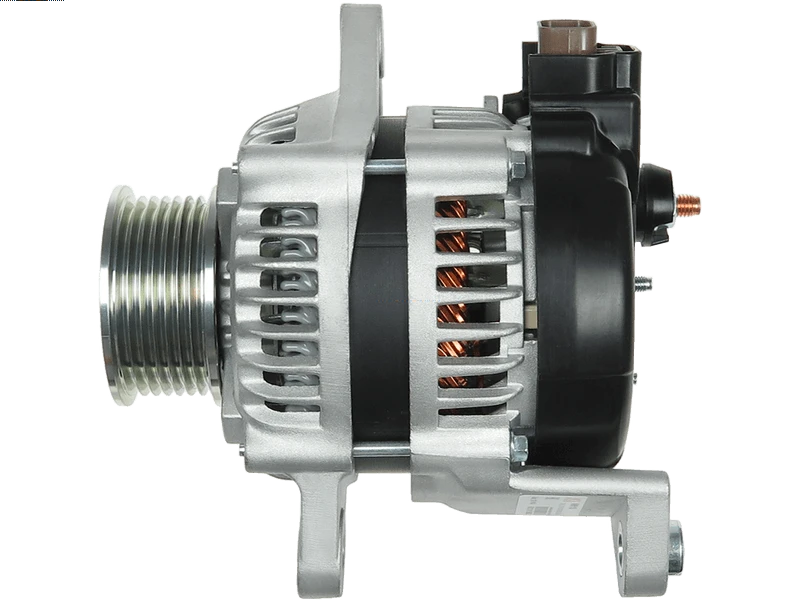

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 450.19 including GST
NZ$ 391.47 excluding GST
or four payments of $112.55
with
Learn More
each
A6152
A6611S
4
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
14-918 14918 1042109033 Denso show 1042109840 115683 Cargo 135573090 PSH 20201209 AES 2040313 Sando 287641 Elstock 50103579 RE-EX 8981965850 Isuzu 8982290710 ALT3068sa Electrolog ALT6136SA DAN1487 DENDAN1487 Wood Auto LRA04032 Lucas TG1042109033 TG1042109840 1042109030 1042109031 1042109032 1042109841 104210996 1042109960 1042109961 12060997 EuroTec 135573080 243130702 DRI 243130802 286707 287628 50103195 57510 EAI 8973697160 8973697161 8981530040 8982290711 8982903230 ALT32371 DRA1314 Remy DRA1569 DRA1830 EVEADE1024 Dapex LRA03597 LRA04019 RNL1042109031 RNL WOOALT32371 65-3122-1nd dxa4069 hxa104 ANJ333Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Plug Code | PL_2002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 62.5 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | D-Max 2.5 CRDi | [4JK1E5S-L] | 06.2012- |
| ISUZU | D-Max 2.5 CRDi | [4JK-1E5-TC] | 06.2012- |
| ISUZU | D-Max 2.5 CRDi | [4JK1-TCY] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi | [4JK1-E5S-L] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi | [4JK-1E5-TC] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi | [4JK1-TCY] | 06.2012- |
| ISUZU | D-Max 2.5 CRDi 4WD | [4JK1-TCY] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi 4WD | [4JK1-TCY] | 06.2012- |
| ISUZU | D-Max 2.5 CRDi 4x4 | [4JK1E5S-L] | 06.2012- |
| ISUZU | D-Max 2.5 CRDi 4x4 | [4JK-1E5-TC] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi 4x4 | [4JK1-E5S-L] | 06.2012- |
| ISUZU | D-MAX 2.5 CRDi 4x4 | [4JK-1E5-TC] | 06.2012- |
| ISUZU | D-MAX 2.5 DiTD | [4JK1-TC] | 10.2006-06.2012 |
| ISUZU | D-Max 2.5 DiTD 4x4 | [4JK1-TC] | 01.2007-06.2012 |
| ISUZU | D-MAX 2.5 DiTD 4x4 | [4JK1-TC] | 01.2007-06.2012 |
| ISUZU | D-MAX 3.0 DiTD | [4JJ1E4C-L] | 01.2007-06.2012 |
| ISUZU | D-MAX 3.0 DiTD | [4JJ1-TC] | 01.2007-06.2012 |
Reference Information
DENDAN1487 555005RI 89215647 20132485BN 8982903230 A12DE0461A2 UD20712A 9085 CAL40584GS 021080-1230 ALN8231 135.573.090.261 104210-9033 20132485OE 28-7641 CAL40584AS 8973697160 8973697161 8981530040 8981965850 2040584 STX110167 LRA4032 ALT32371 DAN1487 J5117032 STX110167R A6611S ALT425840A 104210-9960 LRA04032 135.573.090.050 5540812 555005RID 104210-9840 ALT6136 8982290711 8982290710 ALT425840 2040584.1Video/Publications
A6611SRelated Items
