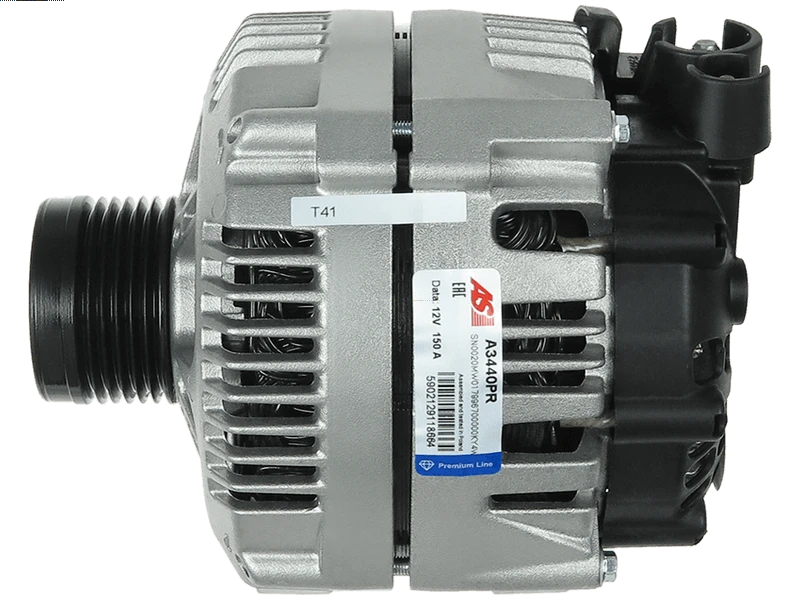

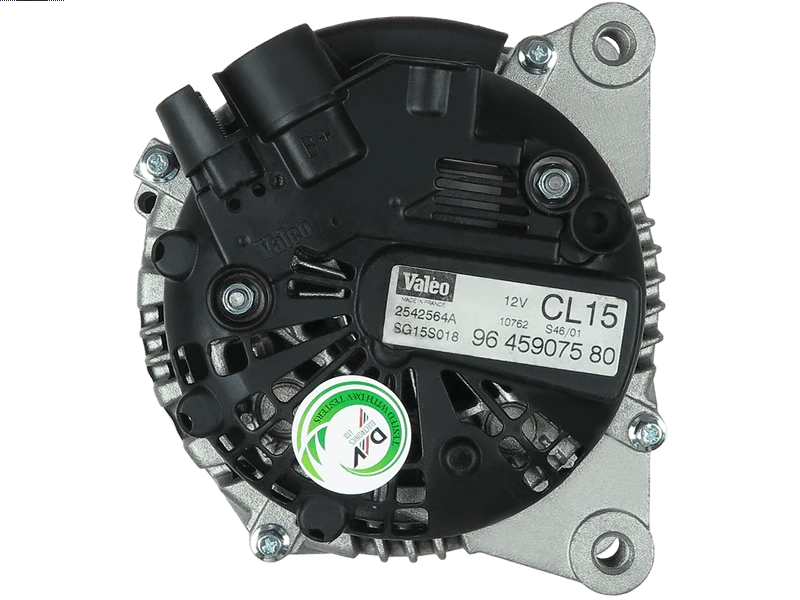

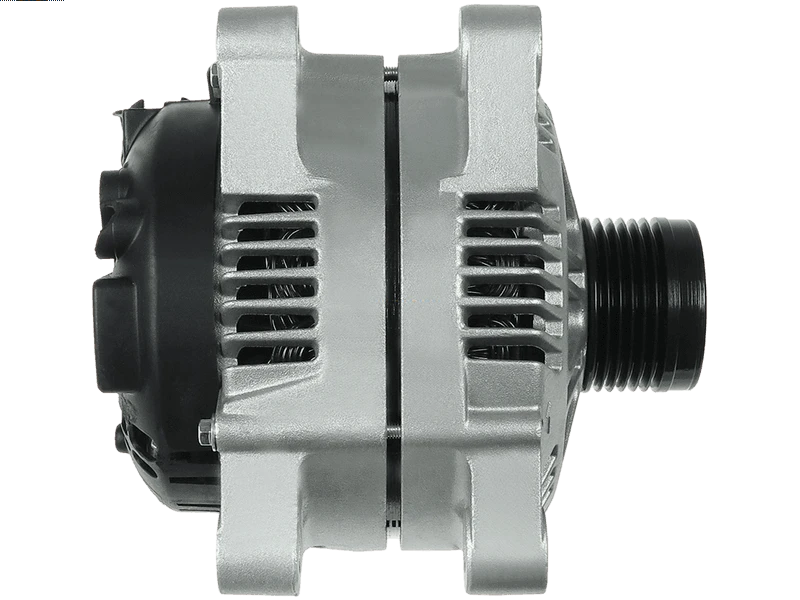

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 436.20 including GST
NZ$ 379.30 excluding GST
or four payments of $109.05
with
Learn More
each
A3440PR
No stock in NZ
No stock in NZ
Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54.5 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | GT 1.9 JTD | [937A5.000] | 11.2003- |
| CITROEN | C5 2.2 HDi | [4HX(DW12TED4/FAP)] | 03.2001-08.2004 |
| CITROEN | C5 2.2 HDi | [4HX(DW12TED4/FAP)] | 06.2001-08.2004 |
| CITROEN | C8 2.0 HDi | [RHK(DW10UTED4)] | 07.2002- |
| CITROEN | C8 2.0 HDi | [RHT(DW10ATED4)] | 07.2002- |
| CITROEN | C8 2.2 HDi | [4HW(DW12TED4)] | 07.2002- |
| CITROEN | Evasion 2.0 HDi | [RHZ(DW10ATED)] | 08.1999-07.2002 |
| CITROEN | Jumper 2.0 HDi | [RHV(DW10TD)] | 04.2002- |
| CITROEN | Jumper 2.0 HDi | [RHV(DW10UTD)] | 04.2002- |
| CITROEN | Jumper 2.0 HDi | [RHV(DW10UTD)] | 11.2001-04.2002 |
| CITROEN | Jumper 2.2 HDi | [4HY(DW12UTED)] | 04.2002- |
| CITROEN | Jumpy 2.0 | [RFN(EW10J4)] | 04.2000-12.2006 |
| CITROEN | Jumpy 2.0 HDi | [RHW(DW10ATED4)] | 01.2002- |
| CITROEN | Jumpy 2.0 HDi | [RHW(DW10ATED4)] | 03.2000- |
| CITROEN | Jumpy 2.0 HDi | [RHW(DW10ATED4)] | 12.2003-10.2006 |
| CITROEN | Jumpy 2.0 HDi | [RHX(DW10BTED)] | 10.1999- |
| CITROEN | Jumpy 2.0 HDi | [RHZ(DW10ATED)] | 01.2002- |
| CITROEN | Jumpy 2.0 HDi | [RHZ(DW10ATED)] | 03.2000- |
| CITROEN | Jumpy 2.0 i 16V | [RFN(EW10J4)] | 03.2000- |
| CITROEN | Xsara 2.0 HDi | [RHY(DW10TD)] | 02.1999-03.2005 |
| CITROEN | Xsara 2.0 HDi | [RHY(DW10TD)] | 02.1999-08.2005 |
| FIAT | Ducato 2.0 JTD | [RHV(DW10)] | 10.2001-04.2002 |
| FIAT | Ulysse 2.0 | [RFN(EW10J4)] | 08.2002- |
| FIAT | Ulysse 2.0 JTD | [RHW(DW10ATED4)] | 08.2002- |
| FIAT | Ulysse 2.2 JTD | [4HW(DW12ATED4)] | 08.2002- |
| LANCIA | Phedra 2.0 JTD | [RHM(DW10ATED4)] | 07.2003- |
| LANCIA | Phedra 2.0 JTD | [RHW(DW10ATED4)] | 09.2002- |
| LANCIA | Phedra 2.2 JTD | [4HW(DW12ATED4)] | 09.2002- |
| PEUGEOT | 307 1.6 HDi FAP | [9HY(DV6TED4)] | 02.2004- |
| PEUGEOT | 307 1.6 HDi FAP | [9HZ(DV6TED4)] | 02.2004- |
| PEUGEOT | 307 2.0 HDi | [RHS(DW10ATED4)] | 03.2002- |
| PEUGEOT | 307 2.0 HDi | [RHS(DW10ATED4)] | 08.2000- |
| PEUGEOT | 307 2.0 HDi | [RHY(DW10TD)] | 03.2002- |
| PEUGEOT | 307 2.0 HDi | [RHY(DW10TD)] | 08.2000- |
| PEUGEOT | 307 2.0 HDi FAP | [RHR(DW10BTED4)] | 10.2003- |
| PEUGEOT | 307 2.0 HDi FAP | [RHS(DW10ATED4)] | 03.2002- |
| PEUGEOT | 406 2.0 16V | [RFR(DEW10J4)] | 01.1999-08.2000 |
| PEUGEOT | 406 2.0 16V | [RFR(DEW10J4)] | 01.1999-10.2000 |
| PEUGEOT | 406 2.0 HDi | [RHY(DW10TD)] | 02.1999-05.2004 |
| PEUGEOT | 406 2.0 HDi | [RHY(DW10TD)] | 02.1999-10.2004 |
| PEUGEOT | 406 2.0 HDi | [RHZ(DW10ATED)] | 02.1999-04.2004 |
| PEUGEOT | 406 2.0 HDi | [RHZ(DW10ATED)] | 06.1998-08.2001 |
| PEUGEOT | 406 2.0 HDi FAP | [RHS(DW10ATED)] | 08.2001-05.2004 |
| PEUGEOT | 406 2.0 HDi FAP | [RHS(DW10ATED4)] | 08.2001-10.2004 |
| PEUGEOT | 406 2.2 HDi | [4HX(DW12TED4/FAP)] | 03.2000-05.2004 |
| PEUGEOT | 406 2.2 HDi | [4HX(DW12TED4/FAP)] | 03.2000-10.2004 |
| PEUGEOT | 406 2.2 HDi | [4HX(DW12TED4/FAP)] | 03.2000-12.2004 |
| PEUGEOT | 607 2.0 HDi | [RHZ(DW10ATED)] | 05.2000- |
| PEUGEOT | 607 2.2 HDi | [4HX(DW12TED4/FAP)] | 02.2000- |
| PEUGEOT | 806 2.0 HDi | [RHZ(DW10ATED)] | 08.1999-08.2002 |
| PEUGEOT | 806 2.0 HDi 16V | [RHW(DW10ATED4)] | 08.1999-08.2002 |
| PEUGEOT | 807 2.0 HDi | [RHM(DW10ATED4)] | 06.2002- |
| PEUGEOT | 807 2.2 HDi FAP | [4HX(DW12TED4/FAP)] | 06.2002- |
| PEUGEOT | Boxer 2.0 HDi | [RHV(DW10TD)] | 04.2002- |
| PEUGEOT | Boxer 2.0 HDi | [RHV(DW10TD)] | 08.2001-04.2002 |
| PEUGEOT | Boxer 2.0 HDi | [RHV(DW10UTD)] | 04.2002- |
| PEUGEOT | Expert 2.0 HDi | [RHW(DW10ATED4)] | 07.2000- |
| PEUGEOT | Expert 2.0 HDi | [RHX(DW10BTED)] | 07.2000- |
| PEUGEOT | Expert 2.0 HDi | [RHZ(DW10ATED)] | 07.2000- |
| PEUGEOT | Expert 2.0 HDi | [RHZ(DW10BTED)] | 07.2000- |
| PEUGEOT | Expert 2.0 HDi | [RHZ(DW10CTED)] | 07.2000- |
| PEUGEOT | Expert 2.0 HDI | 10.2000-10.2006 | |
| SUZUKI | Grand Vitara 2.0 HDi | [RHW] | 07.2001-09.2005 |
Reference Information
2015232.0 STX100091 2015232.1 ALTL207V 31400-68D02 5705AA 12044400 9610878780 31400-68D00 3140068D00000 2541251 DA4933 RNL2542564 SG15S018 1178 AI-90083 ALTL207 STX100073R 225.527.150.505 K9645907680 LRB00452 9090144 225.527.150.501 20179232OE 225.527.150.500 130722 9640878780 TG15C116 32437210 2542351 ALV1553 AX 71723429 96408787 CAL15232AS SG15S022 21791N 2015232 746000 31400-68D02-000 AAN5322 20130123 CA1553IR RNL2542564INA 2542564 225.527.150.395 746800 8EL011710-492 8EL011710-491 2542564A 439294 2542500A 5705CL 301553RIV ALTL207NE K9645907580 301509RI AEA4252 ALB1553 CAL15232GS 9641302580 114798 8EL737791-001 2542684A AG0551 A14VI35 3140068D01 MAR5730 TG15C060 PRAL207 MQA1553 DRA3823X 8EL011360-081 ANM36043X A14VI41 A12VA0076A2 96413025 LRB452 57054S 441700 96362541 0124615027 301553RIK DRA3823 5705ER 301553RIR 437210 9655531380 ALT00185 STX102192 2541251B MRA90144 89212148 PRAL207V 28-3837 301509RIV 2542351A 9636060780 2542351B ALT172320 2545200A 20179232BN 9636254180 K9467560380 310888 K9640878780 0986044400 GA439294-A 4017 5702A1 5702A0 301553RI 9645907680 ALT14135 3140068D02LCP 31400-68D02-LCP A14VI35_INDB ALZ421 002-Z421 9467560380 440241 ALT0485 439655 210243 STX100073 2Z421 STX100091R 225.527.150.009 063731553010 ALT815CP AAN5533 A12BH0076A2 225.527.150.001 RAA14934 225.527.150.000 56800 9645907580 71723407 20179232 5705A1 112461 944390901440 943355230010Video/Publications
