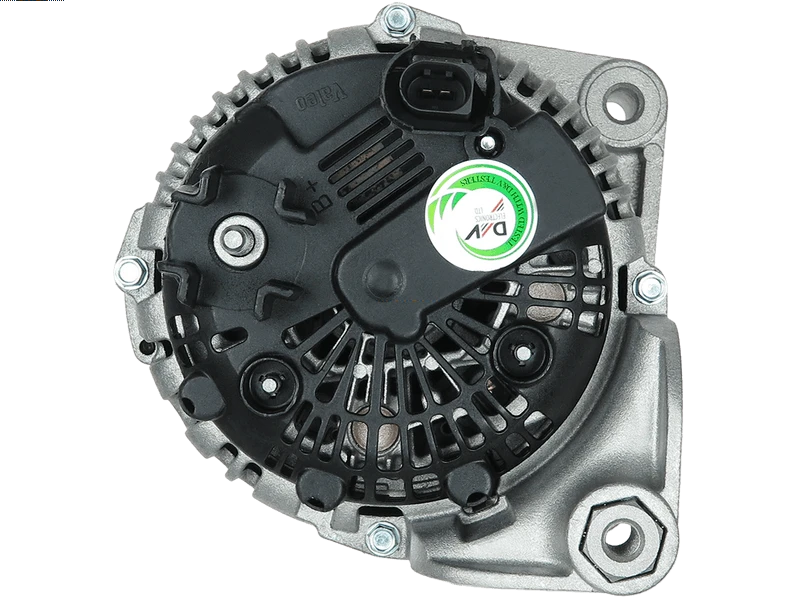

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 603.95 including GST
NZ$ 525.17 excluding GST
or four payments of $150.99
with
Learn More
each
A3098PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 170 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | M10x1.5 mm |
| Diameter (D.3) | 10 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75.5 mm |
| OEM Product | No |
| Plug Code | PL_2303 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53.5 mm |
| Pulley to Mount Distance (A) | 60.5 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 520 2.0 D | (E60)[M47D20(204D4)] | 02.2005-02.2008 |
| BMW | 520 2.0 D | (E60)[N47D20A] | 04.2006-12.2009 |
| BMW | 520 2.0 D | (E60)[N47D20C] | 04.2006-12.2009 |
| BMW | 520 2.0 D | (E61)[M47D20(204D4)] | 04.2005-02.2008 |
| BMW | 520 2.0 D | (E61)[N47D20A] | 03.2007-05.2010 |
| BMW | 520 2.0 D | (E61)[N47D20C] | 03.2007-05.2010 |
| BMW | 525 2.5 D | (E60)[M57D25(256D1)] | 12.2004-03.2010 |
| BMW | 525 2.5 D | (E60)[M57D25(256D2)] | 06.2004-03.2010 |
| BMW | 525 2.5 D | (E61)[M57D25(256D2)] | 03.2004-03.2007 |
| BMW | 525 3.0 D | (E60)[M57D30(306D3)] | 01.2007-03.2010 |
| BMW | 525 3.0 D | (E61)[M57D30(306D3)] | 03.2007-05.2010 |
| BMW | 525 3.0 D xDrive | (E60)[M57D30(306D3)] | 09.2007-12.2009 |
| BMW | 525 3.0 D xDrive | (E61)[M57D30(306D3)] | 09.2008-05.2010 |
| BMW | 525 3.0 Xd | (E60)[M57D30(306D3)] | 11.2006-08.2007 |
| BMW | 525 3.0 Xd | (E61)[M57D30(306D3)] | 09.2007-09.2008 |
| BMW | 530 3.0 D | (E60)[M57D30(306D2)] | 09.2002-09.2005 |
| BMW | 530 3.0 D | (E60)[M57D30(306D2)] | 09.2002-12.2009 |
| BMW | 530 3.0 D | (E60)[M57D30(306D3)] | 02.2007-12.2009 |
| BMW | 530 3.0 D | (E60)[M57D30(306D3)] | 04.2005-02.2007 |
| BMW | 530 3.0 D | (E60)[M57D30(306D3)] | 09.2002-12.2009 |
| BMW | 530 3.0 D | (E61)[M57D30(306D2)] | 03.2004-09.2005 |
| BMW | 530 3.0 D | (E61)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 530 3.0 D | (E61)[M57D30(306D3)] | 02.2007-05.2010 |
| BMW | 530 3.0 D xDrive | (E60)[M57D30(306D3)] | 09.2007-12.2009 |
| BMW | 530 3.0 D xDrive | (E61)[M57D30(306D3)] | 09.2007-05.2010 |
| BMW | 530 3.0 Xd | (E60)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 530 3.0 Xd | (E60)[M57D30(306D3)] | 03.2007-08.2007 |
| BMW | 530 3.0 Xd | (E61)[M57D30(306D3)] | 01.2007-08.2007 |
| BMW | 530 3.0 Xd | (E61)[M57D30(306D3)] | 02.2005-02.2007 |
| BMW | 535 3.0 D | (E60)[M57D30(306D4)] | 09.2004-03.2010 |
| BMW | 535 3.0 D | (E60)[M57D30(306D5)] | 01.2007-03.2010 |
| BMW | 535 3.0 D | (E61)[M57D30(306D4)] | 09.2004-12.2010 |
| BMW | 535 3.0 D | (E61)[M57D30(306D5)] | 01.2007-12.2010 |
| BMW | 635 3.0 D | (E63)[M57D30(306D5)] | 07.2007-07.2010 |
| BMW | 635 3.0 D | (E64)[M57D30(306D5)] | 07.2007-07.2010 |
| BMW | 730 3.0 D | (E65)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E65)[M57D30(306D2)] | 10.2002-07.2008 |
| BMW | 730 3.0 D | (E65)[M57D30(306D3)] | 10.2002-07.2008 |
| BMW | 730 3.0 D | (E66)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E66)[M57D30(306D2)] | 10.2002-07.2008 |
| BMW | 730 3.0 D | (E66)[M57D30(306D3)] | 10.2002-07.2008 |
| BMW | 730 3.0 D | (E67)[M57D30(306D2)] | 06.2002-02.2005 |
| BMW | 730 3.0 D | (E67)[M57D30(306D2)] | 10.2002-07.2008 |
| BMW | 730 3.0 D | (E67)[M57D30(306D3)] | 10.2002-07.2008 |
| BMW | 730 3.0 Ld | (E65)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | 730 3.0 Ld | (E66)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | 730 3.0 Ld | (E67)[M57D30(306D3)] | 07.2005-08.2008 |
| BMW | M5 5.0 | (E61)[S85B50A] | 02.2007-12.2010 |
| BMW | M6 5.0 | (E63)[S85B50A] | 09.2005-07.2010 |
Reference Information
CGB-84812 12317802929 NPANAL1009 113896 TG17C010 TG17C011 12317789981 12317789984 746935 ALT1034 PRAL417 439559 301905RI 12317788821 A12VA0033AS VAL439559 57076 RAA11249 AI-90259 12317797522 8517261 20179962BN AAL1009 12317792072 STX100267 215.536.170.280 7799204 AEK2319 12317797521 439604 STX102212 A-9506 301905RIV 437556 8EL011710-891 MRA90363 ALT14163 2543304 2542611 TG17C048 DRA0138X 746135 943319051010 2542613 MAR90363 311114 ALT00575 7802929 ALTL417 LRA02319 215.536.170.004 7834160 0986080350 0986080351 063731905010 2543305C 2543305B 12317834160 8EL738211-681 437450 944390903630 2542611A 2542611B CAL15269AS 7792072AI01 89213598 12317836592 2015269.1 STA0486R 4782 2015269.2 DRA0138 2015269.0 20179962OE CAL15269RS VAL439485 GA439485-A 7789981AI03 943390903630 215.536.170.000 ALV1905 CAL15269GS A12VA0033A2 215.536.170.500 210495 215.536.170.502 TG17C010B 215.536.170.505 CA1905IR 20179962RC 28-4812 DA1248 LRA2319 2542613C 116158 STX100267R 0125812227 90-22-5619 AG0631 32080350 440107 442094 ALT0019 2543304A 23319N 7789981 439485 7789984 0986CR6288 7797521 7792072 7797522 12317799204 12318517261Video/Publications
