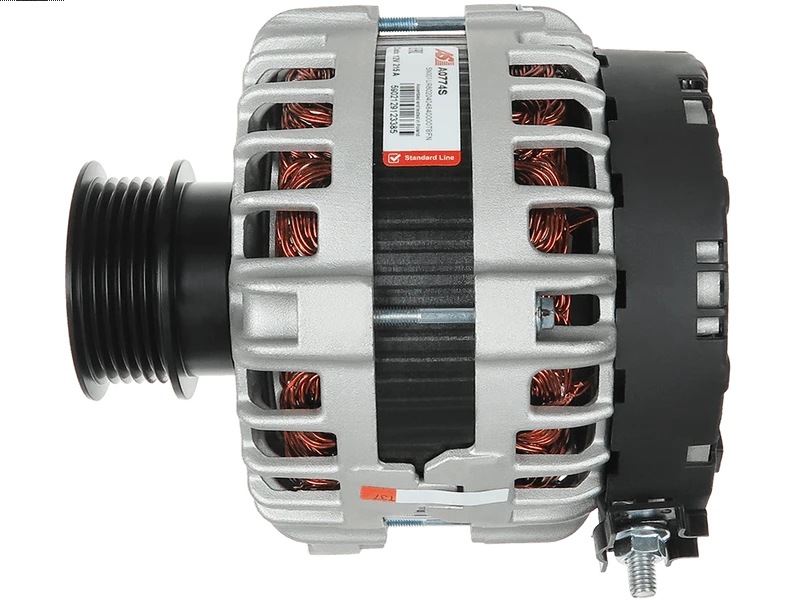

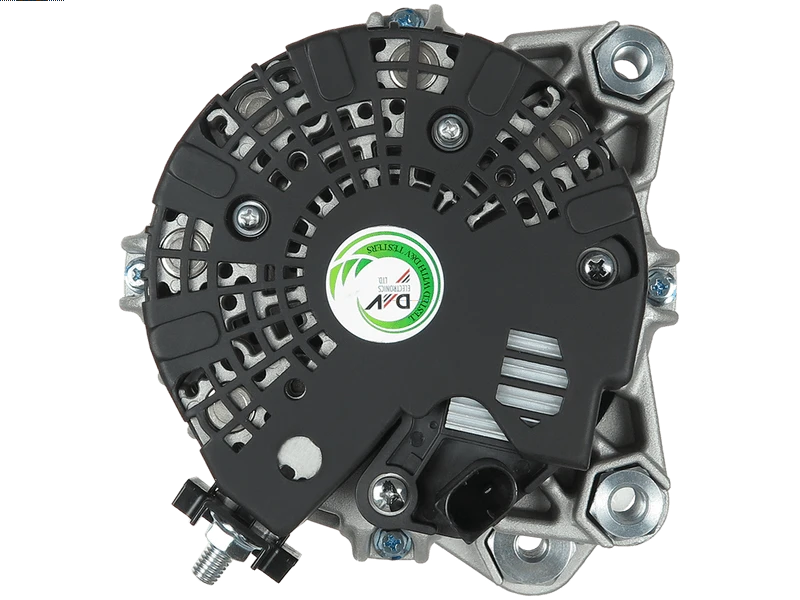

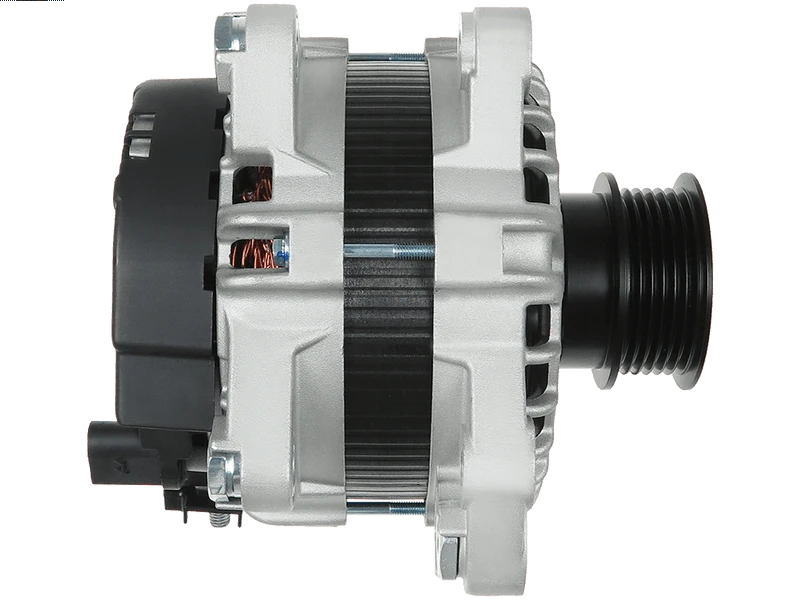

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 783.30 including GST
NZ$ 681.13 excluding GST
or four payments of $195.83
with
Learn More
each
AGB-C6036
A0774S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0125812009Specifications
| Amp | 215 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47.5 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 56 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | S80 2.0 D4 | [D4204T5] | 09.2013- |
| VOLVO | S80 2.0 T5 | [B4204T11] | 09.2013- |
| VOLVO | V40 2.0 D2 | [D4204T13] | 02.2015- |
| VOLVO | V40 2.0 D2 | [D4204T8] | 02.2015- |
| VOLVO | V40 2.0 D4 | [D4204T14] | 05.2014- |
| VOLVO | V40 2.0 T2 | [B4204T17] | 02.2015- |
| VOLVO | V40 2.0 T2 | [B4204T38] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T33] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T37] | 02.2015- |
| VOLVO | V40 2.0 T4 AWD | [B4204T21] | 05.2014- |
| VOLVO | V40 2.0 T5 | [B4204T11] | 05.2014- |
| VOLVO | V40 2.0 T5 AWD | [B4204T11] | 05.2014- |
| VOLVO | V60 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V60 2.0 D2 | [D4204T8] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T4] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | V60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | V60 2.0 D5 | [D4204T11] | 03.2015- |
| VOLVO | V60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | V60 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | V60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | V70 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V70 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | V70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | V70 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V70 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC60 2.0 D3 | [D4204T4] | 03.2015-04.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T14] | 03.2015-02.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | XC60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | XC70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | XC70 2.0 T5 | [B4204T11] | 10.2013- |
Reference Information
0125812012 20101985BN 0125812009RJ 21066N 12090907 CAL10589AS 8EL011713-771 20101985OE 0125812009 12201405 116290 F032116290 36002812 BOS0125812012 20010589AV SEG0125812009 ALT125890A 554675RI 2381652152 PRAE831 AL03389 A0774S 50634517 36010604 5510575G 115351 LRA3817 10445129 A12BH0442AS DA2469 554675RIB H5510575G 30659580 G100901 CAL10589GS UD20671A 4354 ALB2199 20010589OV ALT1739 0986083927 5510575 G106600 0986083920 815.543.215.010 ABO589A 32118814 ALT125890 ALTE831 LRA03817 815.543.215.014 CGB-86927 4848006 21066-OS 2010589.1 RNL812009 A-6708 2010589.0 444310 WOOALT10889 G101185 1986A01056 A12BH0442 28-6927 815.543.215.280 360028120 ALT10889 DRA1359 209687A 57618Video/Publications
