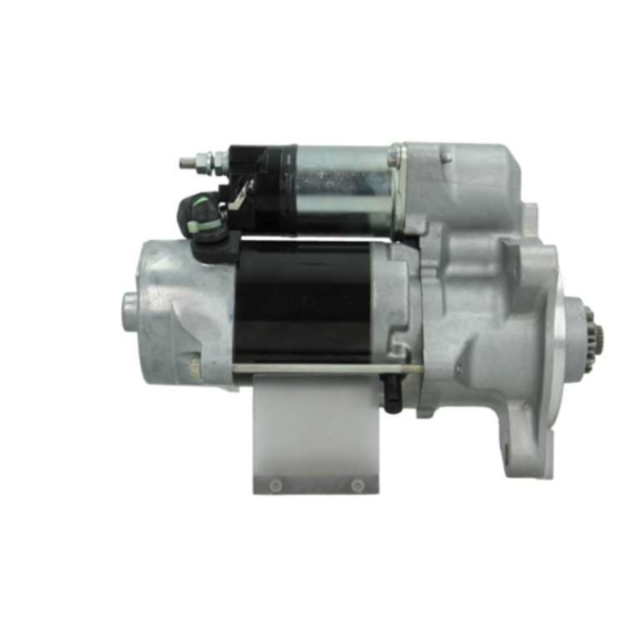

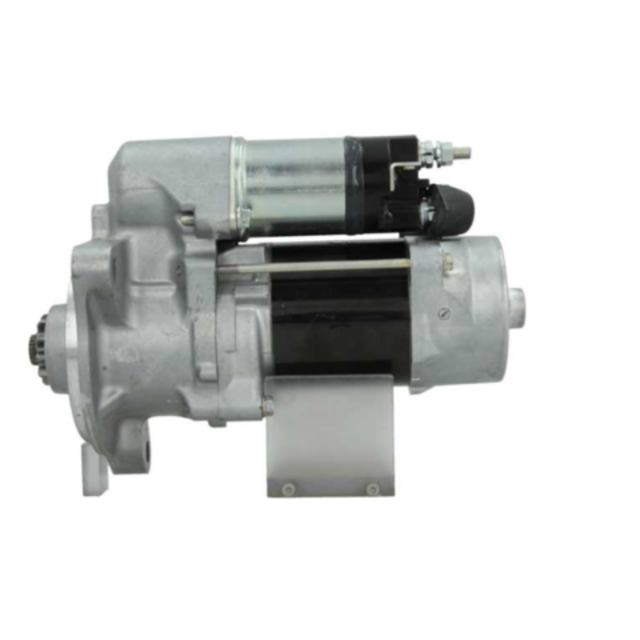

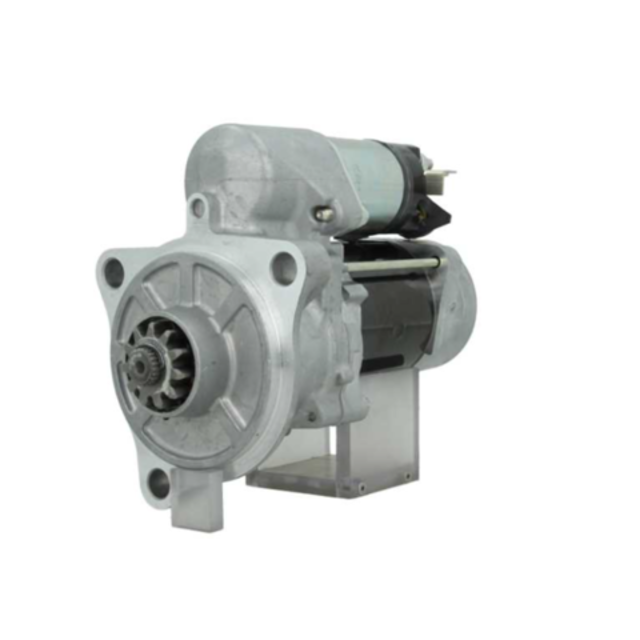

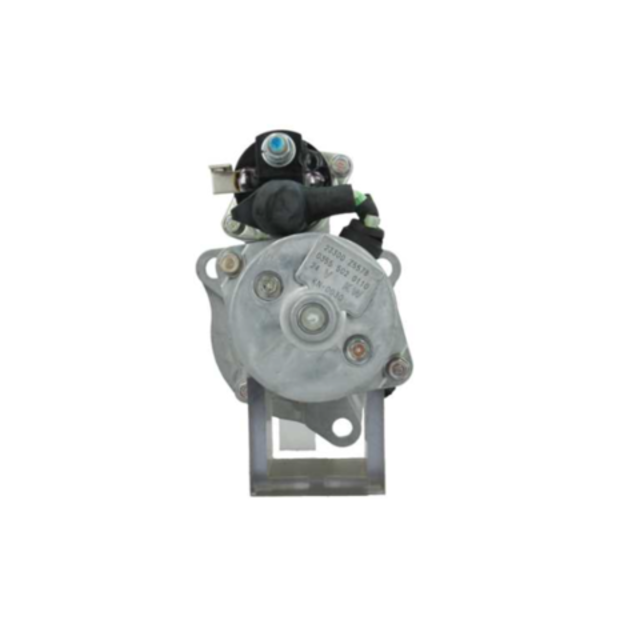

Brand new SAWAFUJI Starter motor
PREMIUM LINE
SAWAFUJI
Sawafuji
Price:
NZ$ 793.50 including GST
NZ$ 690.00 excluding GST
or four payments of $198.38
with
Learn More
each
S2058
S9146(SAWAFUJI)
1
Associated Numbers
0355-502-0110 161.512.113 201087 23300-25512 23300-25578 23300-90060 23300-90064 23300-95018 23300-Z5504 23300-Z5505 23300-Z5505EP 23300-Z5509 23300-Z5511 23300-Z5512 23300-Z5515 23300-Z5562 23300-Z5572 23300-Z5578 S25-110 S25-110C S25-110G S25-110K S25-162 S25-164 S25-164A ST39004 UD02175S ASPL S25110 HITACHI S25110C S25110G HITACHIList S25110K S25162 S25164 S25164A 2330025512 NISSAN 2330025578 2330090060 2330090064 2330095018 23300Z5504 23300Z5505 23300Z5505EP 23300Z5509 23300Z5511 23300Z5512 23300Z5515 NISSANList 23300Z5562 23300Z5572 23300Z5578 PSH 03555020110 SAWAFUJI UD11154S CST20601AS CASCO CST20601GS 24025201 DIXIE S8623 S25110F S25164AND 23300Z5515ND 161.514.113 20445106BN REAL 6020601 SANDO 03505020130 03505020131 SAWAFUJIList 18059N WAI / TRANSPO 91251161 WILSON 7035211 sxs9812 snj415 snj591GQ 03505020031 Sawafuji 03505020132 03505020321 110616 Cargo 161514113 18059R 21778HI 22037HI Nissan 451330 Valeo 91251087 Wilson 91251161N DRS3364 Remy JS1087 HC JS904 LRS01861 Lucas Hitachi S25142B STR3052sa Electrolog STR3092NDsa STR3092sa STR9852sa 11040151 EuroTec 161507113 4527SP Spidan A77670 ATL HJS1087 S2564 S2564E STR9870NDsa 161.507.113 16-667 16042Specifications
REPLACES HITACHI VERSION WITH NOSE CONE AND THE DENSO OSGR TYPE
| Kilowatt | 4.5 kW |
| Length (L.1) | 280 mm |
| Mount Hole Center - Center (O.1) | 135 mm |
| Mount Hole Center - Center (O.2) | 109 mm |
| Mount Hole Center - Center (O.3) | 111 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| On Sale Item | Yes |
| Pinion at Rest (B) | 33 mm |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
250032, NISSAN, Cabstar 5.7 D, , -1.1985, ,250032, NISSAN, UD50, , , ,250032, NISSAN, UD60, , , ,250032, NISSAN, UD70, , , ,250032, NISSAN, UD80, , , ,250032, NISSAN, UD85, , , ,250032, NISSAN, UD90, , , ,250032, NISSAN, UD95, , ,Alternatives >>>
S2058 - Hitachi version with nose cone - will interchange directly
