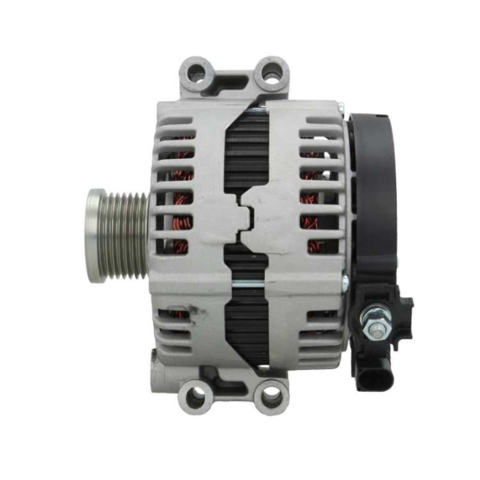

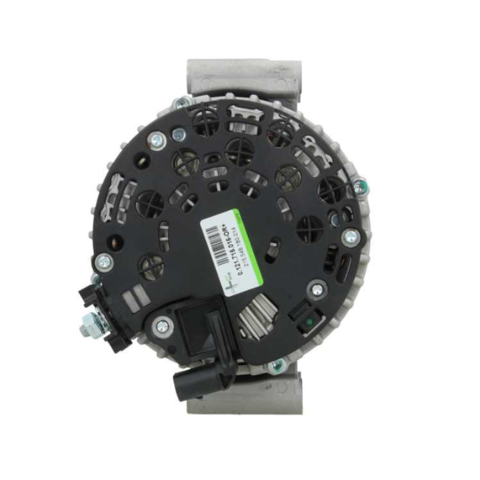

AAM-C7004 - Brand new +Plus Line Pro Alternator

Associated Numbers

UD12543A ASPL AEK3107 AUTOELECTRO 12317557789 BMW 12317558219 12317558220 0121715016 BOSCH List 0121715116 0986048830 0986048837 115804 CARGO CAL10445 CASCO 9397 CEVAM 12892 DELCO DRA0165 A6557 DIXIE 57310 EAI 285719 ELSTOCK ALB3016 KRAUF ALB4016 LRA03107 LUCAS 89214974 POWERMAX 215.548.180 PSH 11302N WAI / TRANSPO 90156579 WILSON ALT10724 WOODAUTO 11302 215548180 2205484 9090690F 930165 ALT1289sa KTR431096360 J N 40024301 Arrowhead ABO0394 VBO0394 Beck Arnley 1861342 1861469 7557789 7558219 Bosch 4883 AL0850X Lester Lucas LRA3107 PIC Picture ID Remy Light Duty Youtech/PartRef 325405 Wilson amp 40024216 bxa020 651778 20101544BN 20101544OE 2010445 28-5719 553562RI 90-15-6579 A-6557 CAL10445AS CAL10445ES CAL10445GS CAL10445OS CAL10445RS show ruil 113050 Farcom Cargo 12090375 EuroTec Sando 2151811802 DRI Elstock 32048837 Herth Buss 440956 Valeo 59214974 MD Rebuilt 9090690 QH Friesen EDR Dixie (USA) Electrolog L48830 ATL L611784 BTS Turbo RNL4883 RNL RNL715116 ARROWHEAD 12-31-7-557-789 12-31-7-558-219 12-31-7-558-220 7558220 0-121-715-016 0-121-715-116 Newman AL0850N Reman Service Europe 0-986-048-830 0-986-048-837 IAT 170-11302 (Europe) NAPA 213-8394 220-5484 SEG Automotive 0121.715.116 BBB Industries Electric Ltd HC Industry J& 400-24216 400-24301 MPA 65-1778 PPR BOA327 Romaine TYC 2-11302 Voltux V2-11302 ELECTRICAL PRODUCTS LESTER ELECTRIC 121715016 121715116 011388 Da Silva 0121715016SEL +line Exchange 10444489 Alanko 11302R 12201295 AES 442357 Logistik 444489 DAS PowerMax A0459 AS-PL A132017 Short code A146726 A148449 AA6558 Auto Charge ABE1574 Everkraft Electro AL02756 TMI Wood BOS0121715116 Casco CGB85719 Ainde DS011388 IR6001 Protech KTR SEG0121715116 WOOALT10724

Specifications

Fitted with OEM Regulator and INA Clutch Pulley (if fitted)

Amp	180 A
Diameter (D.1)	9 mm
Diameter (D.2)	9 mm
Diameter (D.3)	11 mm
Diameter (D.4)	11 mm
Length (L.1)	173 mm
Mount Inside Length or Pad Mount C-C (C)	41 mm
OEM Product	No
Pad mount thickness (E.1)	63 mm
Pad mount thickness (E.2)	63 mm
Plug Code	PL_2303
Product Line	Plus Line Pro
Product Type	Brand New
Pulley Grooves	7 qty
Pulley Outside Diameter (O.D.1)	49 mm
Pulley to Mount Distance (A)	32 mm
Pulley Type	CLUTCH
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	135 3.0 i	(E88)[N55B30A]	03.2008-
BMW	335 3.0 i xDrive	(E90)[N54B30A]	09.2008-12.2011
BMW	335 3.0 i xDrive	(E90)[N55B30A]	09.2008-12.2011
BMW	335 3.0 i xDrive	(E91)[N55B30A]	09.2008-
BMW	335 3.0 i xDrive	(E92)[N54B30A]	09.2008-
BMW	335 3.0 i xDrive	(E92)[N55B30A]	09.2008-
BMW	335 3.0 Xi	(E90)[N54B30A]	09.2007-12.2011
BMW	335 3.0 Xi	(E90)[N55B30A]	09.2007-12.2011
BMW	335 3.0 Xi	(E91)[N54B30A]	03.2007-
BMW	335 3.0 Xi	(E92)[N54B30A]	03.2007-02.2010
BMW	335 3.0 Xi	(E92)[N55B30A]	09.2006-
BMW	M1 3.0	(E82)[N54B30A]	04.2011-06.2012

Reference Information

011388	Da Silva
0121715016	Bosch
0121715016SEL	+line
0121715116	Bosch
0986048830	Bosch Exchange
0986048837	Bosch Exchange
10444489	Alanko
11302	Lester
11302N	WAI
11302R	WAI
113050	Farcom
115804	Cargo
12090375	EuroTec
12201295	AES
12317557789	BMW
12317558219	BMW
12317558220	BMW
2010445	Sando
2151811802	DRI
215548180	PSH
2205484	PIC
285719	Elstock
32048837	Herth Buss
440956	Valeo
442357	Logistik
444489	Alanko
553562RI	DAS
57310	EAI
59214974	MD Rebuilt
7557789	BMW
7558219	BMW
89214974	PowerMax
90156579	Wilson
9090690	Friesen
9090690	QH
9090690F	Friesen
930165	EDR
9397	CEVAM
A0459	AS-PL
A132017	Short code
A146726	Short code
A148449	Short code
A6557	Dixie
AA6558	Auto Charge
ABE1574	Everkraft
AEK3107	Auto Electro
AL02756	TMI
AL0850X	Bosch (USA)
ALT10724	Wood Auto
ALT1289sa	Electrolog
BOS0121715116	Wood Auto
CAL10445	Casco
CGB85719	Ainde
DRA0165	Remy
DS011388	Da Silva
IR6001	Protech
KTR431096360	KTR
L48830	ATL
L611784	BTS Turbo
LRA03107	Lucas
LRA3107	Lucas
RNL4883	RNL
RNL715116	RNL
SEG0121715116	Wood Auto
WOOALT10724	Wood Auto
